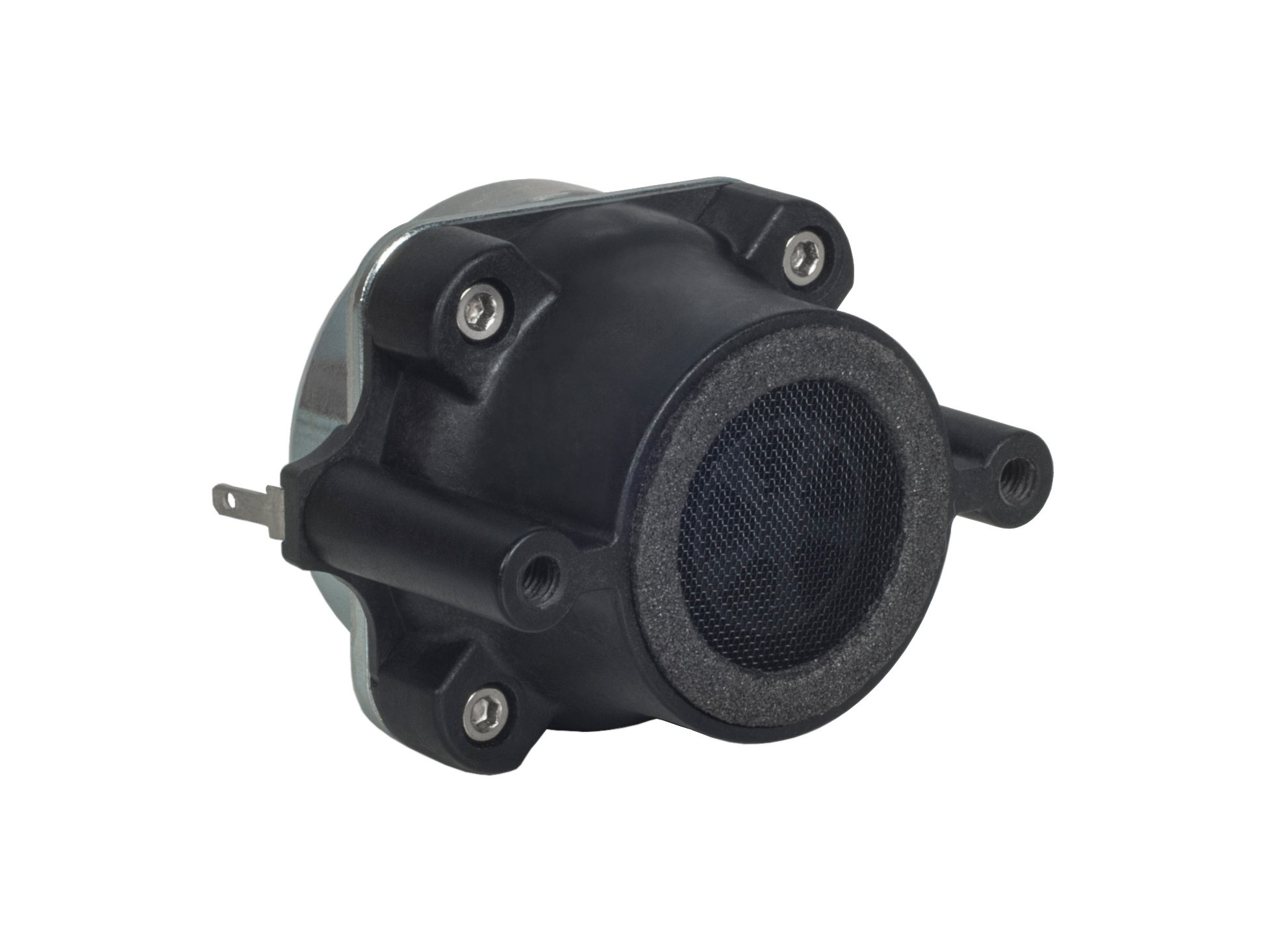

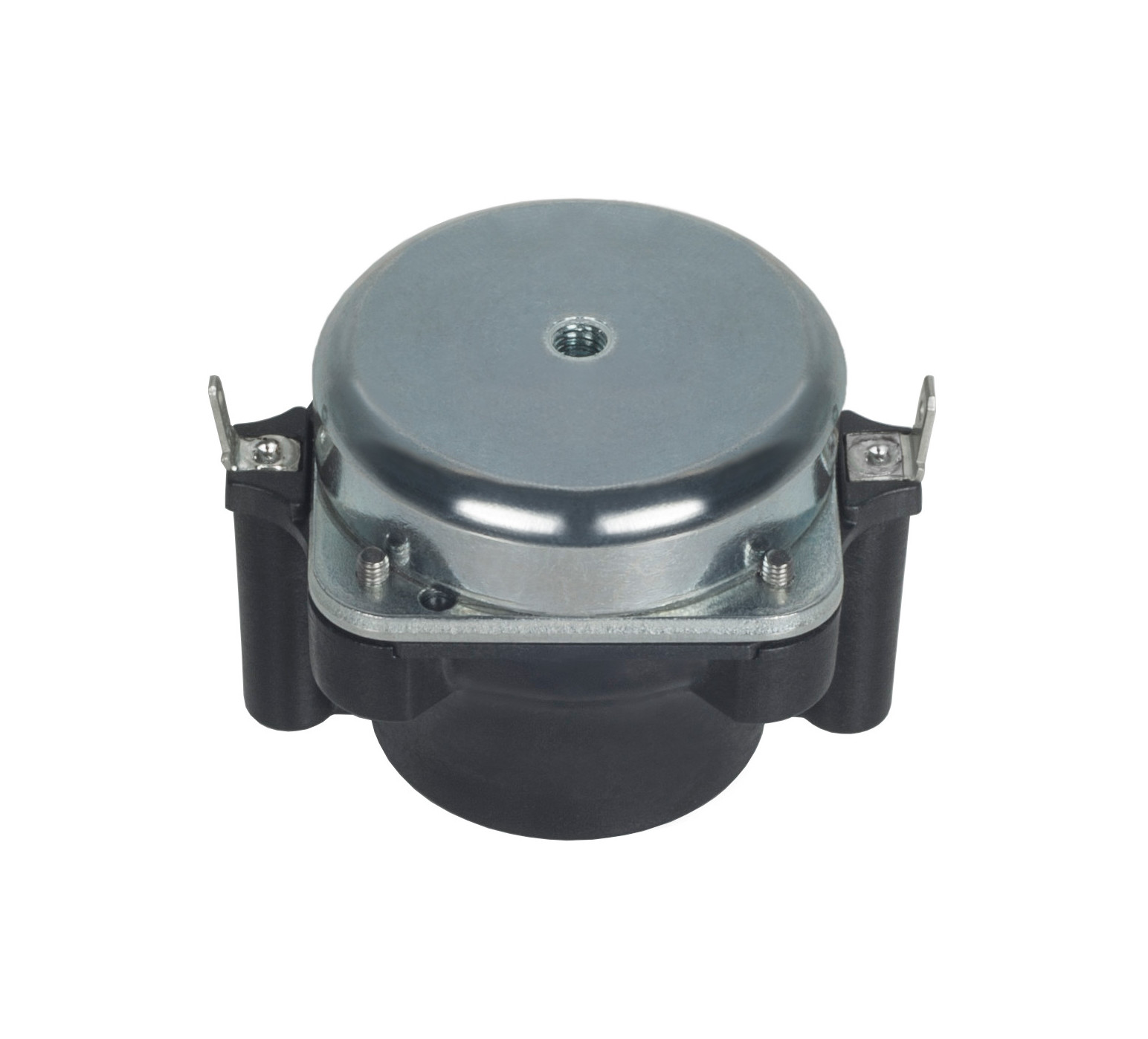

DH350 8/ohm

B&C is renowned for its performance and ability to push the boundaries of traditional compression driver designs. The HLX™ technology represents the efficiency of a compression driver in a compact form factor. The HLX™ phase plug (US Patent #12149906) features a central channel spiraled into a DNA helix shape, providing the necessary length for phase alignment with the outer channels. This technique leverages standard, cost-effective plastic injection molding tools, where the inner mold rotates along the screw profile. The resulting convex dome design offers significant cost and performance advantages.

Features:
• Ultra-compact diameter of 48 mm
• 30 W program power handling
• 1" exit diameter
• 36mm (1.4") aluminum voice coil
• HT polymer diaphragm
• Frequency range of 1,000 - 17,000 Hz
• Sensitivity of 108 dB
