RCF EVOX 12

• compact and portable sound system
• active
• ultra-compact wideband speaker: 8 x 4“ (1” coil)
• subwoofer: 15“ (3” coil)
• power: 1400 W (PEAK) / 700 W (RMS)
• max SPL: 130 dB
• frequency range: 40 - 20,000 Hz
• coverage angle: 90° x 30°
• innovative DSP processing
• dimensions: 2220 x 410 x 560 (mm)
• weight: 34.8 kg

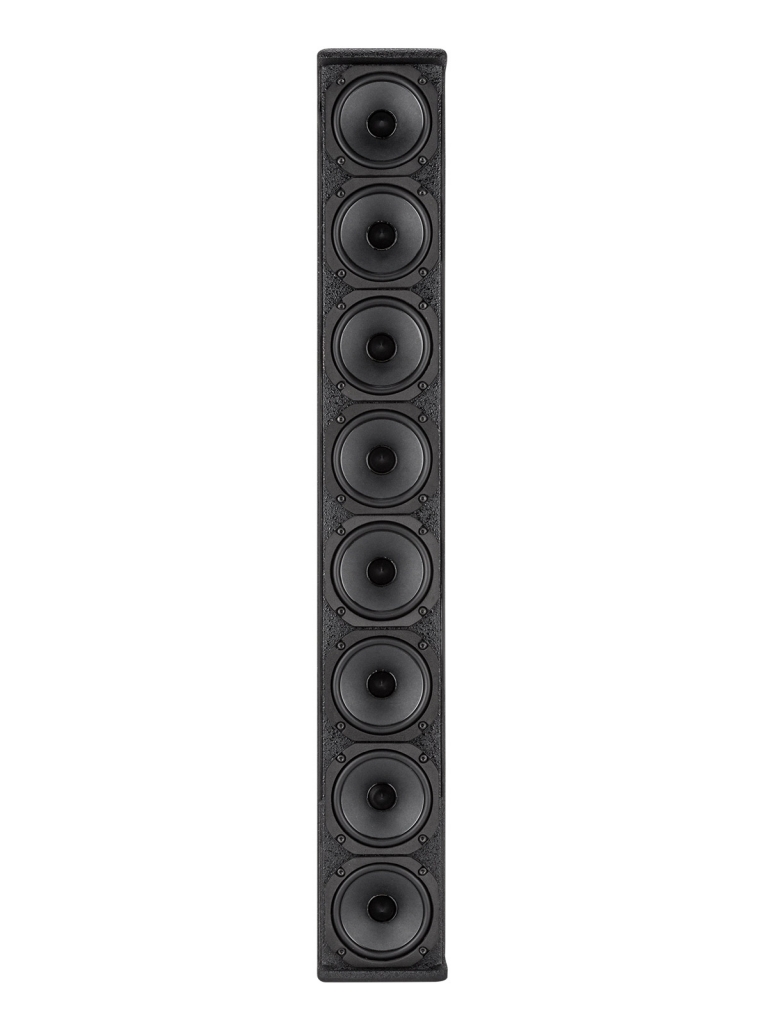

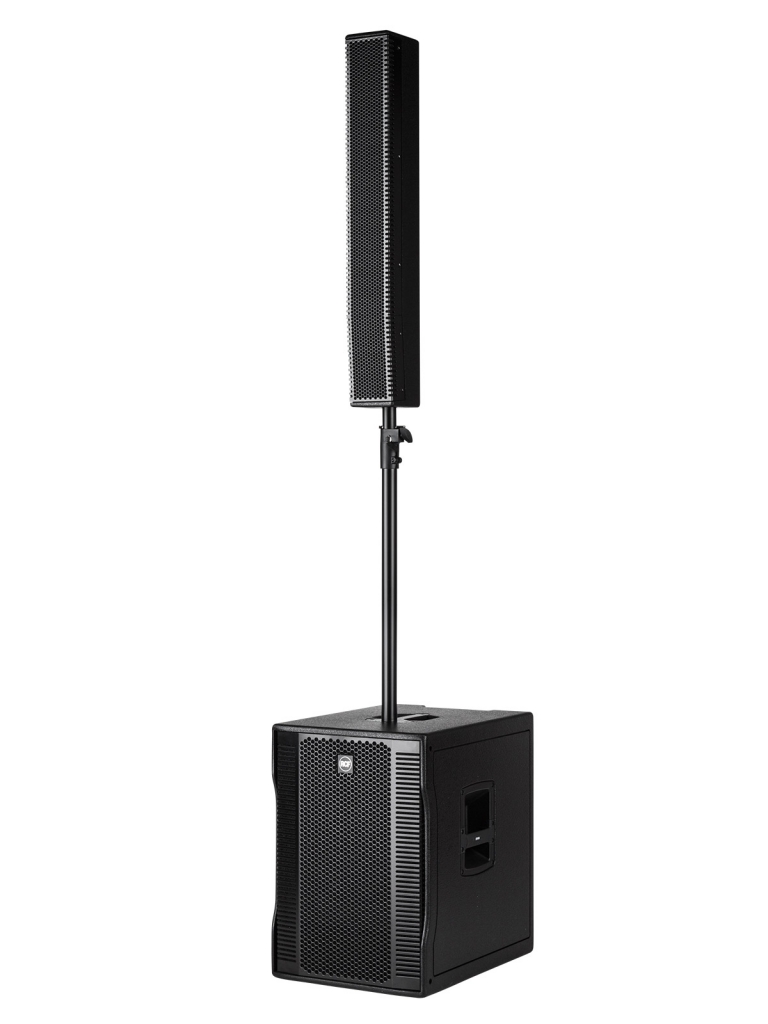

EVOX 12 is a compact and portable sound system combining the quality of RCF speakers with high-performance amplifiers. The system includes eight 4” full-range speakers in the satellite and a powerful 15” woofer in a bass reflex enclosure. The unique quality of vocal delivery makes the EVOX 12 an ideal tool for corporate events and conferences, but the EVOX 12 system can also be used for live sound reinforcement and as a compact setup for DJs.
EVOX systems are powered by high-performance Class D amplifiers. Each system includes a two-channel amplifier with DSP. Thanks to precise DSP tuning, a 6dB higher output can be achieved compared to traditional systems with passive crossovers.

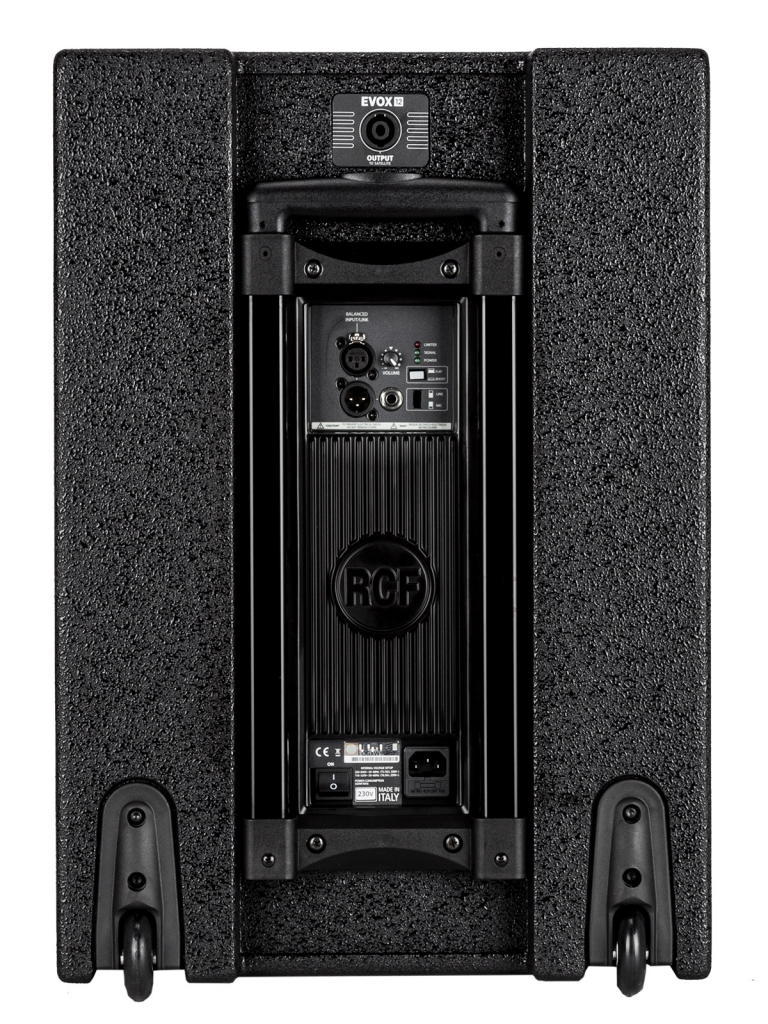

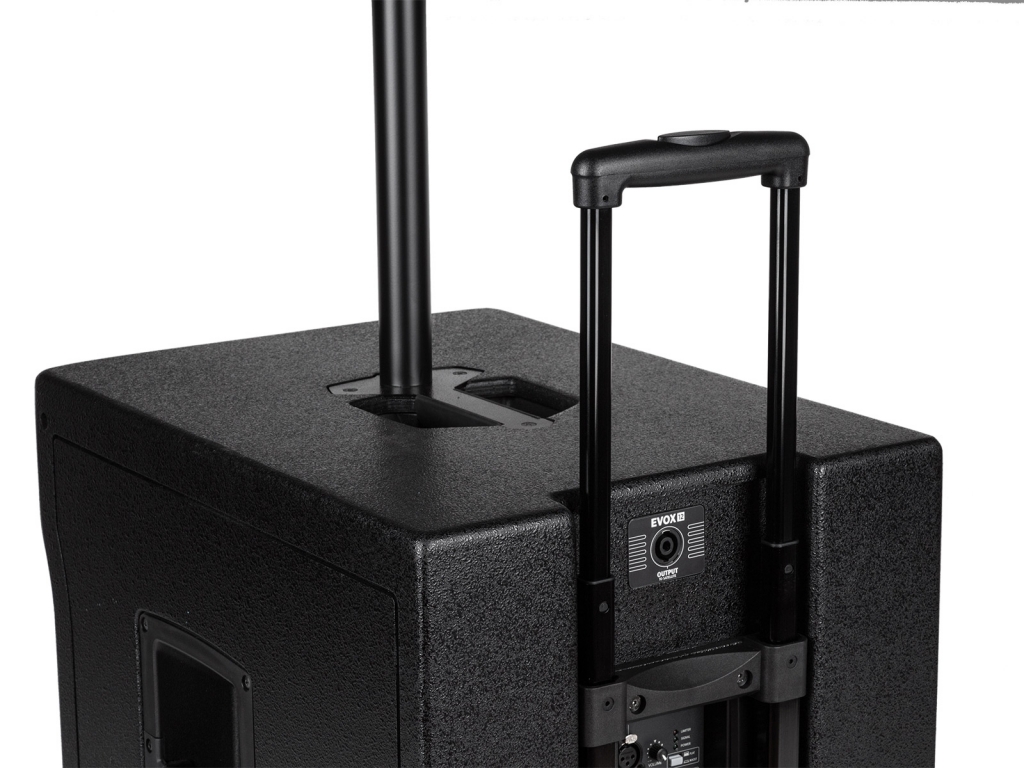

EVOX systems are easily transportable and quickly deployable due to their intelligent design. Satellites, subwoofer, and all accessories including cables are packed in an optional transport bag. During transport, the satellites are stored in a special mounting system located on the back of the subwoofer, ensuring easy transport of the entire system.
Transporting and setting up the audio system has never been easier!

DSP PROCESSING
EVOX 12 is powered by a 1400W (peak) digital amplifier with 400W allocated for the HF range and 1000W for the LF range. Thanks to precise frequency tuning and noise control, EVOX systems are capable of providing high and distinctive performance. Dedicated vocal processing also ensures quality speech during your presentations or conferences.

2-WAY ARRAY
The EVOX system provides horizontal coverage up to 90° ensuring perfect speech intelligibility. Thanks to the intelligent design solution of the vertical array, EVOX systems achieve perfect intelligibility from the front rows to the back.

LIVE MUSIC APPLICATIONS
After extensive testing using instruments and vocals, EVOX systems have been perfectly tuned for use by bands and solo musicians.

DJ APPLICATIONS
Features such as precise reproduction of low frequencies, excellent control, and reproduction quality make EVOX systems the perfect tool for DJs.

CONFERENCE APPLICATIONS
Exceptional fidelity and dynamic voice reproduction, even at high volumes, make the EVOX system ideal for conferences and meetings.
