EAW - UXA4416

The EAW UXA4416 amplifier with integrated DSP is designed to work with KF, SB, and MW series systems, ensuring the highest quality sound delivery at your events.
Full integration with touring systems
High-quality amplifiers and individual module tilt settings are essential pillars of modern sound systems. The DSP unit in the UXA4416 amplifier operates with FIR filters, crucial for achieving maximum performance from EAW's KF, SB, and MW speakers. When using the UXA4416 to power and set presets for your system, you can be confident that you will get the maximum output from your system.
Reliable sound where it matters
The UXA4416 amplifiers are based on proven EAW technology. The reliable design and durable electronics are engineered to last for years, providing high-quality coverage for a wide range of applications.

The signal path of the UXA4416 operates at a 96 kHz sampling frequency and 40-bit resolution, with four channels individually delivering 2000 watts of power. In addition to standard analog and digital AES inputs, the signal can be digitally delivered through primary and secondary Dante network connections. Network connection with EAW's Resolution 2 software solution allows for quick configuration and monitoring of large systems. If the network connection is impractical or unavailable, the UXA4416 can be addressed and configured using the intuitive touchscreen display on the front panel of each amplifier.

Features: • 4 x 4000 W
• PFC power supply
• 96kHz, 40-bit floating point DSP, advanced preset support for EAW passive speakers

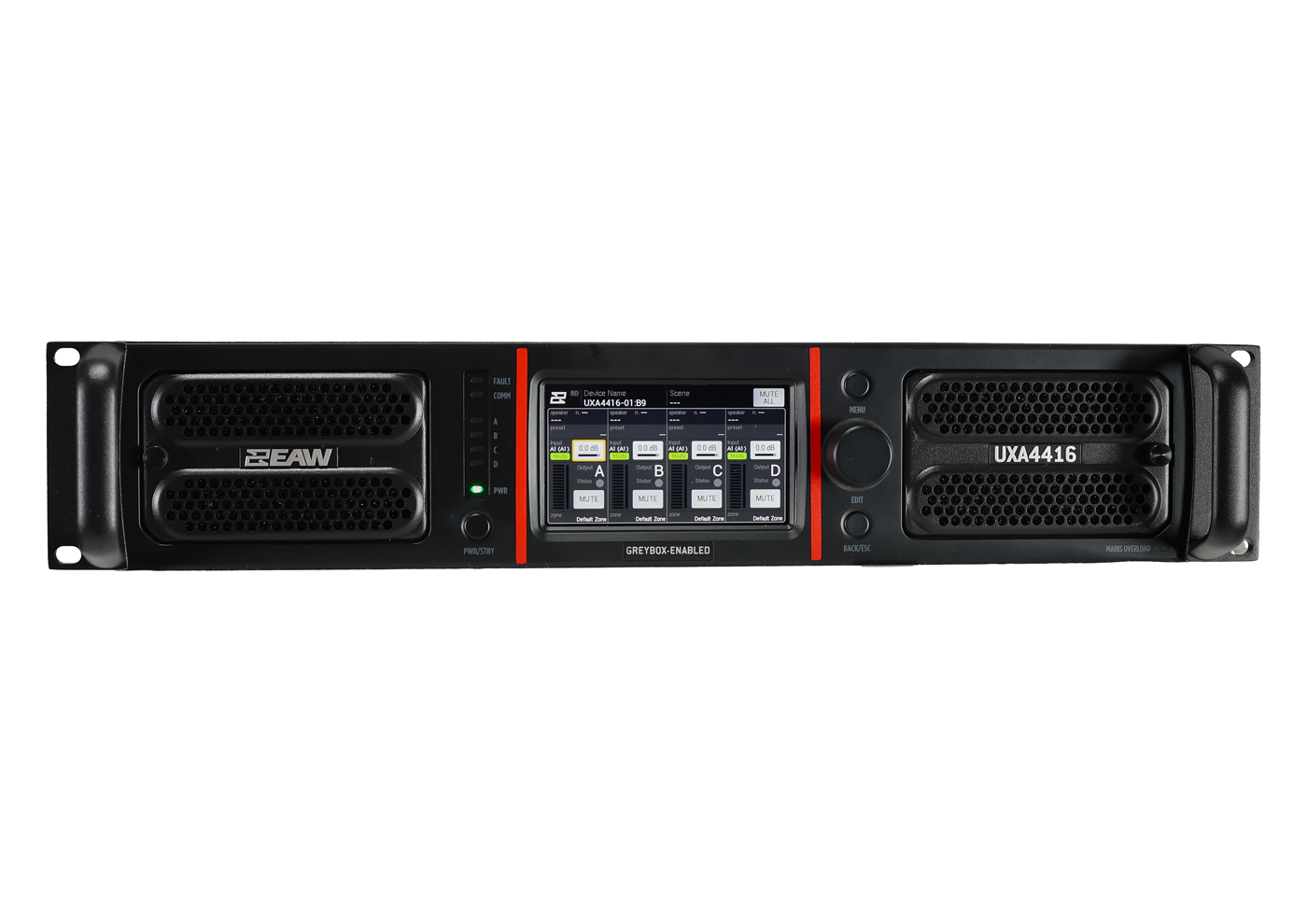

• 4.3” touchscreen display
• Primary and secondary Dante network ports (2x Gigabit Ethernet)
• Resolution software
