Allen & Heath - Xone:K3

The Xone:K3 by Allen & Heath is a compact, highly flexible MIDI controller that provides precise control for DJ software, DAW applications, and external hardware. With its robust metal construction, RGB feedback, USB-C connectivity, and full compatibility with Xone mixers, it is the ideal choice for live performances, hybrid sets, and studio work.

Compact Size, Maximum Performance
The Xone:K3 combines smooth faders, rotary controls, encoders, and backlit buttons with instant response for creative work and live performances. Each element is optimized for professional workflows and long-term durability in demanding conditions.

Professional Choice. Perfected to Excellence.
The Xone:K3 is fully compatible with the mapping of Xone:K1 and Xone:K2 models, making it easy to integrate into existing systems. With the Xone Controller Editor, you have control over every detail – from assigning MIDI CC/Note, through LED feedback colors, to managing layers and saving presets to internal memory or library.

Main Features:

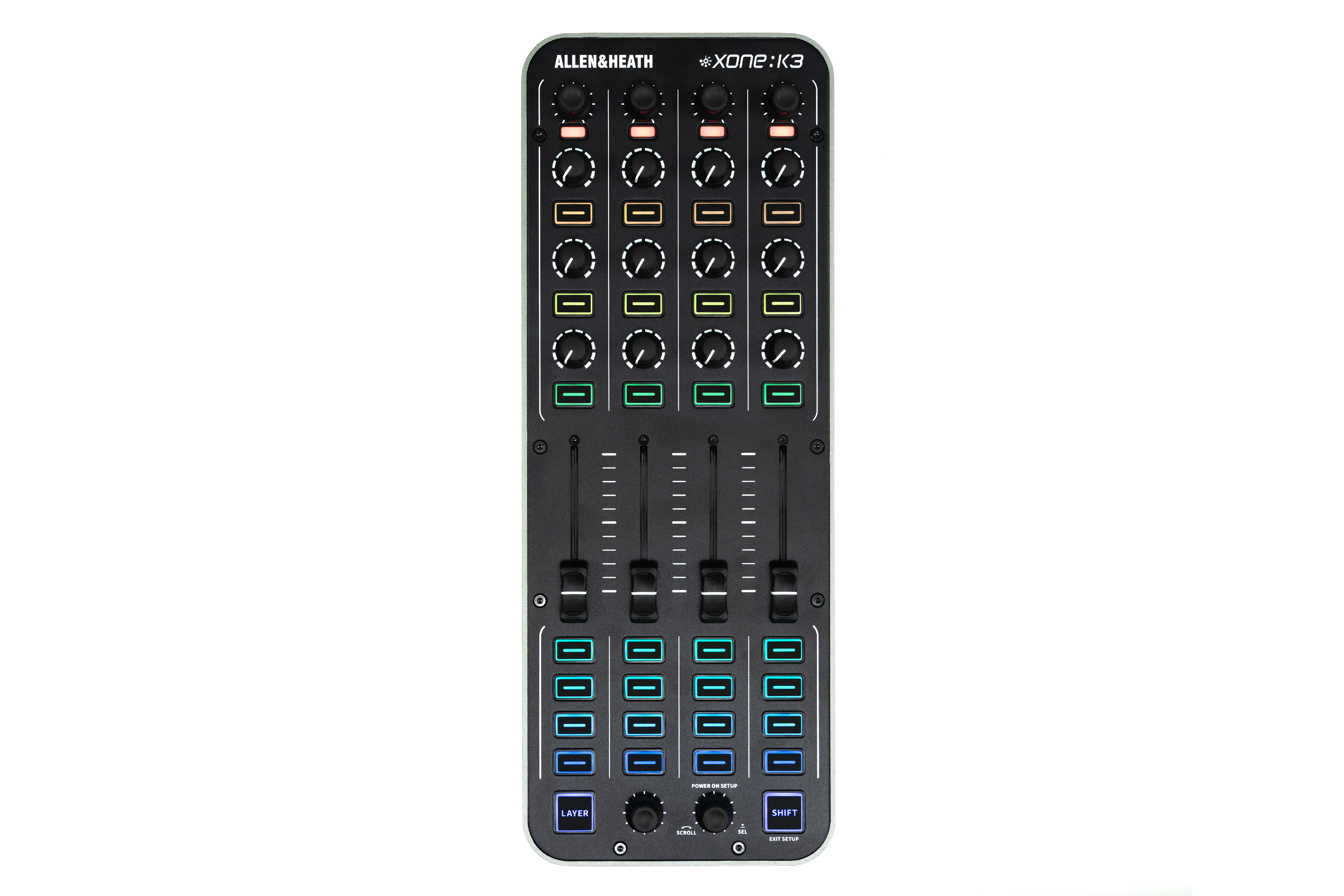

• 52 physical control elements
– 30 buttons with RGB LED indication
– 12 rotary potentiometers (270°)
– 6 endless encoders with push switch
– 4 linear faders (60 mm)
• 3 user-defined layers – up to 174 assignable controls per map
• Xone Controller Editor application – complete mapping, saving, and sharing of presets
• Full MIDI flexibility – CC/Note assignment for each control and layer
• RGB LED feedback (34 LEDs, 16-color palette)

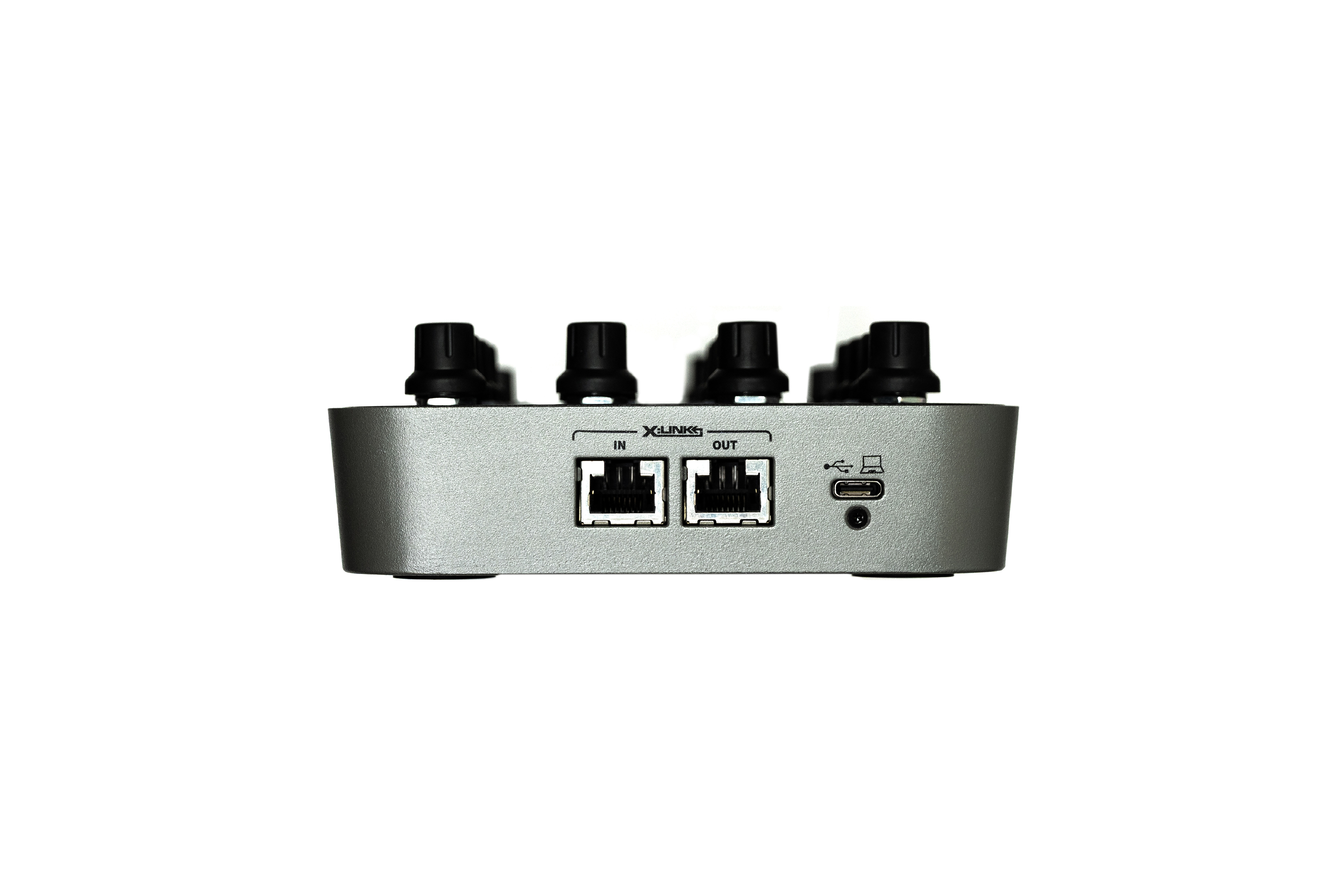

• USB-C + X:Link connectivity
– X:Link: direct connection to Xone:96, PX5, 43C, 23C, K2, DB mixers
– USB-C: support for multiple devices (star topology), USB powered
• Pressure-cast metal frame with precise control mechanics
• Class-compliant USB MIDI – no driver installation required (macOS, Windows, iOS, Android)

Technical Specifications:

• Device Type: Fully customizable MIDI controller
• Number of Controls: 52 (30 buttons, 12 potentiometers, 6 encoders, 4 faders)
• Number of Layers: 3 user layers (up to 174 controls)
• Connectivity: USB-C, X:Link (RJ45 IN/OUT)
• Power: USB 5 V, 450 mA (bus powered)
• Chassis Material: Pressure-cast metal
• LED Indication: RGB backlighting (16 colors)
• Dimensions (W × H × D): 135 × 358 × 49.5 mm
• Weight: 1.25 kg
• OS Compatibility: macOS, Windows, iOS, Android
