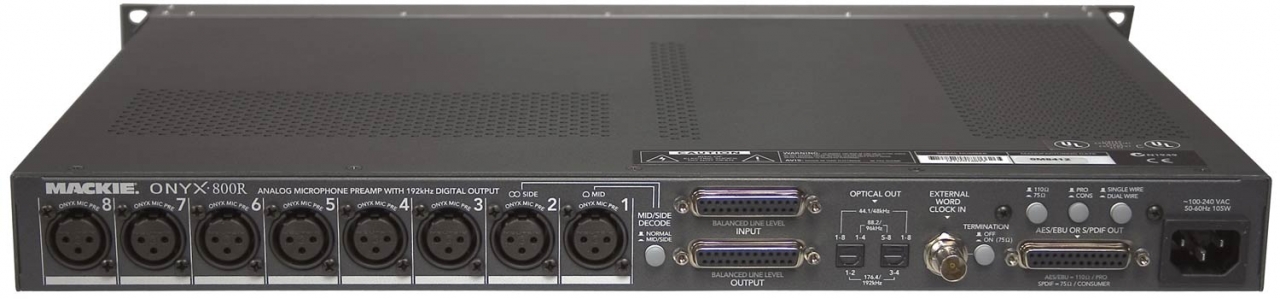

Mackie ONYX 800R

Microphone preamplifier with 24-bit/192 kHz A/D and D/A converters, 8 channels, suitable for DVD-Audio recording, 8×mic/line inputs (combo) – each with individual phantom power, input polarity switch, and HPF 75 Hz/18 dB, MID/SIDE decoder for microphone inputs 1 and 2, 8-channel line input (25-pin DB25 connector), Word Clock IN, 8-channel line output (25-pin DB25 connector), AES/EBU, S/PDIF output (25-pin D-Sub connector), ADAT OUT (16/48 kHz), 1Ux365mm/4.8kg

• Eight-channel 1U rackmount mic preamp featuring Mackie's flagship Onyx preamps
• Variable Microphone Input Impedance control for precise preamp tuning to each mic
• Simultaneous analog and 24-bit/192k digital connectivity via AES/EBU, ADAT lightpipe, and S/PDIF
• Front panel Mic/Line switches on every channel
• 2 front-panel Instrument input jacks – no DI needed
• Individual Low Cut, Phase, and Phantom Power control on every channel
• Class-leading 24-bit/192kHz A/D converters comparable to high-end standalone converter boxes
• Premium audiophile-grade components, analog circuitry, and rugged professional build quality
