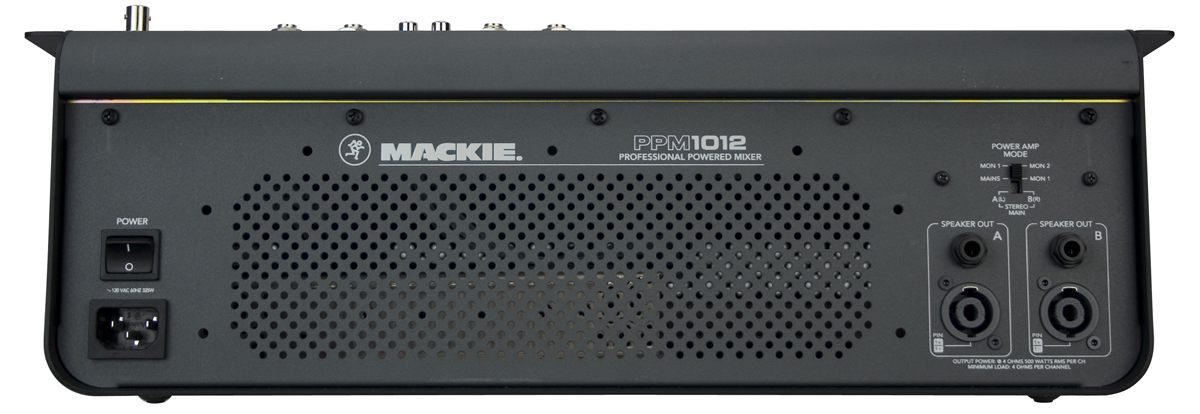

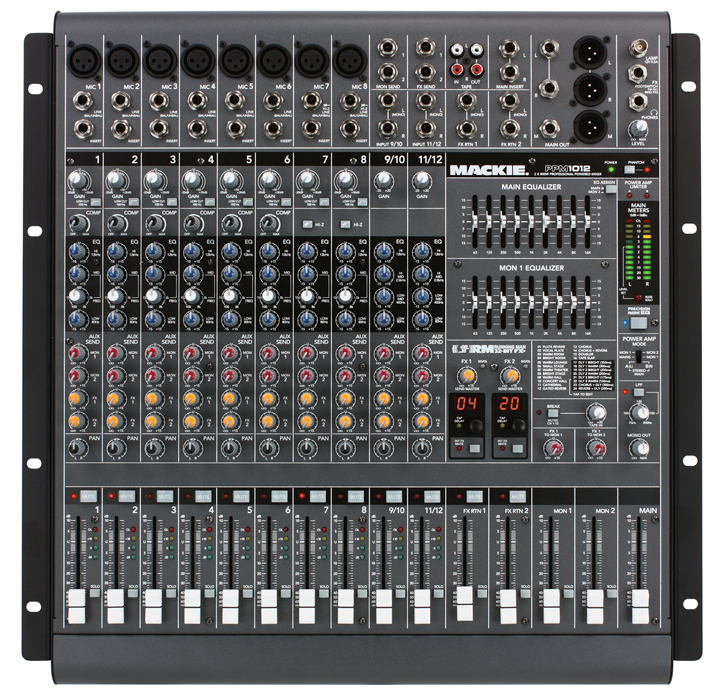

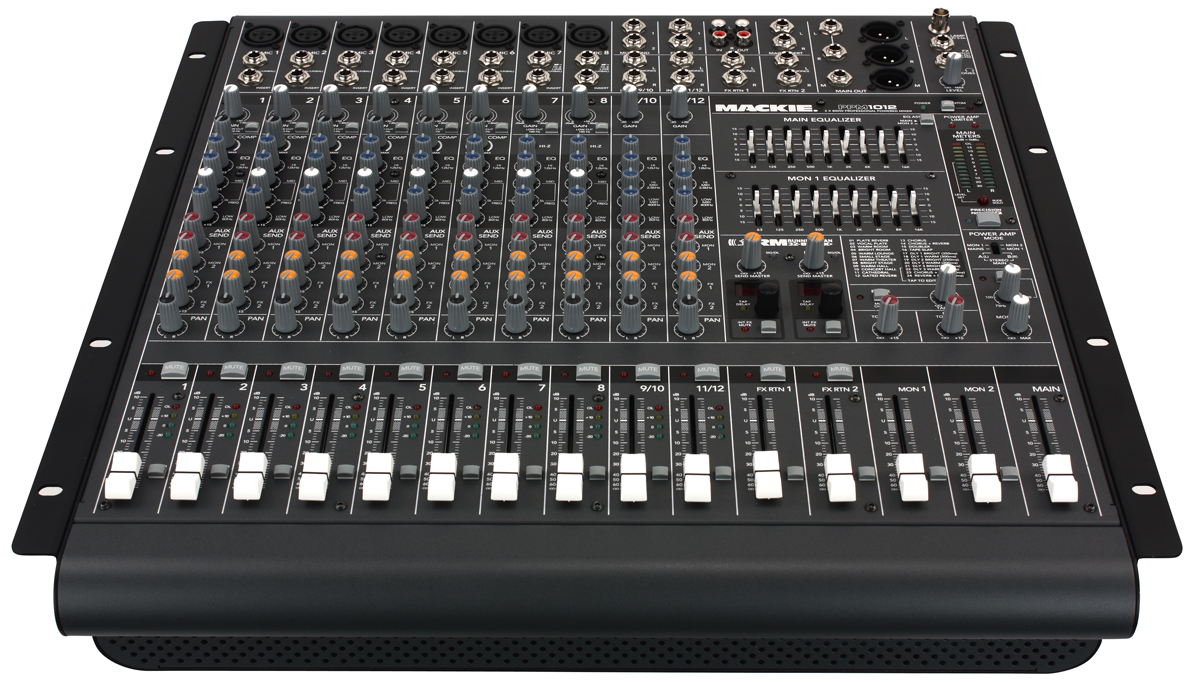

Mackie PPM1012 • 12-channel power mixer • 2× 800W • 8x mic/line • 2× stereo line • three-band EQ with parametric mids • 8x insert • 6× compressor • 32-bit dual RMFX+™ • dual 9-band EQ (Main + Monitor) • 2× Hi-Z • dimensions 490x314x290(mm) • weight 11.1 kg
PPM1012 is an ultra-light 12-channel mixing console with an integrated 1600W (800W + 800W) class D amplifier. The amplifier can be operated in several modes (Main Stereo L/R, Mono Mains/Monitor1, and Mon1 + Mon2). The internal dual effects unit RMFX+™ along with a dual 9-band EQ for main and monitoring outputs, 4 AUX sends, 6 compressors on mono inputs, DI-Boxes on inputs 7-8, passive EQ on the output for optimizing the combination with Mackie passive speakers, enhances the utility of the mix for your live sound needs.
• 12-channel mixing console
• 1600W (800W + 800W) Mackie Fast Recovery™ class D amplifier
• 32-bit dual RMFX+™ dual effects unit with 24 effects (reverb, chorus, tap delay)
• 8x microphone/line inputs, 2x stereo line inputs, 8x insert
• Low-noise microphone preamps with high headroom and high RF signal resistance
• Compressor on inputs 1-6
• 3-band EQ with parametric mids (adjustable 100Hz-8kHz) on all mono channels
• 4-band active EQ on stereo channels 9/10 and 11/12
• DI-Box and Hi-Z switch on channels 7-8 for direct instrument connection
• 4x AUX send - 2x FX and 2x Mon
• Dual 9-band EQ on main and monitoring outputs
• Mono output with output level control and switchable LPF tunable from 75Hz-100Hz
• 3 amplifier modes for flexible output routing: Stereo L/R, Mono Mains/Monitor1, Mon1 + Mon2
• Switchable precise passive EQ for better performance of Mackie passive speakers
• 48V phantom power for all microphone inputs
• Headphone output with volume control
• BNC input for 12V lamp
• Robust construction
• Rack ears included
• Dimensions 490x314x290 (mm)
• Weight 11.1 kg
