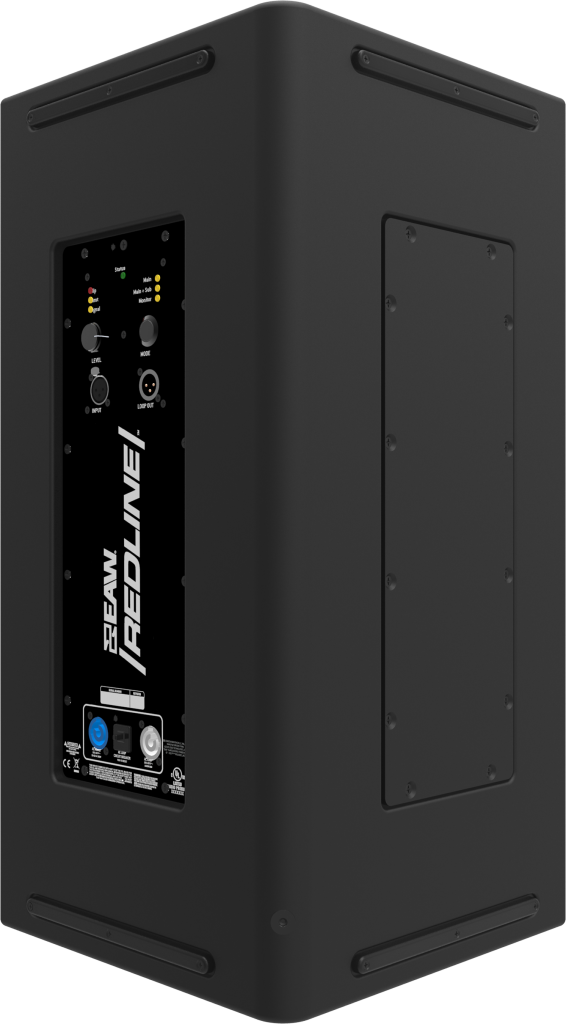

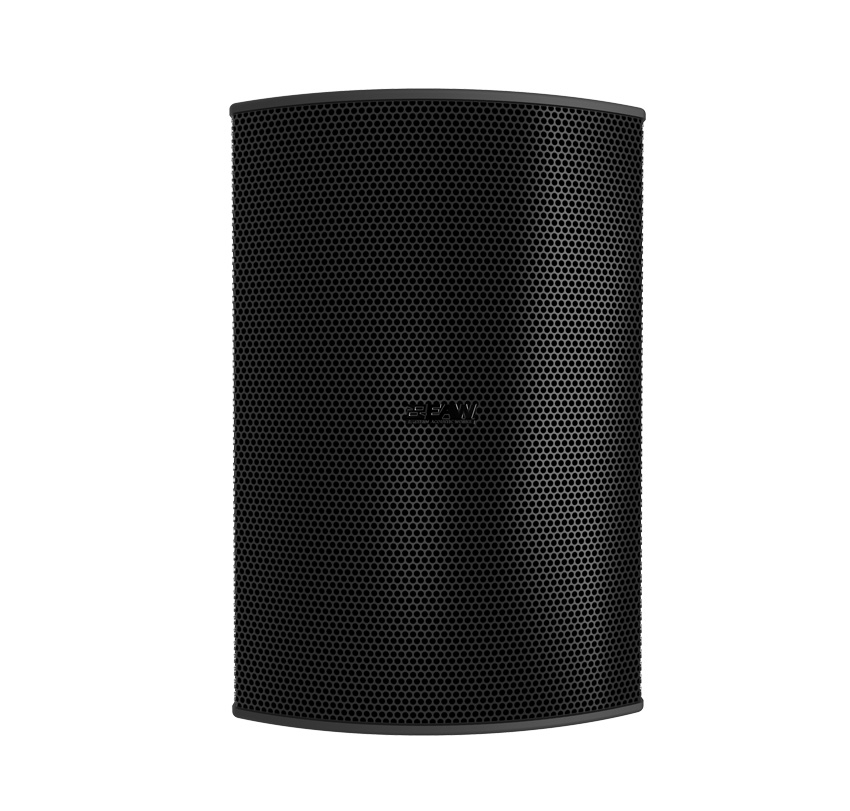

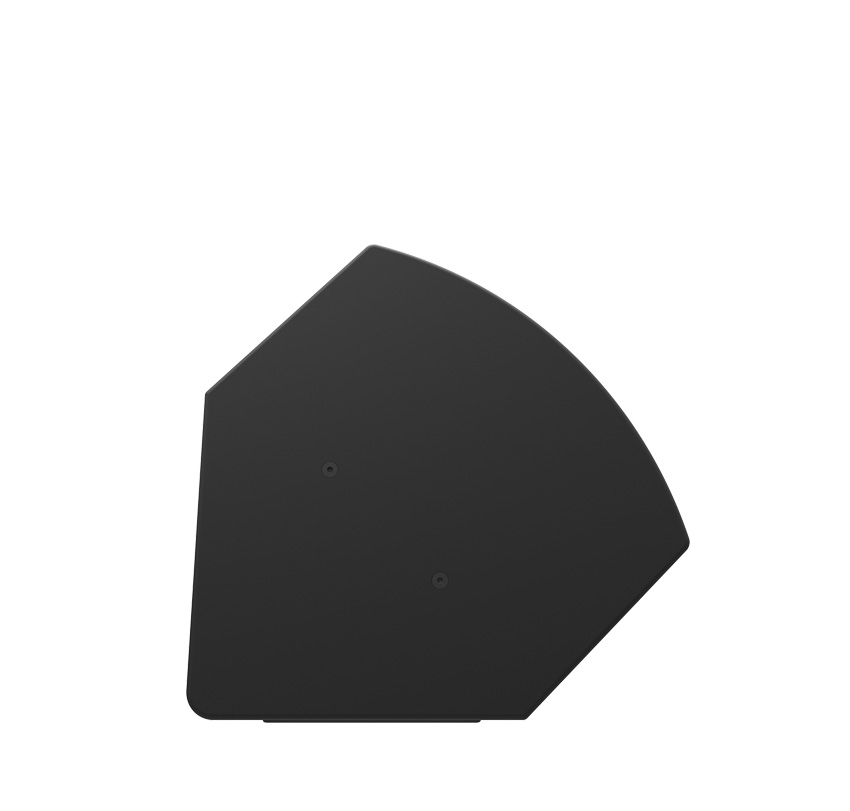

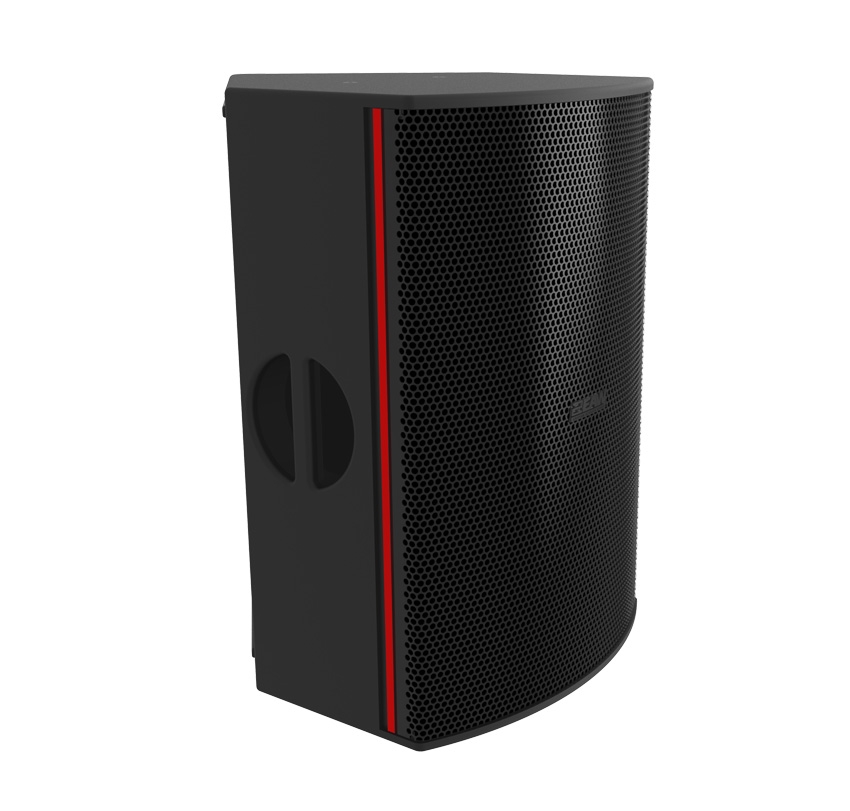

EAW Redline RL15

• Active full-range speaker
• LF: 15", bass reflex
• HF: 1" exit, horn-loaded driver
• Power: 1250/2500W
• Class D amplifiers with a total power of 1250W
• Integrated EAW Focusing
• PowerCon connectors
• Rotatable horn with a 90° x 60° dispersion angle
• Pole mount socket and M8 rigging points
• Frequency range: 50 – 19,000 Hz (-10 dB)
• Calculated maximum acoustic pressure: 135 dB (SPL Peak)
• Dimensions: 447 x 503 x 654 (mm)
• Weight: 24 kg

The Redline series are new active speakers by EAW, leveraging the manufacturer's extensive experience in producing top-of-the-line live sound systems. They have been specifically designed to meet the needs of professional users in the field of sound reinforcement, rental, and installations. The entire concept and every detail aim to make their lives easier.

The Redline series consists of two two-way speakers (12"+1" and 15"+1") and an 18" subwoofer. All three models feature their own DSP and Class D amplifier with 1250W bi-amp power (RL12 and RL15) or 1000W (RL18S). The two-way models utilize the renowned EAW Focusing™ specifically developed to compensate for electro-acoustic anomalies of the speaker that cannot be eliminated through standard digital processing. All speakers integrate new DynO™ dynamic optimization algorithms to maintain fidelity at all achievable volumes. The RL12 and RL15 models offer 3 preset sound settings for standalone PA use, stage monitoring, and PA with subwoofer.

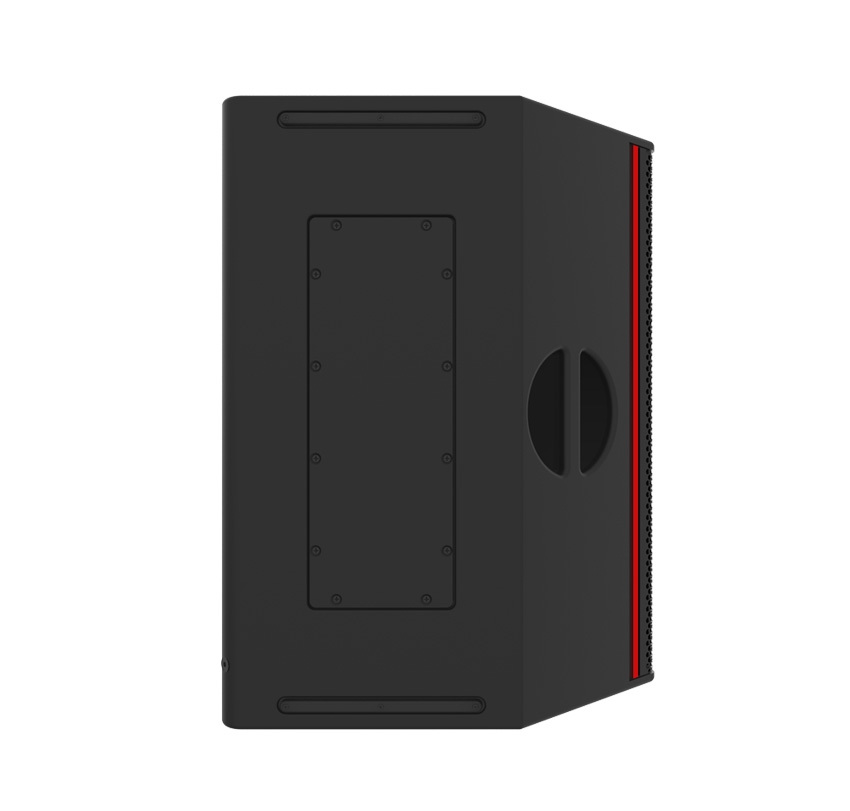

The symmetrical enclosure houses an easily replaceable amplifier module, allowing for L-R pair configurations. The RL18S subwoofer can activate a cardioid function – directional bass emission by aligning multiple rotated speakers. All speakers come with a 1.4mm steel grille, discreet EAW logos in all-black finish, and a highly durable RoadCoat™ surface treatment, used in many other EAW touring speakers like Microwedge monitors and the top-tier Adaptive Systems.

In short, Redline speakers provide professional users with what they need most: easy handling, beautiful sound without lengthy setup, versatile applications, long-term reliability, and a design that exudes professionalism.

Features
• All Redline models feature a built-in Class D amplifier with PFC and are equipped with EAW Focusing TM and DynOTM processing for maximum volume and reproduction fidelity
• RL12 and RL15 models have 1250W power (250W HF and 1000W LF), RL18S has 1000W power

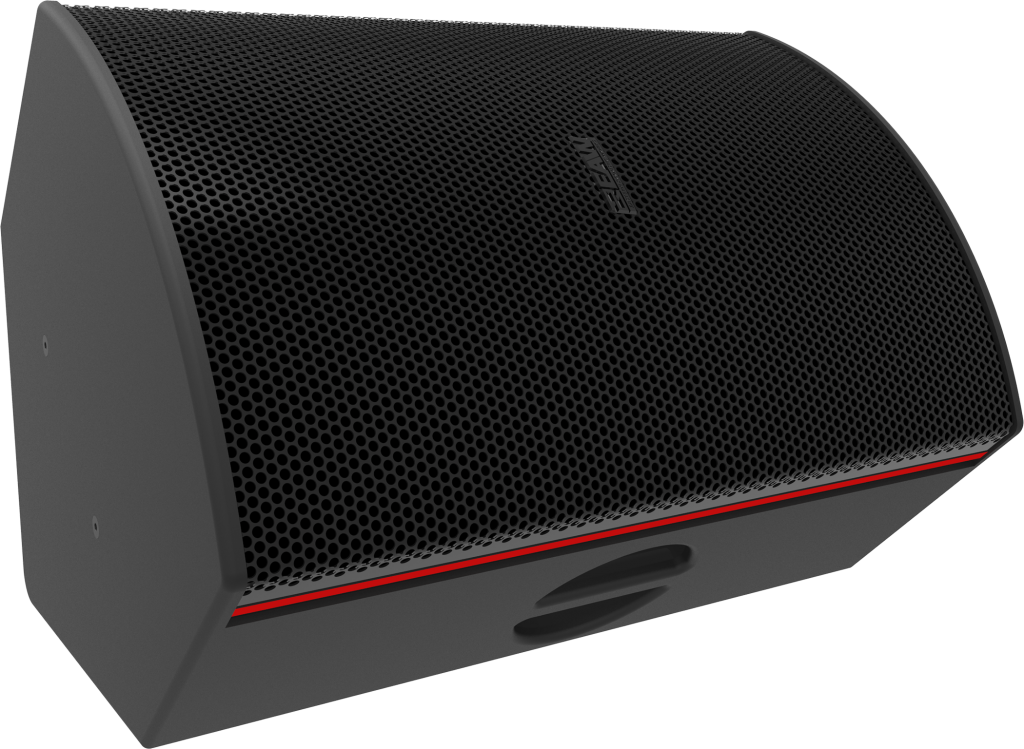

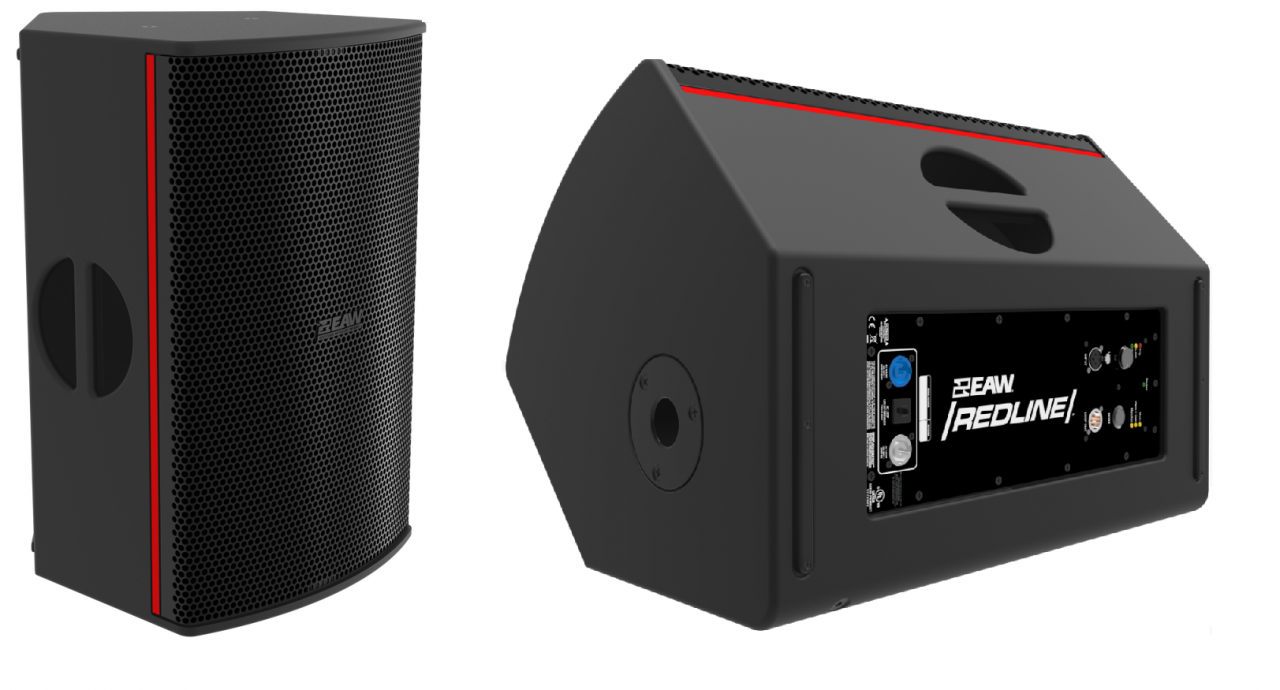

• Symmetrical cabinet design allows RL12 and RL15 to be used as mirror-imaged monitor pairs
• Presets: Mains, Mains + Sub, and Monitor (RL12 and RL15)
• Ability to create a cardioid setup with RL18S (requires two subwoofers and two button presses)
• Option to dim LEDs on the rear panel in situations where their glow is disruptive

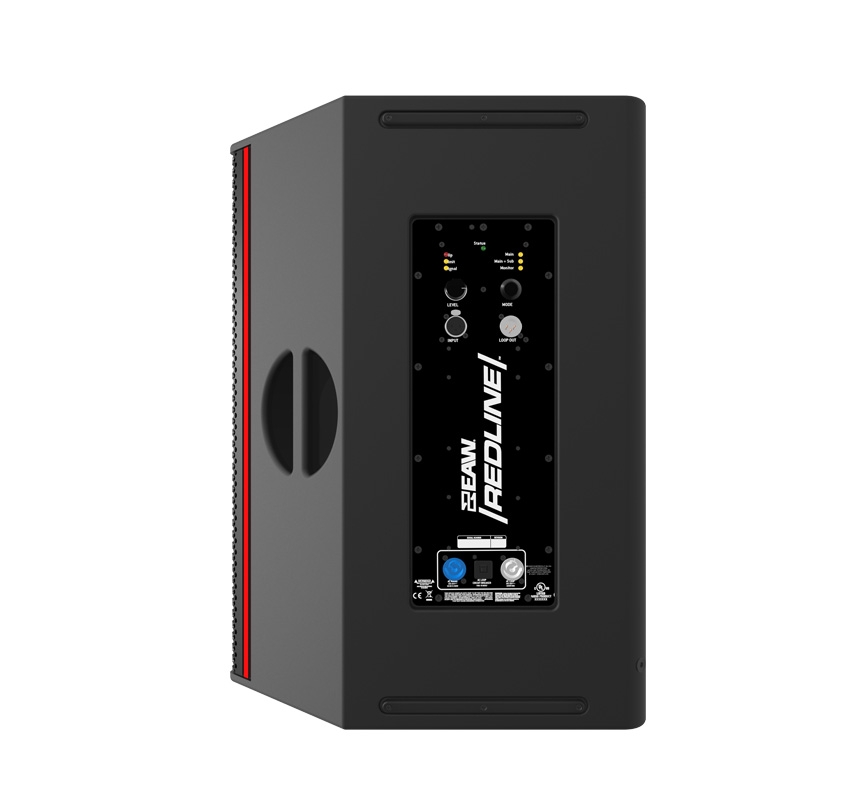

• Line input with parallel output and level control. PowerCon network connector with parallel output
• Integrated wooden handles, sturdy front grille with black EAW logo, enclosure with RoadCoatTM surface finish
• Intelligent monitoring of amplifier and speaker status
• Extremely lightweight speaker, easily handled by one person

EAW Focusing
