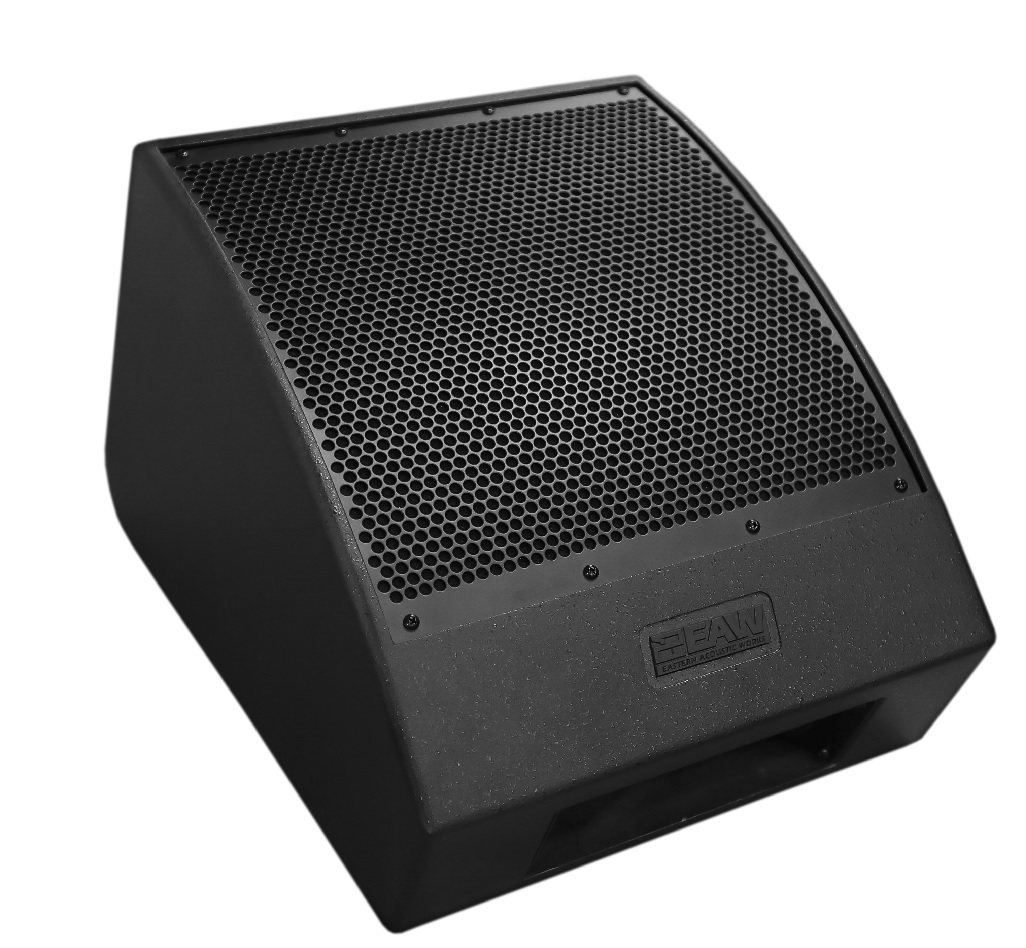

EAW SM12

The EAW SM12 stage monitor is inspired by the acoustic version of the Microwedge and is the latest addition to EAW's diverse lineup of monitors.

The monitor comes with an integrated stand, allowing for flexible positioning - it can be placed on the floor in two different ways or mounted on a stand using the built-in rack mount.
Another advantage of this monitor is its multiple input options, making cable management easier and reducing cable runs.
The SM12 integrates seamlessly with UXA4403 and UXA44 amplifiers, ensuring consistent tuning every time the monitor is used.

Features:
• High-performance coaxial stage monitor
• Patented CSA coaxial driver provides excellent control, sound quality, and performance
• Integrated stands - adjustable tilt angle
• Multiple input options - improves cable management
• Compatible with UXA4403 and UXA4416 amplifiers
• Passive mode for maximum amplifier utilization

Technical Specifications • Max SPL: 135dB (12 dB Crest Factor)
• Max SPL: 129dB (6 dB Crest Factor)
• Frequency Response: 60Hz-20kHz
• Coverage Pattern: 90 x 60 degrees, rotatable
• Axial Sensitivity: 95dB
• Calculated Axial Output: 123dB average
• Nominal Phase: ±15o from ideal high-pass filter
• Input Impedance: 8 ohms nominal, 6.5 ohms @ 200Hz minimum
• Recommended HPF: 50Hz, 12dB/oct

Life Test
• LF/HF: 600W @ 8ohms

Configuration
• LF Transducer, Loading: 1x12" cone, 2.5" VC, Vented
• HF Transducer, Loading: 1x1" exit, 1.75" compression driver with a diaphragm, Coaxial Summation Aperture (CSA) loaded
• Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

Physical Features:
• Mounting Options: 2x M6 Mounting points for stand adapter, 4 x M6 Mounting pattern for wall bracket
• Dimensions: 326 x 357 x 546 mm
• Weight: 15.9 kg
• Mounting Accessories: Metal wall bracket for Pan/Tilt (rotation/tilt)
• Input Connectors: 4x Neutrik NL4 (2x on bottom, 2x inside port)
