Denon Professional – Flash Start Remote

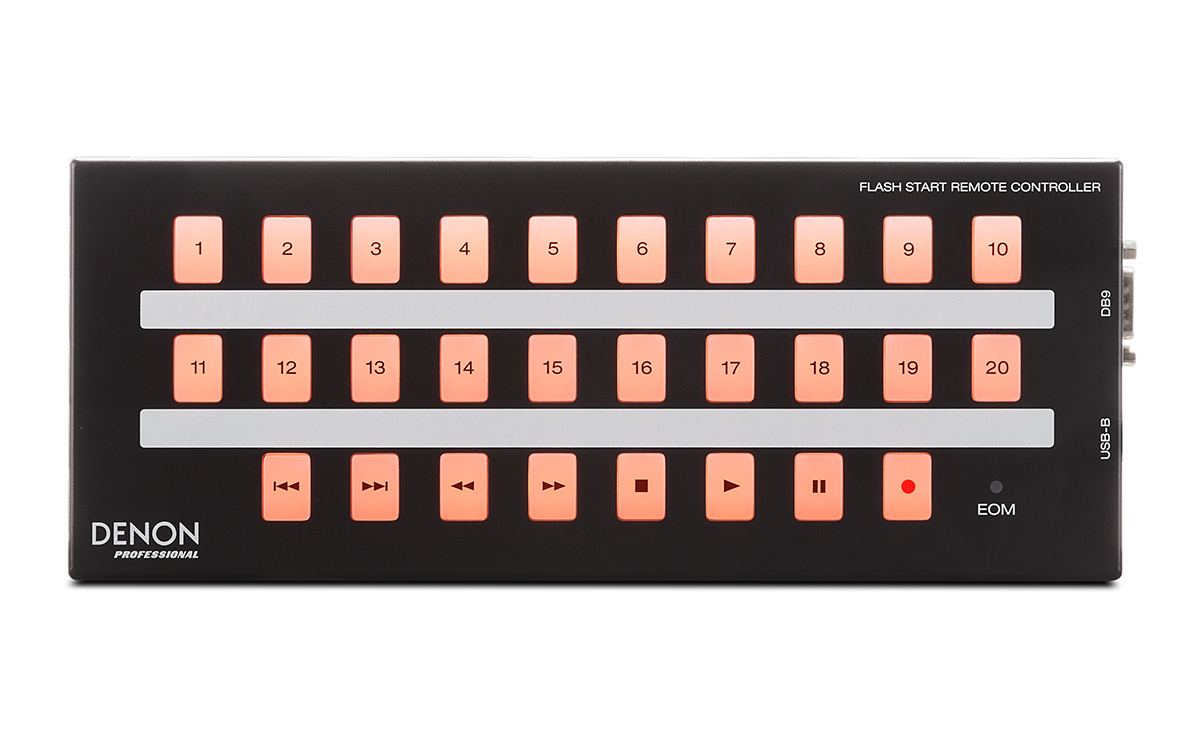

The remote control for Denon Pro rack players of the 500 and 700 series is designed for demanding live operations in theaters, triggering jingles on the radio, or during sports events. The Flash Start Remote communicates through the RS-232C interface for instant access to transport functions and cue points, facilitated by twenty illuminated Hot Start buttons conveniently arranged for this purpose. Features:
Connectors:

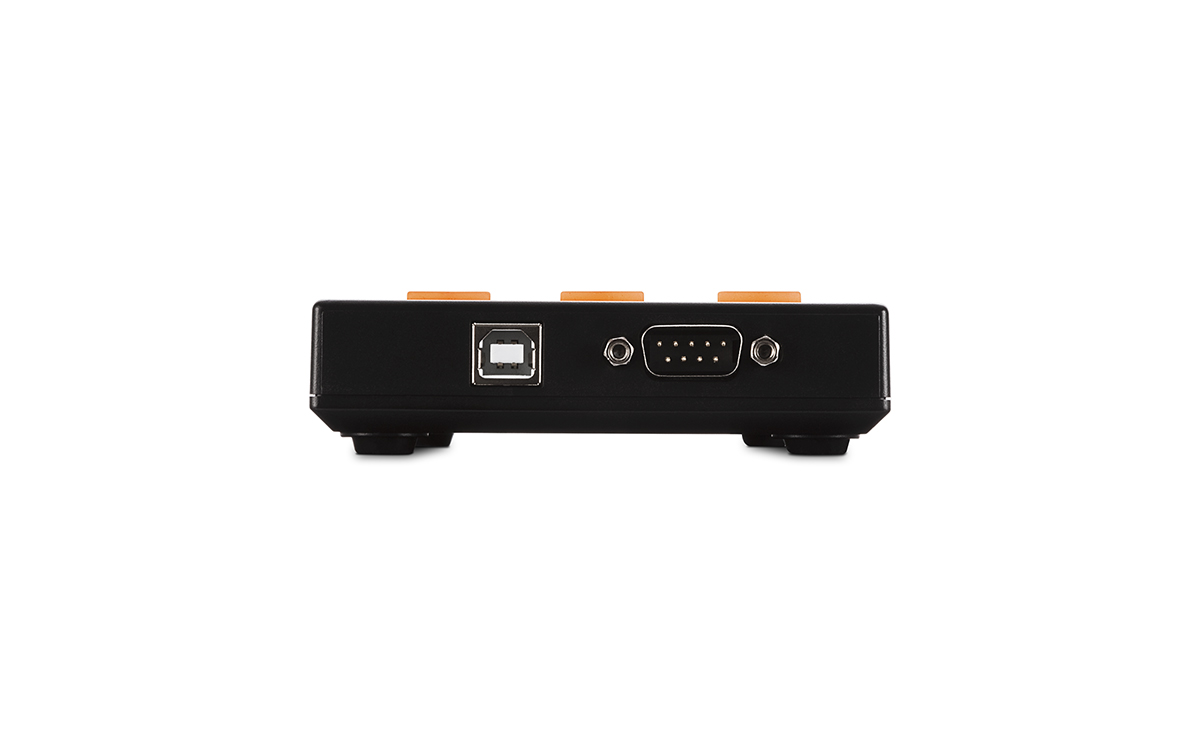

• RS-232C 9-Pin D-Sub Female Connector
• USB-B Port

RS-232C Connectivity:
• Transmission System: Full-duplex mode
• Data: 8 bits (Start Bit: 1 Bit; Stop Bit: 1 Bit)
• Parity: None
• Flow Control: None
• Transfer Rate: selectable (9600, 38400, or 115200 b/s)

RS-232C Pins
• Pin 1: GND
• Pin 2: TxD
• Pin 3: RxD
• Pin 4: NC
• Pin 5: GND
• Pin 6: NC
• Pin 7: NC
• Pin 8: NC
• Pin 9: NC

• Power: via USB connection
• Power Consumption: 0.3W
• Dimensions: 255 x 100 x 29mm
• Weight: 0.7 kg
