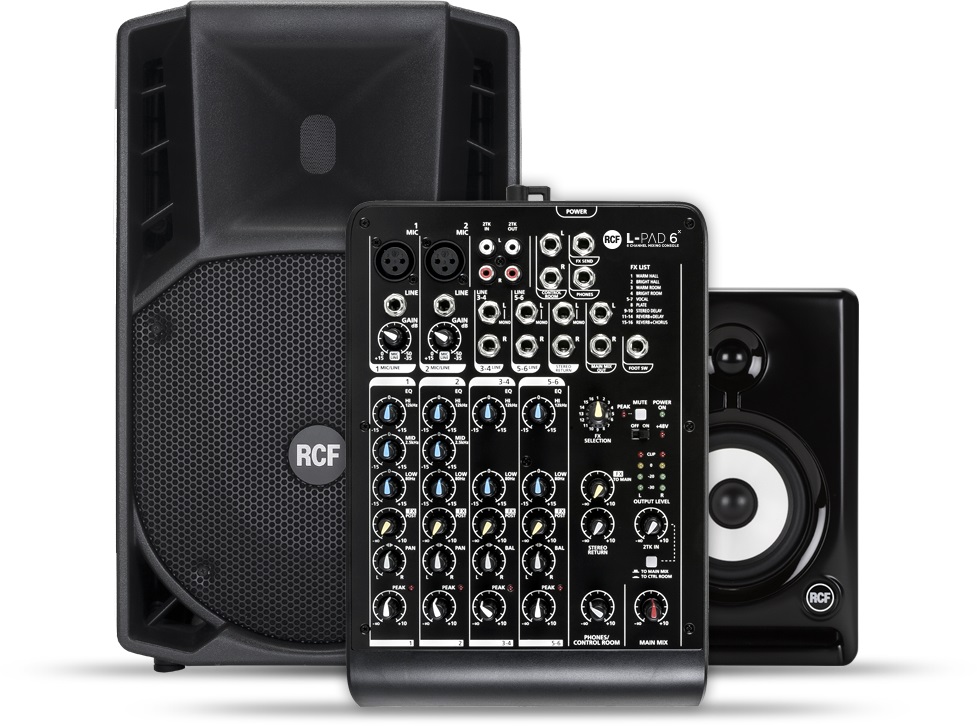

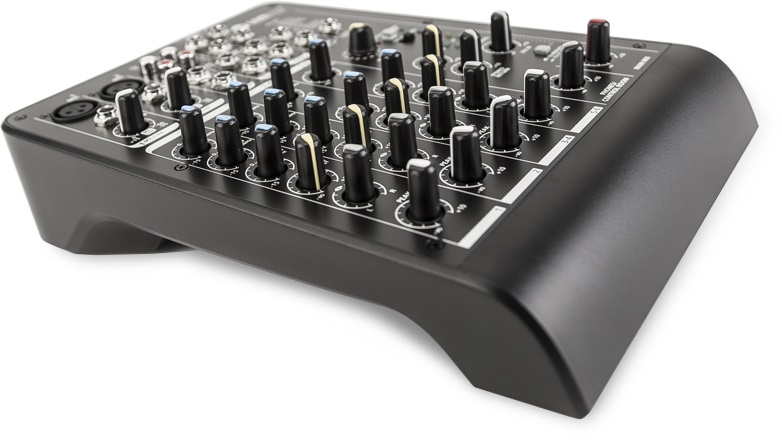

RCF - L-PAD 6X LivePad • 6-channel mixer • 2 mono + 2 stereo IN • 3-band/2-band EQ • 1 FX send • Internal digital effects: 16 presets • dimensions: 275 x 195 x 75 (mm) • weight: 1.325 kg LivePad is a new range of compact and flexible mixing consoles from the Italian manufacturer RCF. Since 1949, the Italian company RCF has been producing speakers for the most renowned worldwide speaker manufacturers, and for over 30 years, they have been manufacturing their own professional speakers that have become a standard in a wide range of professional applications, from solo performances to huge rock concerts. The RCF brand is also represented in thousands of fixed installations around the world, such as stadiums, train stations, airports, office buildings, amusement parks, etc., where RCF amplifiers, signal processors, and distributors are often used. By leveraging all their experience to make their offering even more comprehensive, RCF has introduced the new range of LivePad mixing consoles. The attractiveness of these essential tools for live sound reinforcement, whether it's a rock band or a jazz quartet concert, a conference, or multimedia center sound reinforcement, is enhanced by the elegant and modern Italian design. The L-PAD series includes 9 models: L-PAD 6, 6X, 8C, 8CX, 10C, 12C, 12CX, 16CX-USB, and 24CX-USB, where the number indicates the number of channels. All models are characterized by uncompromising sound quality, with three "X" models featuring an effects module and "C" models including a compressor on each microphone channel with very responsive threshold and compression ratio adjustment with a single control. All models feature a 3-band EQ on each mono channel and a 2-band EQ on each stereo channel. The 16CX and 24CX models are additionally equipped with a USB port on the rear panel for easy connection to any computer. Any operating system recognizes the L-PAD mixer as an audio device and can be used for audio recording and playback. In line with their sound culture philosophy, RCF has paid exceptional attention to designing all electronic circuits to achieve clean and musically pleasing sound, high-quality and precise dynamic response, combined with exceptional flexibility of use. Models 8C, 8CX, and 10C feature 45mm faders, while models 12C, 12CX, 16CX-USB, and 24CX-USB feature 60mm faders. The advanced internal DSP includes 16 preset effects on the 6CX model and 99 presets on the 8CX, 12CX, 16CX, and 24CX models. When developing the LivePad mixers, great care was also taken to ensure optimal compatibility with RCF's range of active speakers, such as ART, 4Pro, NX, or D-Line. The consoles undergo multiple tests during production to guarantee maximum reliability, including functionality and sound quality tests, output auditory tests, and visual inspections. The LivePad consoles are suitable for various applications and allow for expansion for playing and recording MP3 music files, which can then be stored on a USB device with a capacity of up to 32 GB. A Bluetooth adapter enables wireless connection of additional devices, such as smartphones, tablets, and computers, to the mixer to play music directly without the need for additional wiring. Specifications:

Mono channels
Microphone input	XLR balanced
Frequency response	10Hz to 55kHz, +/-3dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Gain range	0dB to -50dB
Max. input	+15 dB
SNR	<-100dBr A-weighted
Phantom power	+48V with switch control
Line input	1/4’ TRS with balanced
Frequency response	10Hz to 55kHz, +/-3dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Sensitivity range	+15dB to -35dB
Stereo input channels
Line input	1/4’ TRS with unbalanced
Frequency response	10Hz to 55kHz, +/-3dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Sensitivity range	+22dBu
SNR	<-100dBr A-weighted
Channels EQ	Mono channel; Stereo channel
High	+/-15dB @12KHz; +/-15dB @12KHz
Mid	+/-15dB @2.5Hz; Not available
Low	+/-15dB @80Hz; +/-15dB @80Hz
2-TRACK IN
TAPE IN	RCA jack
Frequency Response	10Hz to 55kHz, +/-3dB
Distortion (THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Gain Range	OFF to +10dB
STEREO RETURN
Input	1/4’ TRS with unbalanced
Frequency response	10Hz to 55kHz, +/-3dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
GAIN range	OFF TO +10dB
SNR	<-100dBr A-weighted
Impedances
Microphone input	3.6 kOhm
All other input	10 kOhm or greater
Tape out	1 kOhm
All other out	120 Ohm
DSP section
A/D and D/A converters	24bit
Type of effects	warm hall, bright hall, warm room, bright room, vocal,
	plate, stereo delay, rev+delay, rev+chorus
Controls	16 position preset selector
FOOT-SW	Mute switch & Foot-switching with LED indicator
	(Tip=FX, Sleeve=GND)
Main mix section
Max. MAIN MIX output	+22dBu unbalanced
AUX range	OFF to +10dB
Fader range	OFF to +10dB
PHONES/CONTROL-ROOM range	OFF to +10dB
Hum & Noise
	<-80dB @ 20Hz~22kHz A-weighted 1 channel & MAIN
	level:0dB, the other: minimum
Crosstalk	<-80dB @0dB 20Hz~22kHz A-weighted MAIN
	level:0dB, the other: minimum
Power supply
AC adaptor 18VAC	1000mA
Power consumption	17W (all loaded)
Dimensions	L=275mm, W=195mm, H=75mm
Weight	1.325 kg
