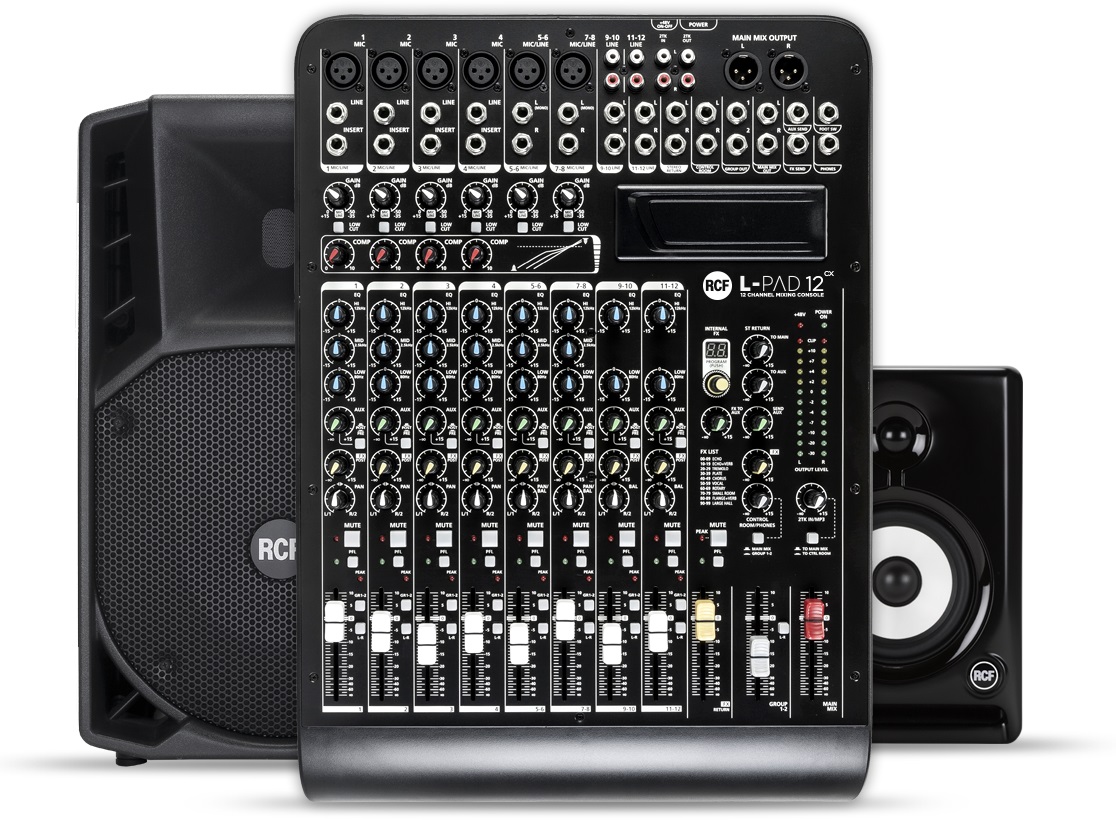

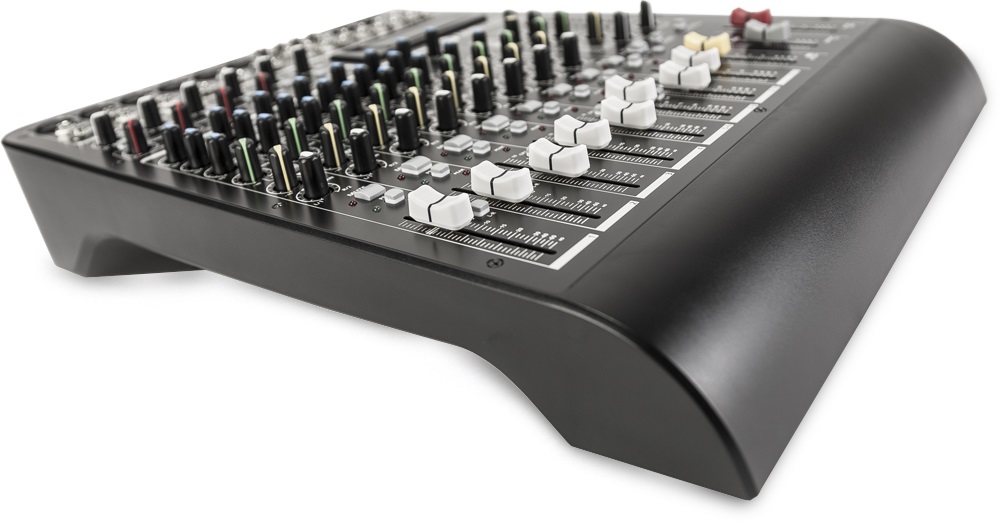

RCF - L-PAD 12CX LivePad • 12-channel mixing console • 4 (6 mic) mono + 4 stereo IN • 4 compressors (channels 1 to 4) • 3-band/2-band EQ • 1 AUX send • 1 FX send • Internal digital effects - 99 presets • Internal power supply 100-240V; 50-60Hz • dimensions: 480 x 340 x 100 (mm) • weight: 3.85 kg LivePad is a new series of compact and flexible mixing consoles from the Italian manufacturer RCF. Since 1949, the Italian company RCF has been producing speakers for the most renowned worldwide speaker manufacturers. For over 30 years, they have been manufacturing their own professional speakers, which have become a standard in a wide range of professional applications, from solo performances to massive rock concerts. The RCF brand is also represented in thousands of fixed installations around the world, such as stadiums, train stations, airports, office buildings, amusement parks, etc., where RCF amplifiers, signal processors, and distributors are often used. By leveraging all their experience and aiming to make their offering even more comprehensive, RCF has introduced the new series of LivePad mixing consoles. The L-PAD range includes 9 models: L-PAD 6, 6X, 8C, 8CX, 10C, 12C, 12CX, 16CX-USB, and 24CX-USB, where the number indicates the number of channels. All models are characterized by uncompromising sound quality, with the "X" models featuring an effects module, and the "C" models including a compressor on each microphone channel with very responsive threshold and compression ratio control in a single knob. All mono channels feature a 3-band EQ, and all stereo channels feature a 2-band EQ. The 16CX and 24CX models are additionally equipped with a USB port on the rear panel for easy connection to any computer. Any operating system recognizes the L-PAD mixing console as an audio device and can be used for audio recording and playback. In line with their sound culture philosophy, RCF has paid extraordinary attention to designing all electronic circuits to achieve clean and musically pleasing sound, high-quality and precise dynamic response, combined with exceptional flexibility of use. Models 8C, 8CX, and 10C have 45mm faders, while models 12C, 12CX, 16CX-USB, and 24CX-USB have 60mm faders. The advanced internal DSP includes 16 preset effects for the 6CX model and 99 presets for the 8CX, 12CX, 16CX, and 24CX models. During the development of LivePad mixers, great care was also taken to ensure optimal compatibility with RCF's range of active speakers, such as ART, 4Pro, NX, or D-Line. The consoles undergo multiple tests during production to ensure all functions and sound quality, including output listening tests and visual inspections. LivePad consoles are suitable for any application and allow for expansion for playing and recording MP3 music files, which can then be stored on a USB device with a capacity of up to 32 GB. The Bluetooth adapter allows for wireless connection of additional devices, such as smartphones, tablets, and computers, to play music directly into the console without the need for additional wiring. Accessories: LIVEPAD Player Card, LIVEPAD Player/Recorder Card, LIVEPAD Bluetooth Card Specifications:

Mono channels
Microphone input	XLR balanced
Freq. response	20Hz to 22KHz,+/-1dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Gain range	0dB to -50dB
Max. input	+15 dB (balanced)
SNR	<-100dBr A-weighted
Phantom power	+48V with switch control
Line input	1/4’ TRS balanced
Freq. response	20Hz to 22kHz,+/-1dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Sensitivity range	+15dB~ -35dB
Compressor	GAIN: 0 to 9dB, THRESHOLD: 20 to 5dB
Stereo input channels
Mic input	XLR balanced
LOW CUT	75Hz
Line input	1/4’ TRS or TRS/RCA un-balanced
Freq. response	20Hz to 22kHz,+/-1dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Sensitivity range	-15dBu~ +35dBu
SNR	<-100dBr A-weighted
Channels EQ	Mono channel; Stereo channel
High	+/-15dB @12KHz; +/-15dB @12KHz
Mid	+/-15dB @2.5Hz; N/A
Low	+/-15dB @80Hz; +/-15dB @80Hz
2-TRACK IN
TAPE IN	RCA jack
Freq. Response	20Hz to 22kHz,+/-1dB
Distortion (THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
Gain Range	OFF to 15dB
STEREO RETURN
Input	1/4’ TRS un-balanced
Freq. response	20Hz to 22kHz,+/-1dB
Distortion(THD+N)	<0.03% at +0dB, 22Hz~22kHz A-weighted
GAIN range	OFF TO +15dB
SNR	<-100dBr A-weighted
Impedances
Microphone input	1.8 kOhm
All other input	10 kOhm or greater
Tape out	1 kOhm
All other out	120 Ohm
DSP section
A/D and D/A converters	24bit
Type of effects	Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal
	Rotary, Small Room, Flange + Verb, Large Hall
Controls	100 position preset selector(10 preset x 10 variation)
FOOT-SW	Mute switch & Foot-switching with LED indicator
	TIP:FX SLEEVE:GND
Main mix section
Max. MAIN MIX output	+22dBu XLR balanced (+16dBu un-balanced)
AUX range	OFF to +15dB
Fader range	OFF to +10dB
PHONES/CONTROLROOM range	OFF to +15dB
Hum & Noise	<-80dB @ 20Hz~22kHz A-weighted 1 channel & MAIN
	level:0dB,the other :minimum
Crosstalk	<-80dB @0dB 20Hz~22kHz A-weighted MAIN
	level:0dB,the other :minimum
Power supply	100-240VAC, 50-60Hz, 40W max, T1.6AL 250V
Dimensions and weight	480 x 340 x 100 mm; 3.85 kg
