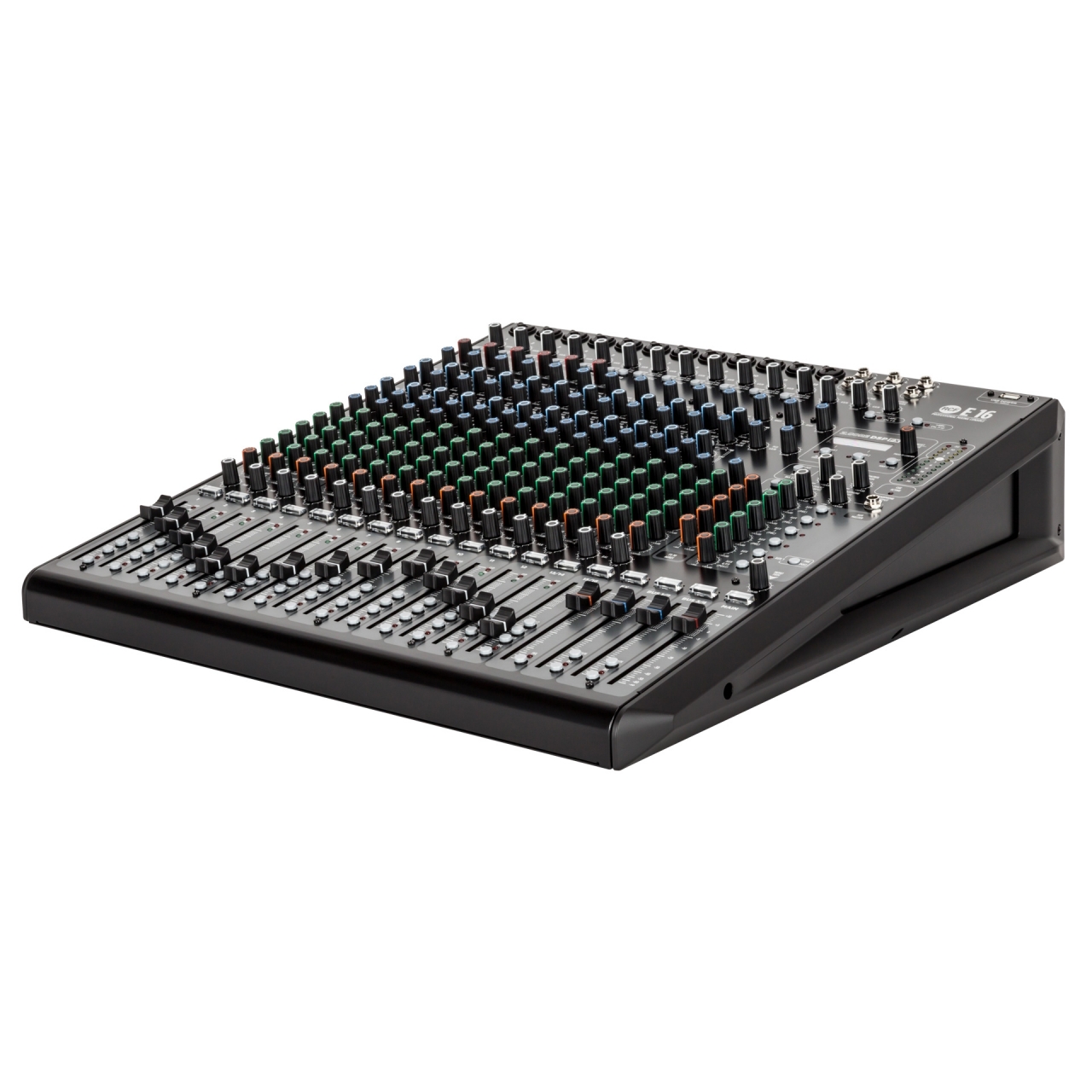

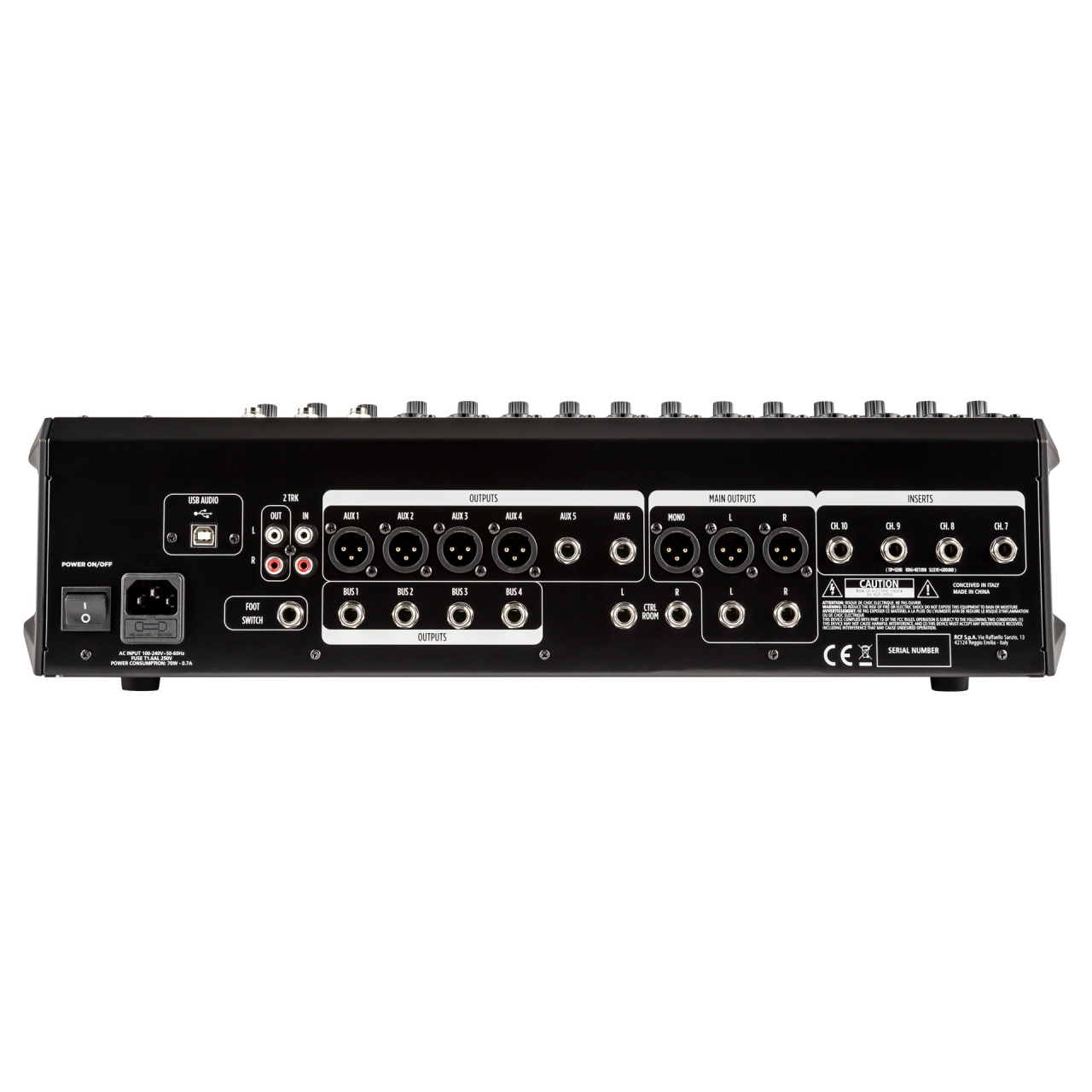

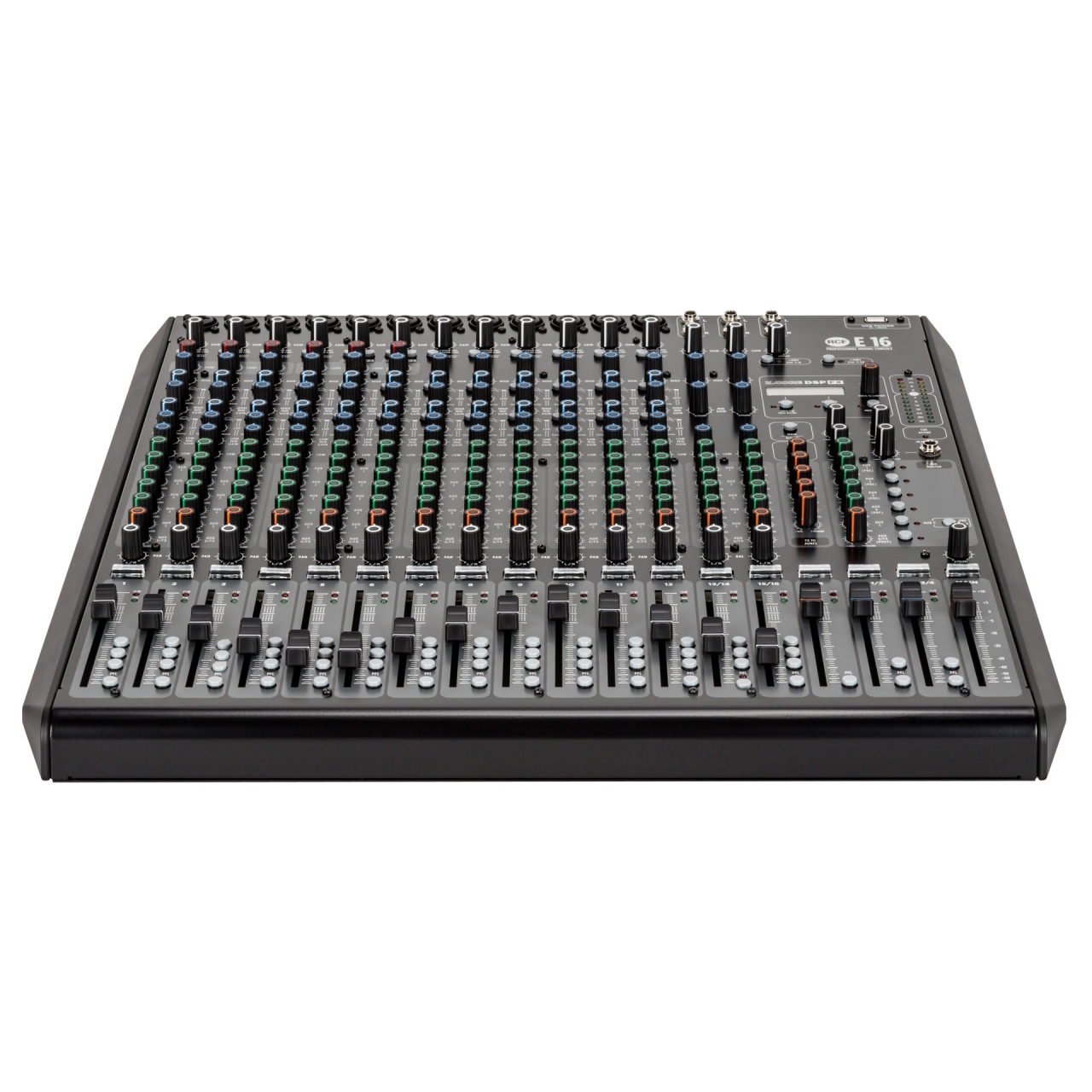

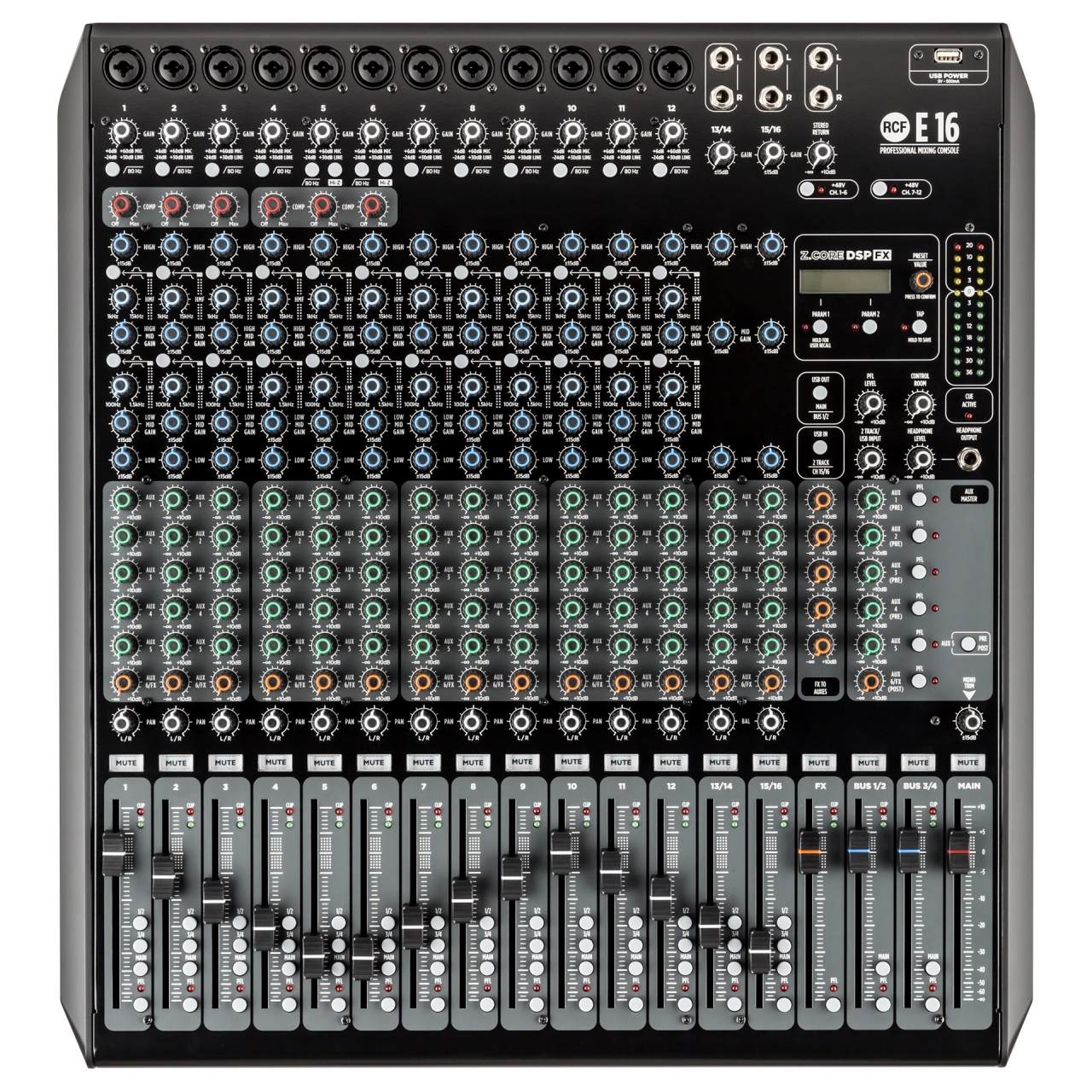

RCF – E16

The analog mixing console E 16 is equipped with twelve studio preamps with a gain range of 54 dB. Two line inputs can be switched to Hi-Z mode. The input section features 3 stereo line inputs and one stereo return for your external effects. Channels 1 to 6 also include a compressor. Twelve mono channels can be set with a 3-band equalizer (shelving high and low, semi-parametric mids with adjustable frequency, 2 different Q parameter slopes), while stereo inputs have a 3-band equalizer. Features:
• 12x Mic/line in, 3x stereo line IN
• 1x Stereo return
• 6x Single-control dynamic compressor (channels 1 to 4)
• 3-band semi-parametric equalizer
• 3-band equalizer on stereo input
• 6x Aux send on each channel
• 60 mm faders
• 2x stereo group
• 32-Bit floating-point z.core dsp effects
