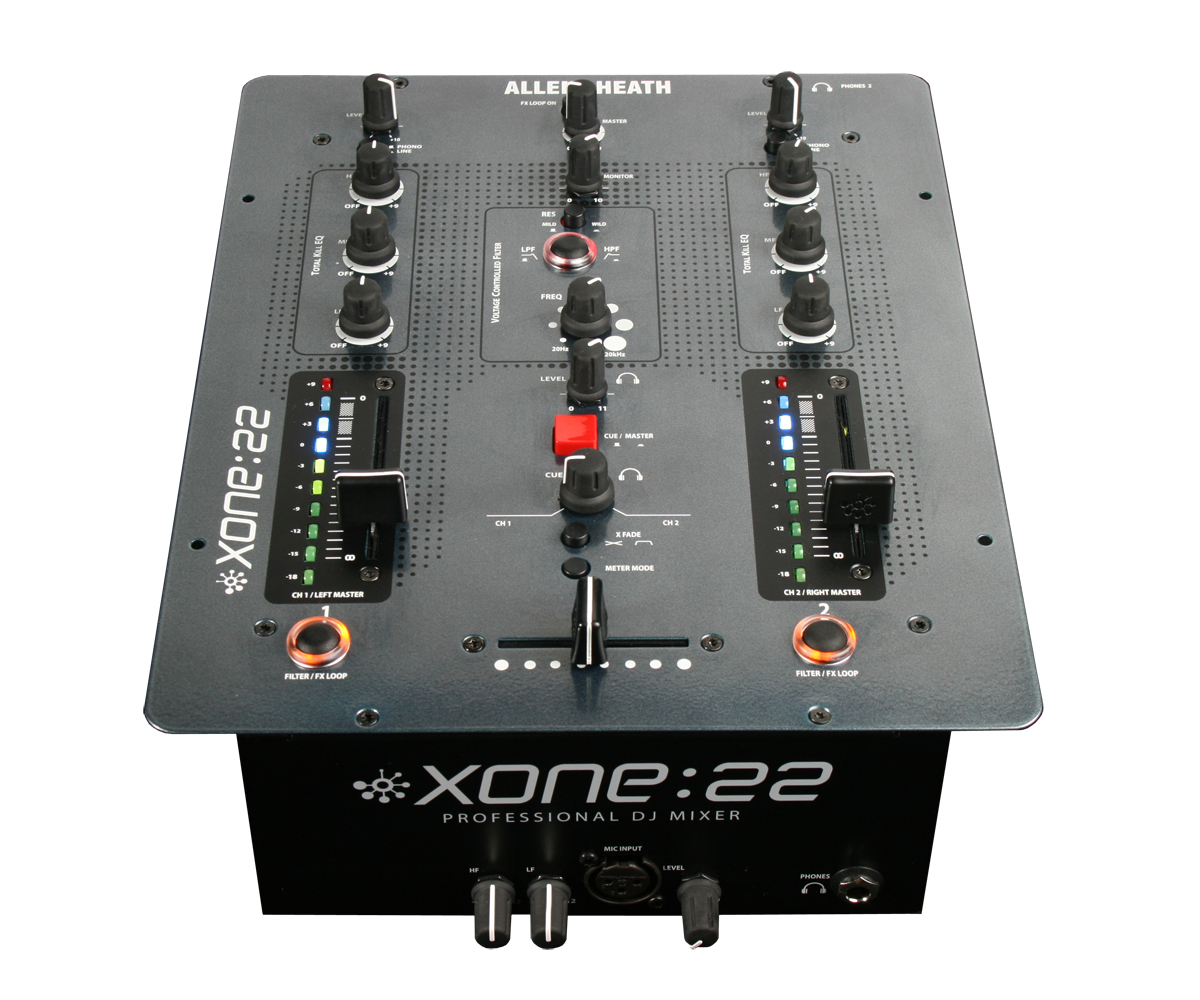

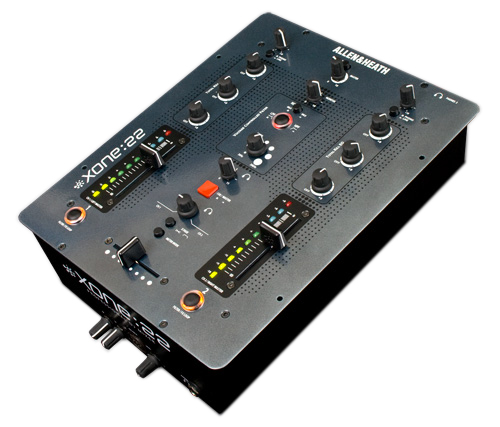

Allen&Heath – Xone:22 • professional analog two-channel DJ mixer • 2 dual stereo channels • 2 stereo inputs for each channel (phono + line) • 1 microphone input • 2 headphone outputs (shared channel) • stereo effects loop • Send/Return • 2 additional outputs: for monitoring and recording • 3-band equalizer for each channel • VCF filter section • dimensions: 190 x 82 x 307 (mm) • weight: 2.2 kg
Input Channels:
• 1 microphone input (1x balanced XLR on the front panel)

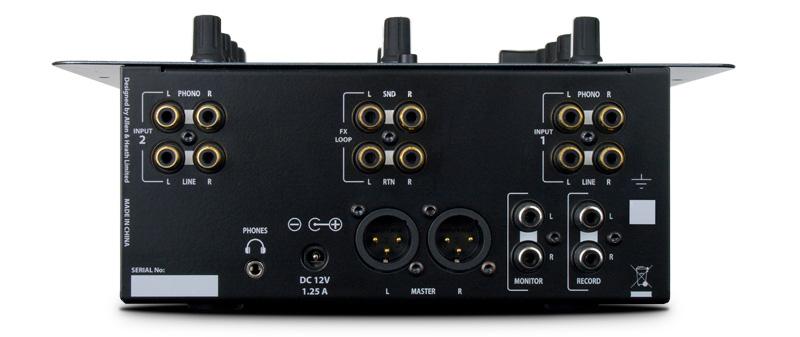

• 2 dual stereo channels (4x unbalanced stereo RCA on the rear panel)
• 1 stereo effects Return (1x unbalanced stereo RCA on the rear panel)
Output Channels:
• 1 main stereo output (2x balanced XLR on the rear panel)
• Stereo monitoring output (unbalanced RCA)
• Stereo recording output (unbalanced RCA)
• 1 stereo effects Send (1x unbalanced stereo RCA on the rear panel)

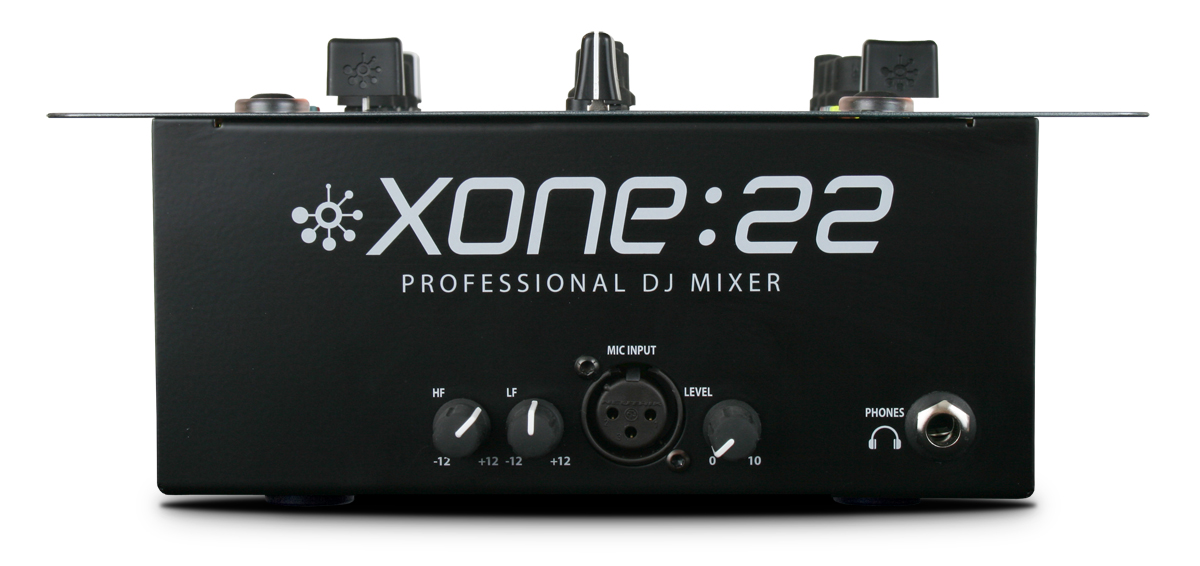

• 2 headphone outputs: 1x mini stereo jack (3.5 mm) on the rear panel and 1x stereo jack (6.3 mm) on the front panel
Controls for Microphone Input (on the front panel):
• 1x rotary level control for the microphone preamplifier
• 2-band equalizer (rotary controls)

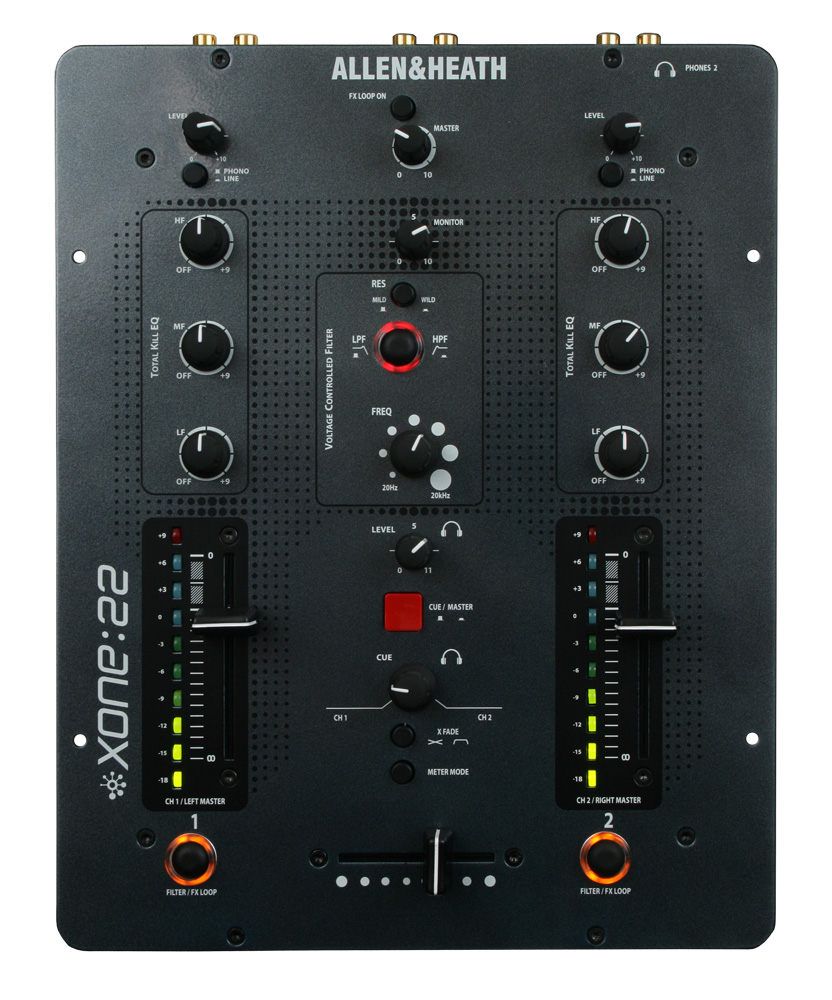

Controls for Main Input Channels:
• Rotary input level control for each channel
• Source selection button - switch between phono and line input
• 3-band equalizer for each channel (rotary controls), specific band can be fully attenuated (Full Kill)
• Channel fader for controlling the level of each channel
• Signal routing switch from the channel to the effects loop and also to the VCF filter section
Controls for Output Channels:
• Button for enabling and disabling external effects loop
• Rotary level control for the main mix
• Rotary level control for the monitoring mix
• Q slope selection button - gentle or sharp effect
• Filter type selection button - low pass or high pass
• Rotary control for adjusting the cutoff frequency of the VCF filter
• Crossfader curve selection button - slow or fast channel blending
• Signal level transparency mode switch - bar or point mode
• Crossfader for blending channels 1 and 2
Headphone Controls:
• Rotary level control for the headphone output
• Switch between cue and main mix
• Rotary control for mixing channels 1 and 2 into the cue mix
Technical Specifications:
• Microphone input: impedance <2 kOhm, sensitivity -42 to -12 dBu
• Line inputs: impedance 20 kOhm, sensitivity -10 to +18 dBu
• Effects input (Return): impedance 10 kOhm, sensitivity 0 to +18 dBu
• Phono input with RIAA preamplifier: impedance 47k Ohm / 330 pF, sensitivity 7 to 100 mV
• Main outputs: impedance 68 Ohm, nominal level +4 dBu
• Monitoring output: impedance 68 Ohm, nominal level -2 dBu
• Recording output: impedance 600 Ohm, nominal level -10 dBV
• Effects output (Send): impedance 47 Ohm, nominal level -2 dBu
• Dimensions: 190 x 82 x 307 (mm)
• Weight: 2.2 kg
