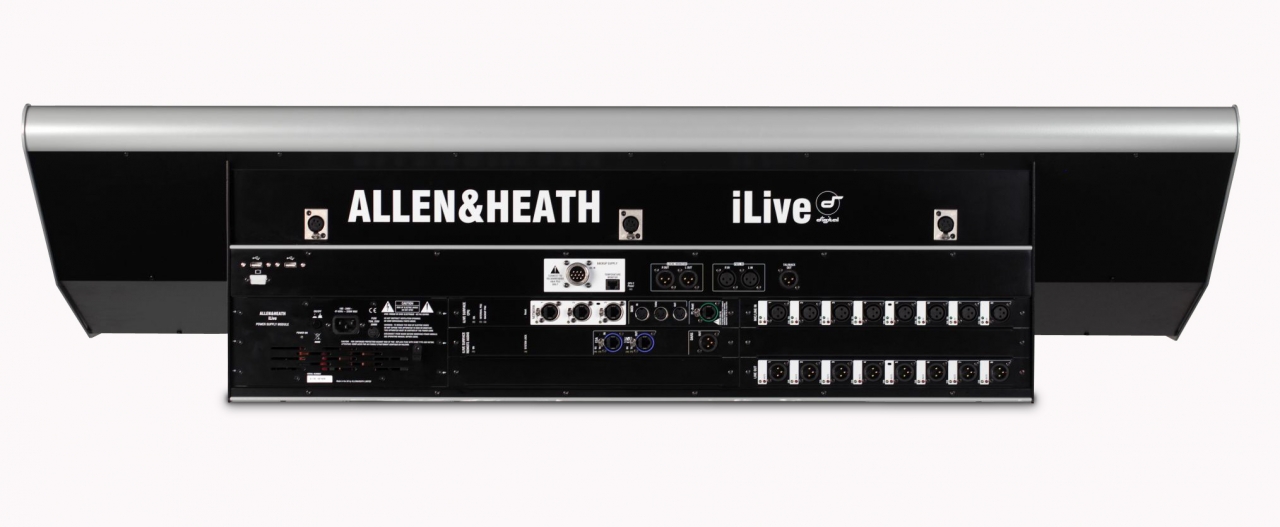

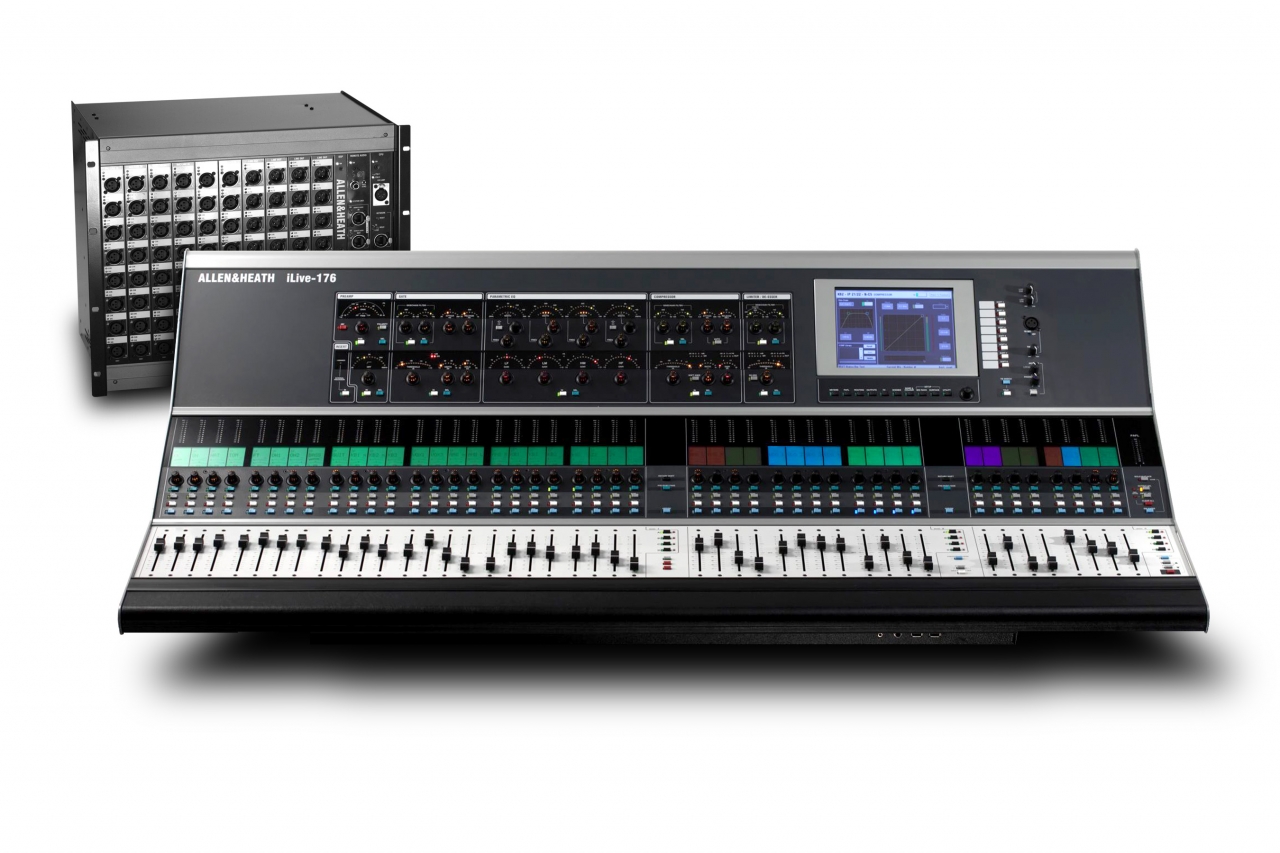

Allen&Heath iLive-176 • Control interface from the modular iLive series • Compatible with other iLive series versions (portable settings) • 44 faders in 3 banks, 4 layers • Expandable up to 32 audio inputs/outputs • Wide selection of I/O modules (not included) • RAB2 module with A, B ports for network connection (not included) • Choice of network configuration for Port A (MixRack link) • Port B can be equipped with M-MMO card • CPU module, Ethernet switch with 3 ports, MIDI and PL-Anet ports • VGA output • 3 input for gooseneck lamps • 2 USB Flash inputs for data transfer • stereo monitor output (XLR) • dual headphone output • PAFL input and Talkback input/output • internal power supply • backup power supply iPS10 can be connected • for use with iLive iDR0, iLive iDR10 • dimensions 707x353x1406(mm) • weight 54 kg iLive-176 is a control interface for the MixRack - iDR-64 DSP unit (DSP module included in iLive iDR0, iLive iDR10, for example). The system is primarily designed for live sound applications. Everything is designed to resemble traditional analog mixing consoles as closely as possible. Connection to the MixRack (iLive iDR0, iLive iDR10, etc.) is done via a CAT-5 cable, which not only transmits audio signals but also controls the entire system. The network data transmission setup saves a significant amount of traditional multi-pair cables (including backup data transmission). All control elements and system information are readily available through the clear and logical iLive controller interface. It offers 44x 100mm motorized faders in 3 banks (4 layers), rotary encoders, buttons, displays including the main touch screen. A significant portion of the iLive-176 surface is the "Channel Processing Strip," used for immediate control of selected channel parameters (Preamp, HPF, PEQ, insert, gate, compressor, limiter/de-esser). All channels can be named and color-coded via the "Virtual write-on strip" (color-illuminated display). All channels can be configured: mono/stereo inputs, groups, auxiliaries, matrix, FX send, FX return, main mix, or DCA. iLive-176 can be equipped with up to 4 expansion modules, offering inputs: microphone/line, digital (AES3, SPDIF, optical TOSLINK), Dual microphone/line, and outputs: line, digital (AES3, SPDIF, optical TOSLINK), Multi-Digital (AVIOM, HearBus, iDR, ADAT), and network modules. iLive must be connected to the DSP unit iDR-64 (e.g., iLive iDR0, iLive iDR10).
