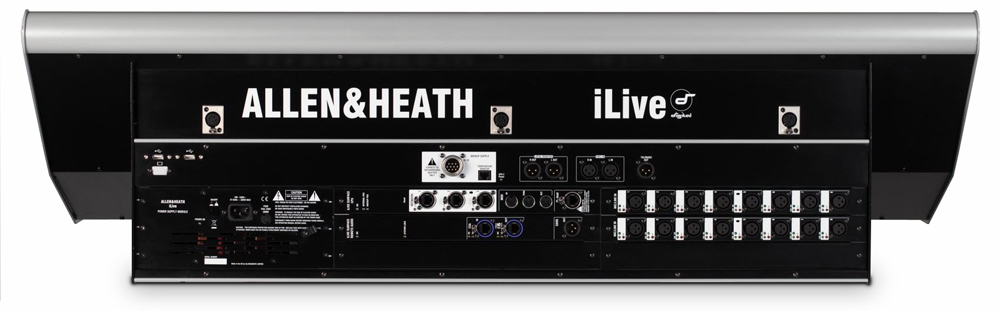

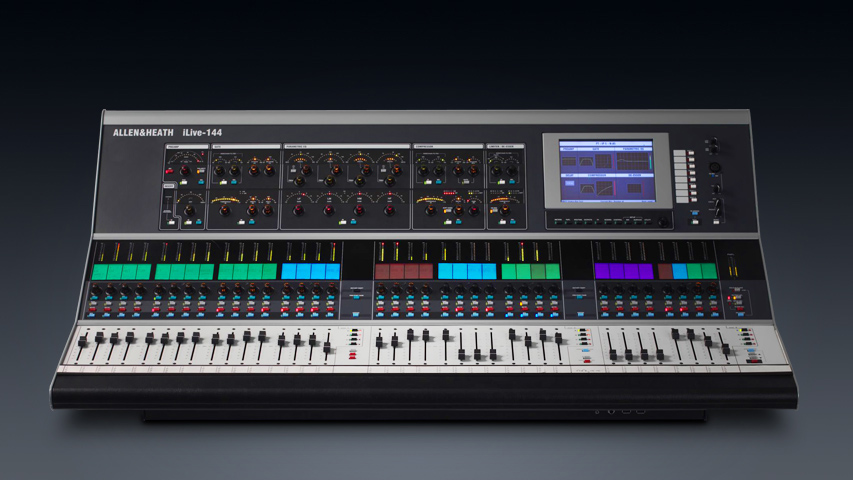

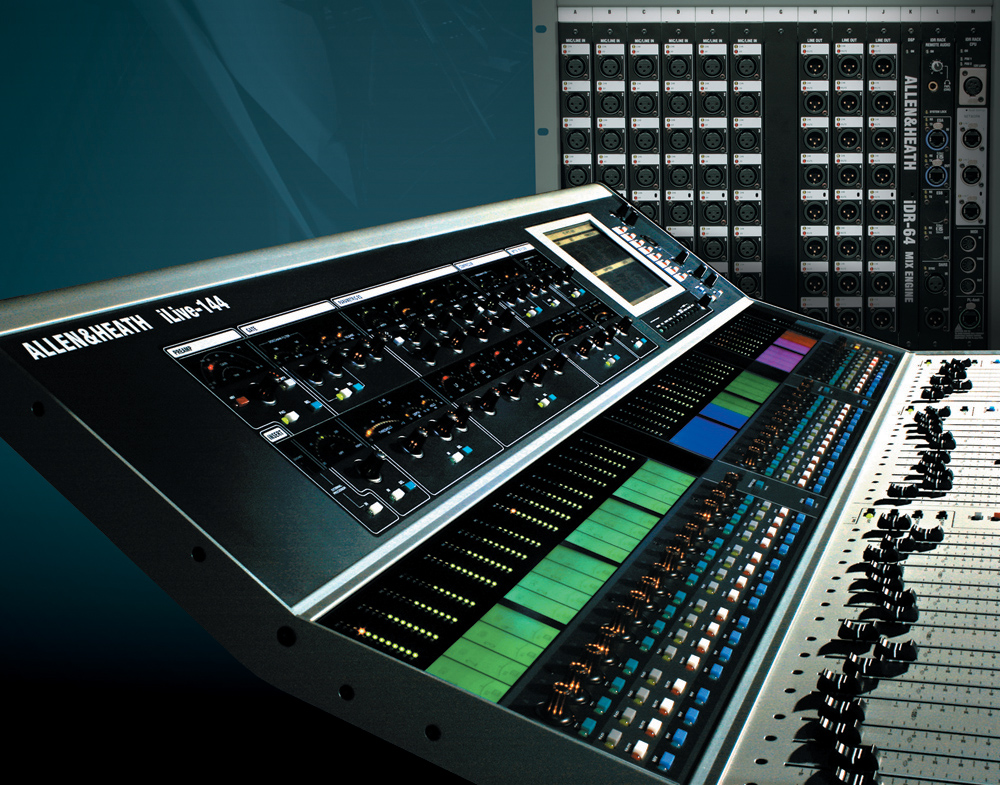

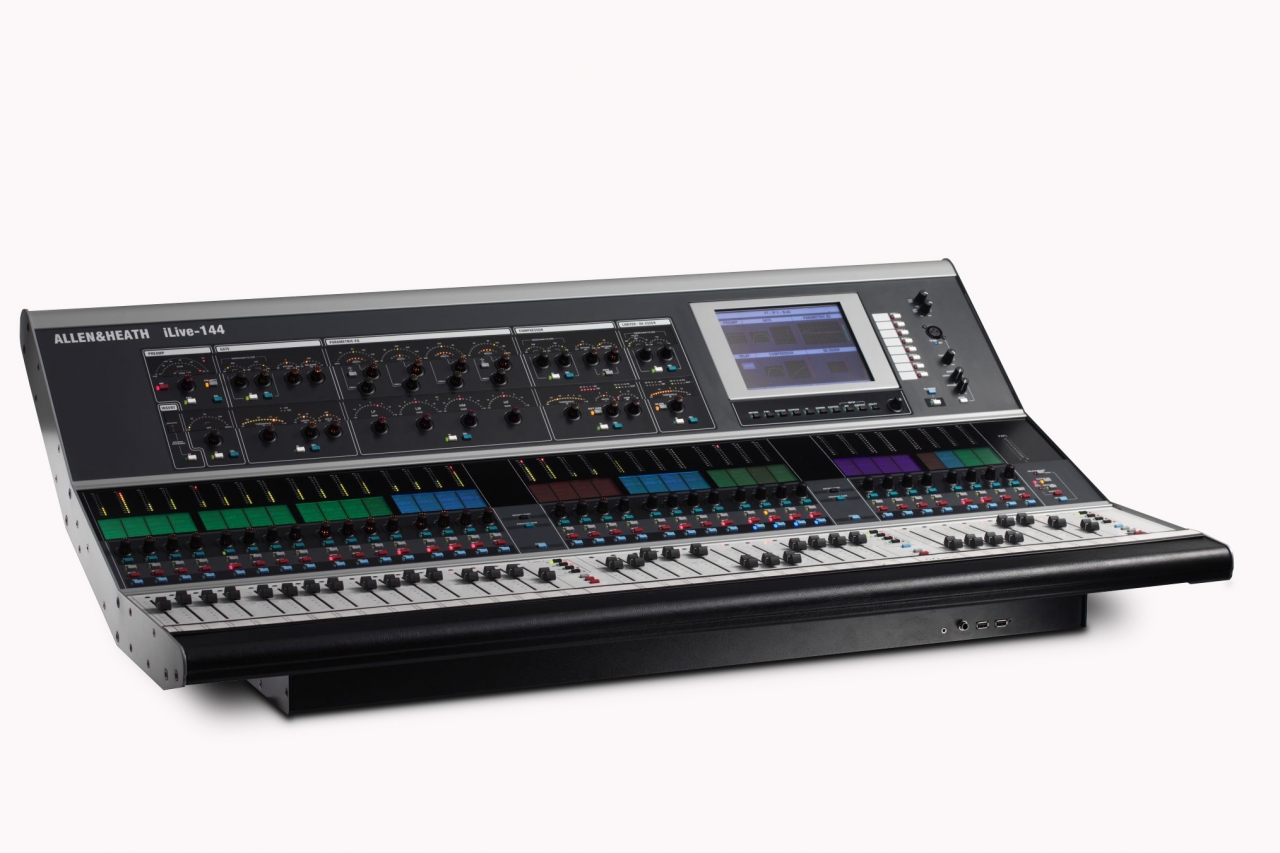

Allen&Heath iLive-144 • Control interface from the modular iLive series • Compatible with other iLive series components (transferable settings) • 36 faders in 3 banks, 4 layers • Expandable up to 32 audio inputs/outputs • Wide selection of I/O modules (not included) • RAB2 module with A, B ports for network connection (not included) • Choice of network configuration for Port A (MixRack link) • Port B can be equipped with M-MMO card • CPU module, Ethernet switch with 3 ports, MIDI and PL-Anet ports • VGA output • 3x input for gooseneck lamps • 2x USB Flash inputs for data transfer • stereo output for monitors (XLR) • dual headphone output • PAFL input and Talkback input/output • internal power supply • backup power supply iPS10 can be connected • for use with iLive iDR0, iLive iDR10 • dimensions 707x353x1206(mm) • weight 48 kg iLive-144 is a control interface for the MixRack - iDR-64 DSP unit (DSP module, part of systems like iLive iDR0, iLive iDR10). The system is primarily designed for live sound applications. The interface is crafted to resemble traditional analog mixing consoles for ease of use. Connection to the MixRack (iLive iDR0, iLive iDR10, etc.) is done via a CAT-5 cable, enabling both audio signal transmission and system control. This network data transmission setup eliminates the need for multiple traditional multicore cables (including redundant data transfer). All control elements and system information are readily accessible through the intuitive and logical iLive controller interface. It features 36x 100mm motorized faders in 3 banks (4 layers), rotary encoders, buttons, displays including a main touch screen. A significant portion of the iLive-144 surface is dedicated to the "Channel Processing Strip," allowing direct control over selected channel parameters (Preamp, HPF, PEQ, insert, gate, compressor, limiter/de-esser). All channels can be named and color-coded via the "Virtual write-on strip" (color backlit display). Channels can be configured as mono/stereo inputs, groups, auxiliaries, matrix, FX sends, FX returns, main mix, or DCAs. iLive-144 can accommodate up to 4 expansion modules offering various input types: microphone/line, digital (AES3, SPDIF, optical TOSLINK), dual microphone/line, and output types: line, digital (AES3, SPDIF, optical TOSLINK), Multi-Digital (AVIOM, HearBus, iDR, ADAT), and network modules. iLive must be connected to the DSP unit iDR-64 (e.g., iLive iDR0, iLive iDR10).
