Allen & Heath AR2412 • Main AudioRack for digital mixing systems GLD, QU • 24x microphone/line XLR inputs • 12x XLR outputs • dSNAKE protocol, CAT-5 cable, up to 120m • AVIOM port • dimensions 483x220x137 (mm) • weight 5 kg

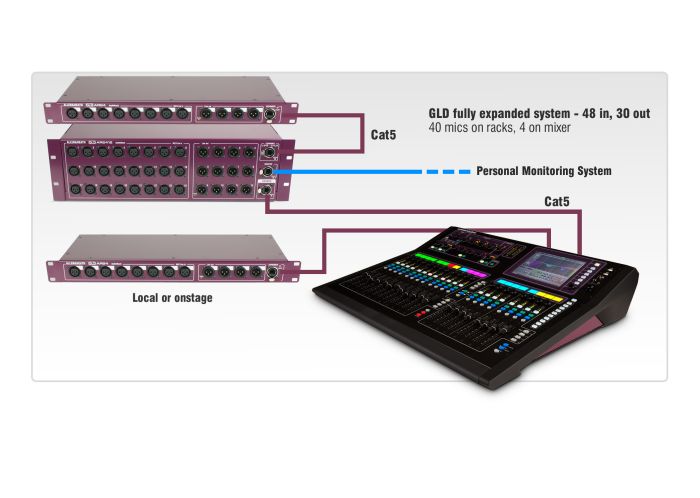

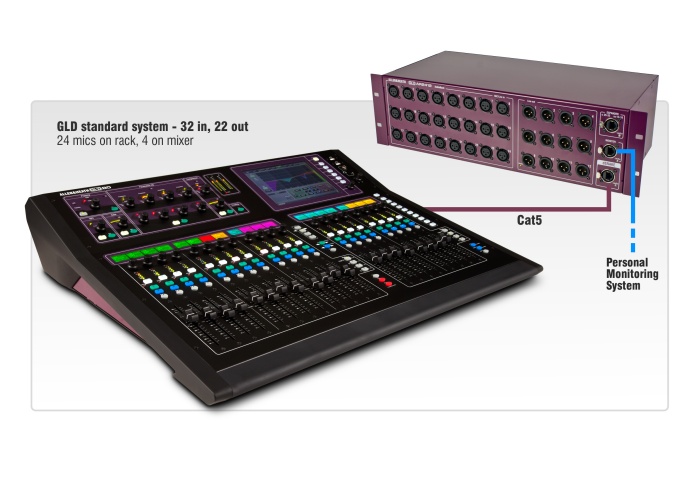

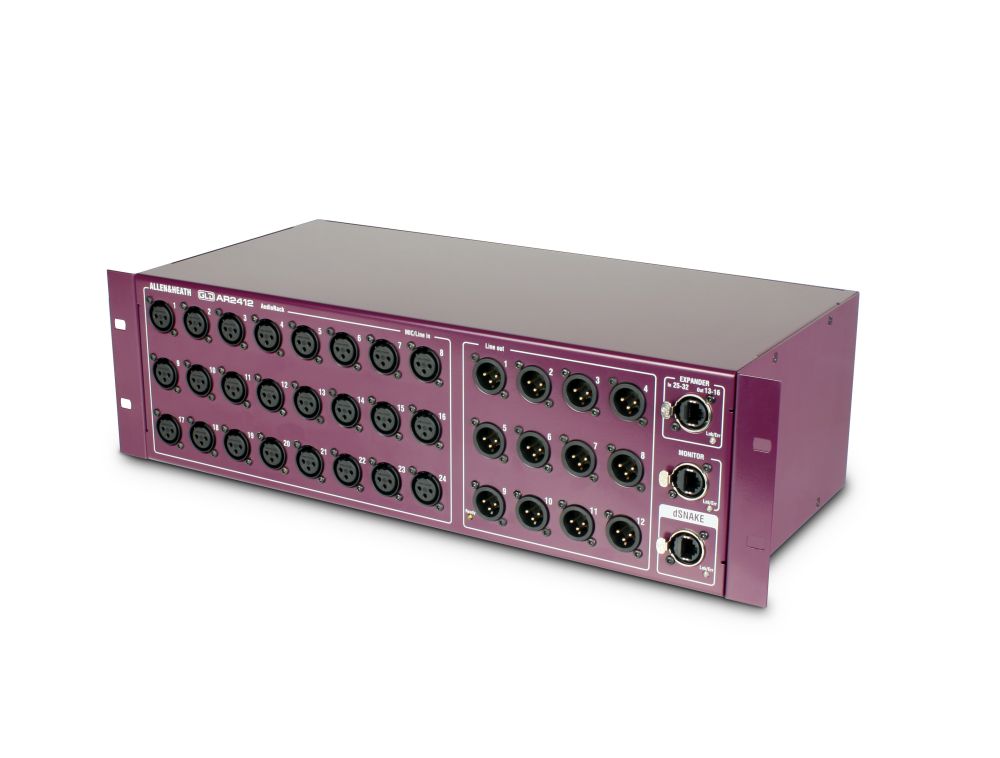

AR2412 is the main AudioRack for digital mixing systems GLD, QU. When connected to the GLD-80 mixer, it provides 24 inputs with XLR connectors and 12 XLR outputs. Connection and communication are achieved through a CAT-5 cable and the dSnake protocol, allowing operation at distances of up to 120m. dSNAKE enables remote control of preamps with the ability to store and recall settings. For further expansion, the AR84 expansion AudioRack can be connected to the AR2412, adding an additional 8 XLR inputs and 4 XLR outputs. AR2412 also features an AVIOM port for personal monitoring systems.
• Main AudioRack for digital mixing systems GLD, QU
• 24x microphone/line XLR inputs
• 12x XLR outputs
• dSNAKE protocol, CAT-5 cable, up to 120m
• AVIOM port
• Dimensions 483x220x137 (mm)
• Weight 5 kg
