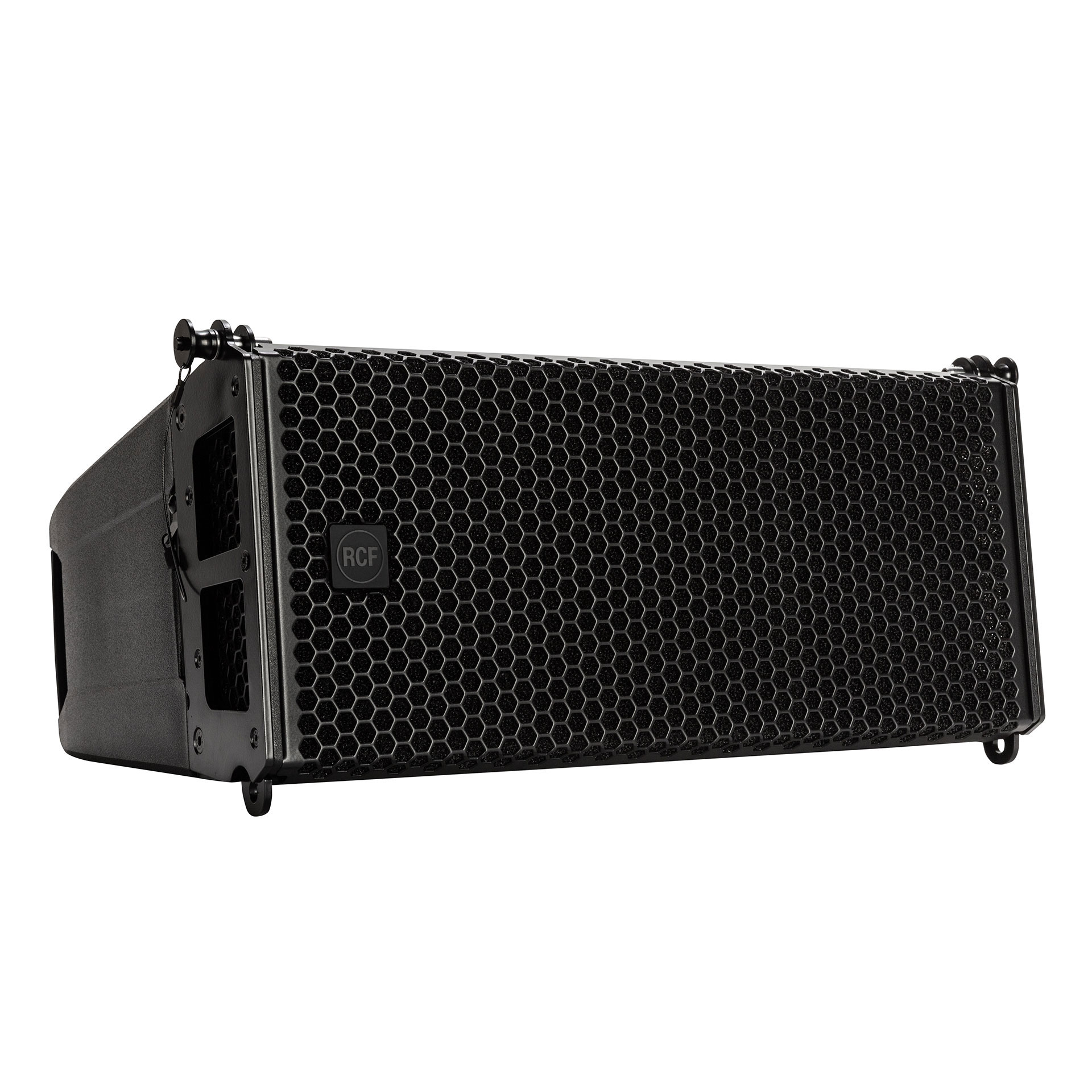

RCF HL 6

The HL 6 is an ultra-compact passive 2-way full-range line array module designed for small to medium-sized spaces. Featuring a 1.75" neodymium compression driver with a constant directivity waveguide and a completely linear high-frequency response, it delivers consistent coverage of 100° x 10° from 900 Hz up to the highest audible frequencies with remarkable sound clarity. Two highly efficient 6" woofers produce impressive bass with an SPL of up to 131 dB. This speaker is suitable for a wide range of applications, both in a line array configuration and as a standalone unit.

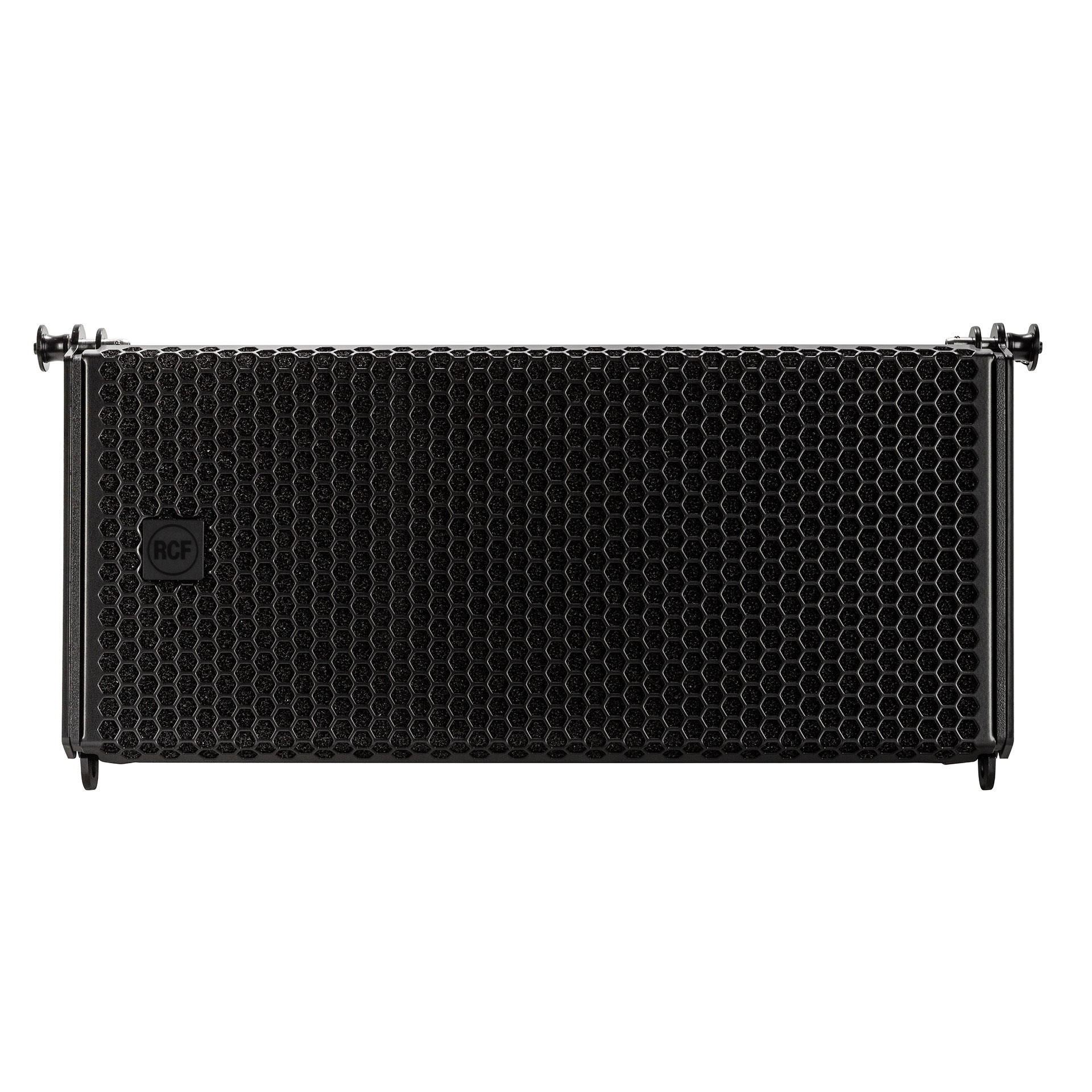

The hardware is designed for easy and quick setup. Up to 16 HL 6 modules can be mounted on a single flybar. The durable front grille is powder-coated and features a special transparent internal foam backing to help protect the drivers from dust and debris.

Features:
• Power: 1000 W Peak
• Max SPL: 131 dB @ 1m
• Frequency Range: 65 - 20000 Hz
• Dispersion: 100° x 10°
• Compression driver: 1 x 1.0" neo / 1.75" vc
• Woofer: 2 x 6.0" neo / 2.0" vc
• Constant directivity waveguide
• Extremely low weight
• Q Beamwidth: 16
• Amplifier nominal power/impedance: 250 W / 16 ohms
• Protections: dynamic active mosfet
• Crossover frequency: 900 Hz

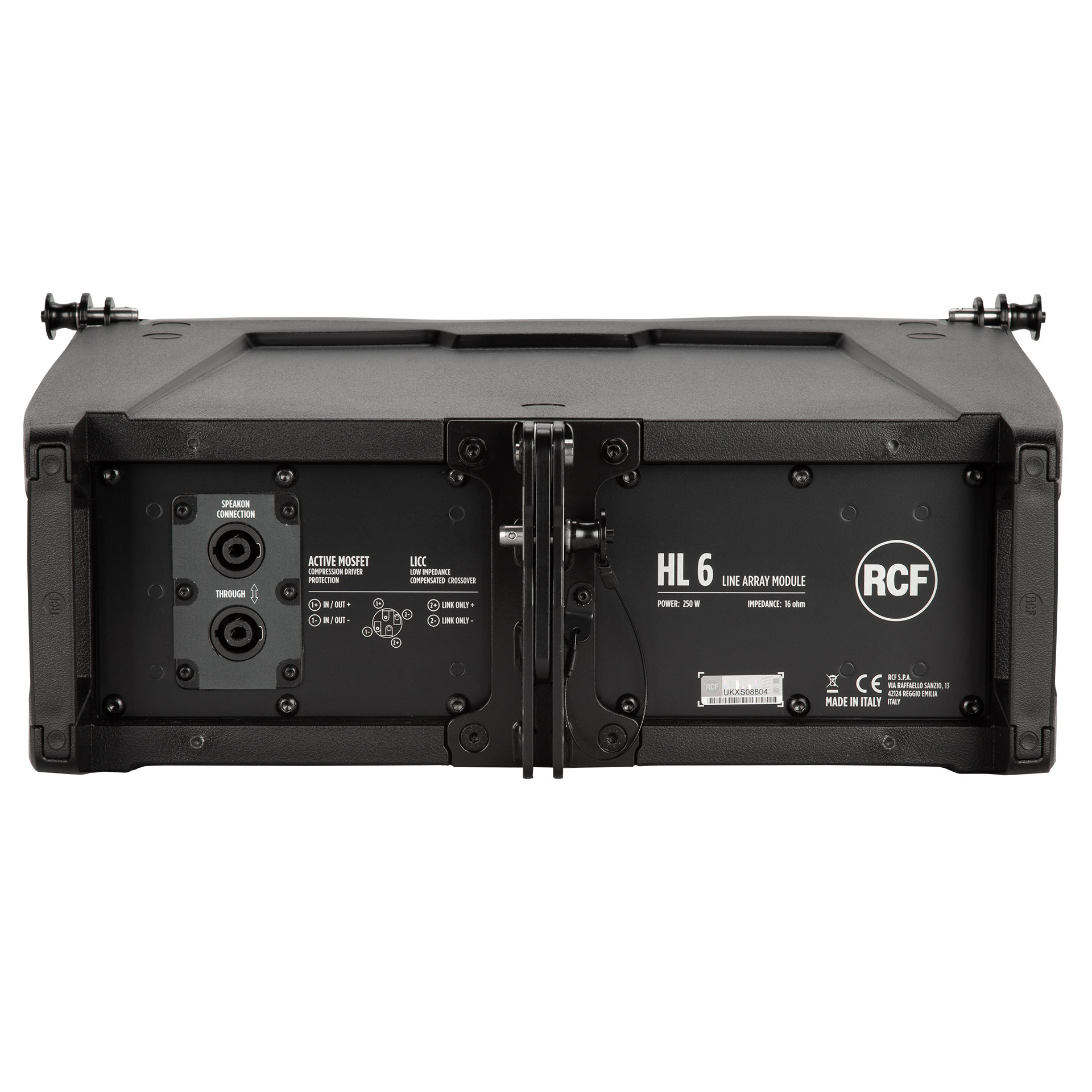

• Input & output connectors: Speakon
• CE compliant
• Cabinet material: PP composite
• Integrated accessories for Line Array system
• 2 handles on the rear panel
• Grille: steel
• Color options: black - RAL 9005, white - RAL 9003
• Dimensions: 237 x 470 x 377 mm
• Lightweight: 11.8 kg
