EAW NTL720

Active Line Array with Gunness Focusing DSP, 3×500W class D, 6×1" HF + 2×6" MF + 2×6" LF, U-net

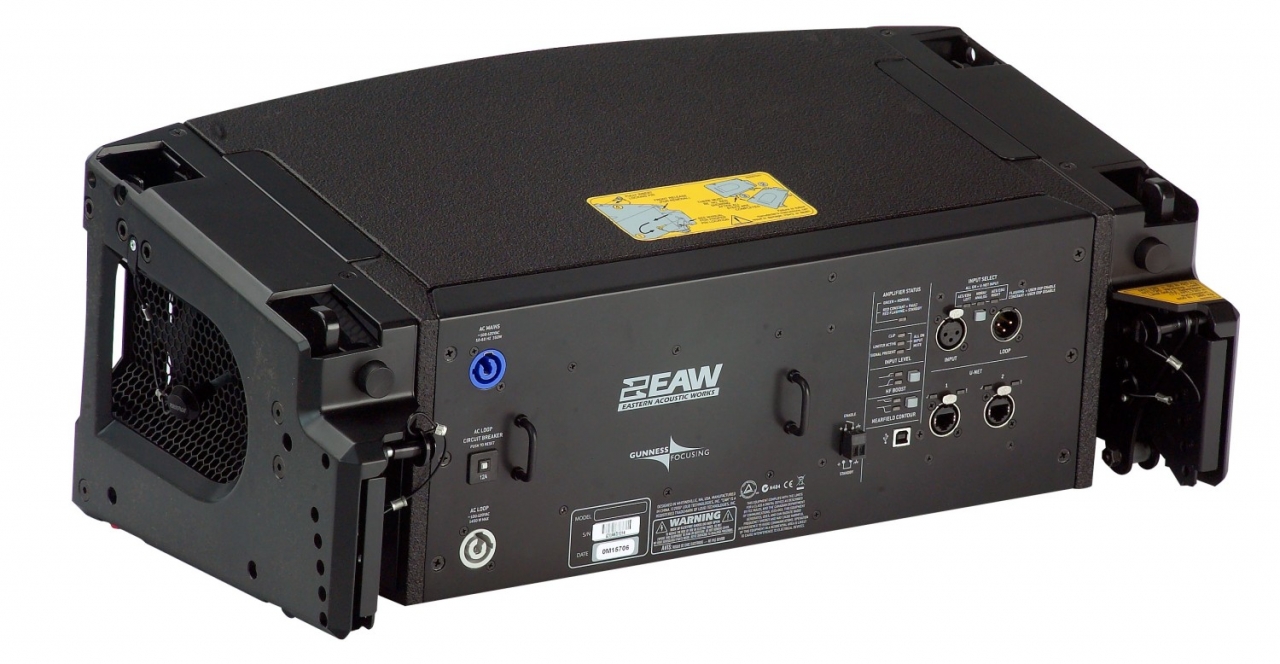

Included in the package are a POWERCON power input, POWERCON M - POWERCON F link cable, LAN cable with Neutrik EtherCON, and USB cable.

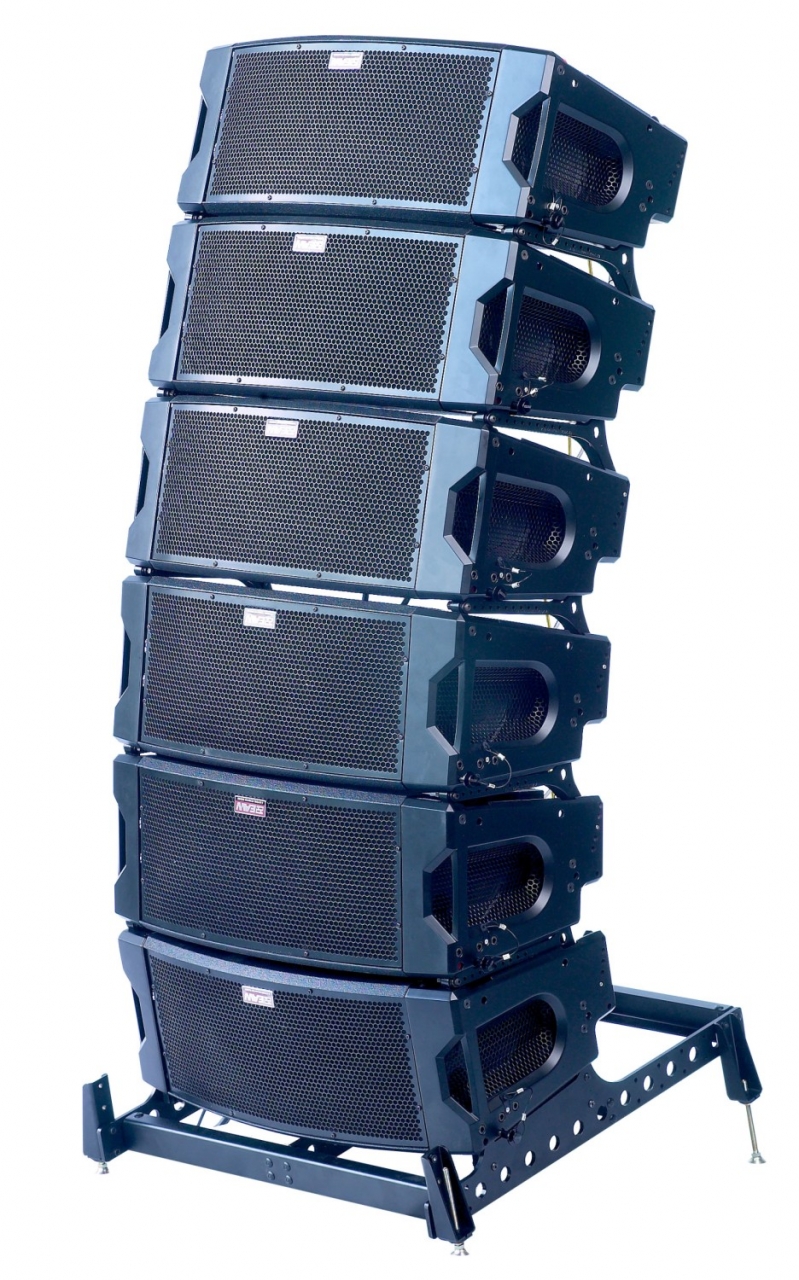

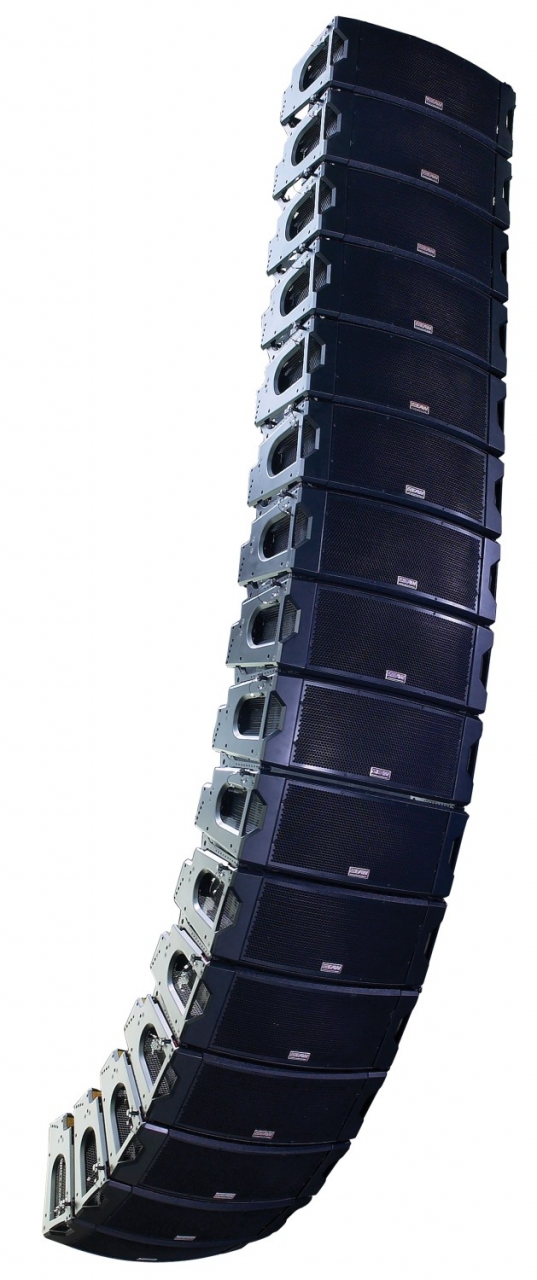

The NTL720 is a compact, self-powered, 3-way line array loudspeaker module. Its three 500-watt Class-D amp modules are precisely matched with digital signal processors, utilizing Gunness Focusing to generate precise filter responses for detailed sound reproduction. The rigging system is user-friendly, allowing for easy cabinet splay angle adjustments and component replacements within array structures.

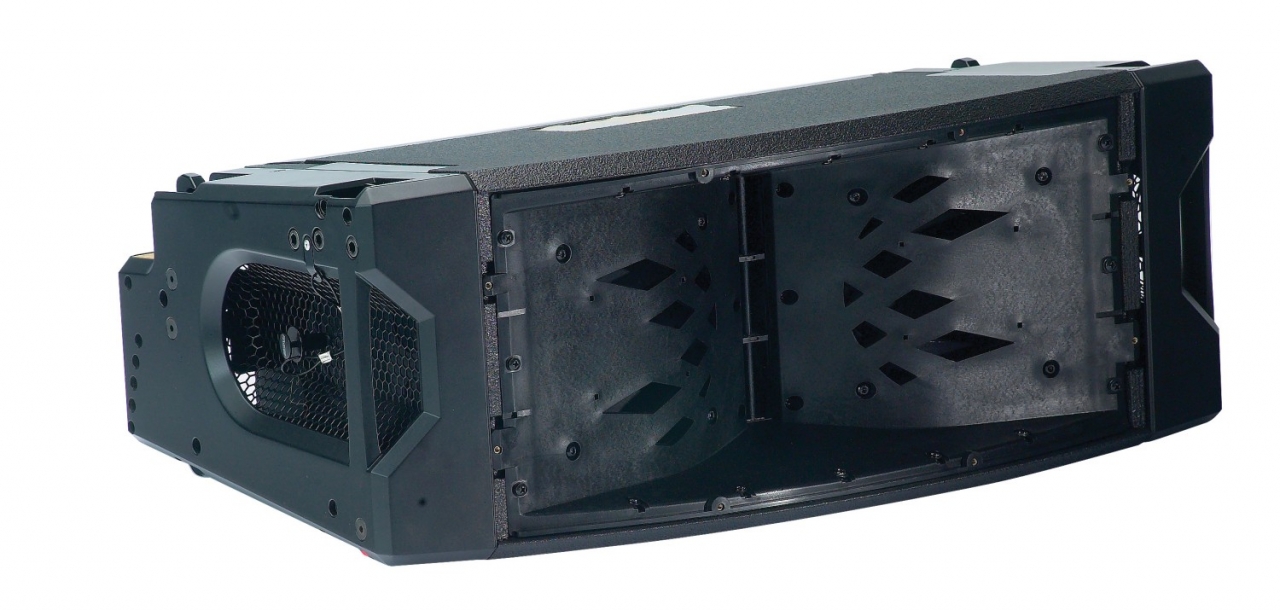

Despite its small size, the NTL720 is packed with innovative design features and advancements developed by EAW over three decades. It boasts a true three-way design for enhanced vocal clarity, a full-sized mid/high horn for wide dispersion, and six 1-inch dome tweeters for high frequencies. The dual 6-inch cone woofers handle the mid-range and are complemented by Concentric Summation Array technology for improved coherence.

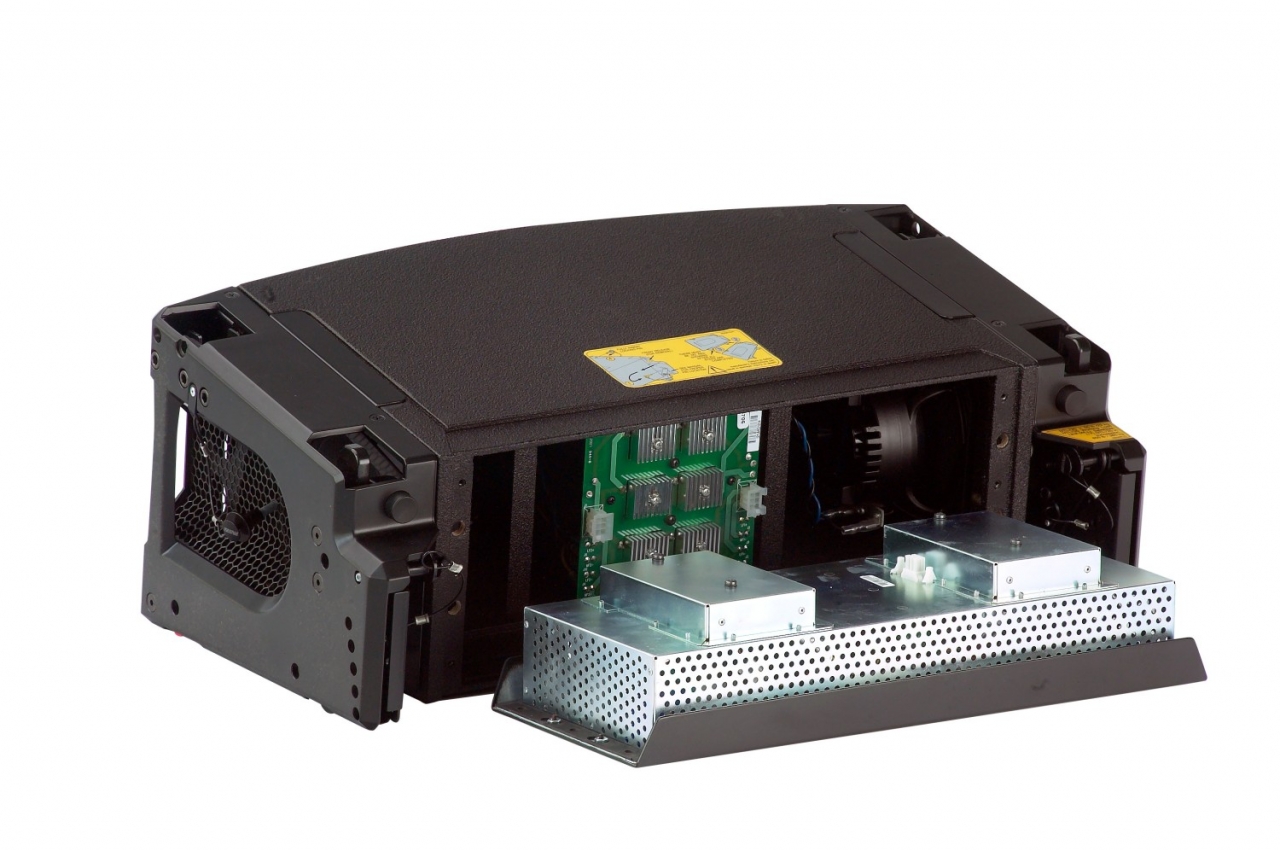

The LF section features Phase Aligned driver configuration for extended pattern control, while the onboard self-powering technology includes three individual 500-watt Class-D amplifier modules tailored for each subsection. Gunness Focusing alignment and driver processing algorithms ensure premium sound quality.

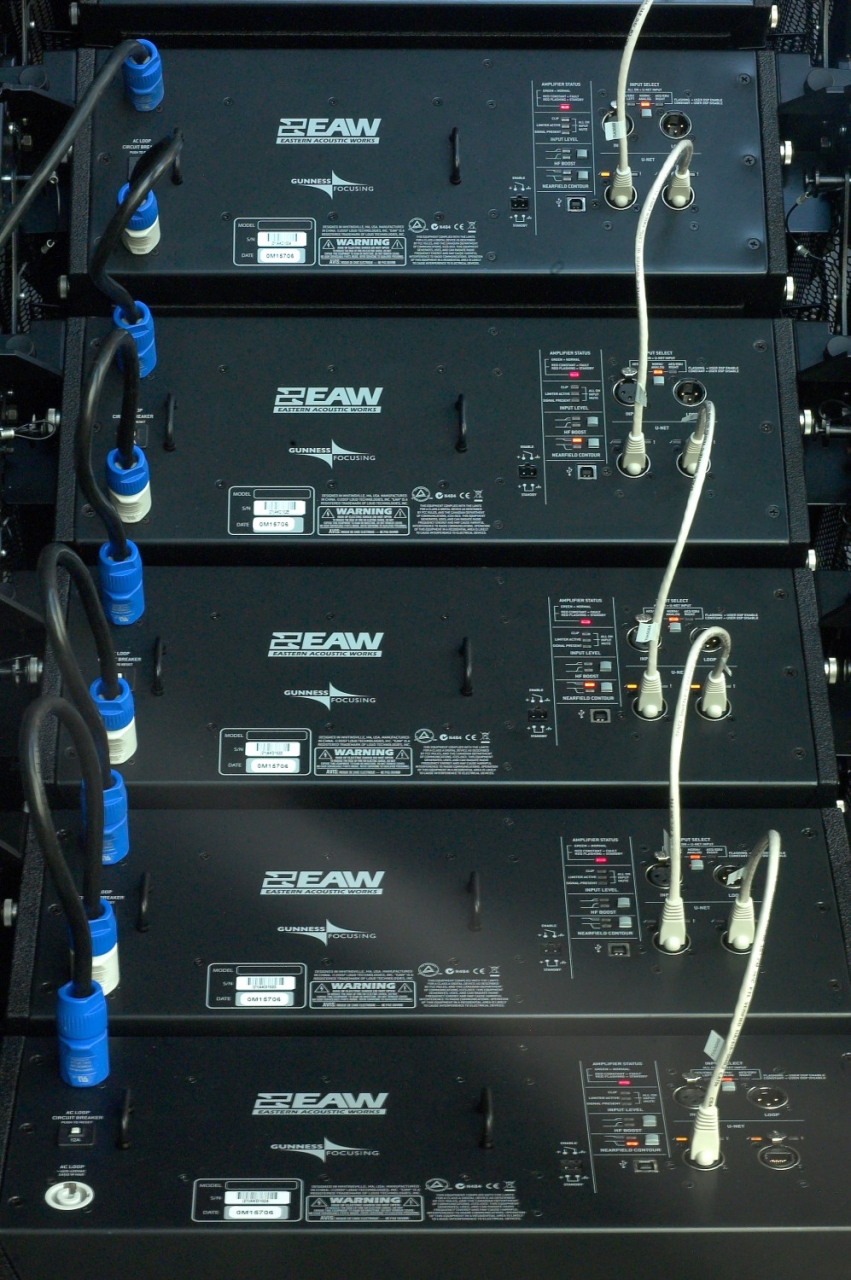

EAWPilot control software offers comprehensive DSP control and monitoring, while input selection options include analog, AES, and EAW’s U-Net for digital control. The FastLatch integral rigging system allows for easy setup and component replacement within array structures.

The NTL720 embodies EAW's engineering excellence and delivers high-performance audio in a compact package.
