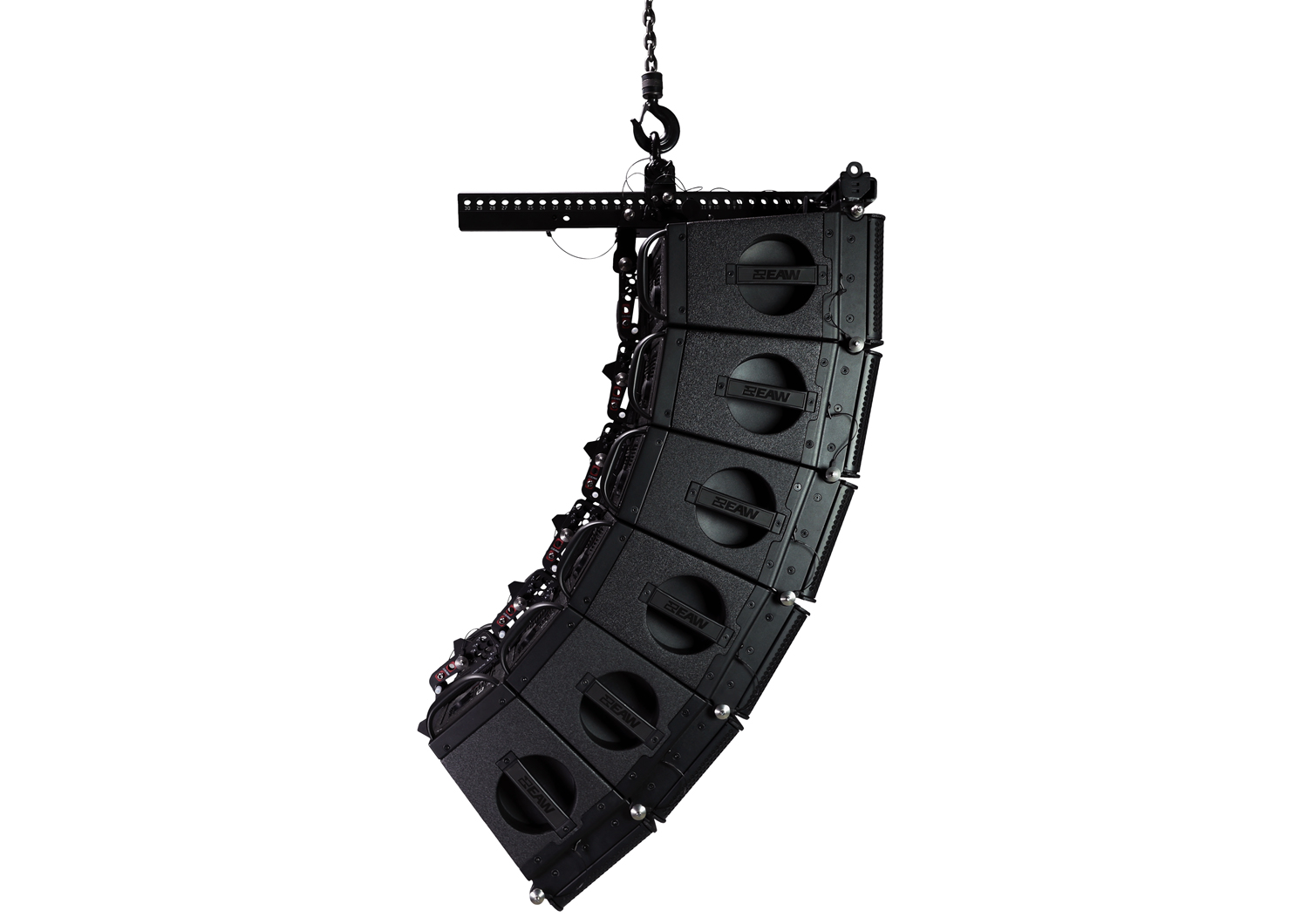

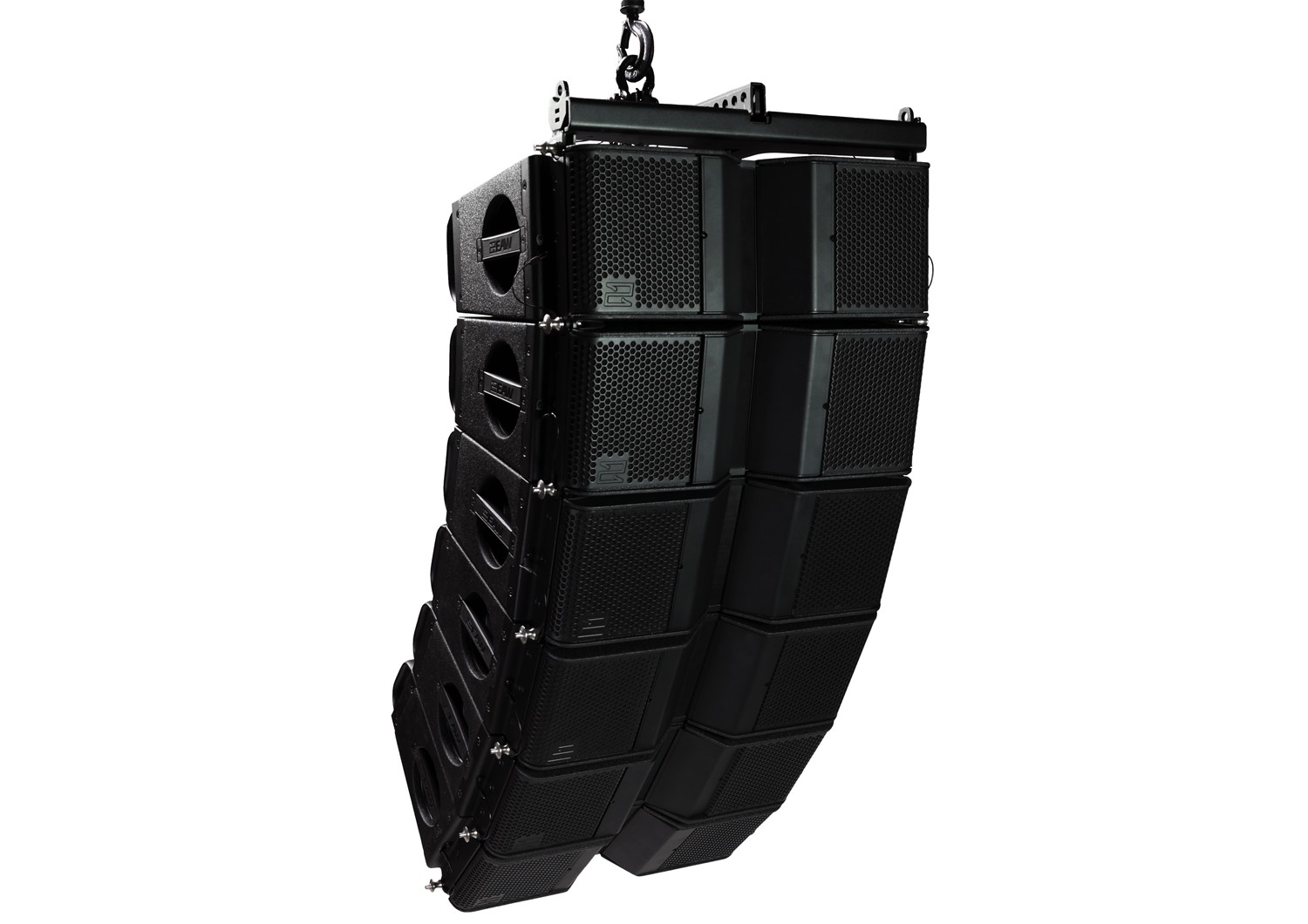

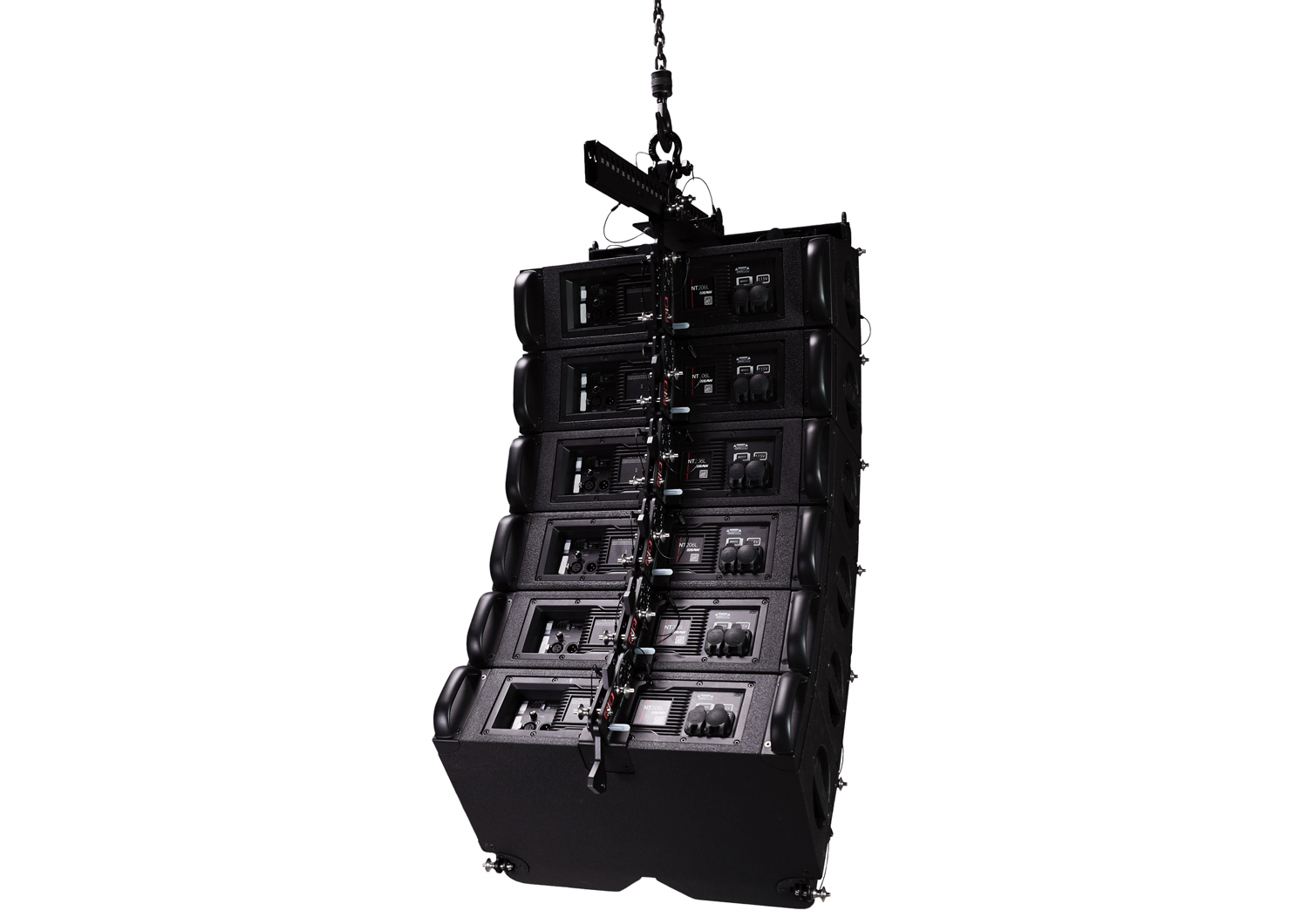

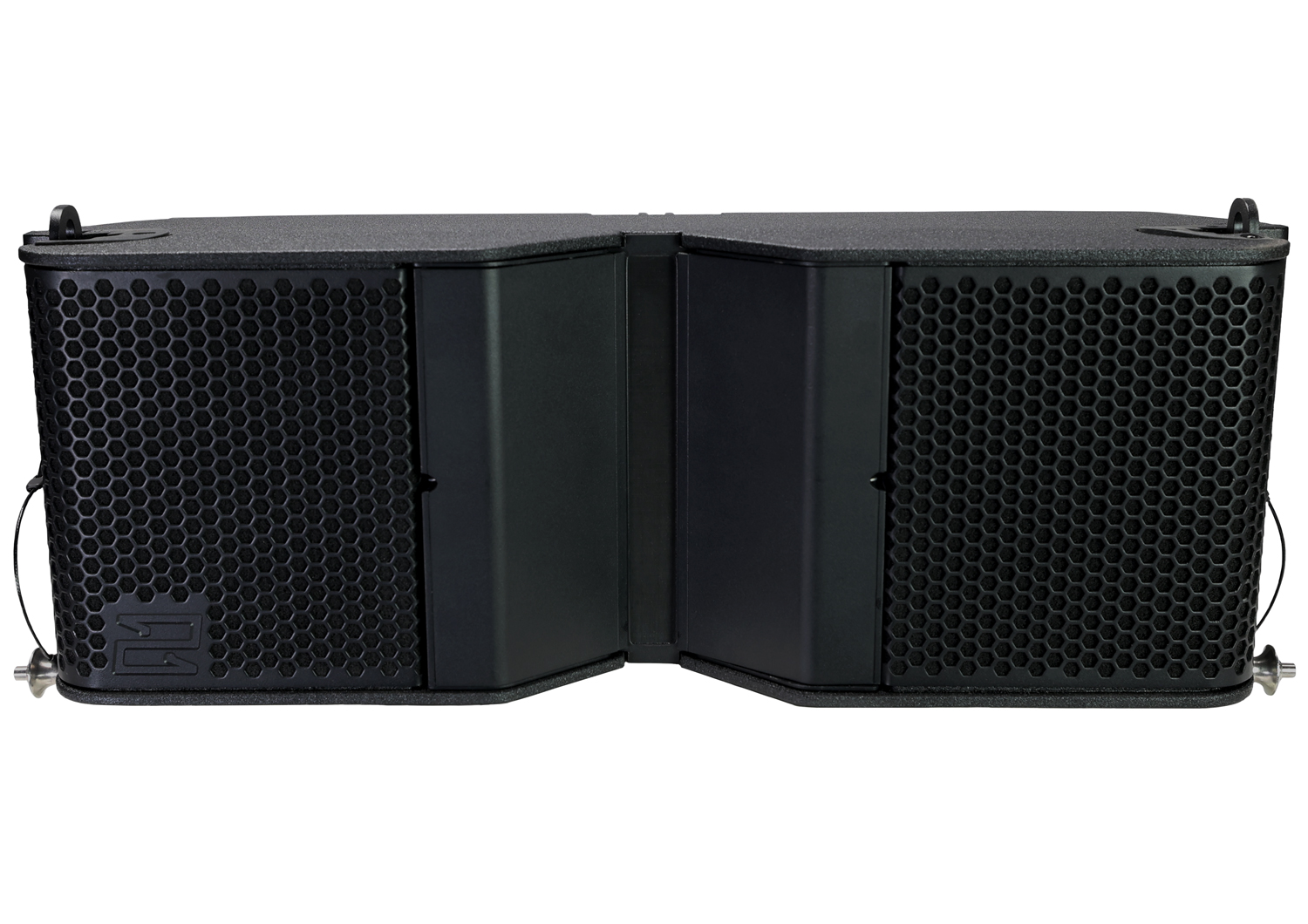

EAW – NT206L

The EAW NT206L is an ultra-compact, active line array system. It features two 6.5'' woofers with 2'' voice coils and a 1.75'' compression driver powered by 1500 watts. The NT206L delivers loud sound (137 dB) with deep bass (65–20 kHz) in a premium Baltic birch and aluminum enclosure, weighing approximately 13.6 kg, lighter than most passive plastic enclosures in its category.
Designed for quick deployment, the NT206L allows for easy, reliable, and fast setup for dynamic productions. The system operates with proven analog signal routing to the amplifier, eliminating the need for complex networked audio solutions.
While emphasizing ease of use, it doesn't lack innovation. Unlike nearly all current line array systems with fixed horizontal coverage, EAW offers a new rotatable waveguide that enables quick switching between symmetrical and asymmetrical horizontal coverage. This adjustment can be easily done on-site without the need for tools or software.
This allows for rapid deployment of the NT206L, making it the most powerful system in the ultra-compact speaker category available today.

Features:
• Max SPL: 137 dB
• Frequency Range: 65 Hz – 20 kHz
Dispersion Angle: • Horizontal: Narrow (80°), Wide (110°), Asymmetrical (95° left or right from center)
• Vertical: 10°
• Nominal Phase: ±15° from ideal high-pass filter
• LF Drivers: 2× 6.5" woofers with 2" voice coil
• HF Driver: 1.75" voice coil compression driver with EAW patented Isophasic Waveguide
• Crossover Frequency: 1.2 kHz
• Signal Processing: DSP with EAW Focusing™ and DynO™
• Operating Modes: Single, Array

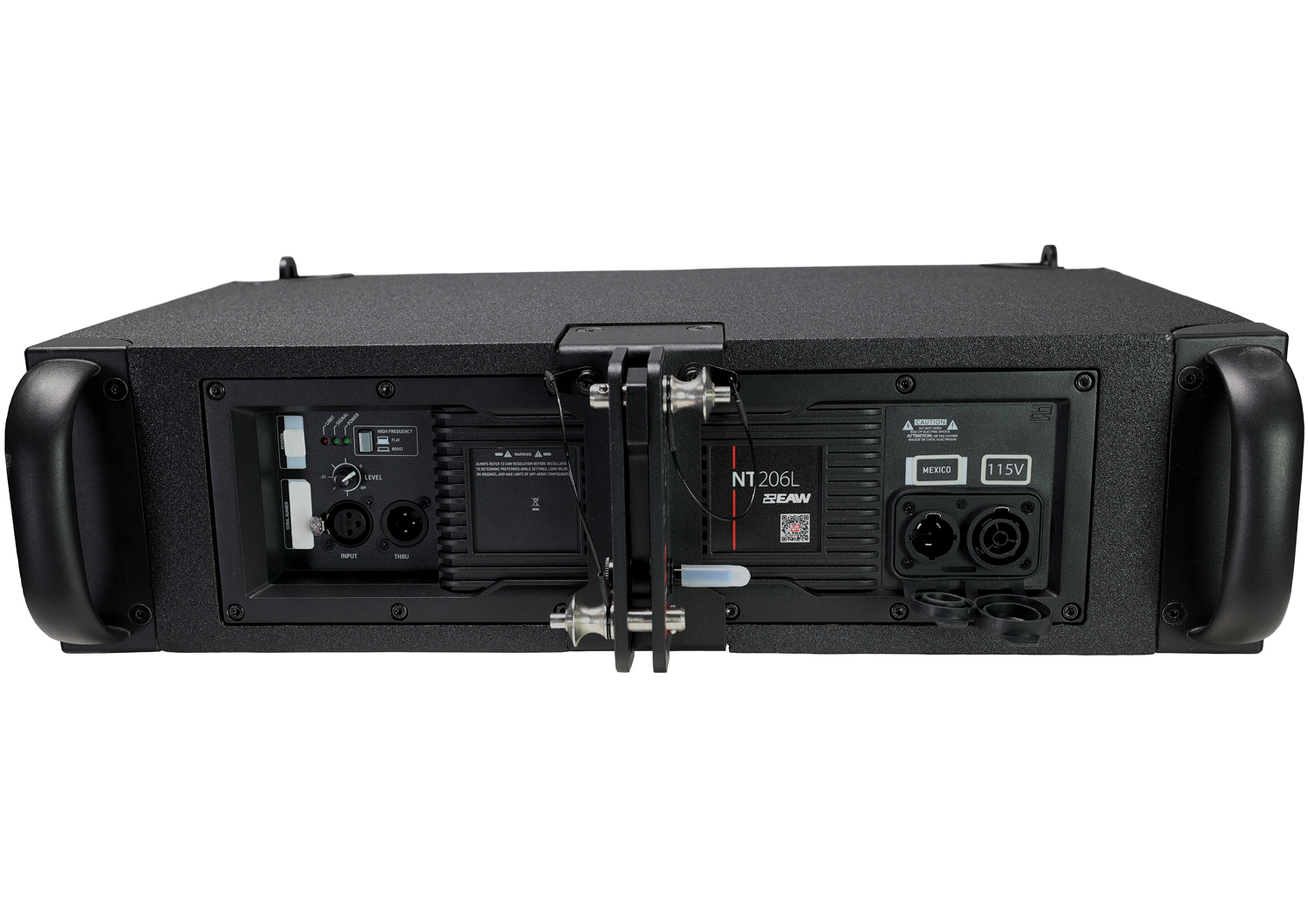

• Input: Electronically balanced XLR
• Loop Output: Electronically balanced XLR
• Amplifier Type: Class D
• Maximum Power LF / HF (peak): 1500 W
• Power Supply:
• Neutrik powerCON® TRUE1 TOP (True Outdoor Protection)
• 100/120V 60 Hz or 230/240V 50 Hz
• Material: Baltic birch enclosure with Road Coat finish
• Dimensions (H × W × D): Approximately 21.3 × 54.6 × 37.3 cm
• Weight: Approximately 13.6 kg
• Shipping Weight: Approximately 15.4 kg
