Allen&Heath - AHM-64

Matrix Installation Processor 64x64

The AHM-64 is an audio matrix processor designed for system applications and installations. It is ideal for sound distribution, paging, conferencing, and speaker processing in a variety of applications for businesses, retail stores, restaurants, hotels, educational institutions, theaters, multipurpose centers, cruise ships, and sports facilities.

The AHM-64 processor is supported by a complete ecosystem of input and output audio expanders, remote controllers, interfaces, applications, and software. Portable, rack-mount, and wall-mount installation audio expanders are available with audio transmission over the DX bus (Layer-2) or Dante.

Features:

• 64x64 matrix of inputs and outputs with processing

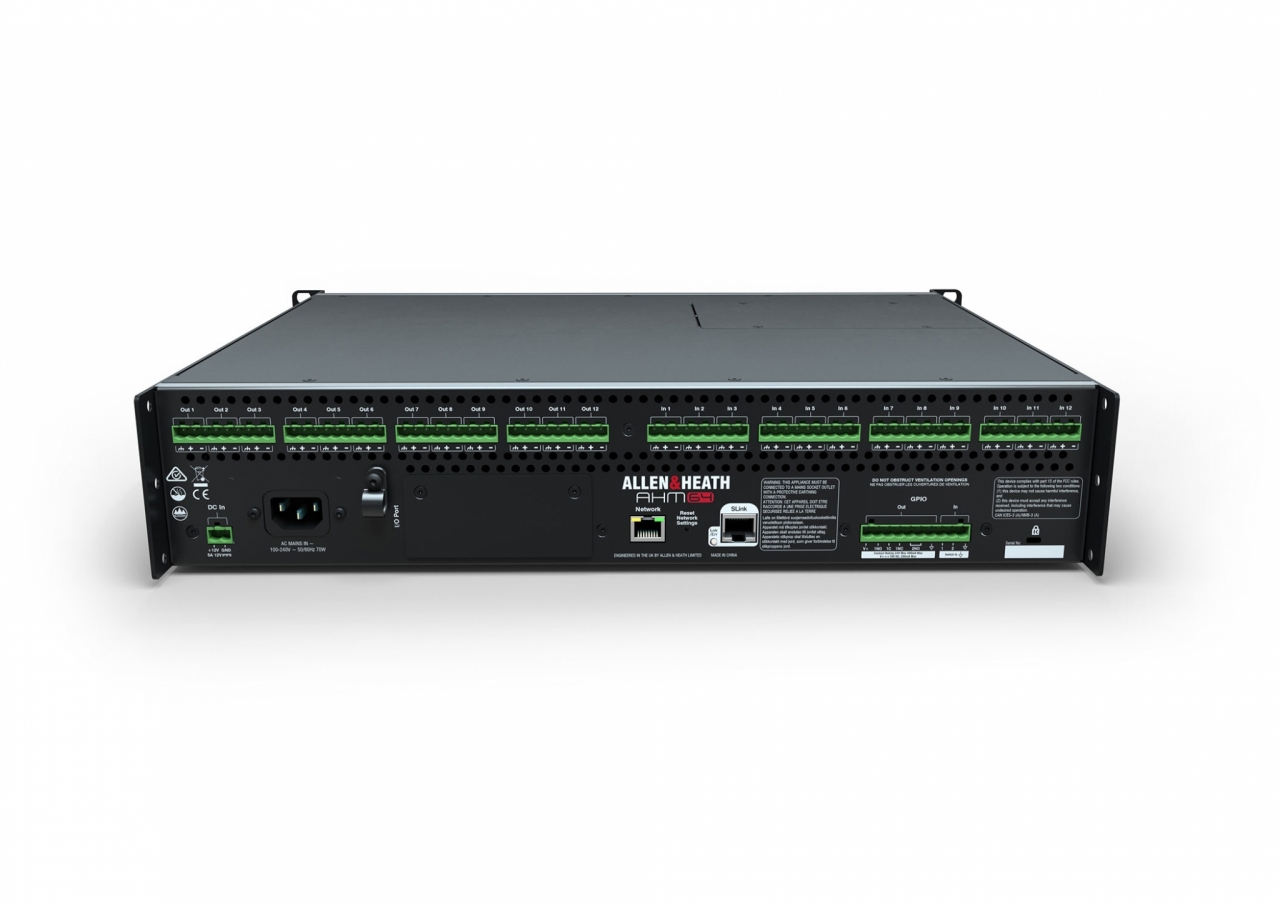

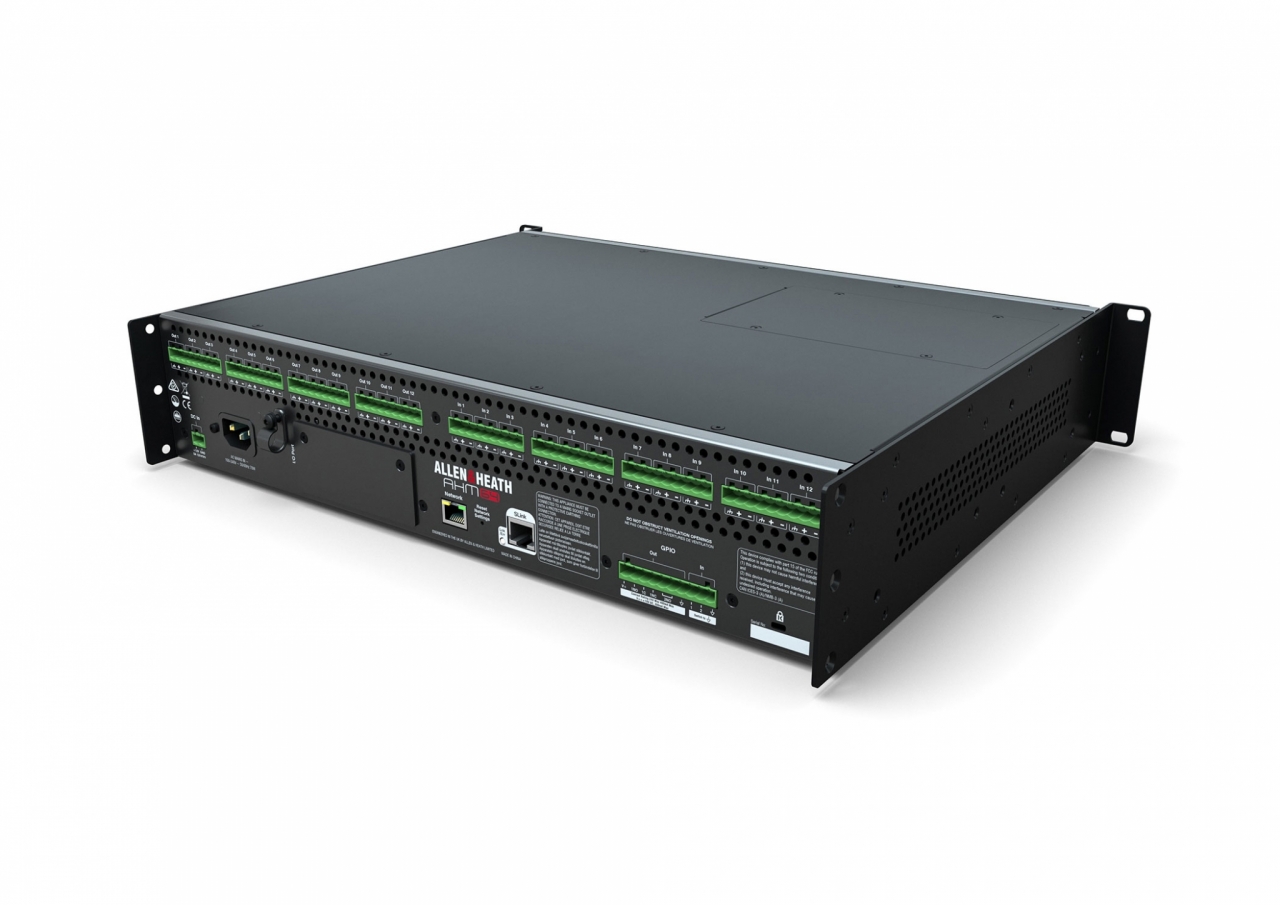

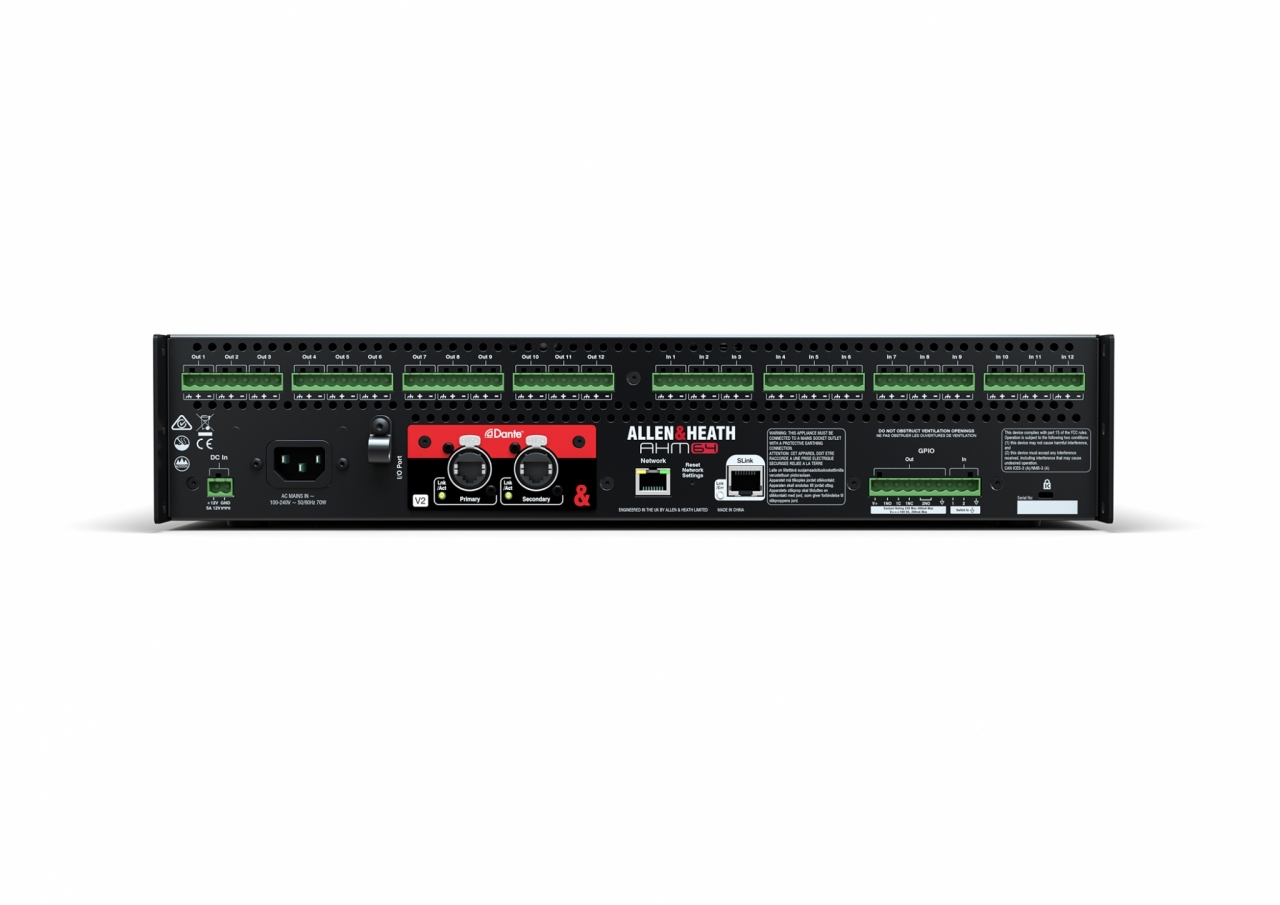

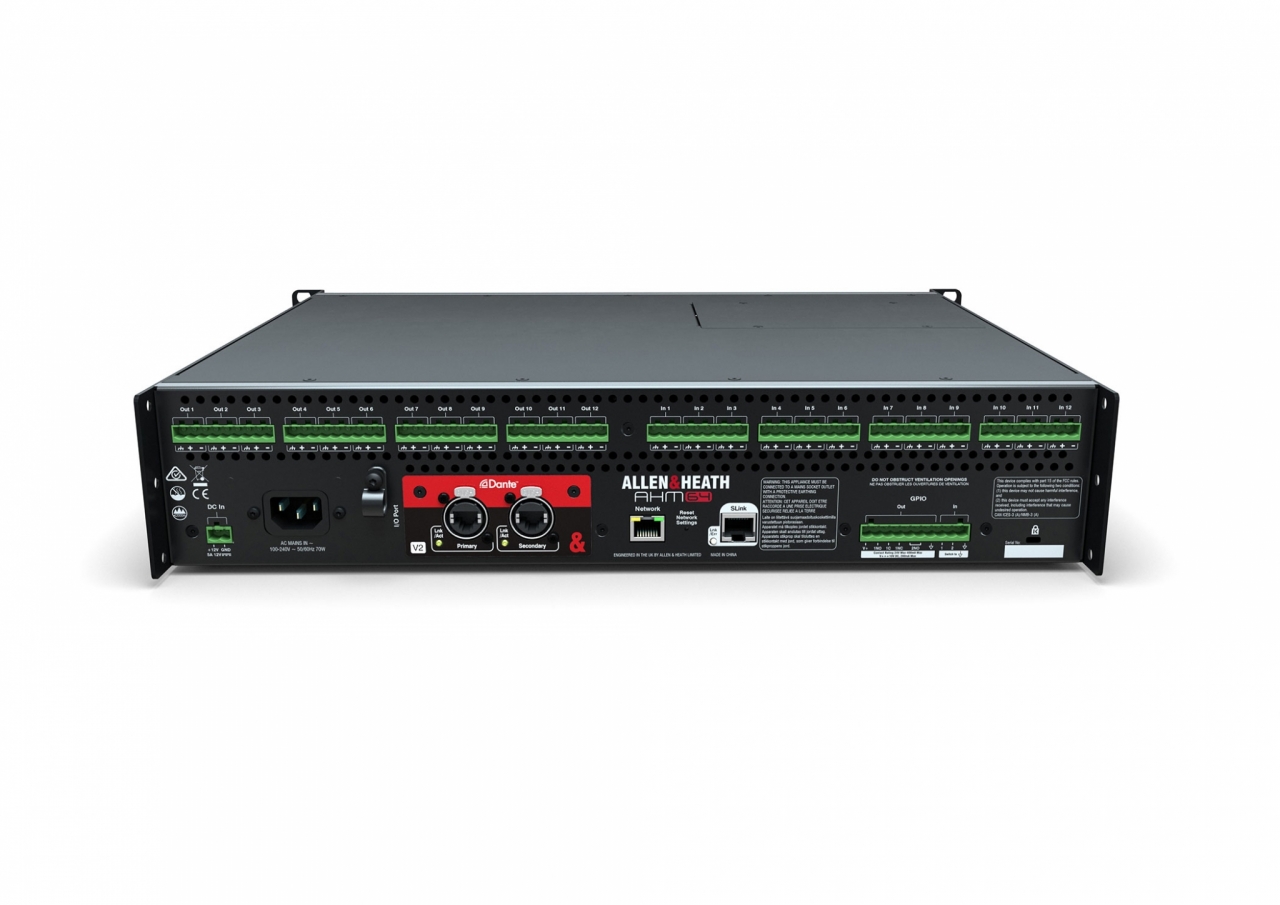

• 12x12 analog I/O on the rear panel
• I/O port for network transmission of up to 128x128 audio channels

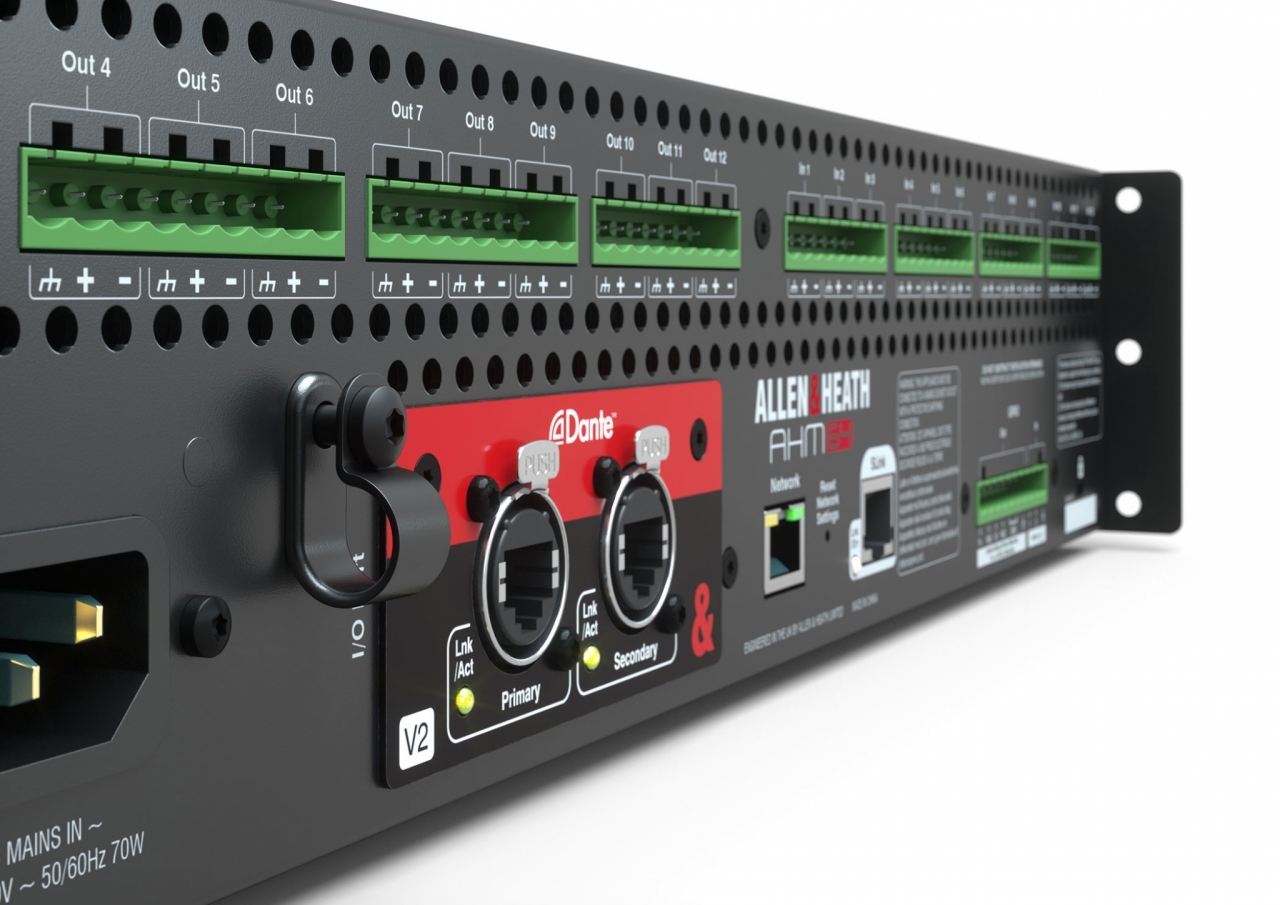

• Dante 96kHz 64x64 expansion card (AES67 and DDM ready)
• Integrated SLink port 128x128 for audio expanders
• 64 configurable outputs with processing - up to 64 mono/stereo zones
• 96kHz FPGA core with ultra-low latency
• Compatible with IP1, IP6, and IP8 remote controllers

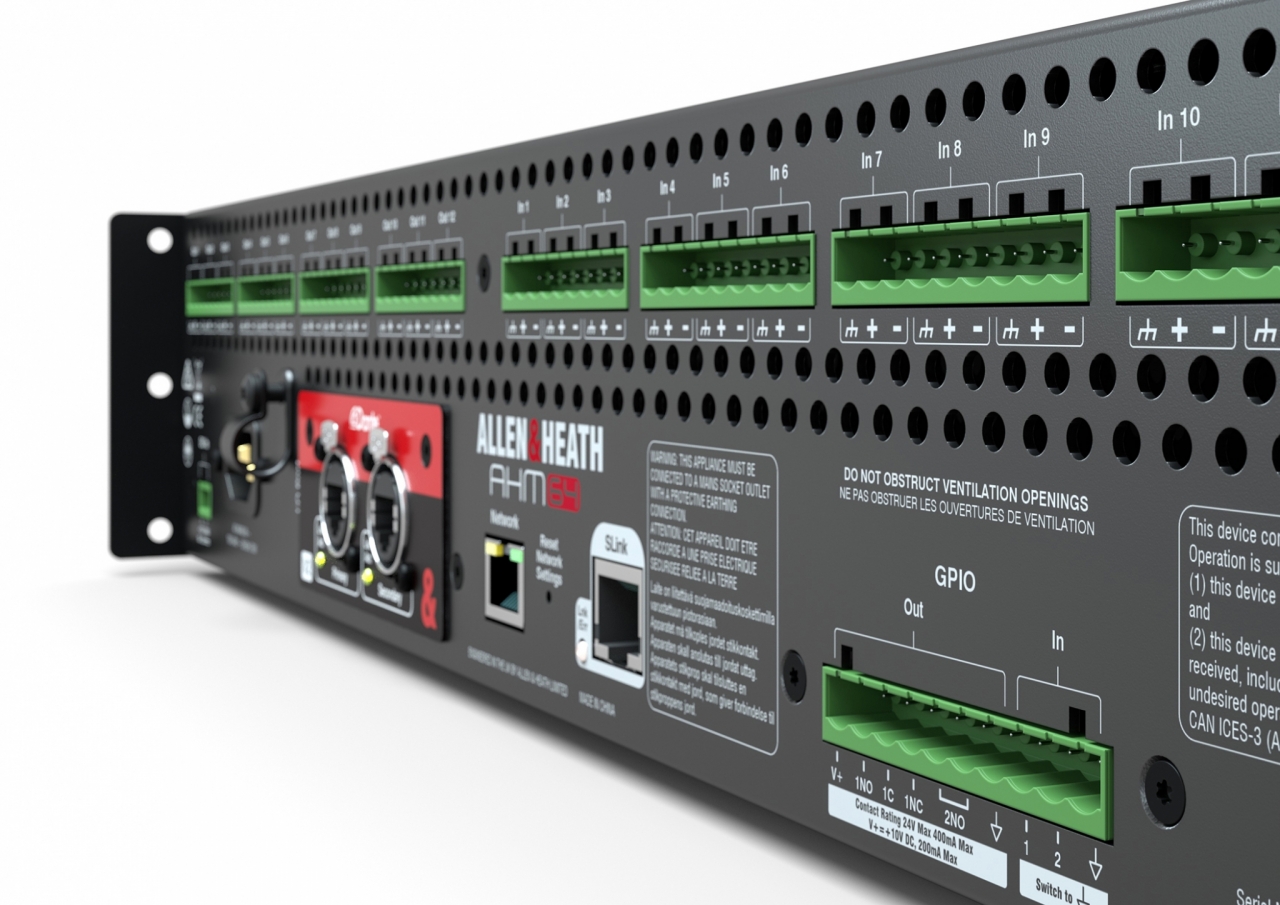

• Integrated 2x2 GPIO port and additional network GPIO interface
• DC backup power option
• System Manager software
• Configurable control application and editor
• 32 user profiles
• Integrated stereo/dual mono player
• Calendar for scheduled event/preset triggering

Audio processing

• 8 automatic microphone mixers
• AEC (Acoustic Echo Cancellation) - additional module
• ANC (Ambient Noise Compensation)
• Audio ducking with priority signal
• 8-band PEQ, dynamic processor, and delay on each input and zone
• Speaker processing with crossover, delay, limiter, and PEQ
