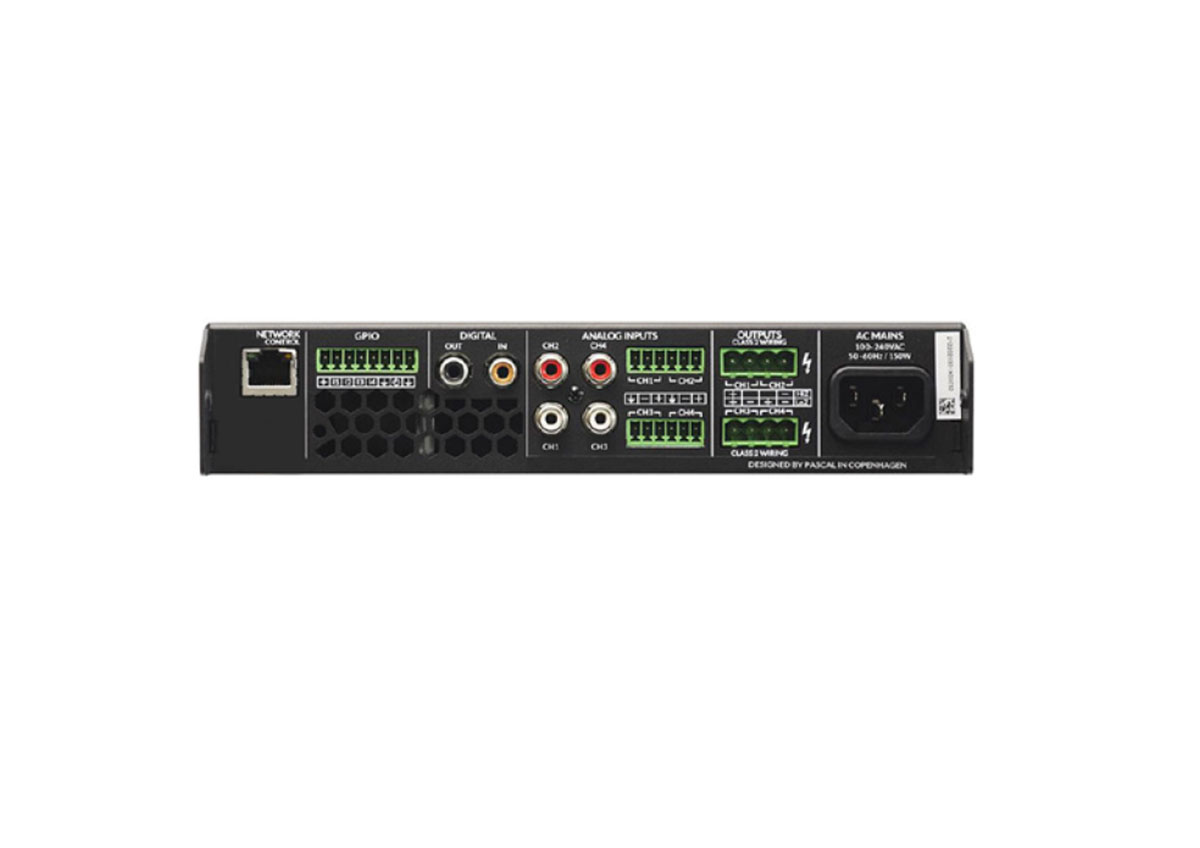

EAW UXA4401

Installation amplifier with DSP, 4 x 140W/4 Ohm, 4 x 140W/8 Ohm, 2 x 280W - 70V, 2 x 280W - 100V. This amplifier is perfect for professional audio installations, providing high-quality sound output and versatile power options. Ideal for venues, restaurants, and commercial spaces.

Brand: EAW | Code: 352251
1.064,50 €
1.266,76 € with VAT
● Currently sold out

EAW – UXA4403

The UXA series installation amplifiers by EAW deliver power and settings to drive many EAW installation products. Each amplifier comes with Greybox presets that can easily be applied after connecting compatible EAW loudspeakers.
The UXA4401 is a versatile and reliable tool for various installation requirements across different industries, thanks to its advanced features and proven market reliability.

Bars, Cafes, and Restaurants:
These venues require flexible sound solutions. The UXA4403, with its compact dimensions and high power per channel, is a suitable choice for installations in such establishments. Its DSP allows for fine-tuning sound levels for different zones within the venue; for example, bars may require higher volume levels than dining areas, etc.
Retail Stores:
Retail stores often use background music to enhance the shopping experience. The UXA4401's output versatility and power-sharing capability make it suitable for various retail environments, whether it's a furniture store with subtle audio ambiance or a trendy juice bar requiring higher performance.
Fitness Centers:
Fitness centers require dynamic sound solutions for various activities such as gym workouts, yoga classes, and high-intensity circuit training or crossfit. The power-sharing feature and output flexibility of the UXA4401 can provide the necessary sound quality and volume control for different areas within the facility.
Hotels and Educational Facilities:
In large spaces like hotels and educational institutions, there are often various areas such as auditoriums, meeting rooms, and dining areas. The UXA4401's ability to provide flexible power distribution and synchronization features is suitable for such environments where different sound requirements coexist.
Corporate Spaces:
Corporate buildings encompass a range of spaces from open offices to meeting rooms and warehouses. The versatility of the UXA4401, along with TCP/IP control capability and power sharing, makes it an ideal choice for providing sound solutions tailored to various corporate needs.
Churches and Temples:
Religious structures require reliable amplification for clear voice projection over a large area. The high-quality amplification and distribution capabilities of the UXA4401 make it suitable for such installations, ensuring speech intelligibility superiority even at moderate power levels.

Features:
• 4x in, 4x out
• DSP, TCP/IP protocol control
• Easy pairing with EAW installation loudspeakers
• Optional synchronization of multiple amplifiers via S/PDIF linking
• Wireless and direct connection to the amplifier through a web interface
• Configurable GPIO
• Safety and EMC certifications compliant with ErP & EnergySTAR
• Output circuits: UMAC™ Class D
• Power @ 4 ohms: 4 x 140 W
• Power @ 8 ohms: 4 x 140 W
• Power @ 70V: 2 x 280 W (BTL)
• Power @ 100V: 2 x 280 W (BTL)
• System power: 150 W*
• Consumption: 700 W
• Dimensions: 44.5 x 220 x 296 mm
• Weight: 2.8 kg
*dynamic Power headroom
Warranty 72
Weight 2.8
