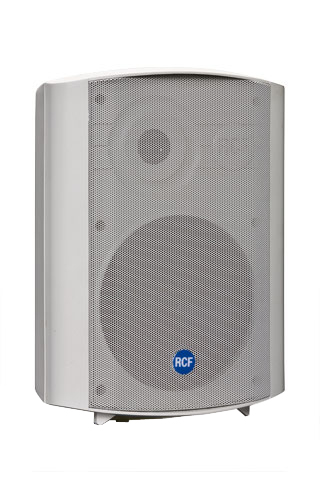

Outdoor speaker, 2-way, 6”+1” tweeter, 25W/100V, 89dB, 120°×140°, 216×289×177mm, IP55, plastic/metal, white.
The DM 61 is a compact two-way speaker specifically designed for constant voltage systems. It delivers natural, smooth sound reproduction, making it perfect for business music systems and indoor/outdoor background music applications. The speaker connects to the loudspeaker line using a two-wire cable located at the rear of the speaker. It features a protective perforated grille and a wall mounting accessory.
**Features:**
- 6" woofer with mylar cone tweeter
- Program/rated power: 50/25W
- Built-in multitap transformer for constant voltage systems
- Body made of self-extinguishing composite material
- IP55 protection for outdoor use
**Acoustical Specifications:**
- Speaker type: Compact two-way
- Frequency Response: 100 Hz ÷ 20 kHz
- Max SPL @ 1m: 106 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 140°
- Power Handling: 25W RMS
- Peak Power Handling: 50W PEAK
- System Sensitivity: 89 dB
- Impedance: 8 ohm
- IP55 Protection
- Crossover frequencies: 6 Hz
**Transducers:**
- Speaker: 6"
- Tweeter: 1"
**Input Section:**
- Input connector: 2 conductor cable
- Constant voltage: 100V, 70V
- Power Selection: 25 - 15 - 10 - 5 W (100V)
**Cabinet:**
- Hardware: Body in self-extinguishing composite material
- Color: White ivory
- Grille: Steel
**Physical Specifications:**
- Height: 289mm / 11.37 inches
- Width: 216mm / 8.5 inches
- Depth: 177mm / 6.96 inches
- Net weight: 3.98kg / 8.77 lbs
**Shipping Information:**
- Package height: 340mm / 13.38 inches
- Package width: 265mm / 10.43 inches
- Package depth: 250mm / 9.84 inches
- Shipping weight: 4.5kg / 9.92 lbs
| EAN |
8024530004958 |
| Warranty |
24 |
| Weight |
4.503 |
