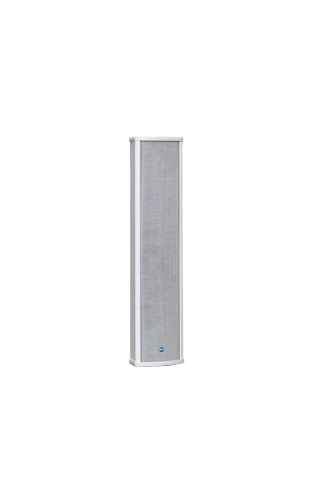

Column speaker, speaker: 4×70 mm, 12 W/100 V or 8 ohm, 94 dB, 90×402×65 mm, metal, white
• The CS 2012 has been engineered to deliver exceptional voice reproduction performance.
• Its design allows for easy corner installation and seamless integration into any space due to its compact dimensions. Installation is a breeze with dedicated accessories. The CS 2012 is suitable for constant impedance systems.
Features:
• Ideal for speech reproduction, designed for corner installation
• Music power / RMS: 24 / 12 W
• Four 2" extended range speakers
• Built-in multi-tapped transformer for 100/70/25V constant voltage connection, 8-ohm input
• 6-position rotary dial for adjusting power taps
• Extruded aluminum body in RAL 9003 White finish
• Front metal grille in RAL 9010 White
• Includes wall mounting accessory
Acoustical Specifications:
• Speaker Type: Column
• Frequency Response: 250 Hz ÷ 16 kHz
• Max SPL @ 1m: 108 dB
• Horizontal coverage angle: 180°
• Vertical coverage angle: 180°
• Power Handling: 12 W RMS
• Peak Power Handling: 24 W PEAK
• System Sensitivity: 94 dB
• Impedance: 8 ohm
Transducers:
• Speaker: 4 x 2.8"
Input Section:
• Constant voltage: 100 V / 70 V / 25 V
• Power Selection: 12 - 6 - 3 - 1.5 W (100 V)
Cabinet:
• Hardware: Extruded aluminum
• Color: White Grille: Steel
Physical Specifications:
• Height: 402 / 15.82 mm/inch
• Width: 90 / 3.54 mm/inch
• Depth: 65 / 2.55 mm/inch
• Net weight: 1.96 / 4.32 kg/lbs
Shipping information:
• Package height: 435 / 17.12 mm/inch
• Package width: 115 / 4.52 mm/inch
• Package depth: 90 / 3.54 mm/inch
• Shipping weight: 2.21 / 4.87 kg/lbs
