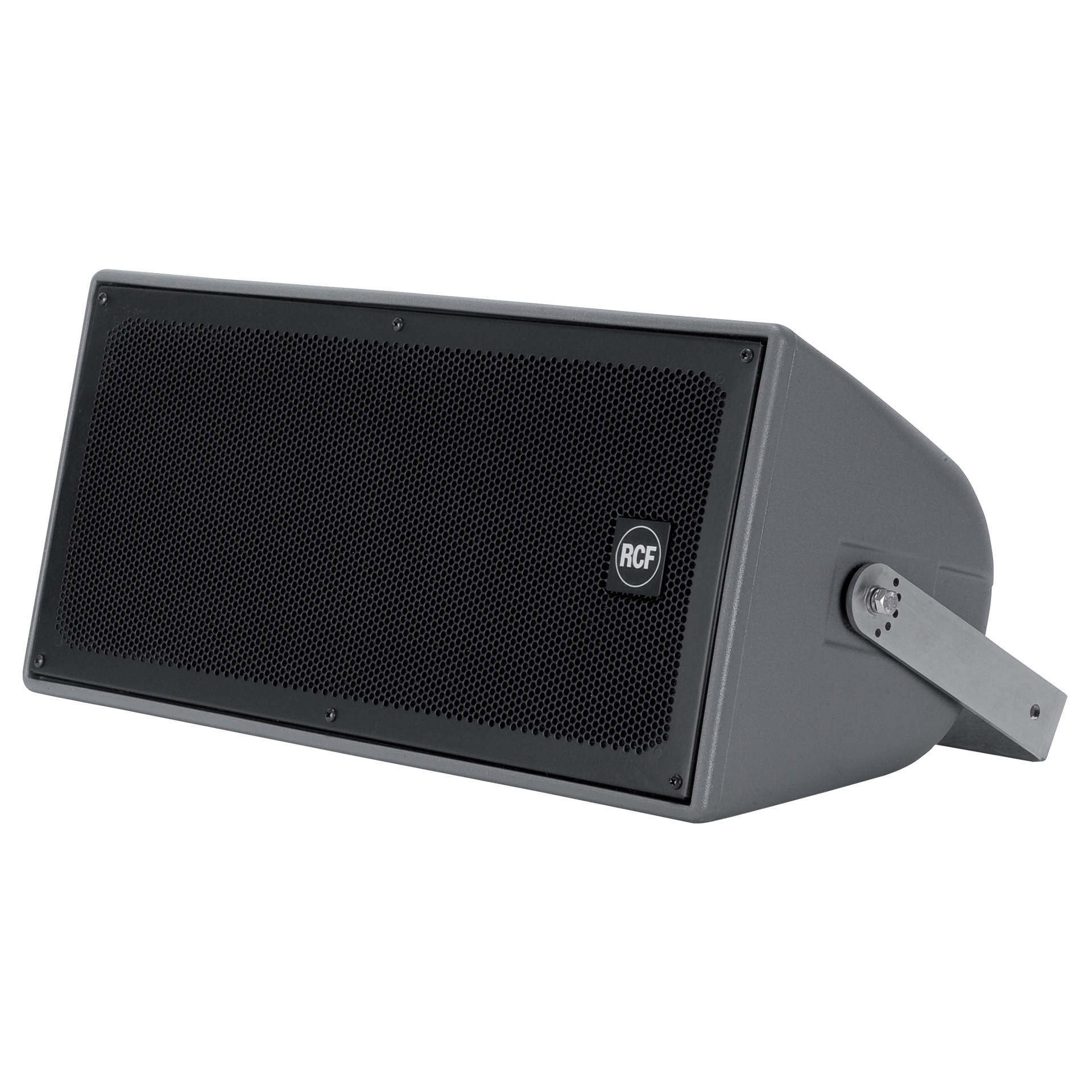

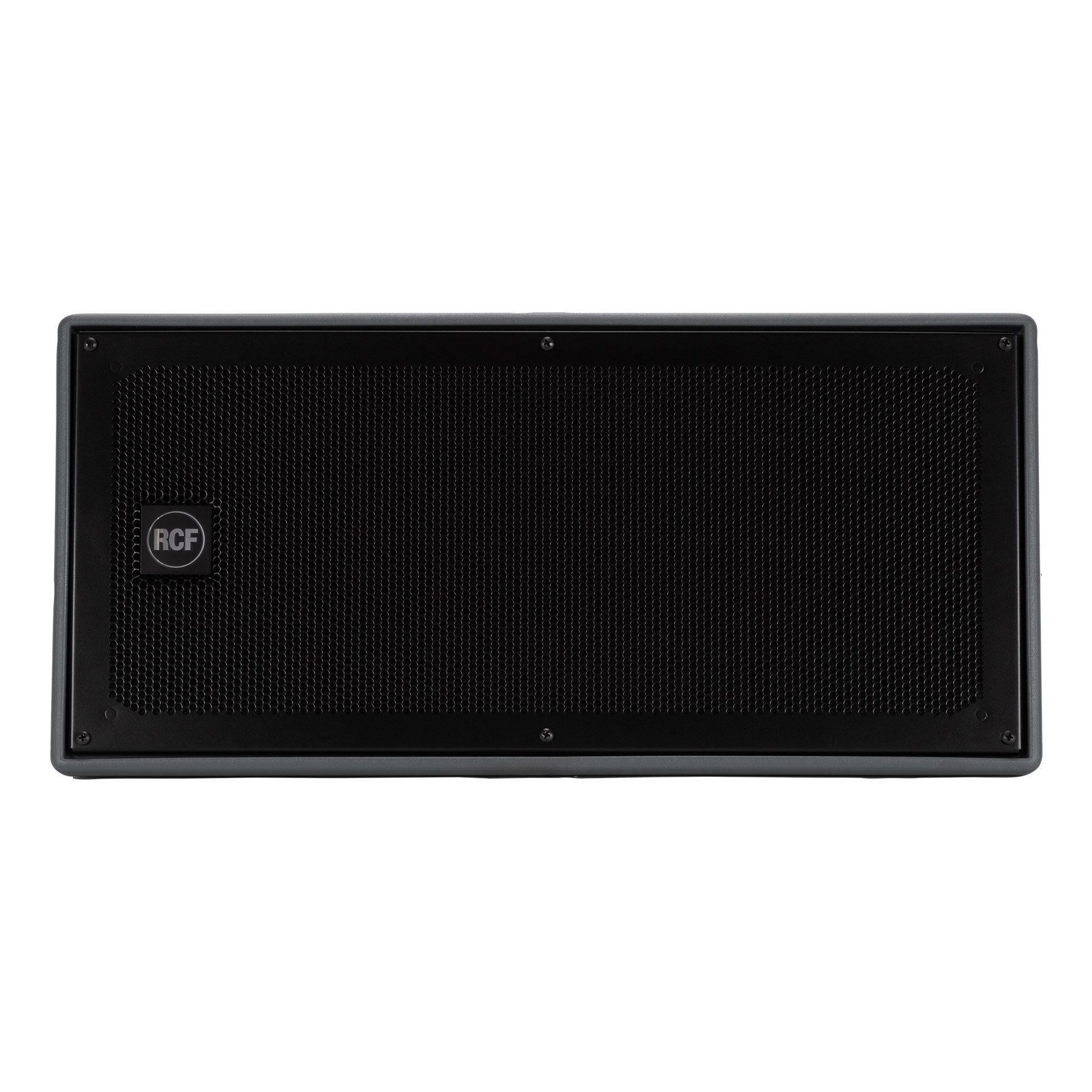

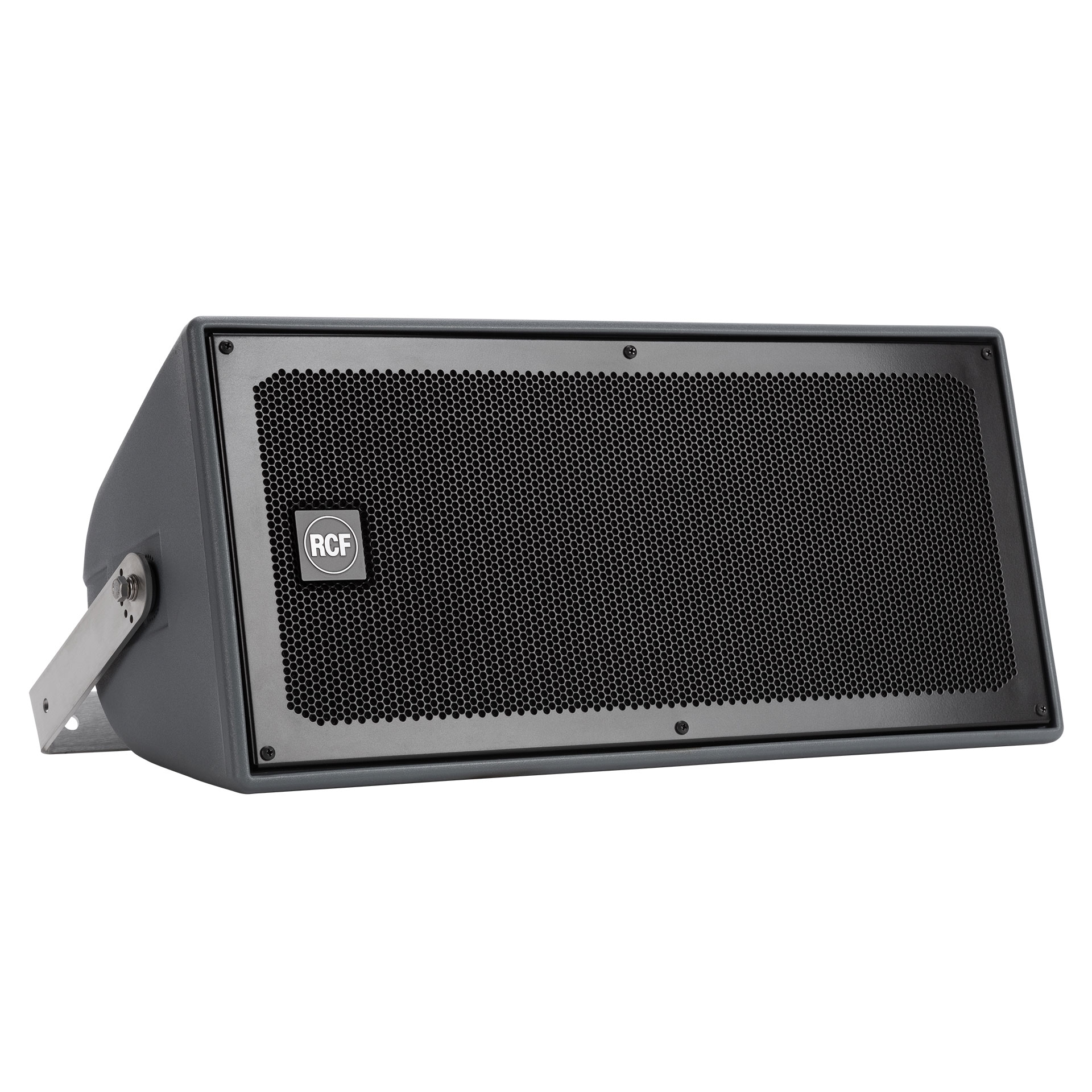

ACUSTICA P5228L

The RCF ACUSTICA P5228L is a passive two-way full-range speaker box designed to withstand weather conditions, suitable for various professional applications. The speaker can be installed standalone or as a Line-Array module within a speaker array. The high-frequency section features two CMD waveguides with constant directivity, each with a 1" RCF neodymium compression driver with a 1.75" diaphragm for balanced, highly consistent 20° vertical coverage. The low-frequency section includes two 8" bass drivers with a 2.5" voice coil. The symmetrical speaker arrangement ensures precise horizontal radiation with consistent directivity.

Internal circuits include the LICC crossover and MOSFET protection for the compression driver (AMCDP). The single-piece rotomolded enclosure is fully protected against UV radiation and meets IP 55 weather protection requirements. It is equipped with 4 brass M8 mounting points and a corrosion-resistant U-bracket. Connection to the amplifier is made through a waterproof 4-pin connector. The front aluminum grille is powder-coated, with a water-repellent backing material and a rotatable logo badge.

Features:
• Passive two-way speaker box
• 500 W RMS power
• Maximum SPL 131 dB
• Frequency range 80 to 20,000 Hz
• 2 x 8" neodymium bass driver, 2.5" v.c.
• 2 x 1" neodymium compression driver, 1.75" v.c.
• Constant directivity 90° x 20°
• Weather-resistant enclosure with IP55 and UV protection
• Aluminum grille
• AISI 316L stainless steel bracket
• 4-pin Amphenol input connector with IP67 rating
• Can be used standalone or as a Line-Array module
