MKC80

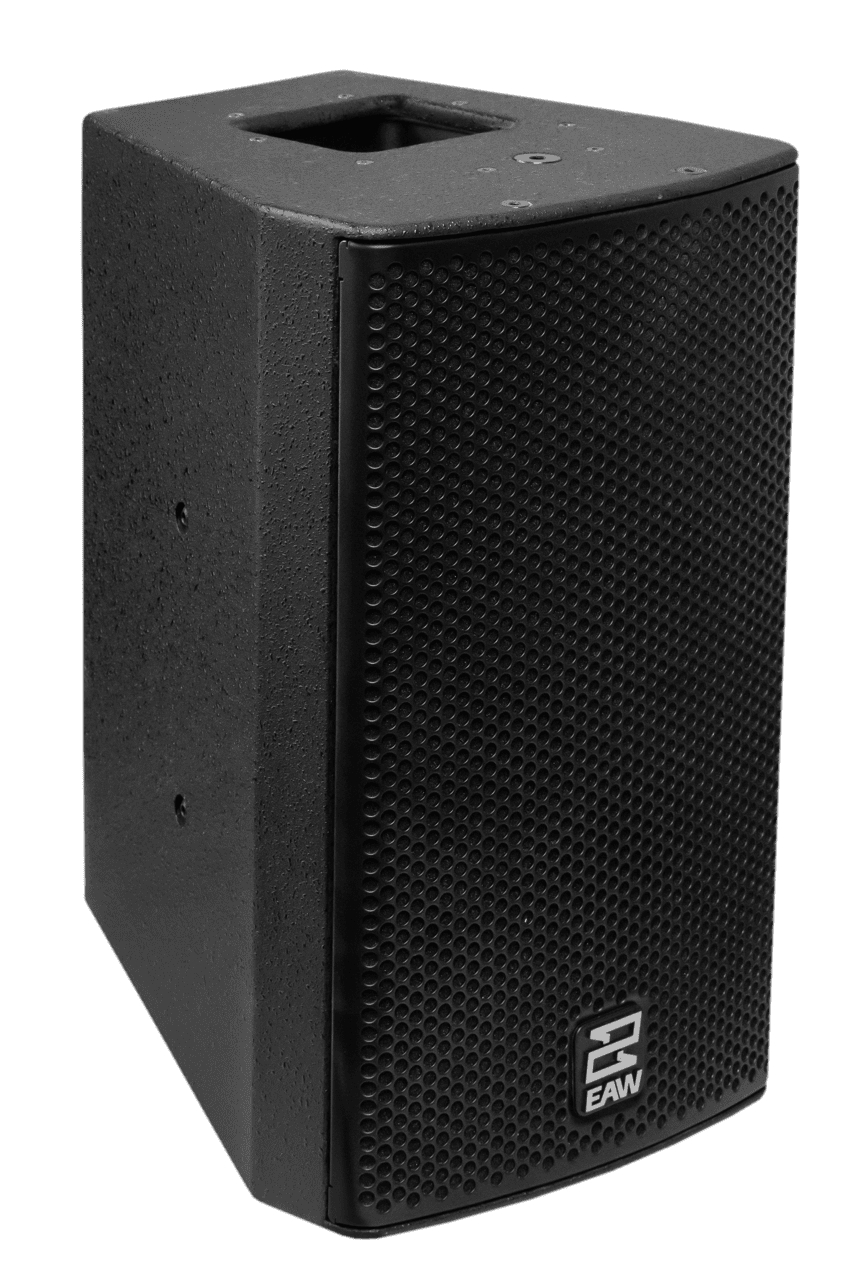

The EAW MKC80 is a powerful passive 2-way speaker with a coaxial arrangement of a 1" and 8" driver. From the MKC series, which represents the next evolutionary step in coaxial speakers, models with subwoofer sizes of 5", 6", 8", and 12" are available to meet the requirements of any installation and configuration.

These speakers can be installed horizontally or vertically using flexible accessories such as a tilting wall mount or U-bracket, or mounted on a speaker stand with two tilt positions. An innovative bass reflex port with a premium 1" dome tweeter ensures an extremely accurate sound approaching the performance of a professional studio monitor.

Equipped with the patented Coaxial Summation Aperture (CSA) sound conduit, these speakers elevate the consistency and quality of directional sound emission. This technology enables faithful sound reproduction across the entire radiation angle, even at high SPL levels.

Features:
• High-performance, compact coaxial speaker
• Patented Coaxial Summation Aperture (CSA) for faithful sound reproduction in all radiation angles
• Flexible installation accessories
• Handle and socket for speaker pole or stand
• Weather-resistant protection and optional transformer
• Recommended amplifier: UXA4403
• Crossover tailored to the radiation angle
• Advanced digital processing (EAW Focusing) eliminates unwanted coloration from speaker output for studio monitor-like sound perfection
• DynO dynamic optimization processing
• Symmetrical arrangement of acoustic sources relative to the common axis for maximum consistency across the radiation angle
• Frequency response: 60Hz-20kHz
• Max SPL: 132 dB
• Dimensions: 422 x 255 x 267 mm
• Weight: 10 kg
