EAW KF810P-110

The line array KF810P embodies all the characteristics typical of the legendary KF series: it is the most powerful in its class, maintains directional properties over a wide frequency range, and operates as a 3-way system.

The KF810P is designed to meet the typical needs of the installation market: a clean, straightforward appearance, available in black or white, hidden cabling, and a concealed 3-point suspension system. A weather-resistant version can be permanently installed in demanding environments.

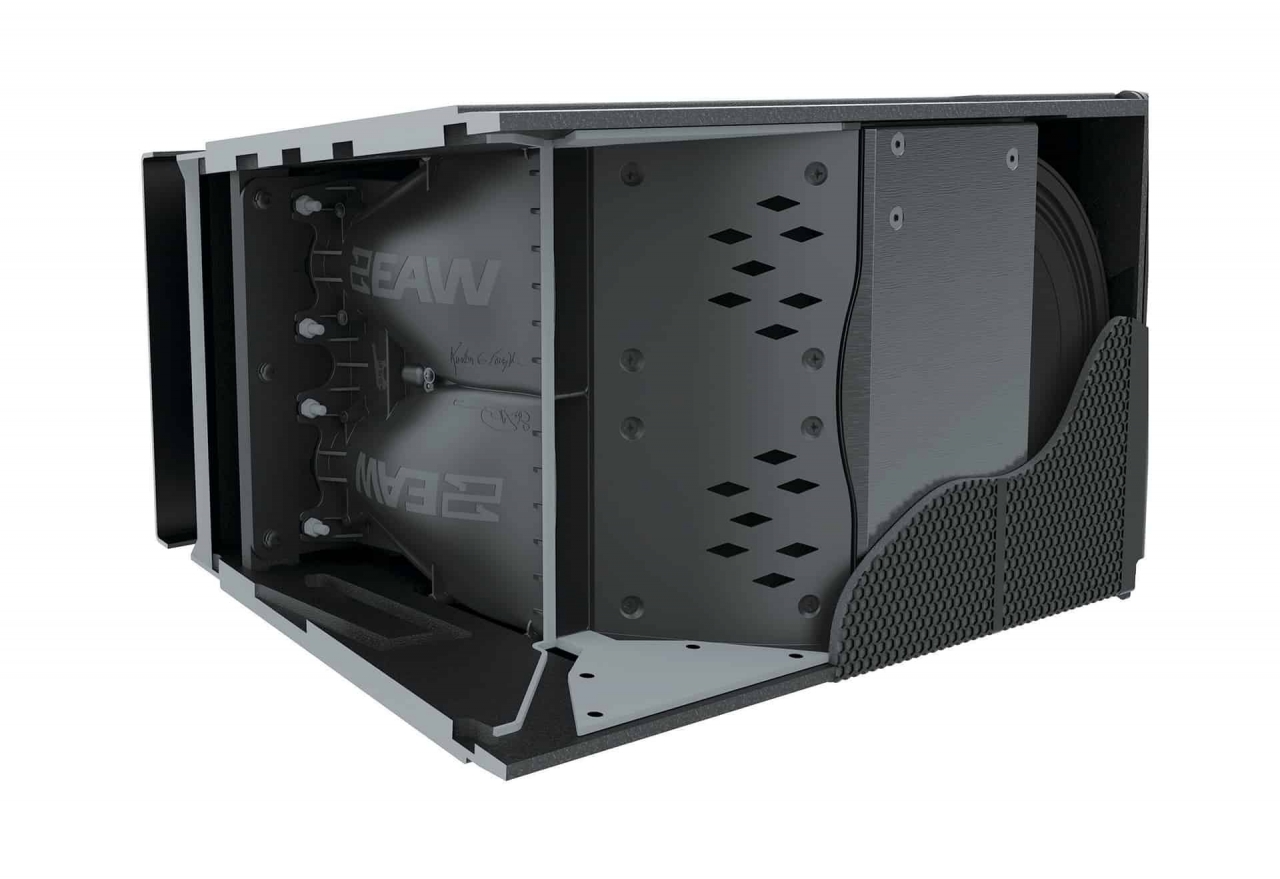

The KF810P module consists of 2 high-frequency drivers with 3" coils, 4 mid-range 5" drivers, and 2 powerful 10" low-frequency drivers with 3" coils. The sound output of these drivers is combined into a waveguide that covers almost the entire front surface of the loudspeaker enclosure. This design allows for a maximum acoustic pressure of up to 145 dB and achieves directional sound from 250 Hz, making the KF810P line array suitable even for acoustically challenging spaces.

TECHNOLOGY

Concentric Summation Array (CSA)

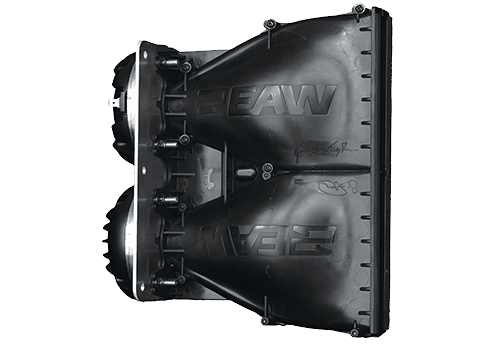

A method that smoothly integrates HF and MF drivers into a common waveguide. CSA ensures coherent summation of HF and MF wavefronts.

Phase Aligned LF

Horizontal separation of LF drivers increases directionality without the need for an excessively large waveguide.

EAW Focusing

An advanced digital signal processing method that optimizes the impulse response of the speaker in the time domain, eliminating typical horn sound with smeared high-frequency reproduction, giving this PA speaker a studio monitor-like sound.

Symmetry

Symmetrical arrangement of acoustic sources around a common axis ensures maximally consistent directional radiation.

DynO
Dynamic Optimization monitors the input spectrum and output power, continuously maximizing acoustic pressure and fidelity of reproduction at any excitation level.

Features:
• Configuration: LF: 2x 10'' with 3.0'' coil
• MF: 4x 5'' with 1.7'' coil
• HF: 2x 1.4'' with 3'' coil
• EAW Focusing
• Max SPL: 145 dB
• Coverage Pattern: 110° x 10°
