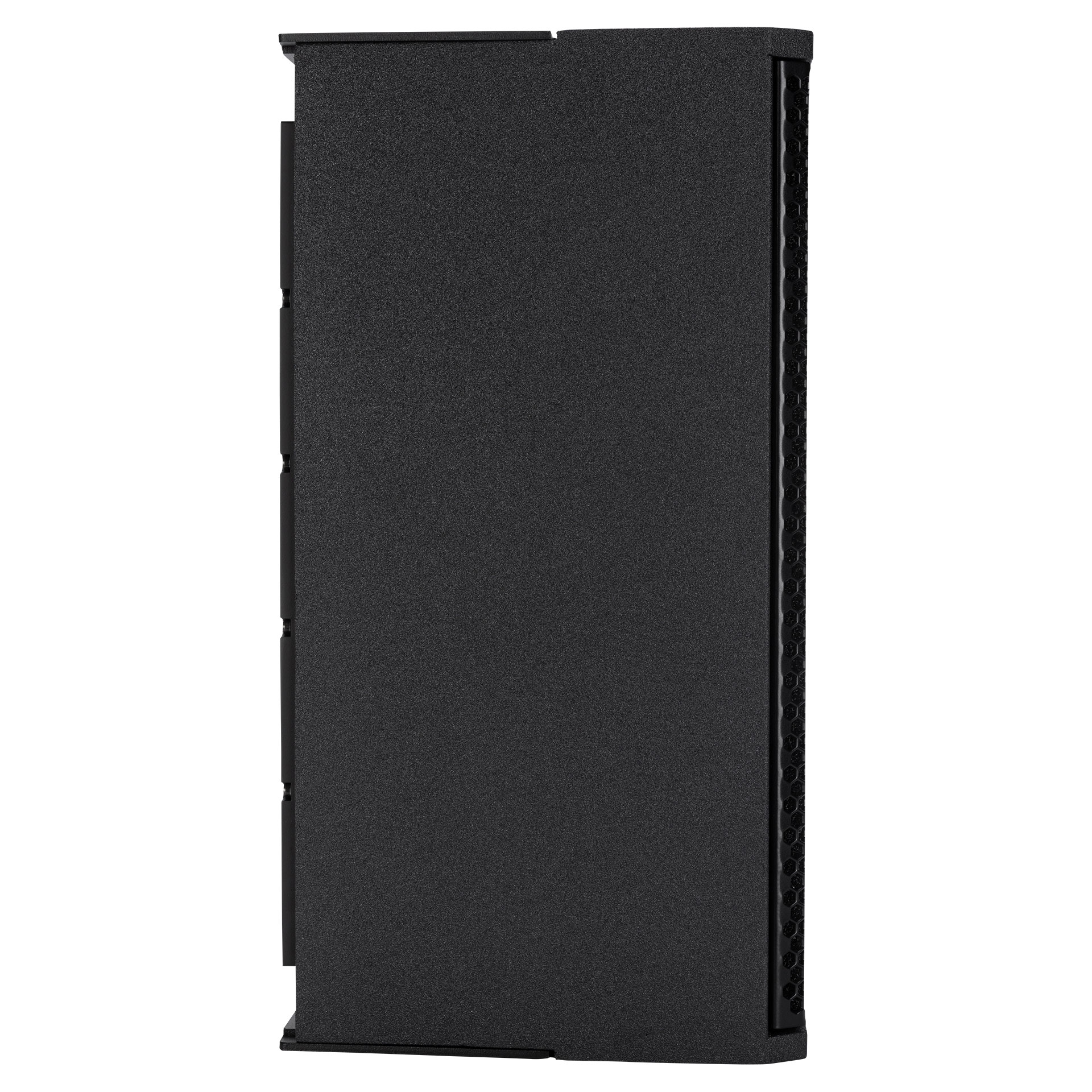

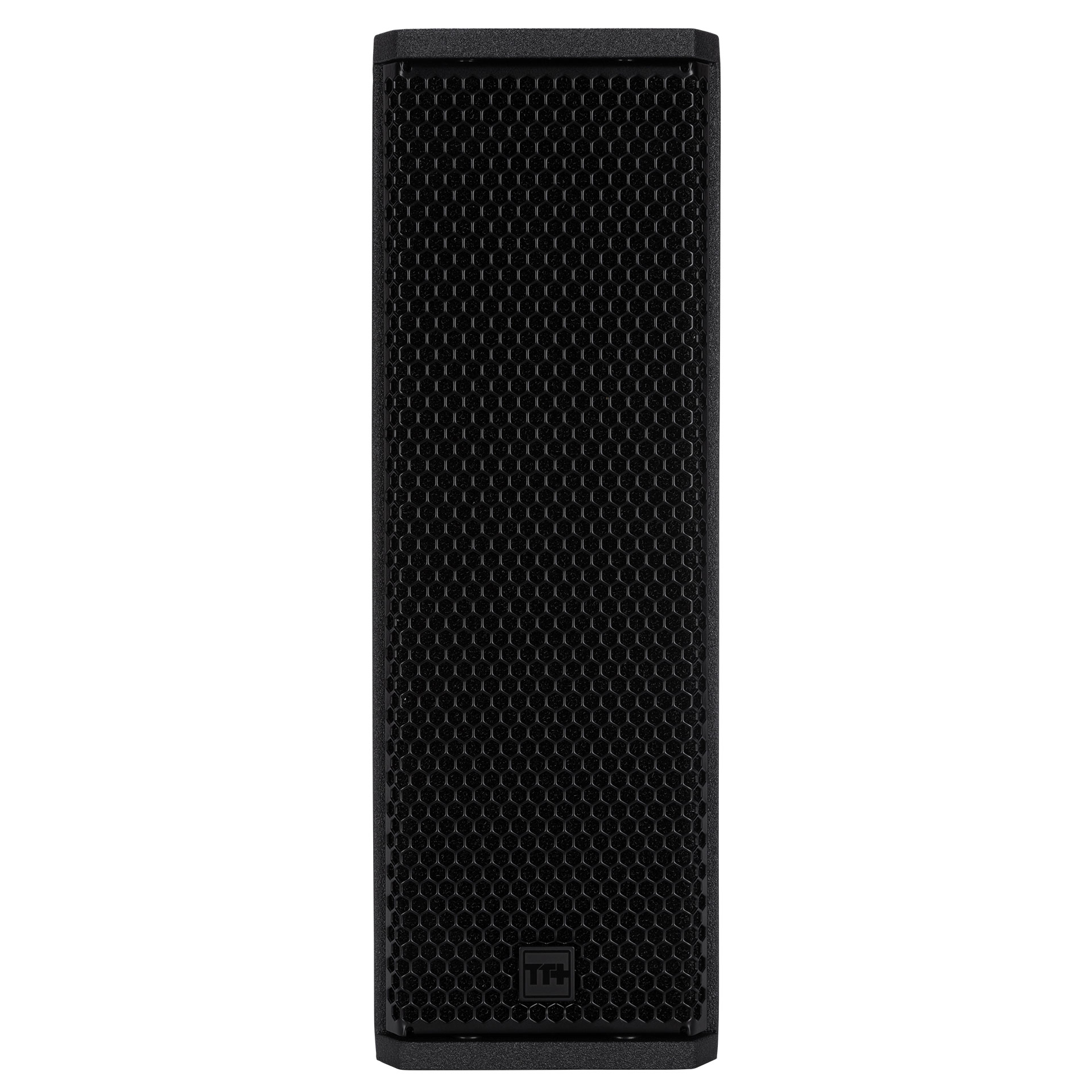

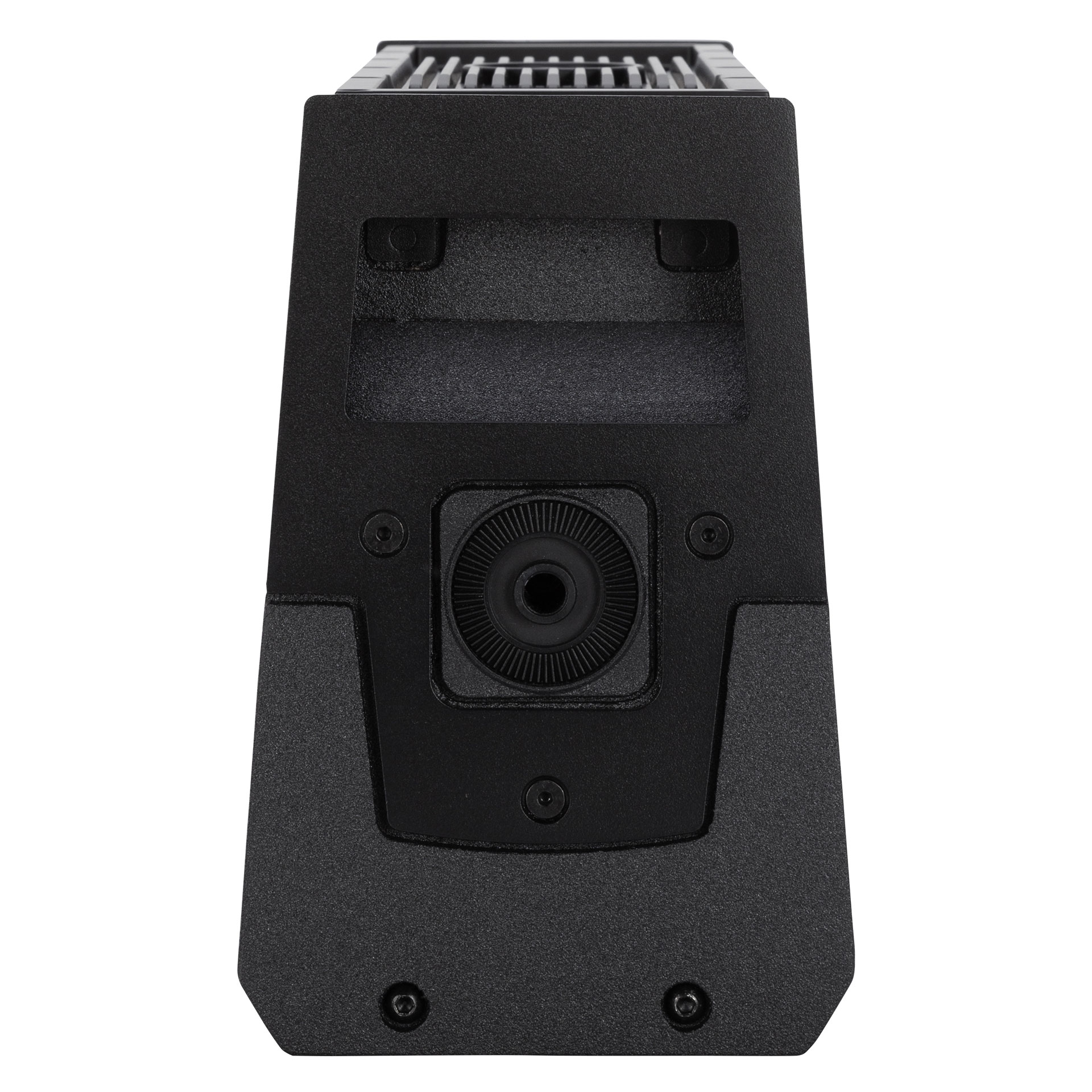

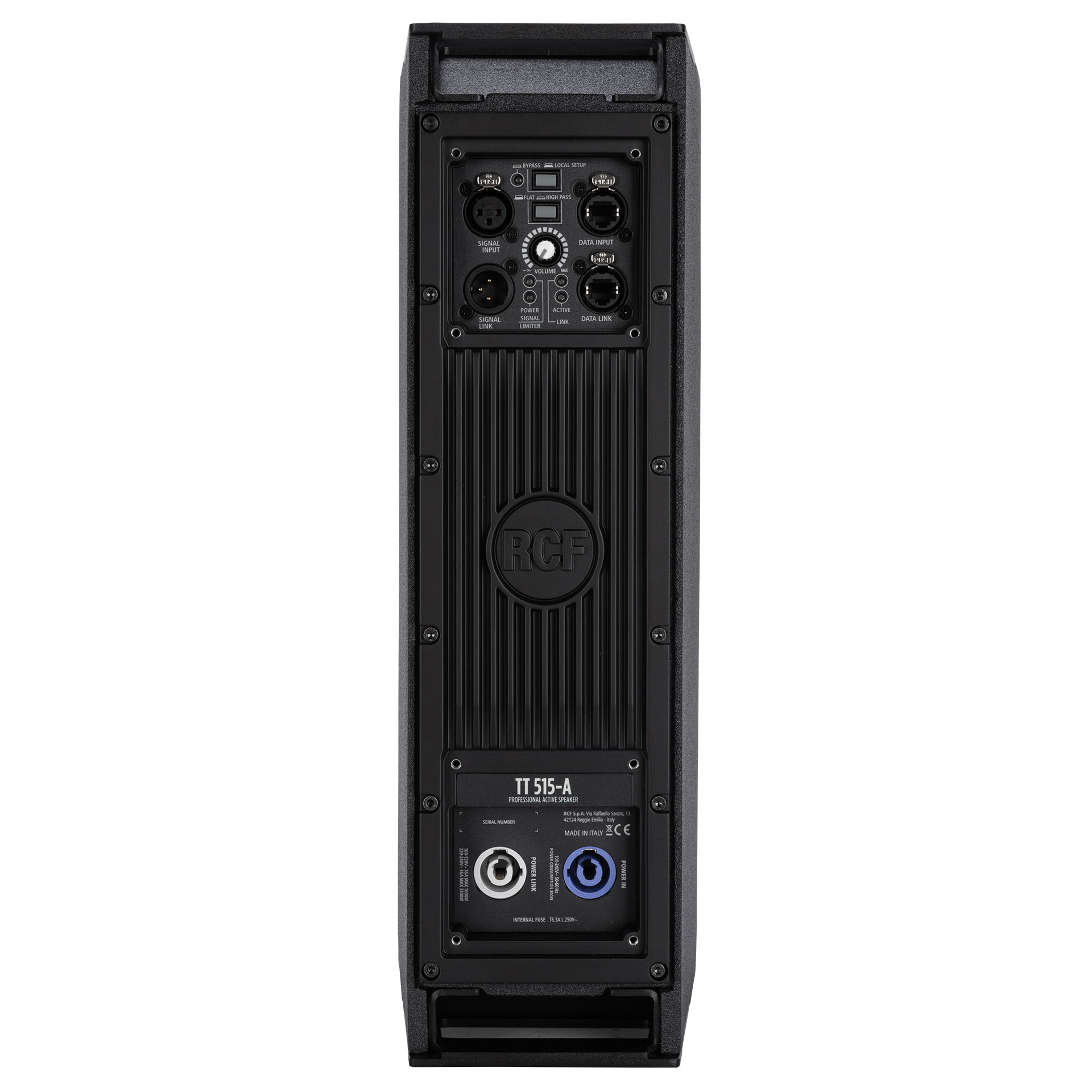

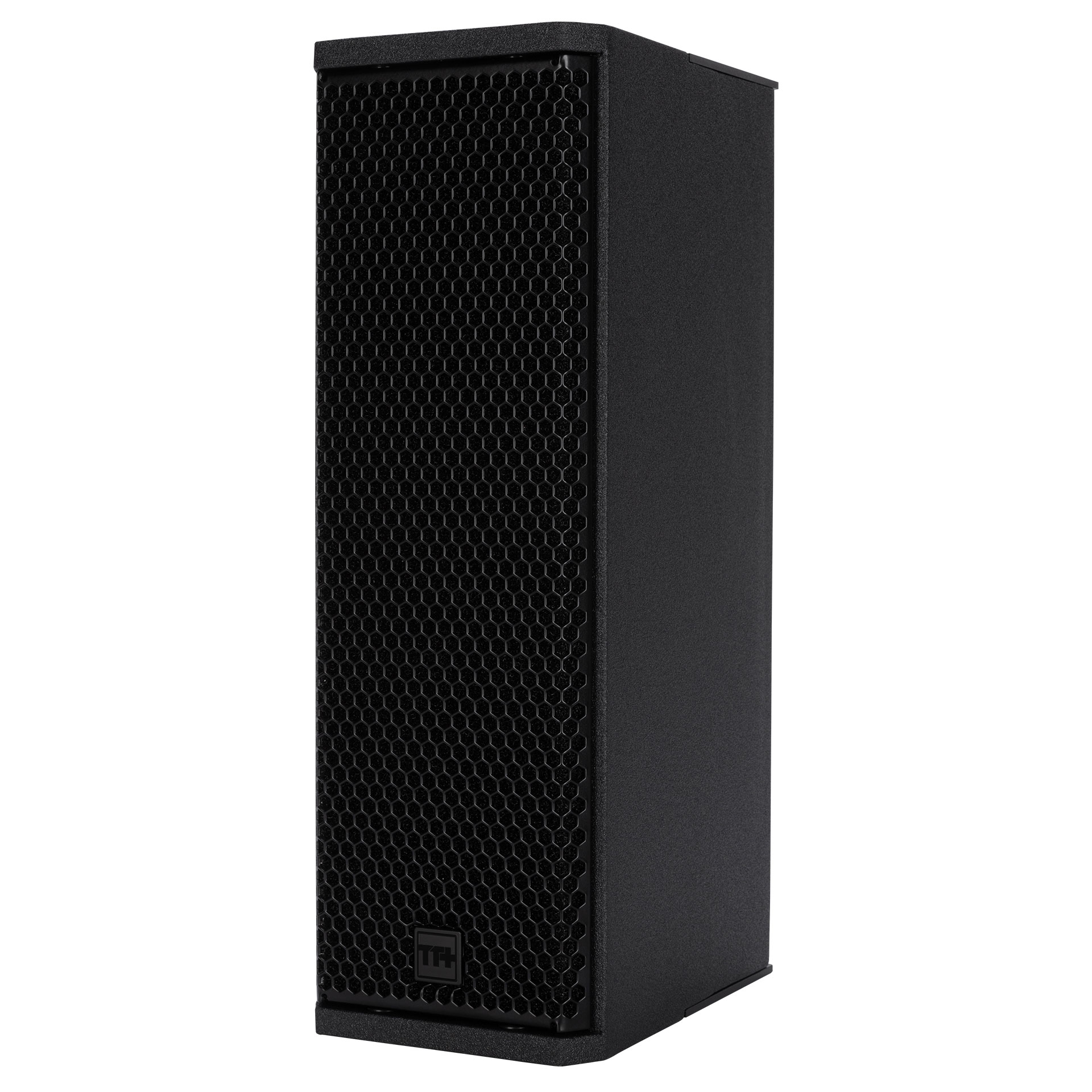

RCF – TT 515-A

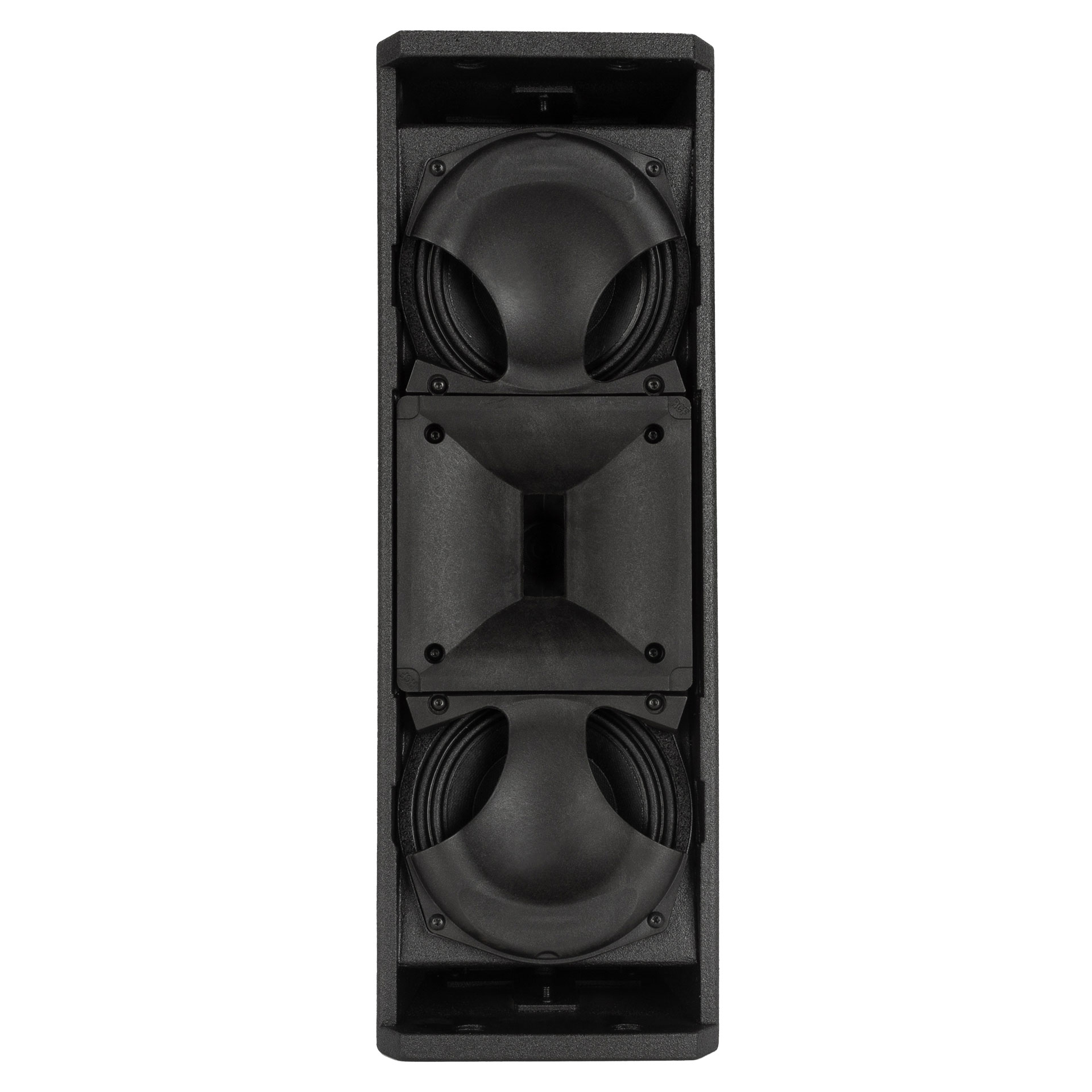

Power, adaptability, and above all, compact dimensions define the new full-range speaker TT 515-A. This active full-range is an ideal choice for applications that require low weight in a portable format. The TT 515-A is a full-fledged member of the TT+ family, delivering extreme performance, optimal coverage angle, low distortion, mounting points for easy rigging, weather-resistant surface finish, and DSP with RDNet protocol integration for remote management, preset selection, and diagnostics. The speaker utilizes two 5'' mid-bass transducers with a 2'' coil, featuring a central CMD waveguide with a 1.75'' compression driver. The RCF TT 515-A excels as a main compact system, fill, or surround for larger sound systems.

Features:
• 127 dB max SPL
• Coverage angle: 100° x 70°
• LF: 2 x 5" neodymium, 2” coil
• HF: 1.75” titanium comp. driver
• 2 x Class-D amplifier, total power: 1000 Watts RMS
• Frequency range: 70 – 20,000 Hz
• RDNet
• DSP with FiRPHASE and Bass Motion Control
