RCF – KXL 4-A

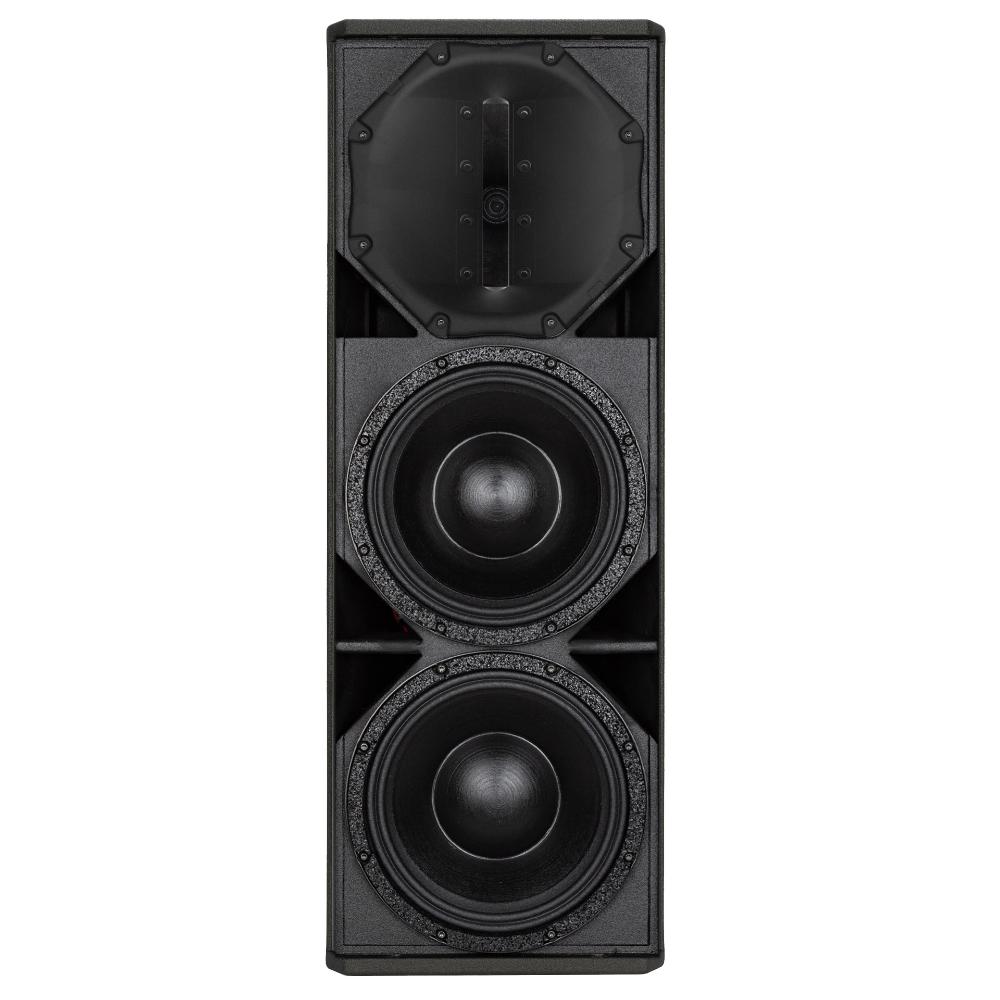

The KXL 4-A is a compact and flexible two-way active full-range speaker with high performance, designed for professional users. It combines precise directivity, high levels of acoustic pressure (SPL), and an advanced rigging system for vertical and horizontal configurations. The low-frequency section features two 10” neodymium woofers in a bass-reflex design, while the high-frequency section is equipped with a neodymium compression driver with a 4” titanium diaphragm, connected to a rotatable 100° x 25° True Resistive Waveguide (TRW). The drivers are interchangeable (firmware update required).
An integrated two-channel Class D amplifier with 3200 W of power and proprietary DSP processing with remote management via RDNet ensures optimal system performance. Its rugged and versatile construction allows for a wide range of installations – it can be floor-mounted, pole-mounted, or suspended.

Features:
• Maximum SPL: 135 dB
• Rotatable 100° x 25° TRW waveguide
• LF: 2 × 10” neodymium woofer, 3.0” voice coil
• HF: 4.0” titanium diaphragm, neodymium compression driver
• 2× Class-D amplifiers, total power 3200 W
• DSP Processing with FiRPHASE and BMC
• RDNet management
• Advanced rigging and powerCON TRUE1 TOP connectors
• Width: 825 mm
• Height: 310 mm
• Depth: 369 mm
• Weight: 30.4 kg
