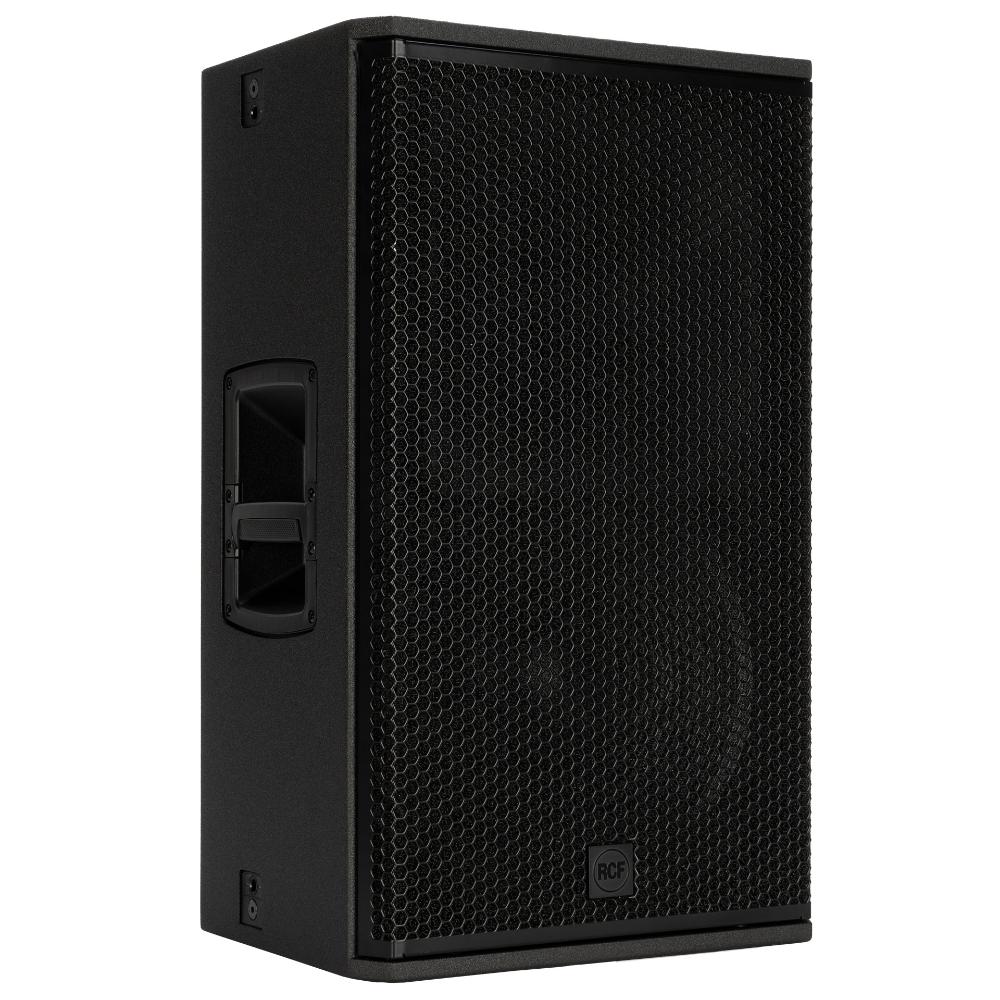

RCF – KX 45-A

The KX 45-A is a compact, high-performance two-way active system designed for professional users. It combines precise directivity, high acoustic pressure, and advanced system integration. The low-frequency section features a 12" neodymium woofer in a bass-reflex configuration, while the high-frequency section includes a neodymium compression driver with a 1.75" PKX membrane, mounted on a 100° x 70° True Resistive Waveguide that can be rotated by 90°, allowing flexible coverage options. An integrated dual-channel 2000W Class D amplifier with proprietary DSP processing and remote management via RDNet ensures optimal system performance. Its rugged, waterproof multifunctional enclosure with Quick Fit fastening and M10 threads supports a wide range of applications – from ground installations, to stand mounting, to suspension.

Features: • Maximum SPL: 137 dB
• Rotatable 100° x 70° TRW waveguide
• 15" neodymium woofer with 3.5" voice coil
• 1.4" with 4" voice coil, PKX membrane, neodymium compression driver
• Dual-channel 2000W Class D amplifier

• DSP signal processing with FiRPHASE and BMC
• RDNet management
• PowerCON TRUE1 TOP connectors

TECHNICAL SPECIFICATIONS
• Frequency Response: 50 Hz ÷ 20,000 Hz
• Maximum SPL @ 1 m: 137 dB
• Horizontal Coverage: 100°
• Vertical Coverage: 70°

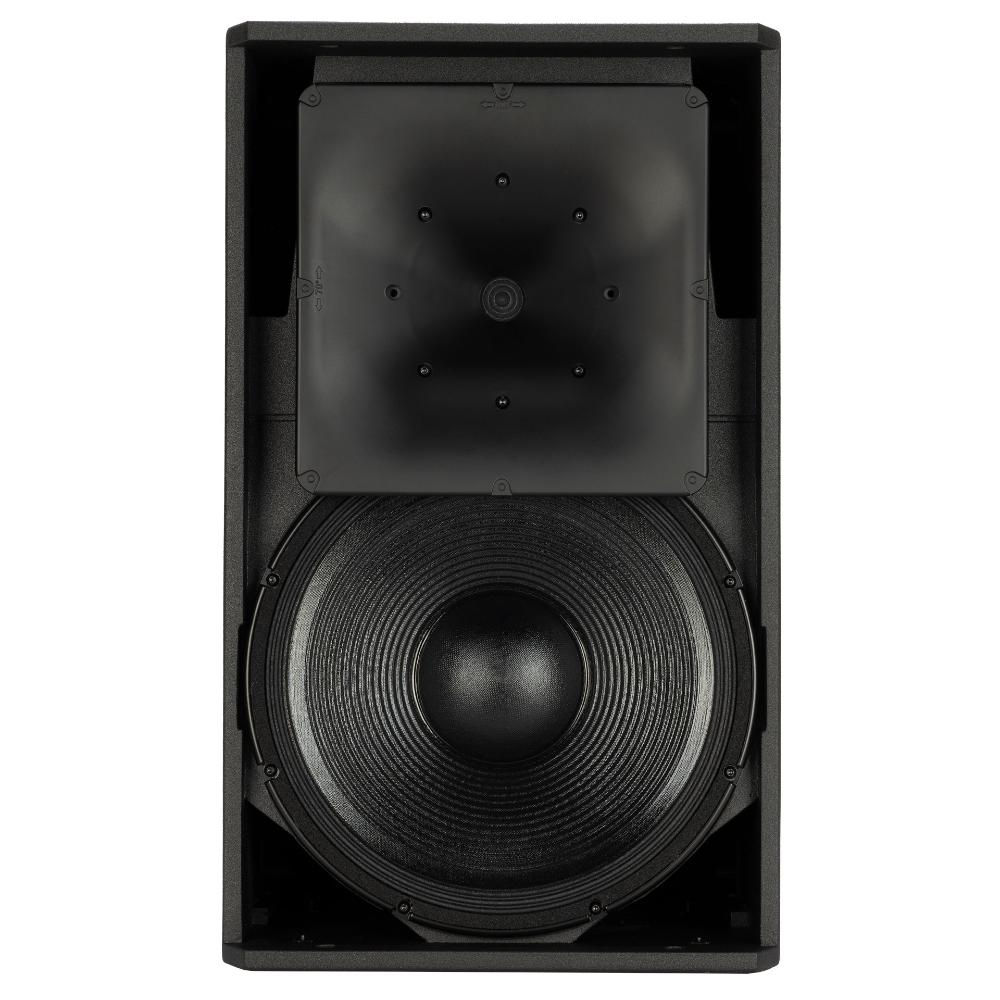

Speakers
• Compression Driver: 1 x 1.4" neodymium, 4" voice coil
• Woofer: 1 x 15" neodymium, 3.5" voice coil

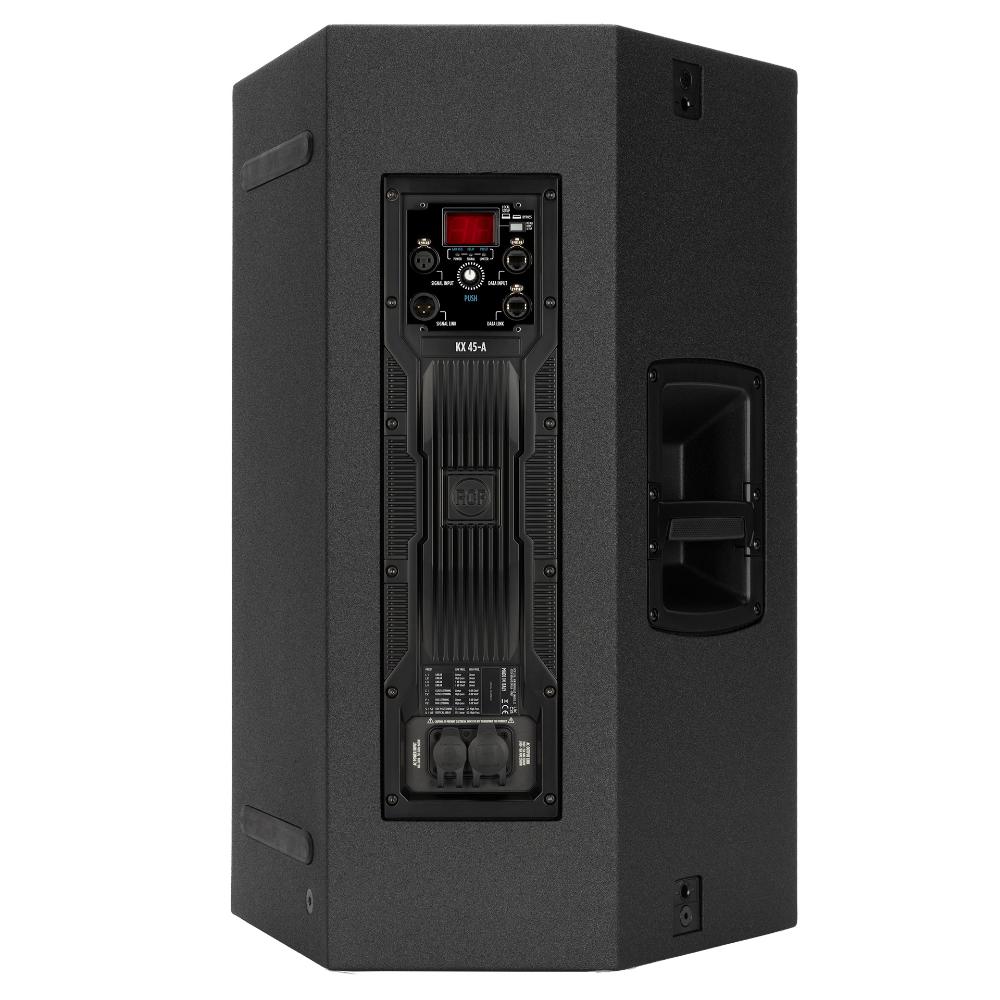

Input/Output Section
• Input Signal: Balanced/unbalanced
• Input Connectors: XLR, RDNet Ethercon
• Output Connectors: XLR, RDNet Ethercon
• Input Sensitivity: -2 dBu / +4 dBu

Processor Section
• Crossover Frequency: 750 Hz
• Protections: Thermal, HF protection
• Limiter: Fast limiter
• Controls: Bypass, Linear/High Pass, Volume
• RDNet: Integrated

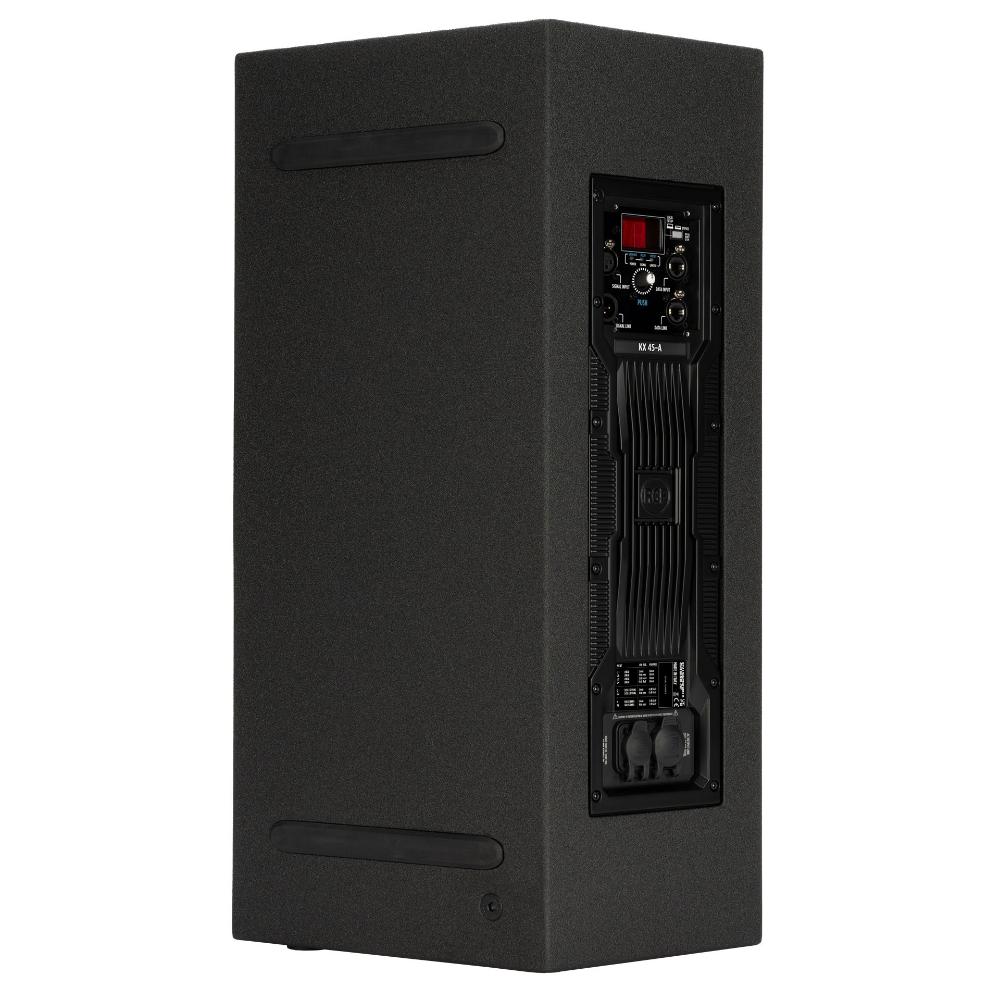

Power Section:
• Total Power: 3200 W peak
• HF: 600 W RMS
• LF: 1000 W RMS
• Cooling: Convection
• Connectors: PowerCON TRUE1 TOP IN/OUT
• Enclosure Material: Birch plywood
• Hardware:
o 3x M10 (top and bottom)
o 2x PIN D.10 and M10 (side)
• Handles: 1 (top)

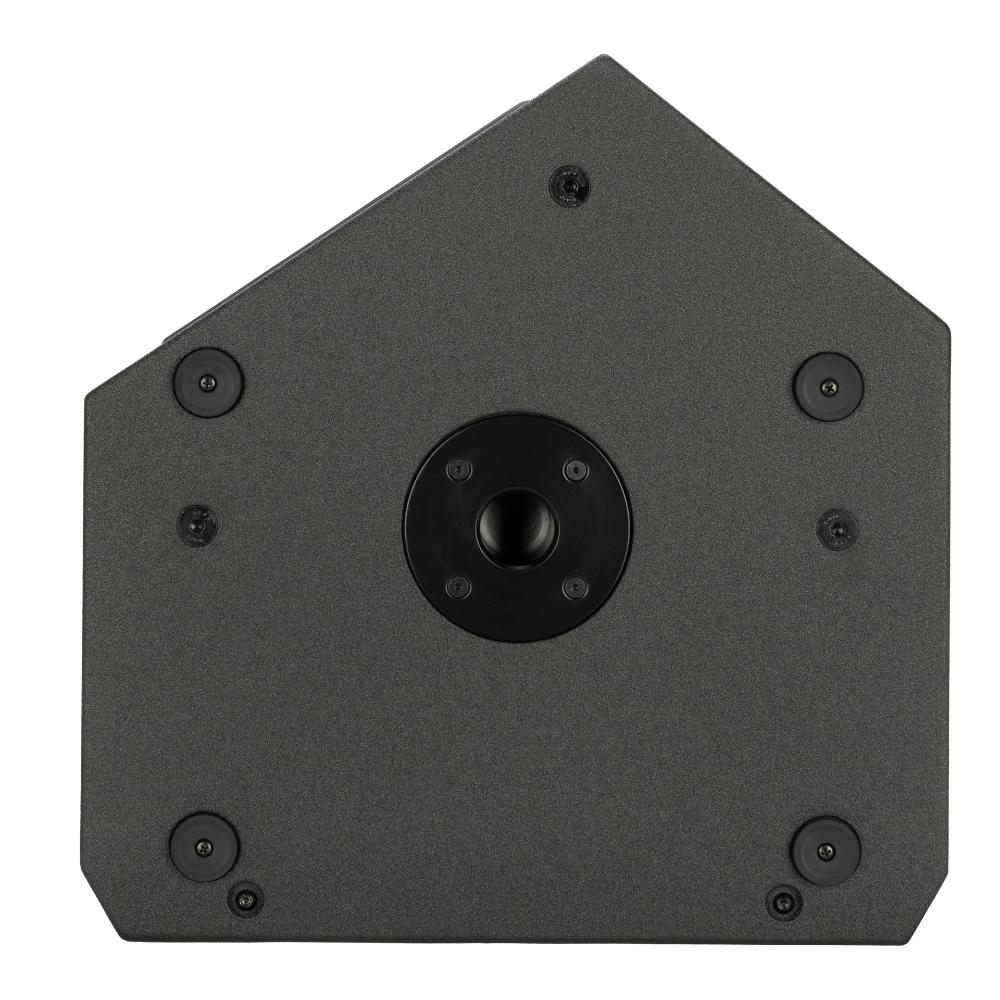

• Stand Mounting: 35mm insert
• Grille: Steel with textile lining
• Color: Black
Dimensions / Weight
• Height: 620 mm
• Width: 360 mm
• Depth: 409.3 mm
• Weight: 28.4 kg
