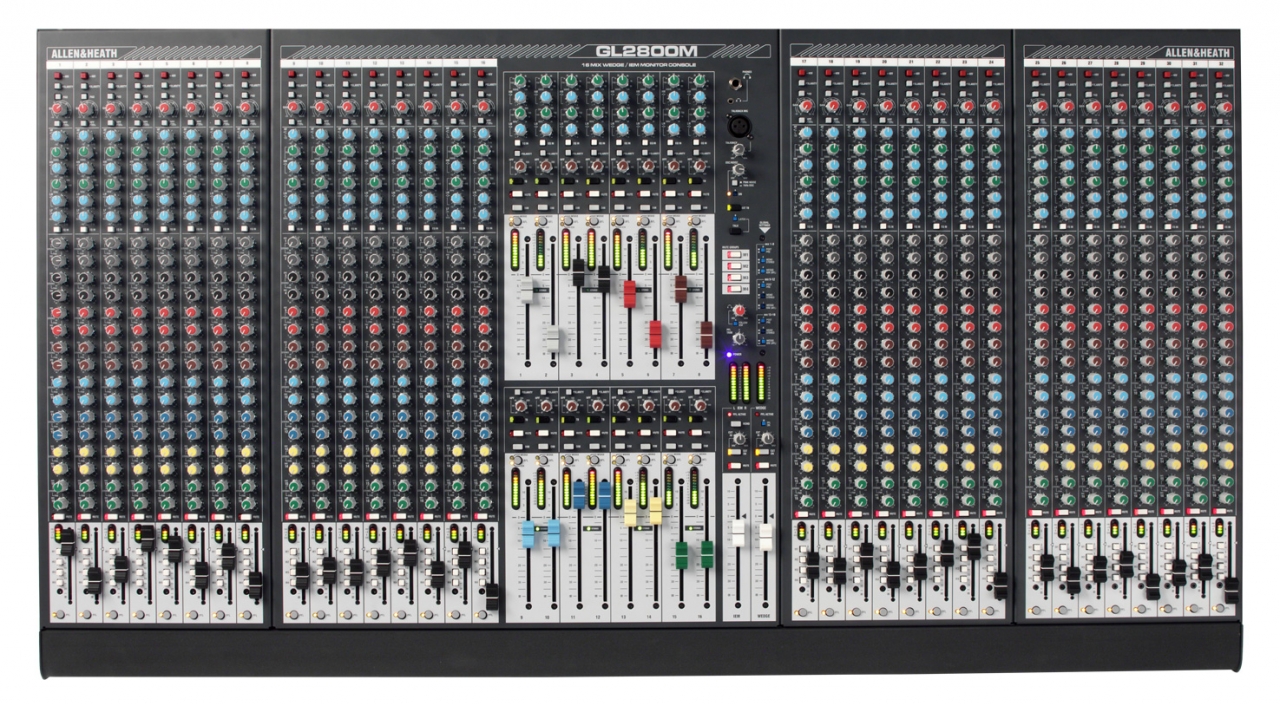

AH large-format monitor mixing console for live/studio, 24 channels

Features:

- 24, 32, 40 and 48 channel frame sizes
- 16 mixes globally assigned as mono or stereo with level and pan
- Built-in mic splitter with ground lift switching
- All masters include polarity switch, swept HPF and 6dB dim function
- Mix 1-8 include 2 band swept frequency output EQ
- Engineer’s IEM and wedge monitors with faders, meters, inserts and XLR
- IEM/wedge monitor external inputs for FOH comms and IEM rack monitoring
- Mix AFL assignable to either wedge or IEM monitor
- PAFL logic includes PFL override AFL, mono/stereo AFL, PFL to wedge enable
- Headphones follow IEM mode, includes 1” and 3.5mm jacks
- Talkback with independent selection to all mixes and external output
- Talk latch mode for use with switched handheld talkback mic
- Built-in oscillator/ pink noise generator assignable to any mix output
- Built-in dual supply combiner for additional power supply as a backup
- 4 mute groups
- Uses RPS11 linear power supply unit
- Same chassis as GL2800
- Compact footprint ideal for flight casing and saving space at side of stage
- Solid, individual card, nutted pot construction in a no-nonsense all-steel chassis
- The best of analog - great sound, reliable and easy to use

One RPS11 power supply included with the product, option to purchase a second, backup supply.
