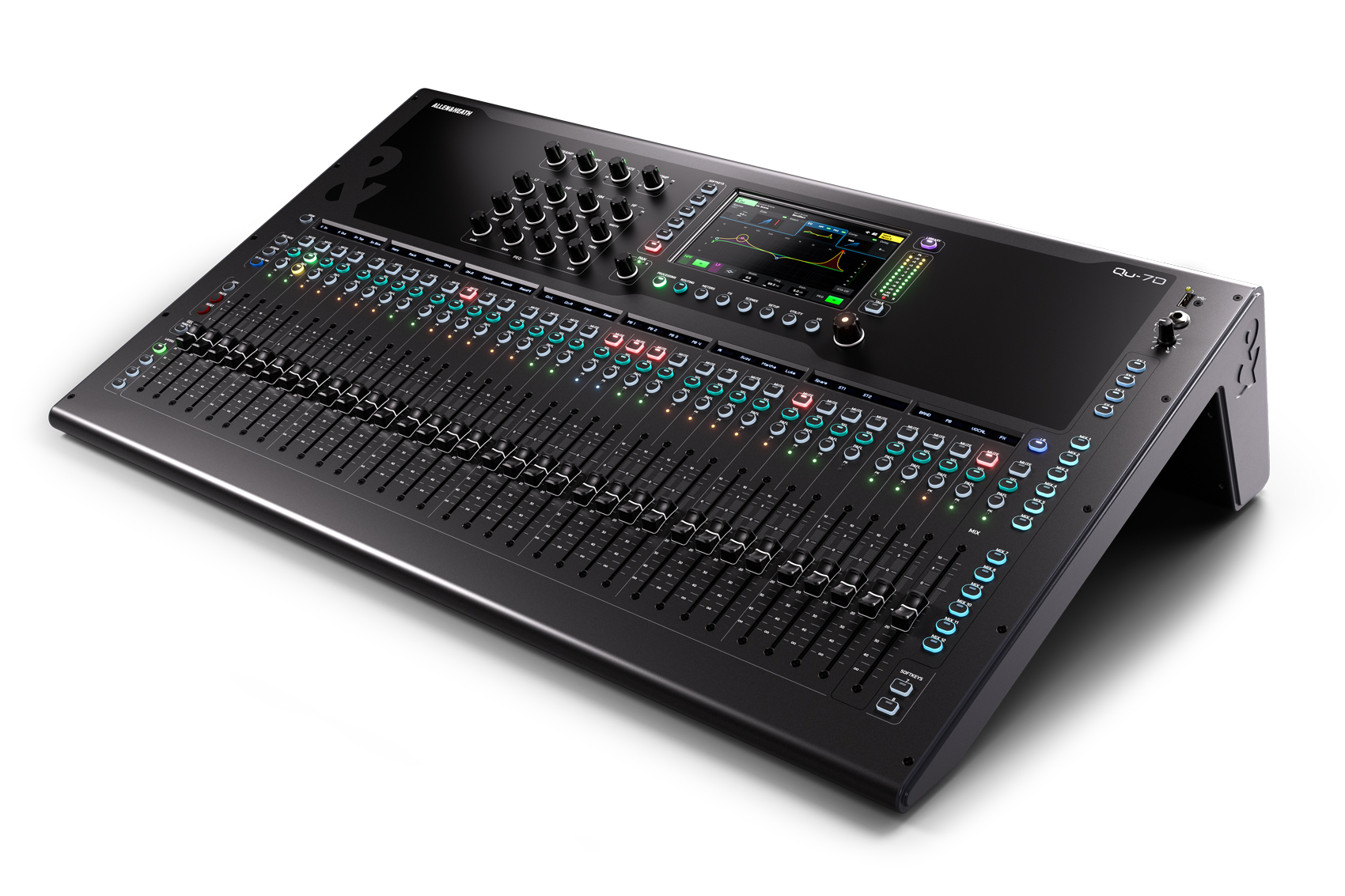

Allen & Heath Qu-7D

The Qu-7D is the largest model in the series, based on the proven Qu-32 format and featuring a powerful XCVI DSP core that offers exceptionally low latency and high processing power in its class. New effect units and Everything I/O network connectivity expand the possibilities for system interconnection and customization to specific operations. Control is provided by a 7" capacitive touchscreen display, clear channel strips, and fully user-configurable layers. The Qu-7D version is additionally equipped with a Dante interface (16×16, 48/96 kHz) for direct connection to networked audio systems. Both models are 32-channel digital mixing consoles with a 96 kHz sampling rate, suitable for demanding professional use in studios, live production, touring applications, AV installations, podcasts, and radio broadcasting. The Qu-7 and Qu-7D are ideal where maximum connectivity, performance, and intuitive control are needed.

________________________________________
Key Features:
• 96kHz FPGA processing (XCVI core)
36 inputs to mix:
• 32× mono (linkable as stereo)
• 2× stereo link inputs (2× TRS each)
12 mix busses (auxes/groups):
• 6× mono / stereo linkable auxes
• 6× stereo aux/groups
• 4× matrices (mono/stereo)
• Main stereo output (LR)
________________________________________

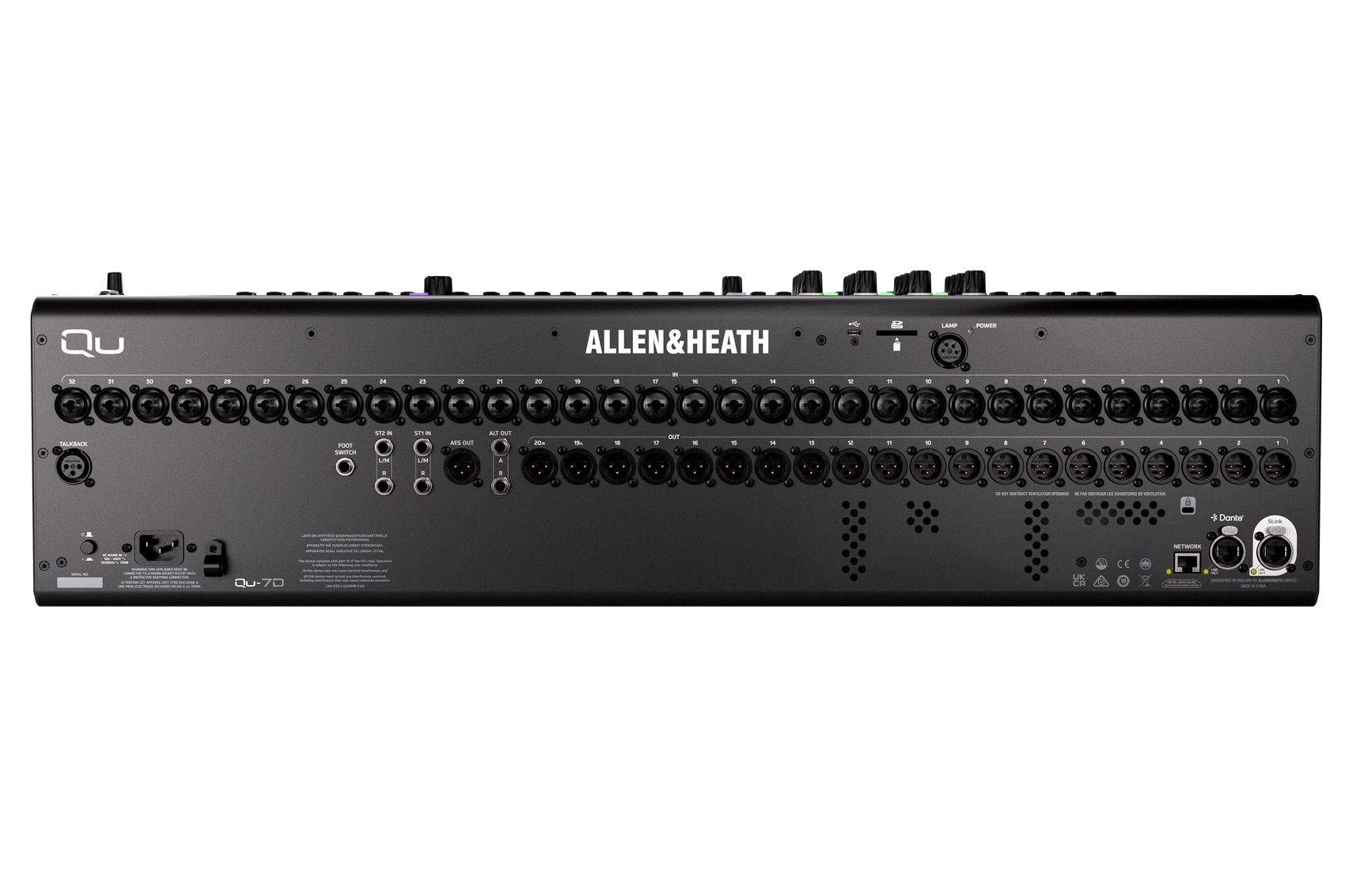

Analog and Digital I/O:
• 32× combined XLR/TRS microphone/line inputs
• 2× stereo line inputs (TRS)
• 1× talkback input
• 20× balanced XLR outputs
• 2× TRS jack outputs
• 1× AES3 digital stereo output
• Headphone output
• Dante interface 16×16 @ 48/96kHz (Qu-7D only)
________________________________________ Connection and Expansion:
• SLink port (128×128) for Everything I/O and other Allen & Heath devices
• USB-A for stereo recording/playback and data transfer
• USB-C audio interface (32×32)
• SD slot for multi-track recording/playback
• 16×16 @ 96kHz
• 32×32 @ 48kHz
• RJ45 network port
• IEC power connector (global PSU)
• 12V lamp connector and configurable footswitch input
________________________________________
Control:
• 7" capacitive touchscreen display
• 33 motorized 100mm faders
• 4 layers of channel strips
• 8 programmable SoftKeys
• 6 effect processors with dedicated returns
• Color-adjustable LED channel meters
• Support for applications on Windows, macOS, iOS, and Android
________________________________________
Dimensions:
• depth: 476 mm
• width: 800 mm
• height: 213.1 mm
• weight: 16.7 kg
