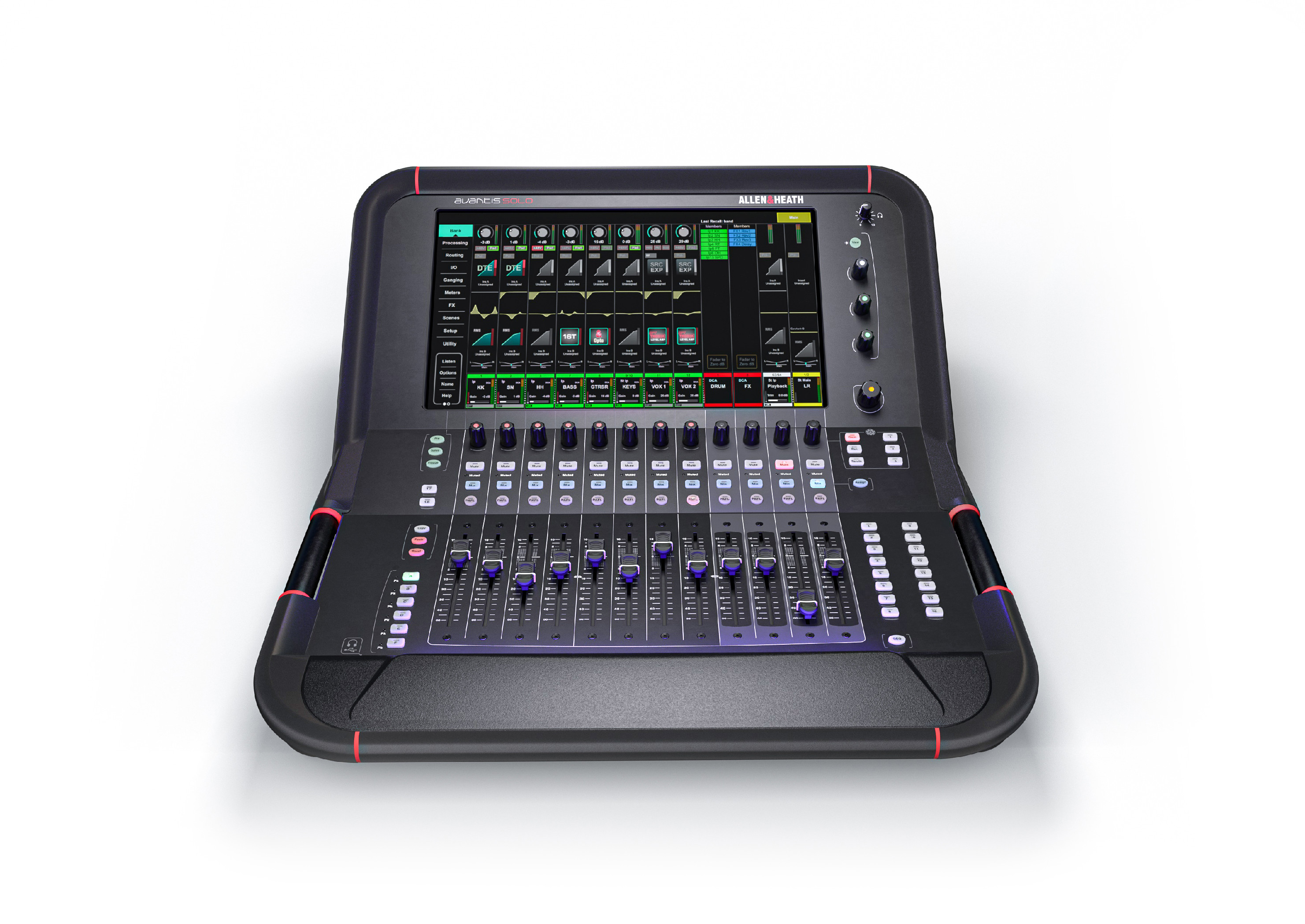

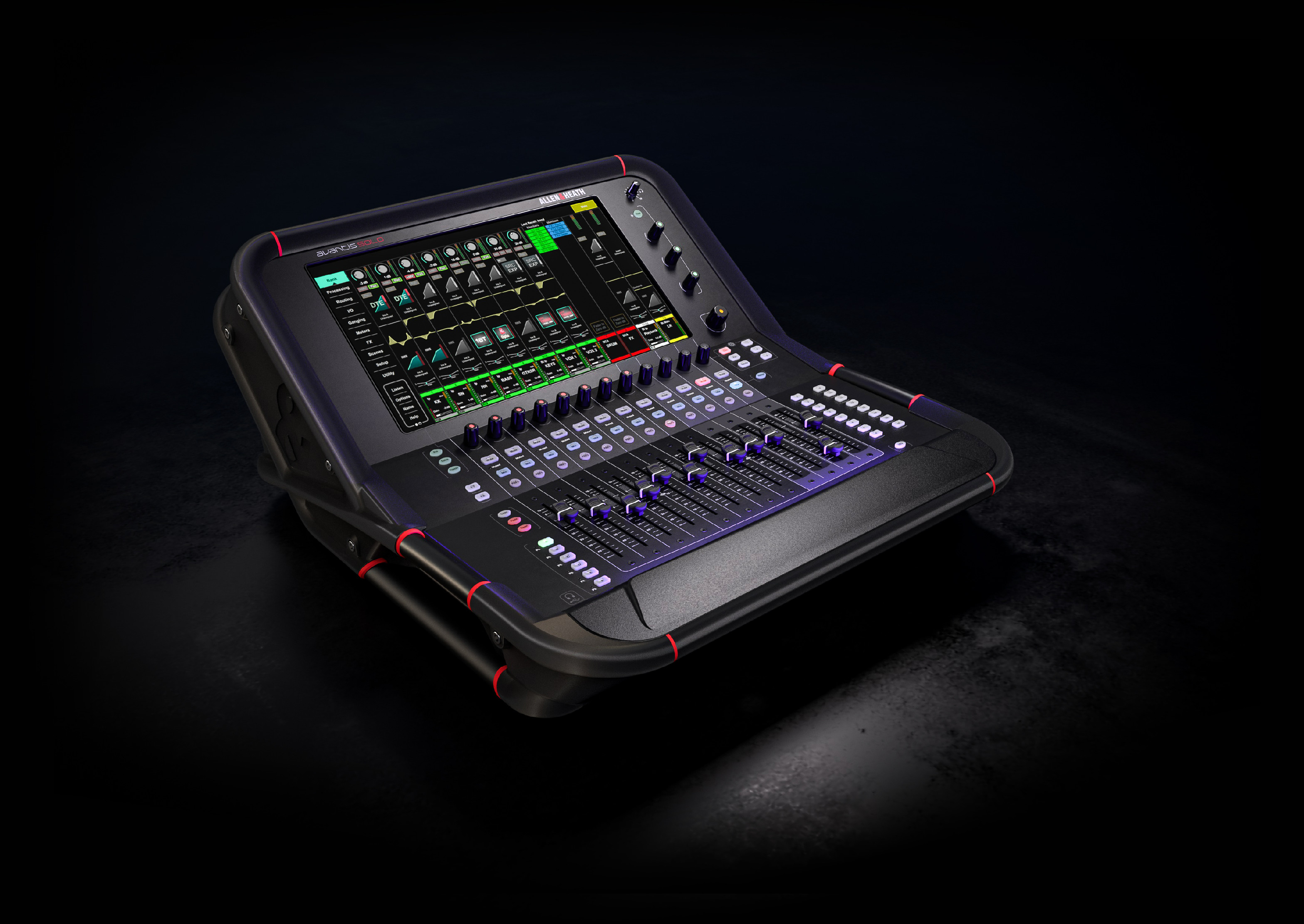

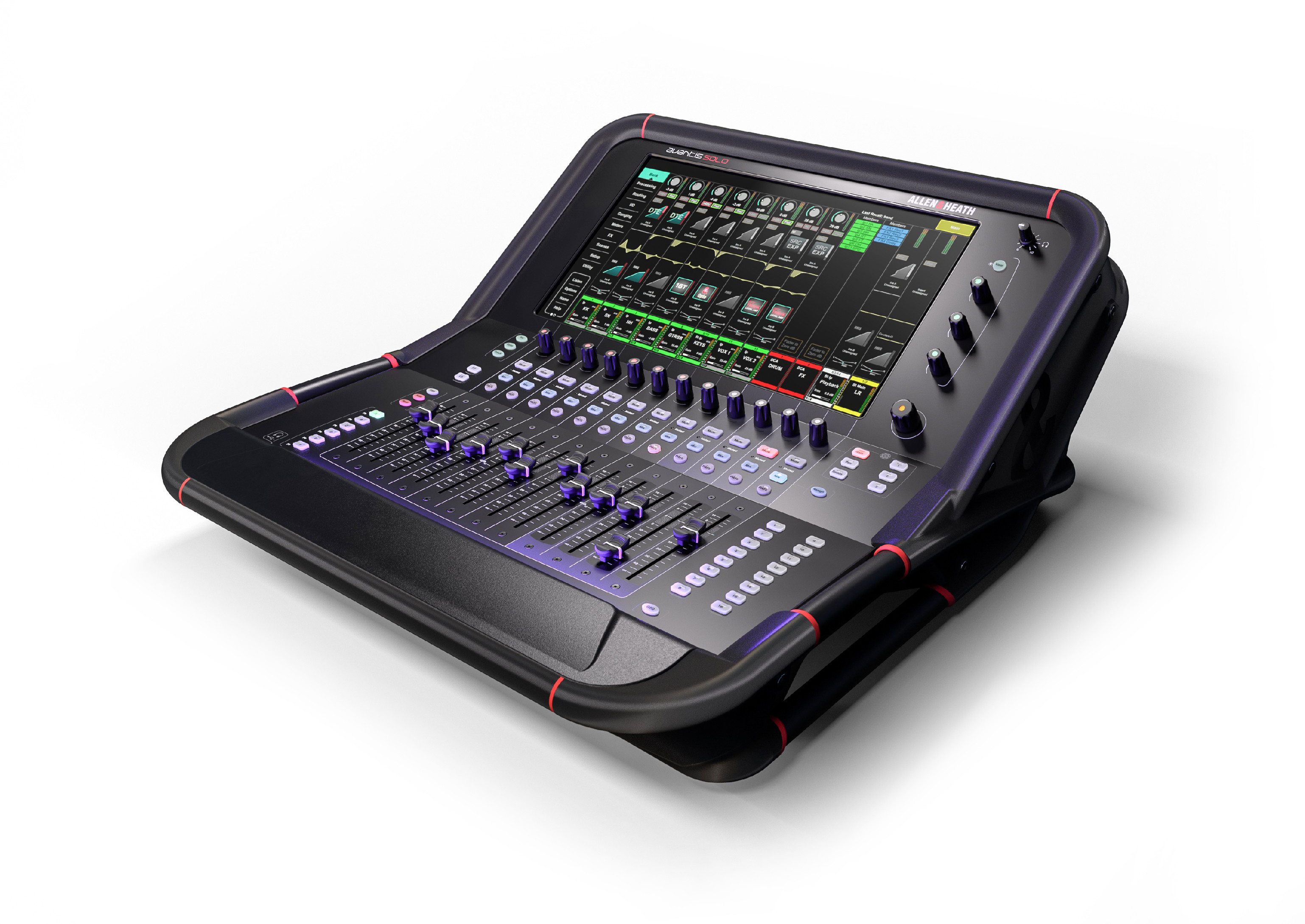

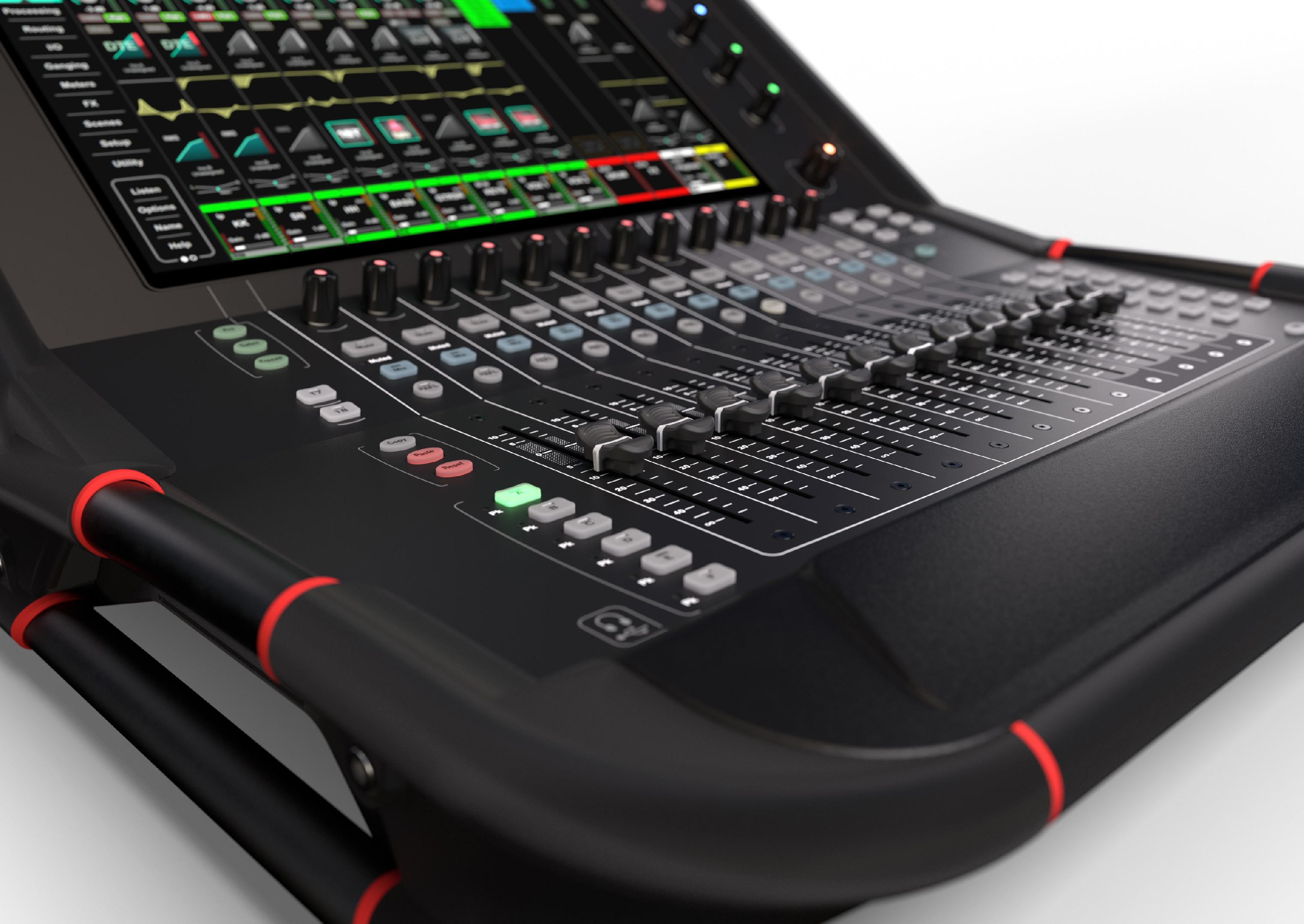

Allen & Heath Avantis Solo

The Avantis Solo packs all the power of the Avantis system into a powerful single-screen package. Featuring an FPGA XCVI core, the Avantis Solo boasts 64 input channels and 42 configurable buses, studio-level effect emulations from the flagship dLive series (via optional dPack upgrade), and SLink ports connecting the Avantis Solo to expanders (Everything I/O range). All housed in a rugged yet lightweight all-metal chassis.
The Avantis is the third series of Allen & Heath mixing systems utilizing the immense power of the XCVI core with a 96 kHz sampling rate and variable bit depth for maximum precision, noise performance, and offering an exceptionally low 0.7ms latency. The Avantis system brings parallel virtual signal processing with 64 configurable buses and phase-coherent outputs.
XCVI supports DEEP processing, allowing for the insertion of effect emulations, processors, and compressors into the signal path.
Features:
• Full-fledged Avantis, with the same processing and specifications as its larger counterpart

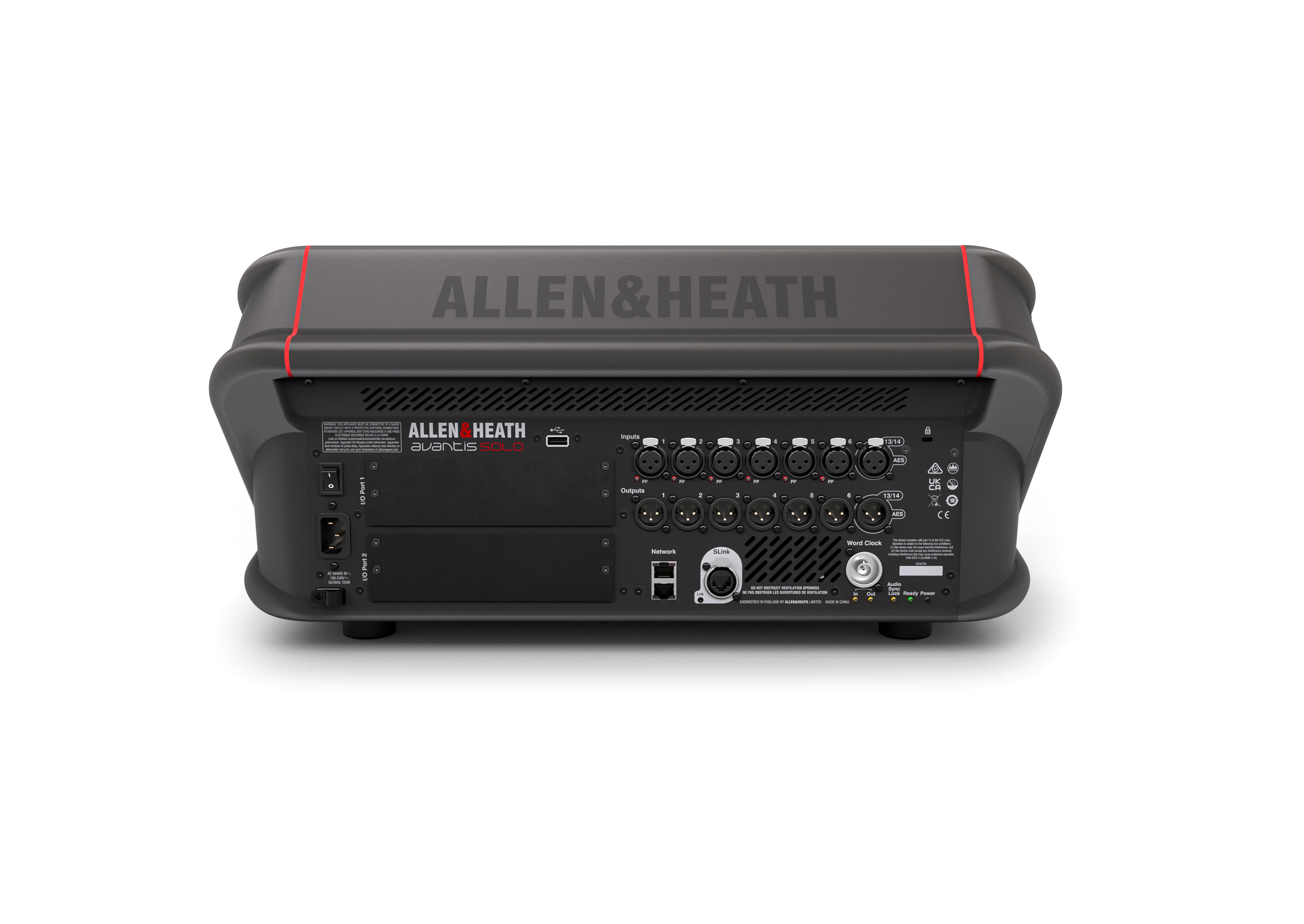

• I/O and connectivity
• SLink port for connection to Remote I/O expanders and ME Personal Mixing system
• 2 I/O ports with up to 128x128 capacity at 96 kHz – for optional cards including Dante, MADI, and gigaACE
• 6 analog XLR inputs / 6 analog XLR outputs
• 1 stereo AES input / 1 stereo AES output

• Software toolset
• RF integration with Shure and Sennheiser
• AMM
• A&H Next-Gen RTA tools

• Custom control
• MixPad / OneMix
• IP controllers

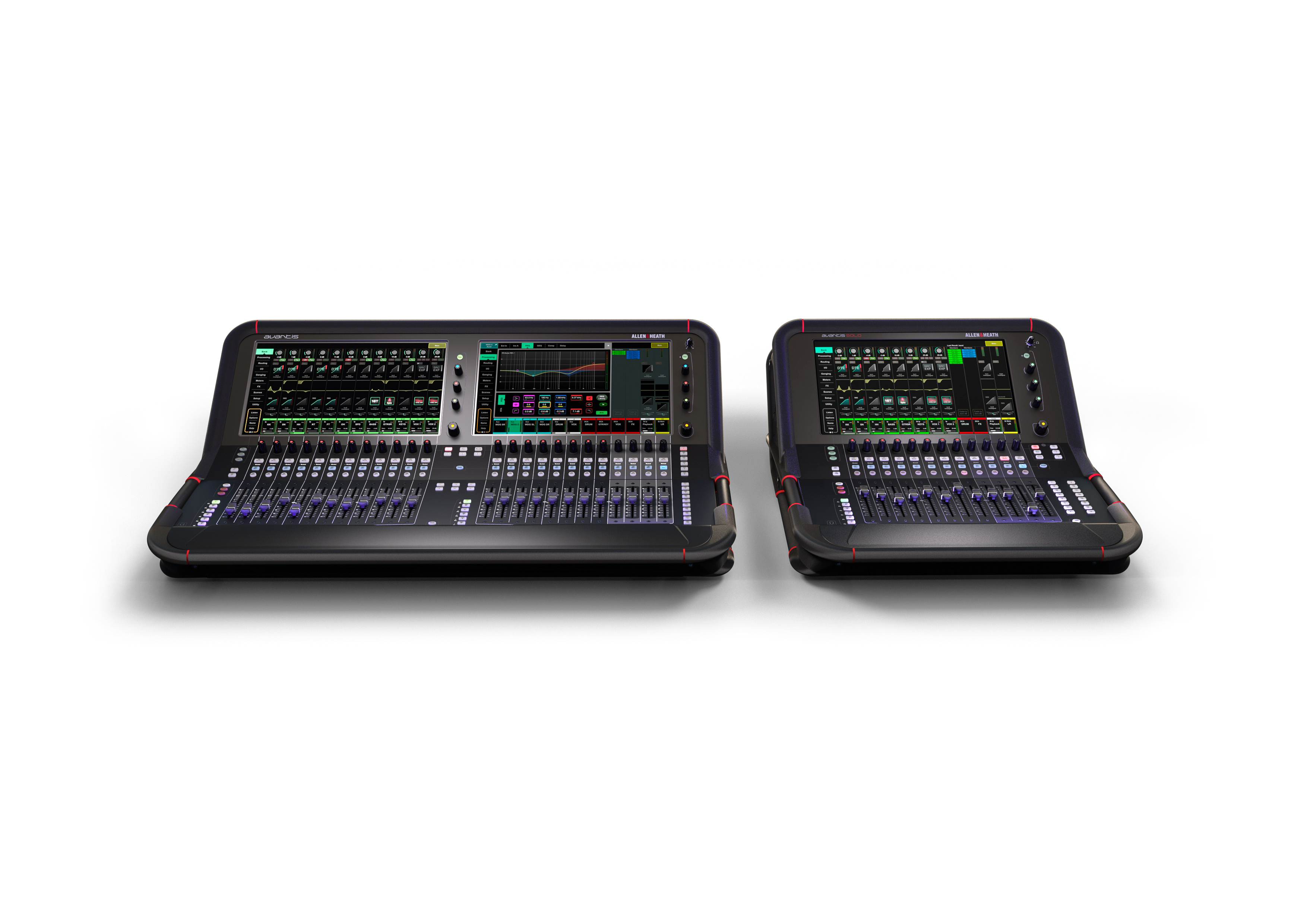

• Full feature list (bold where different from Avantis Dual Screen):
• 96-channel / 42-bus digital mixing console with 96 kHz sampling
• FPGA XCVI core with ultra-low latency (0.7ms)
• Fully configurable bus architecture

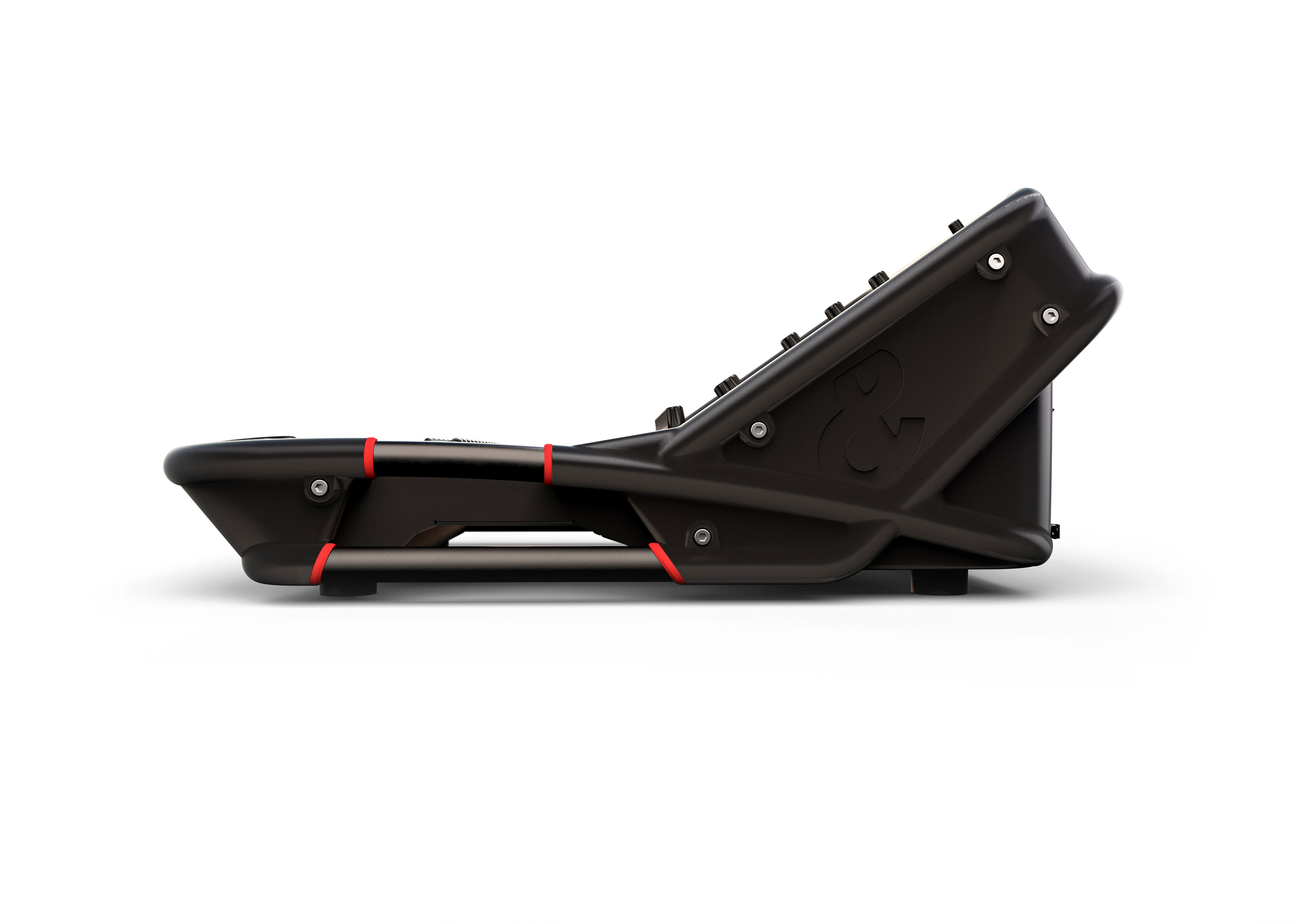

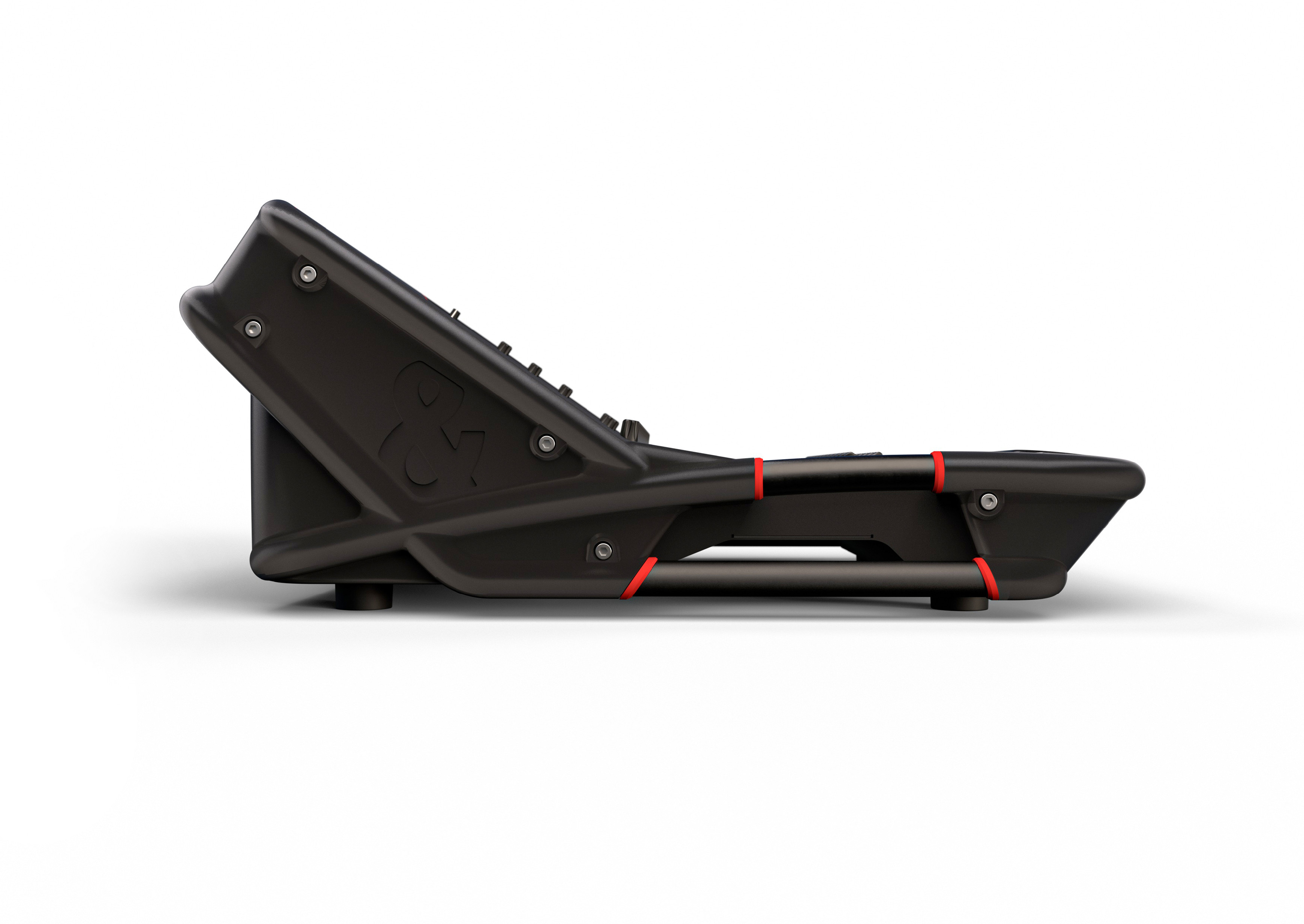

• Super-durable, metal chassis
• Continuity UI seamlessly integrates physical and touchscreen controls for the fastest and most intuitive operation
• dPack expansion option adds part of dLive processing, including 16x Dyn8, plus zero latency for DEEP compressors and tube preamp on each channel
• 12 RackExtra FX slots with separate stereo returns
• 16 DCAs
One 15.6" Full HD capacitive touchscreen with gestures
• AMM (Automatic Mic Mixer) up to 64 channels in 1, 2, or 4 zones
• Fully assignable layout
72 faders (12 faders, 6 layers) with optional master section
• SLink port for connection to Remote I/O expanders and ME Personal Mixing system
6 analog XLR inputs / 6 analog XLR outputs
• 1 stereo AES input / 1 stereo AES output
• 2 I/O ports, both capable of 128x128 operation at 96 kHz – for optional cards including Dante, MADI, and gigaACE

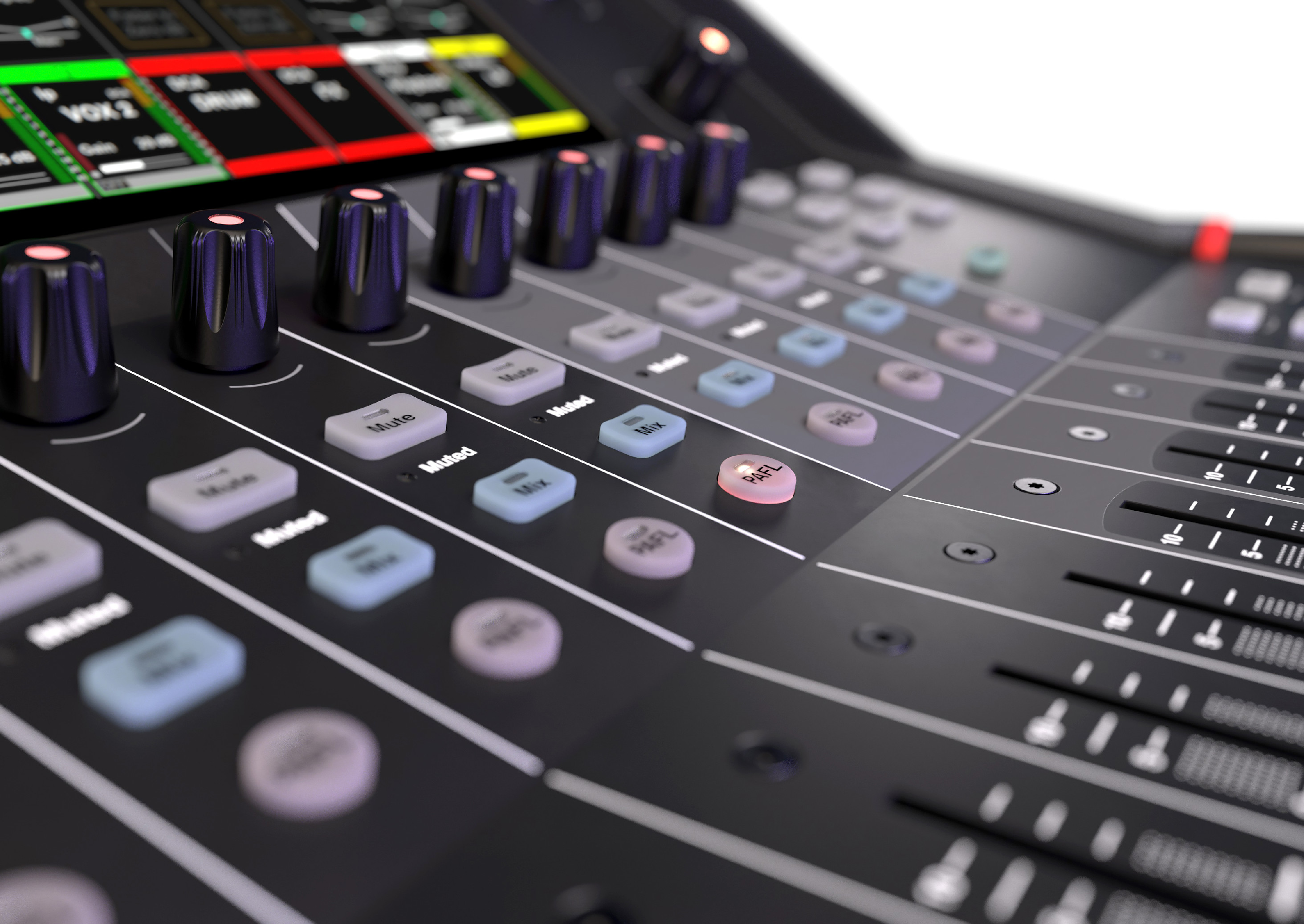

• User-configurable rotary controls
18 assignable SoftKeys
• Comprehensive metering with multipoint peak detection
• Recording and playback of stereo audio via USB
• BNC Word Clock
