Allen & Heath Avantis

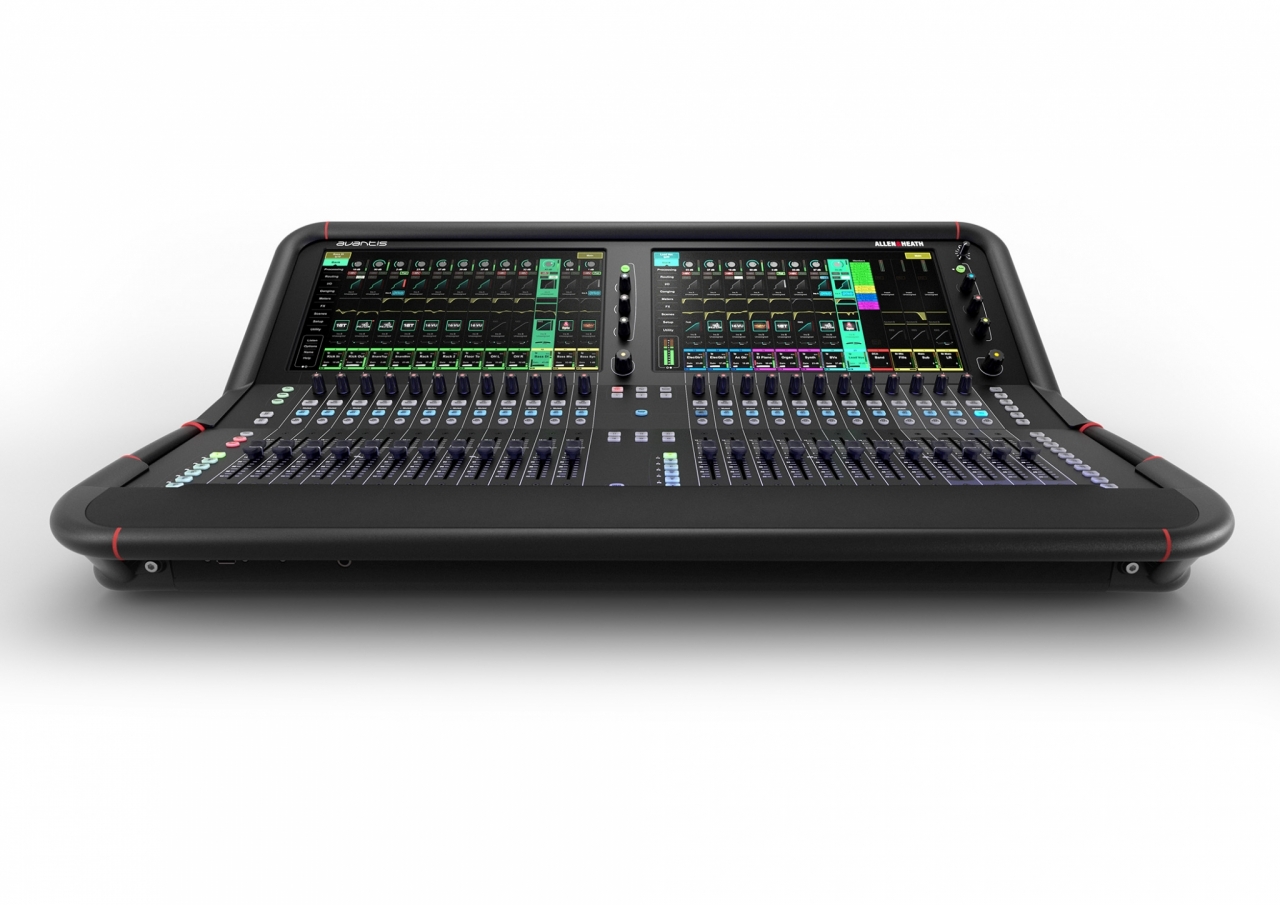

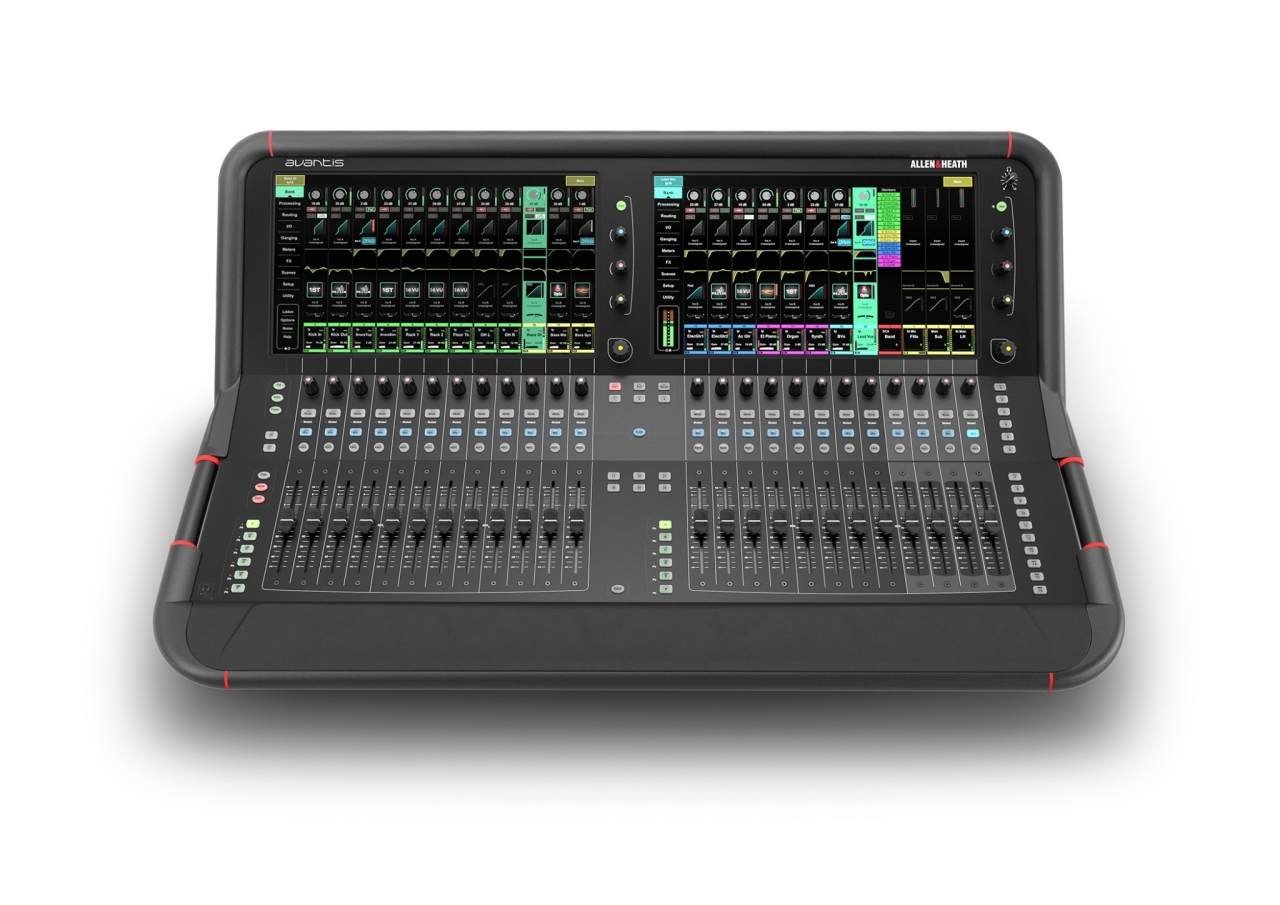

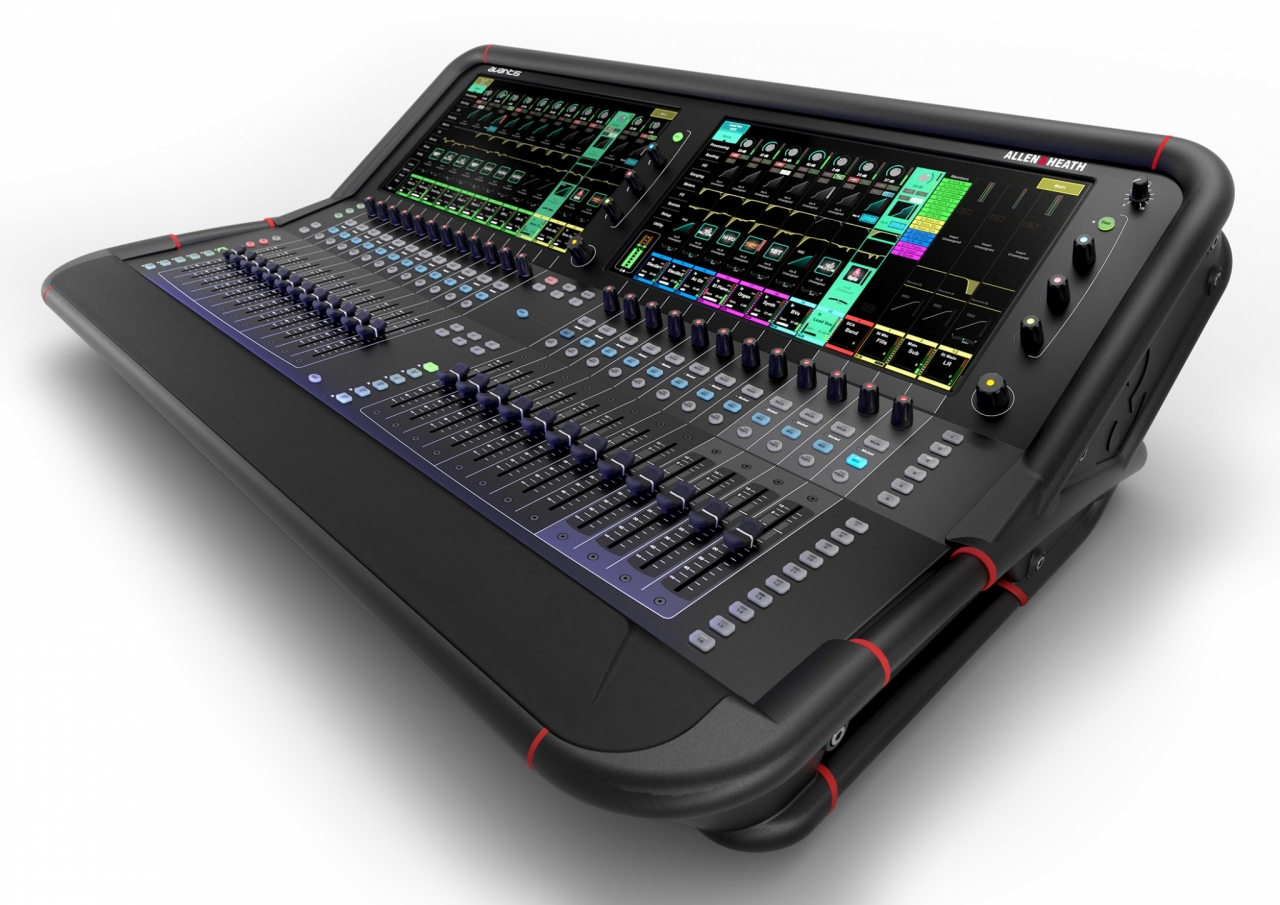

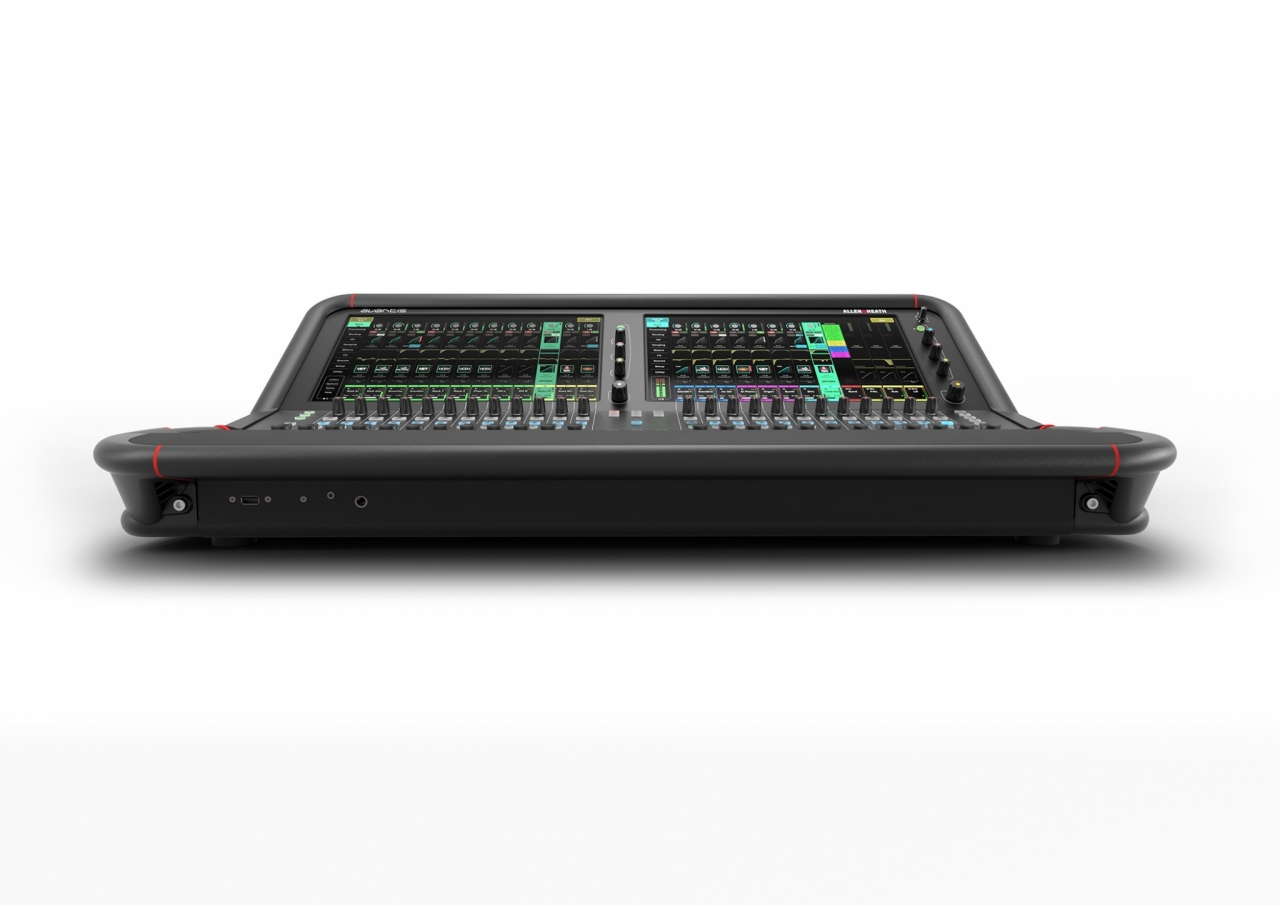

Allen & Heath Avantis is a digital mixing console built on a powerful 96kHz XCVI FPGA core, providing exceptionally low latency of 0.7 ms, phase-coherent bus architecture, and stable performance even in the most demanding live applications. The mixer offers 64 input channels, 42 flexibly configurable mix buses, and a pair of 15.6" Full HD capacitive touchscreens with the intuitive Continuity UI interface, seamlessly integrating physical controls and displays for maximum workflow speed.

Its robust all-metal chassis ensures longevity, appreciated by touring companies and installation setups. Avantis is part of the Everything I/O ecosystem, utilizing an SLink port for external I/O expanders and ME personal monitoring. With two 128×128 I/O ports, it can integrate expansion cards like Dante, MADI, or gigaACE.

The optional dPack add-on brings premium processing from the flagship dLive range – including up to 16 instances of Dyn8 (dynamic EQ + multiband compressor), DEEP compressors with zero latency, and a tube Dual-Stage Valve Preamp. It also includes 12 RackExtra FX effect slots with emulations of top-tier hardware units without the need for external plugins.

Avantis is designed as a full-fledged professional mixer for concerts, theaters, cultural centers, rental companies, and permanent installations – wherever emphasis is placed on speed of operation, DSP performance, and flexible configuration.

Key Features:

• 96kHz XCVI FPGA core with 0.7 ms latency and phase coherence
• 64 input channels and 42 fully configurable mix buses
• Two 15.6" Full HD capacitive touchscreens with gesture control
• Continuity UI – visual integration of faders, controls, and displays
• 144 fader strips (24 faders / 6 layers) with a dedicated master section
• Everything I/O – wide range of compatible external I/O expanders
• SLink port for connection to Allen & Heath expanders and ME system
• Optional dPack: Dyn8 (16 instances), DEEP compressors, Dual-Stage Valve Preamp
• 12 RackExtra FX effect slots – premium HW unit emulations
• AMM (Automated Mic Mixing) for up to 64 channels in 4 zones

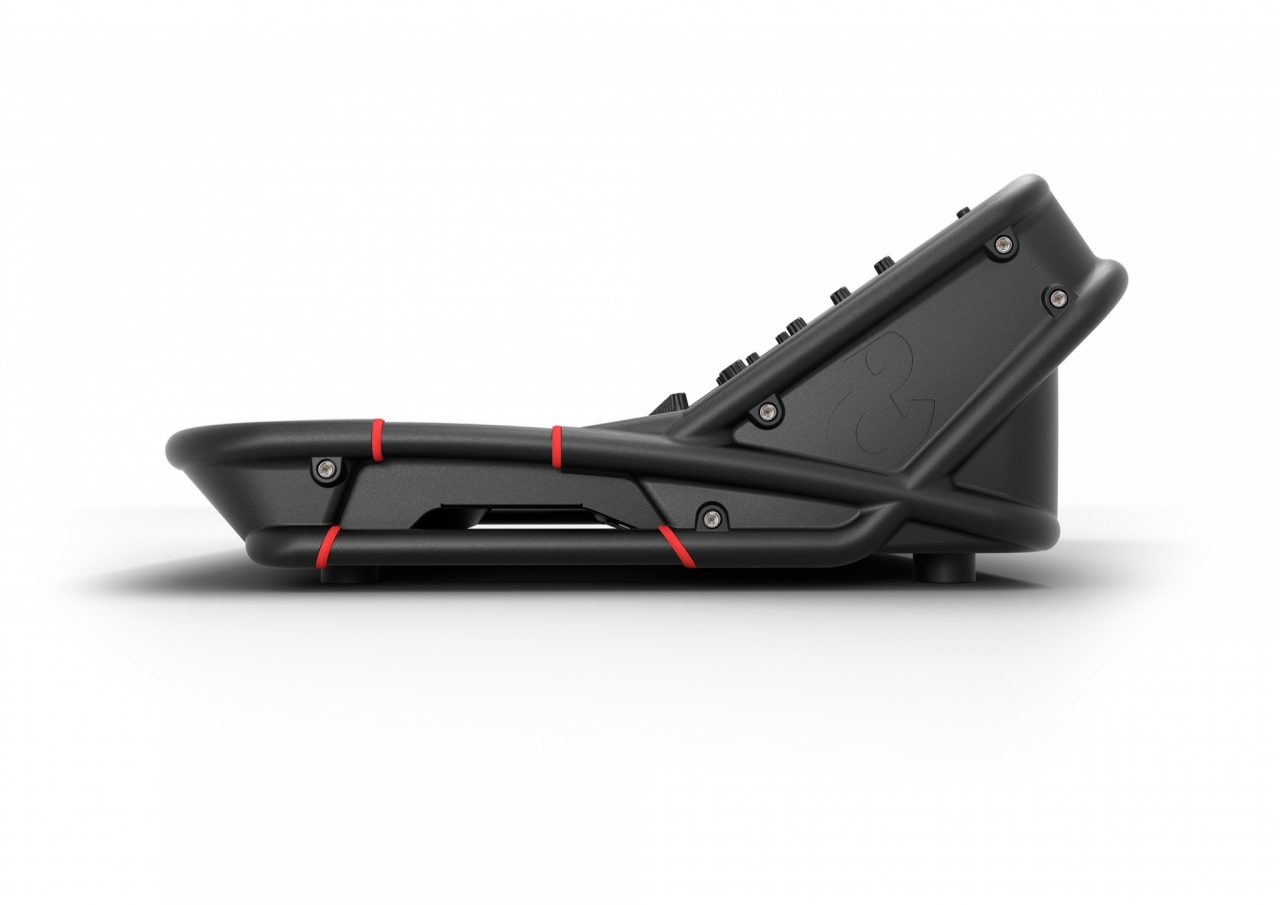

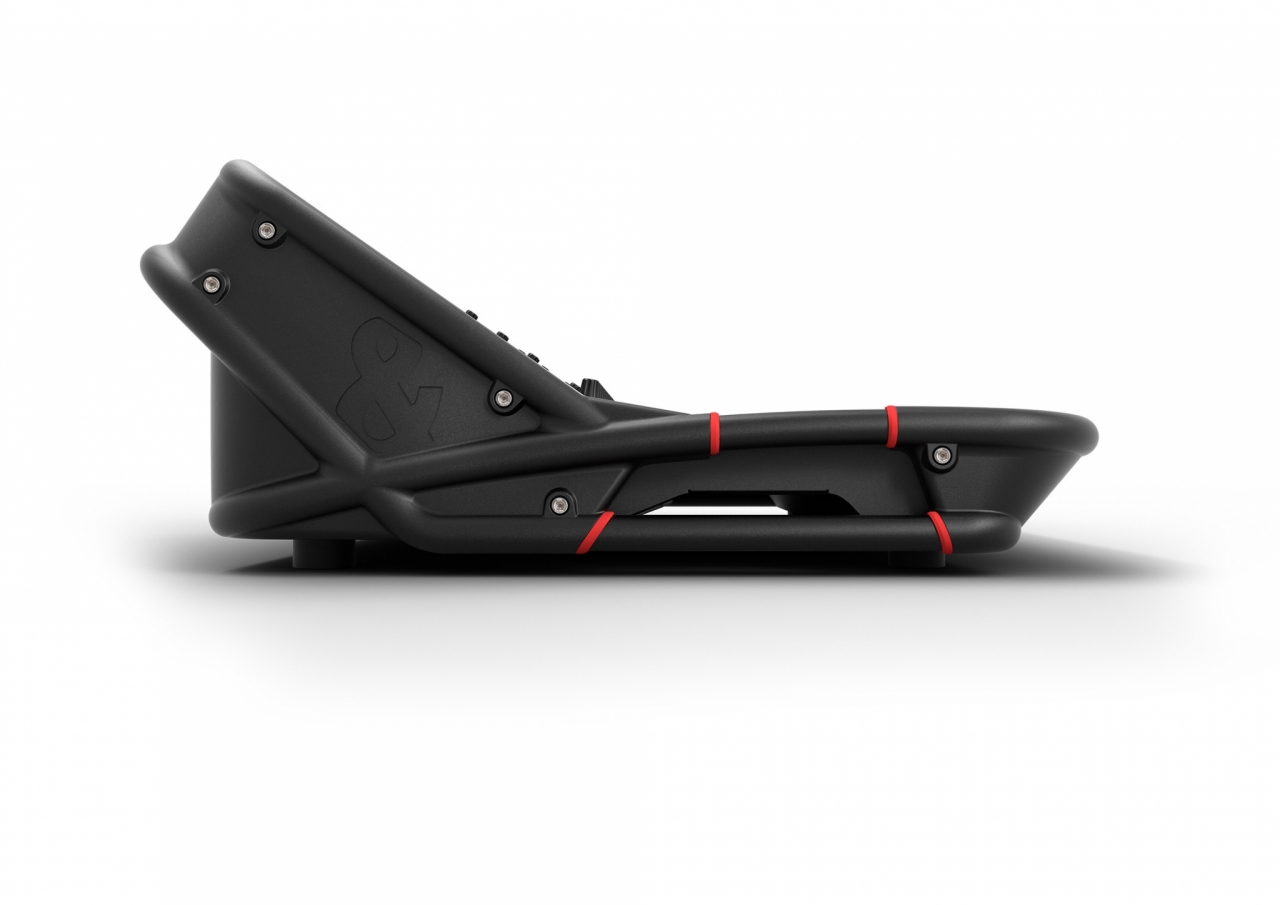

• Robust, lightweight all-metal chassis inspired by superbike construction
• User-configurable rotary encoders + 24 soft buttons
• USB stereo recorder and playback
• Multiband signal metering with peak detection


Technical Specifications:

Audio & Processing
• 64 input channels
• 42 mix buses
• 16 DCAs
• 96kHz XCVI FPGA engine
• Latency: 0.7 ms end-to-end
• 12 RackExtra FX effect slots
• Integrated AMM for up to 64 channels

Control & Interface
• Two 15.6" Full HD capacitive touchscreens
• 24 motorized faders (6 layers)
• Rotary encoders and 24 soft buttons, fully configurable
• Continuity UI for quick access to EQ, compression, AUX sends, FX, etc.

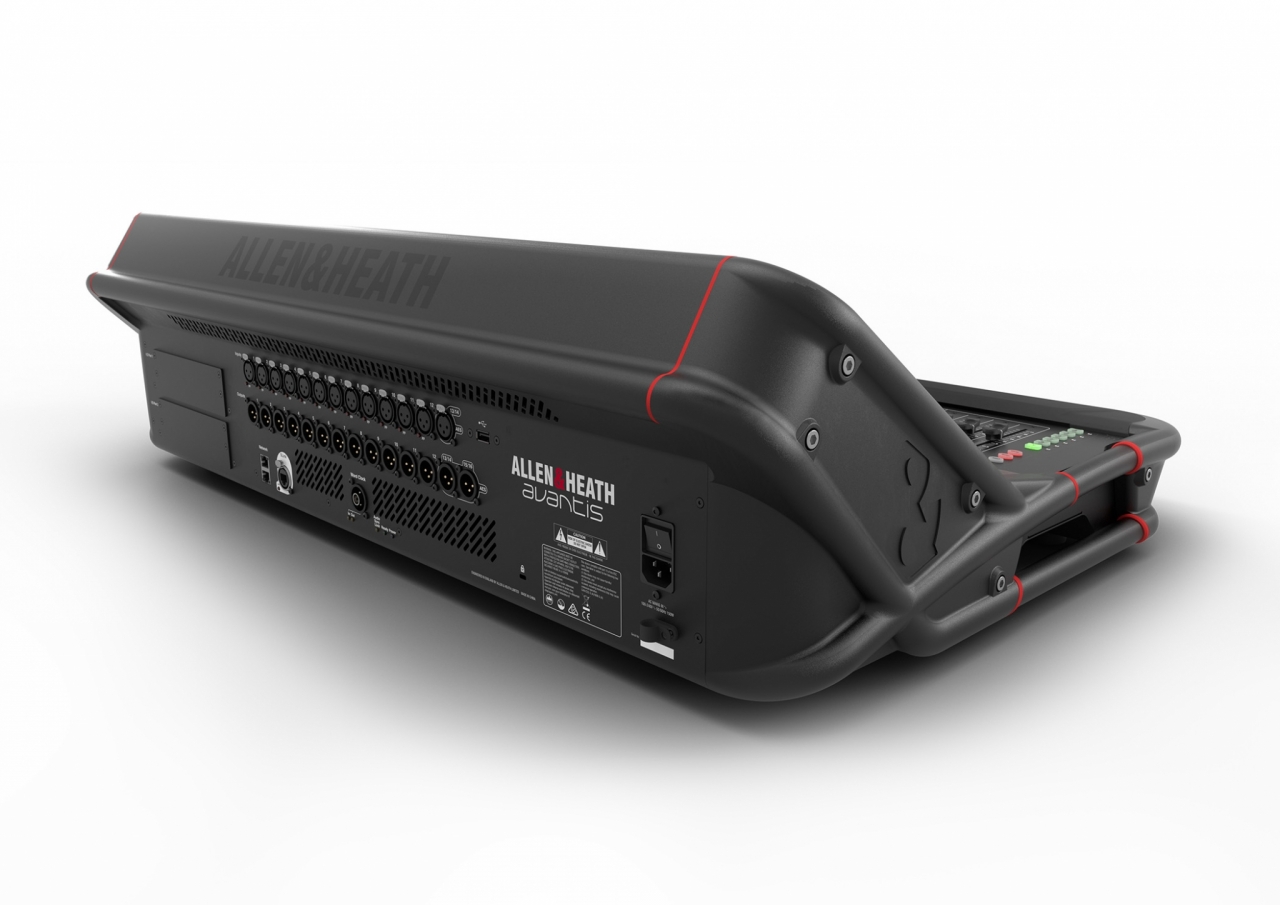

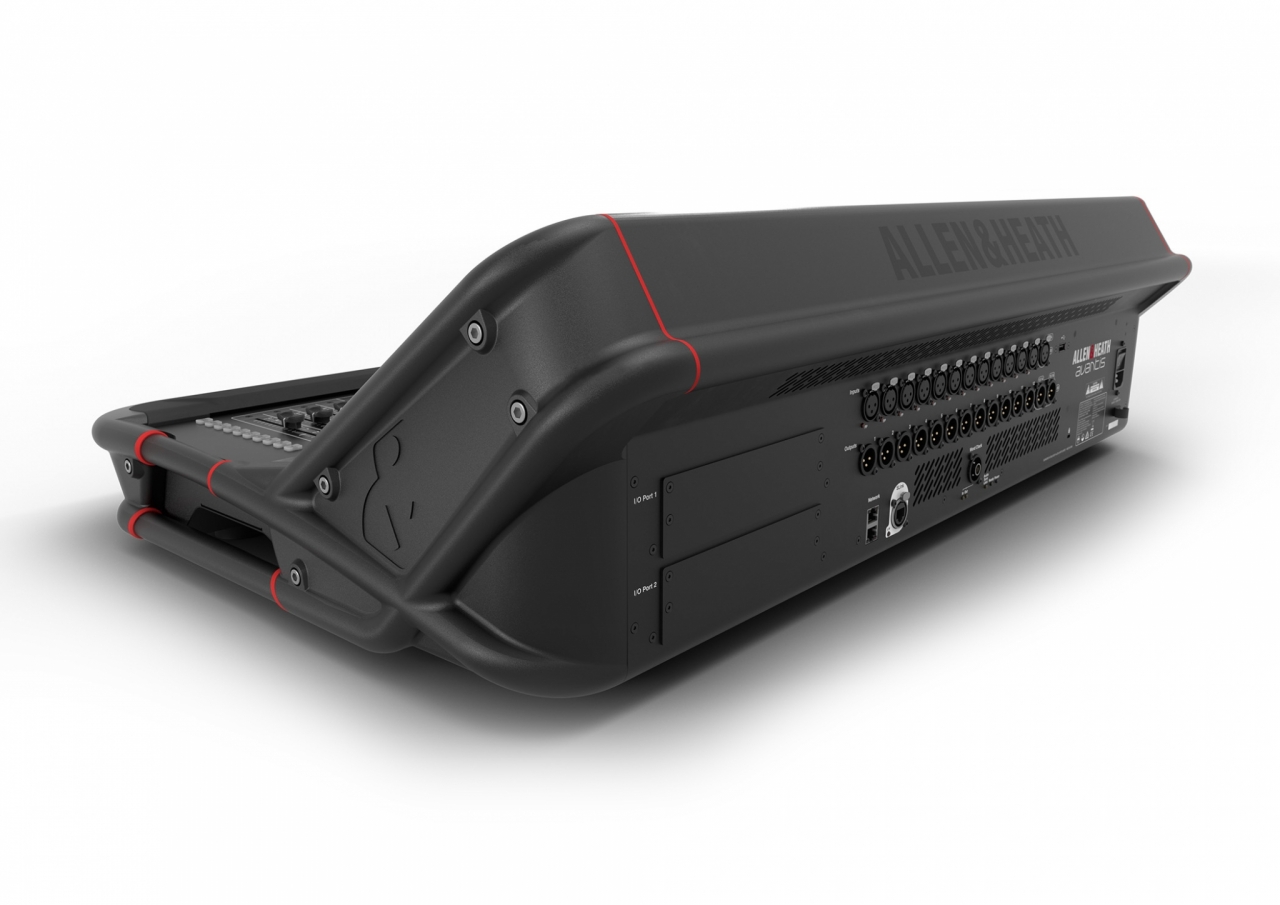

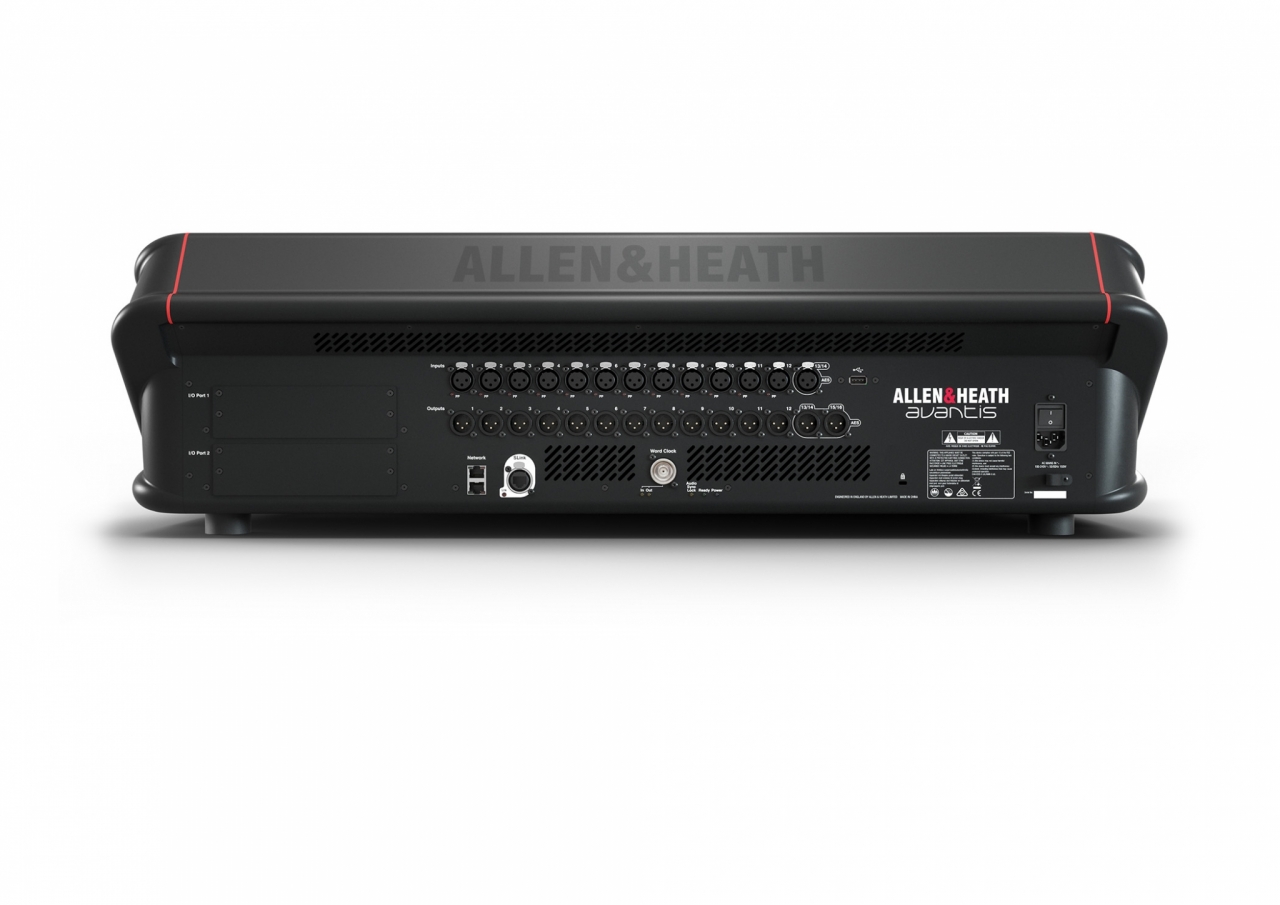

I/O Connectivity
• 12× XLR analog inputs
• 12× XLR analog outputs
• 1× AES stereo input
• 2× AES stereo output
• 2× I/O port 128×128 / 96 kHz (Dante, MADI, gigaACE – optional)
• SLink port for external expanders and ME monitoring
• USB stereo recording/playback
• BNC Word Clock

Construction
• All-metal chassis with high durability
• Ergonomic layout of controls
