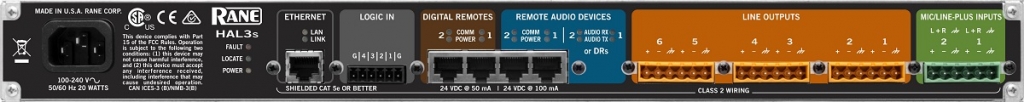

Rane HAL3S

RANE HAL3S • Matrix Audio DSP • 2400 MIPS DSP power • Ethernet • 6x audio inputs (2x analog line and 4x RAD) • 10x audio outputs (6x analog line/MIC and 4x RAD) • Front panel input/output indicators • 2x RAD ports • 2x DR ports for digital control • 4x logic inputs • PC software Halogen • Dimensions 1U, 483x209x44 (mm) • Weight 2.2 kg

HAL3S is a matrix and zone distribution audio DSP. The combination of HAL DSP with peripherals such as smart digital controllers DR, RAD (Remote Audio Devices), external mixers, and zoning stations allows for comprehensive management, distribution, and control of audio signals. The configuration and control software Halogen handles system management, including monitoring operational statuses, network component locations, CAT5e cable connection integrity, and audio signal flow throughout all system components. The main features of HAL3S include:

Specifications:

• 2400 MIPS DSP computational power
• Ethernet 1000BASE-T with "Zeroconf" discovery service for easy setup
• 6x audio inputs (2x analog line and 4x RAD)
• 10x audio outputs (6x analog line and 4x RAD)
• Signal indicators for all inputs/outputs on the front panel, including peaks
• 2x RAD ports (2x input, 2x output, control, RJ45 connector, shielded CAT5e cable, transmission up to 150m)
• 2x DR ports for digital control (RJ45, shielded CAT5e cable, transmission up to 300m)
• 4x logic inputs on Mini-Euroblock connector (6-pin)
• PC software Halogen
• Dimensions 483x209x44 mm (2U)
• Weight 2.2 kg
