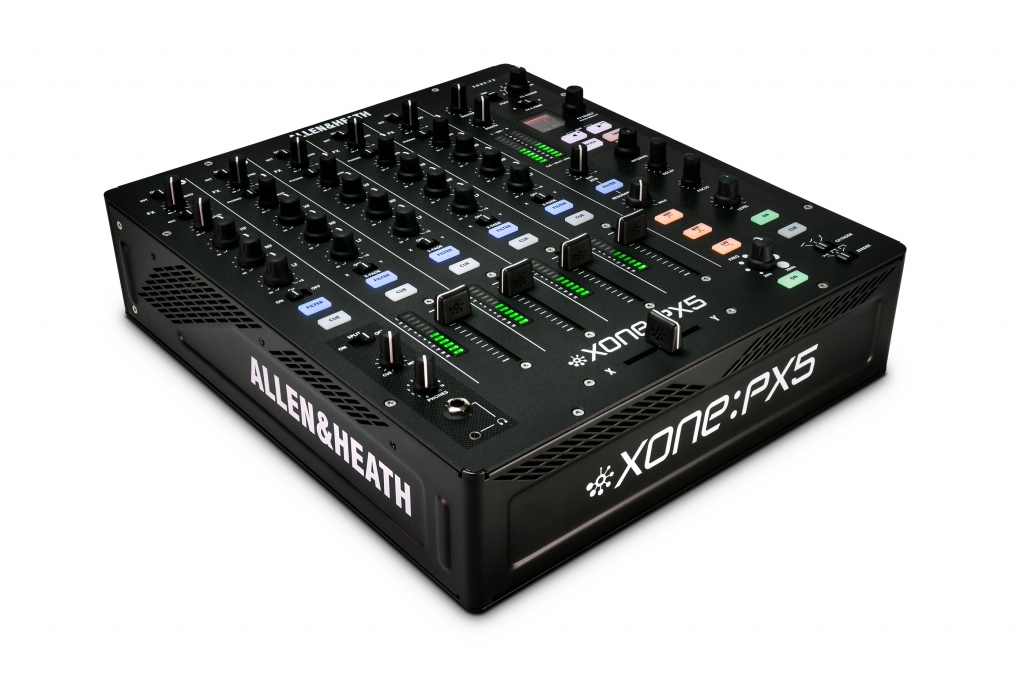

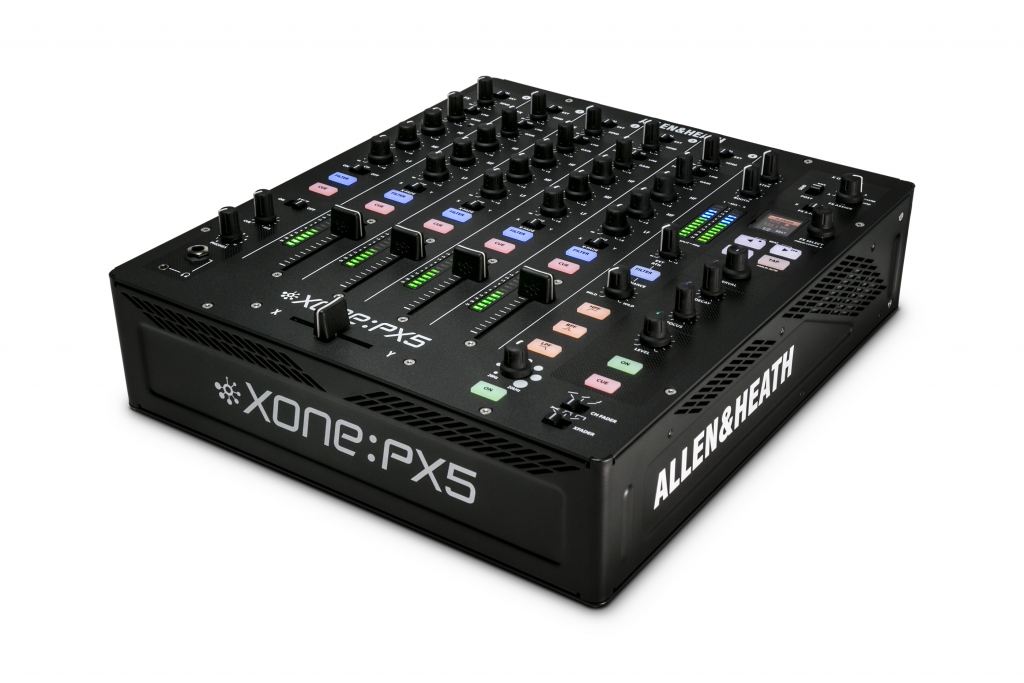

Allen & Heath XONE:PX5

The warm analog sound and technical advantages of the modern digital world shape the character of the latest Xone:PX5 mixer from Allen & Heath. With the built-in Xone:Xcite FX effects unit, you can achieve highly complex sound manipulation essential for your high-energy performances.

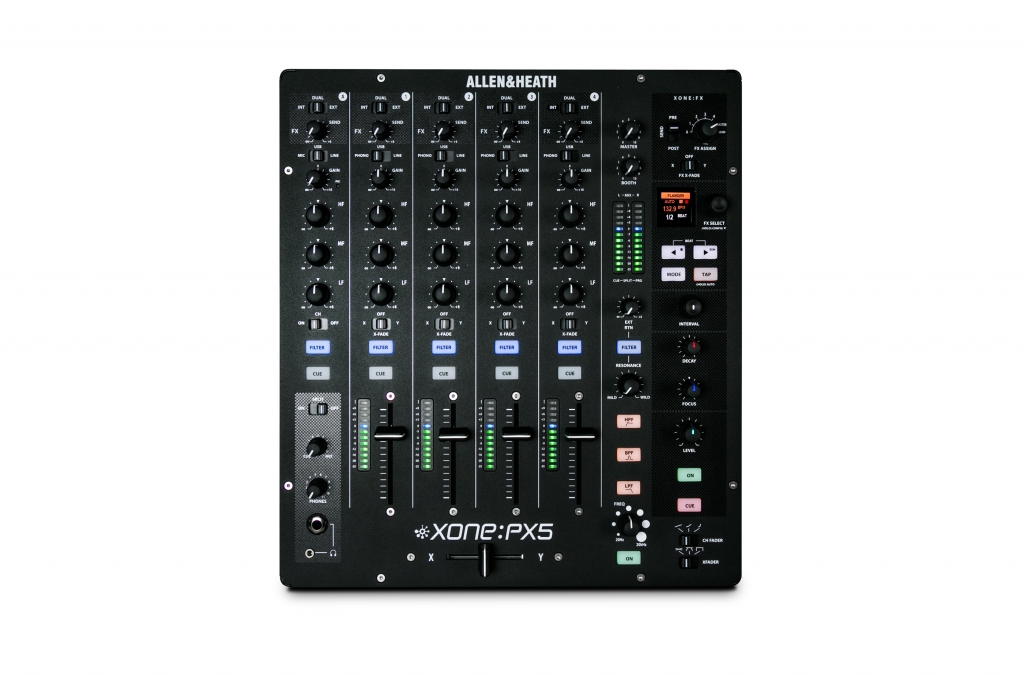

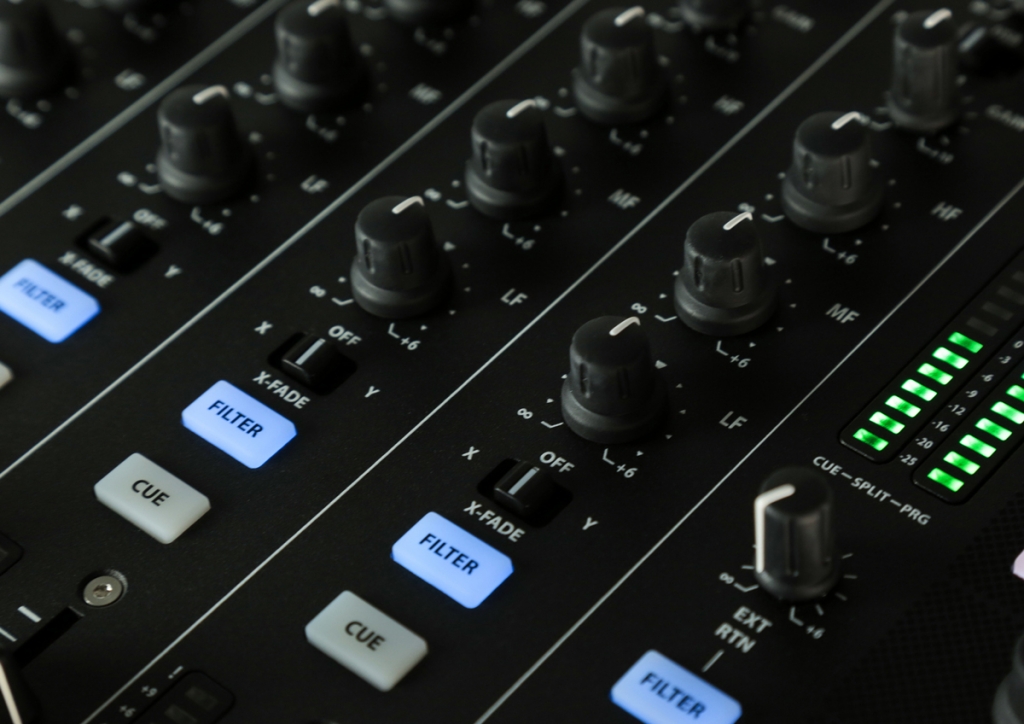

This is a 4+1 mixer featuring the legendary XONE filter, a three-band EQ, and intuitively laid out controls.
The multifunctional Send/Return loop allows you to connect external effects devices (in Master insert and Send/Return modes). All channels are also equipped with Send level control for external effects and routing for the internal effects unit.
The integrated 20-channel audio interface (with a sampling frequency of 96 kHz and a bit depth of 24 bits) allows for easy setup for digital DJing. It also includes an X:LINK port for expanding control options with K Series controllers.
The crossfader operates with three switchable curves for different mixing scenarios or scratching, and it can easily be replaced with an Innofader Pro 2 to satisfy even the most demanding users.
The XONE:PX5 brings a modern approach to DJing and tools for achieving an original sound.

Features:

• Analog 4+1 mixer

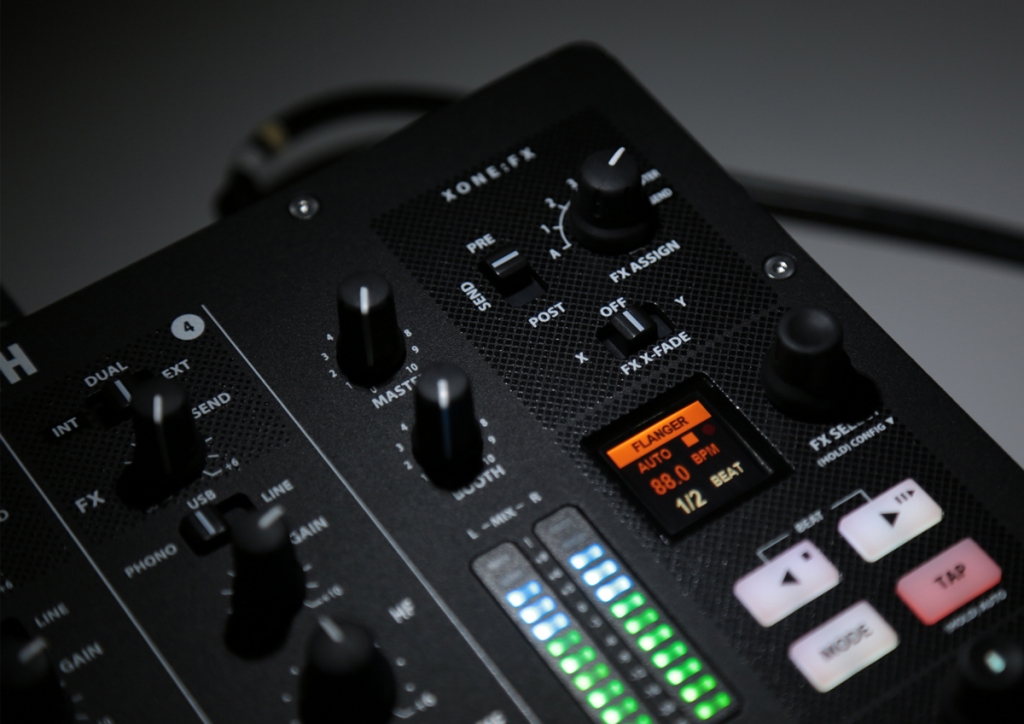

• Internal Xone:FX engine effects unit with Xone:Xcite library

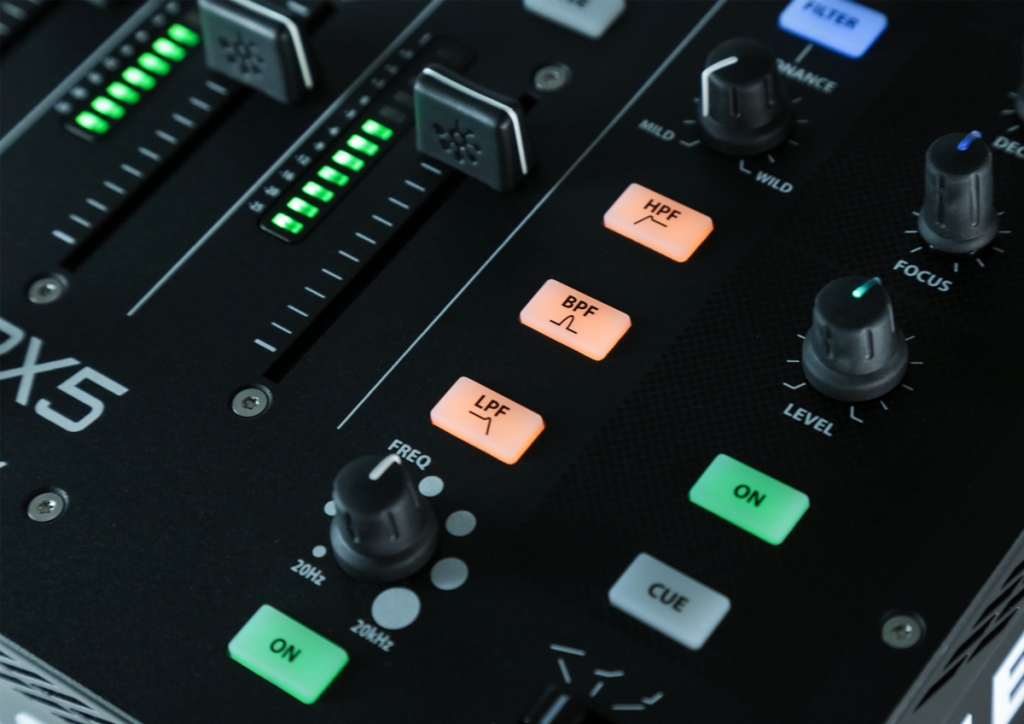

• Legendary analog Xone VCF filter with HPF, BPF, LPF parameters and resonance control

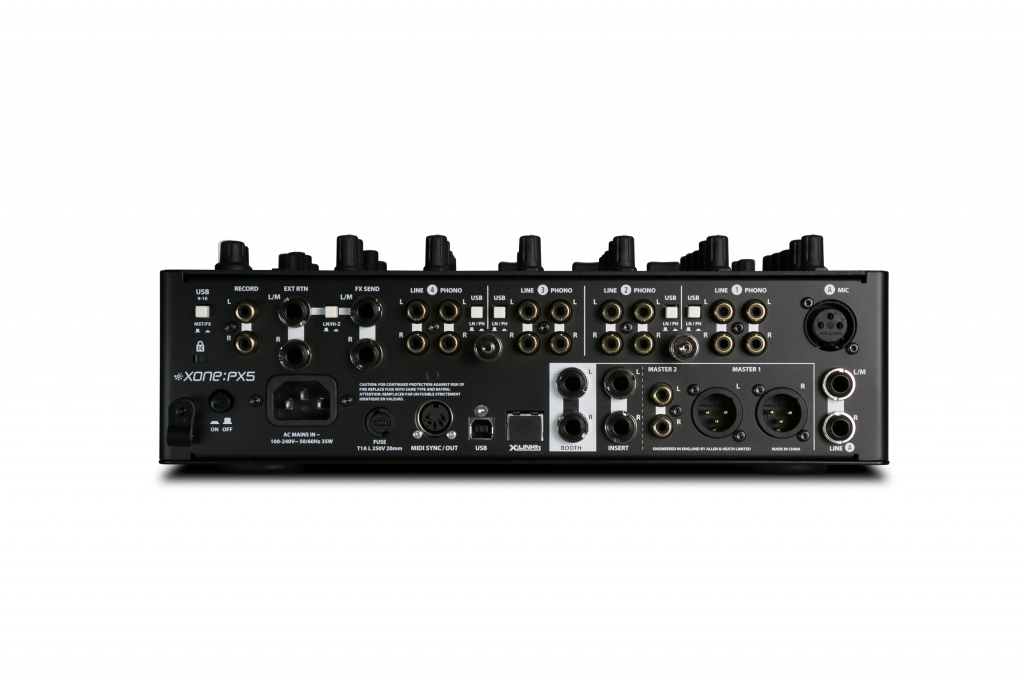

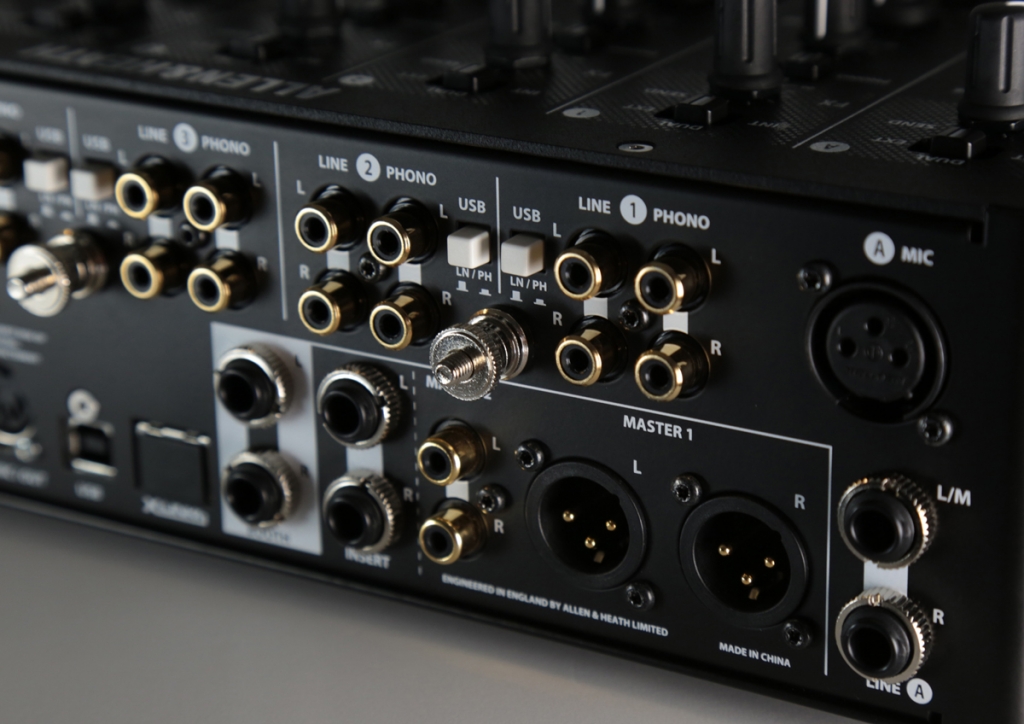

• Four input channels with 3 different signal sources: Phono/Line/USB
• Send/Return and Master Insert modes for external effects units (Line or Hi-Z)
• Microphone/Aux/USB return channel with input level indication
• 20-channel 24-bit 96kHz USB2 audio interface
• 3-band EQ with kill switches
• Xone:Sync MIDI clock engine
• 12-segment signal monitoring display
• 22dB headroom

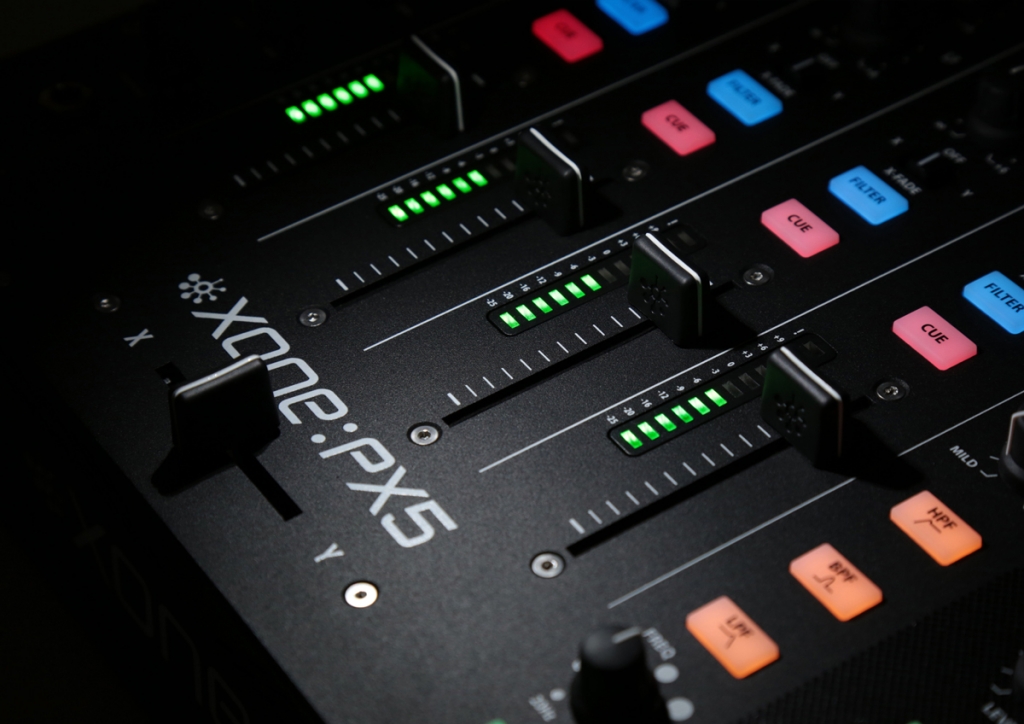

• 60mm VCA faders
• Balanced main output with XLR connectors
• Independent monitor path with 1/4” jacks
• Record out (USB and unbalanced RCA connectors)
• Crossfader curve switching (three positions)
• Vertical fader curve switching (three positions)
• Two ground terminals for turntable connection
• 3.5mm and 1/4” headphone outputs with Split Cue function
• X:LINK connector for connecting K Series controllers
• Innofader compatibility (Innofader Pro 2)
• Width: 320mm
• Depth: 375.6mm
• Height: 110mm
• Weight: 5.2kg
