Allen & Heath XONE:43

• 4+1 channel analog DJ mixer
• 4x phono/line inputs
• VCF Filter system – voltage-controlled low, high, and band-pass filter with frequency and resonance control
• Three-band EQ
• External effects loop system (Send/Return) with dry/wet control on each channel
• Microphone input with balanced XLR connector and two-band EQ
• Balanced XLR master output
• Independent booth output
• Record out
• 3.5mm and 1/4” headphone outputs
• Robust touring-grade construction
• Channels feature smooth VCA faders
• User-replaceable crossfader
• Compatible with Innofader
• Switchable crossfader curves
• +20 dB professional headroom
• 9-segment LED level meters
• Dimensions: 320 x 110 x 370 mm
• Weight: 5.1 kg

Allen & Heath - XONE:43 is a precision tool designed to meet the demanding needs of DJs and electronic music purists, delivering the highest level of analog signal processing quality to the market. It is defined by the legendary VCF filter with resonance control, 3-band EQ, a crossfader with three selectable curves (replaceable with optional Innofader), and an X:FX effects loop for seamless effects unit integration. The master output with balanced XLR connectors and independent monitoring and recording outputs allow for optimal use in clubs and advanced DJ setups.

4+1 Channels

Four inputs are complemented by one switchable microphone/line channel, making it easier for performers who do not use a microphone during their set. This allows for utilizing the free channel for working with full stereo signals.

Allen & Heath Craftsmanship

With years of experience in the XONE series, Allen & Heath ensures users exceptional craftsmanship and sound quality, guaranteeing them a truly unique device at their fingertips. The XONE:43 surpasses typical 4-channel mixers in quality.

4x Phono Inputs

While most 4-channel mixers in this price range offer only 2 phono inputs, the XONE:43 provides 4.

Xone Filter

The mixer features the world-renowned voltage-controlled XONE filter with high, low, and band-pass options. Ergonomically placed knobs for resonance and frequency parameters allow for tonal effects application, adding a unique touch to mixes. In addition to the comprehensive effects technology mentioned above, the XONE:43 offers the ability to link the X:FX loop directly to the filter. There is only one original, and the fact that no attempts to replicate the quality of the XONE filter have succeeded serves as the best evidence.

Effects Loop / X:FX

The simple integration of external effects through the Send and Return inputs, typically found only in higher-priced mixers, provides a clear way to work with any sound coloration. The X:FX loop also allows connection to the XONE filter for expanded effects layering options.

Innofader Compatibility

Users can easily replace their crossfader with the high-quality Innofader (sold separately), which is especially appreciated by turntablists.

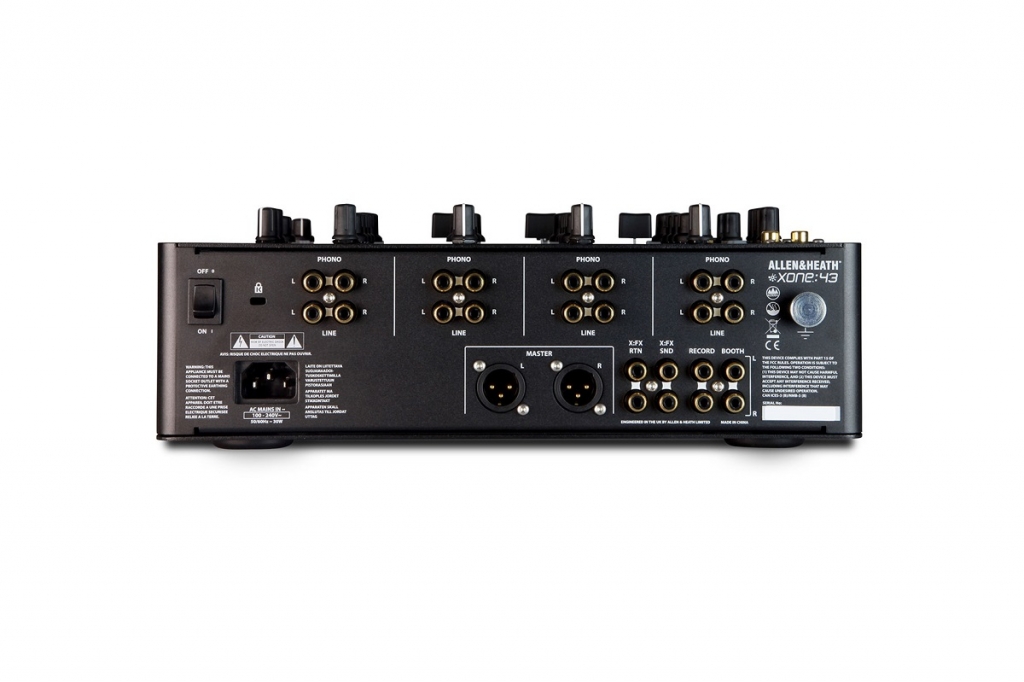

Outputs

The monitoring (booth) output and separate recording output capture your mix in exceptional quality, elevating the XONE:43 to the category of full-featured mixers in a compact format.
