Rane - Performer

The Rane Performer is a 4-channel motorized DJ controller known for its industrial-grade construction, continuing Rane's legacy of professional DJ technology manufacturing. Designed to cater to the creative demands of intense shows and concerts, the Performer features high-torque motorized platters, STEMS integration, MAG FOUR crossfader, and 4-channel "PRECISION FEEL" faders, making it an exceptional choice for professionals seeking high performance, durability, and reliability in their equipment.

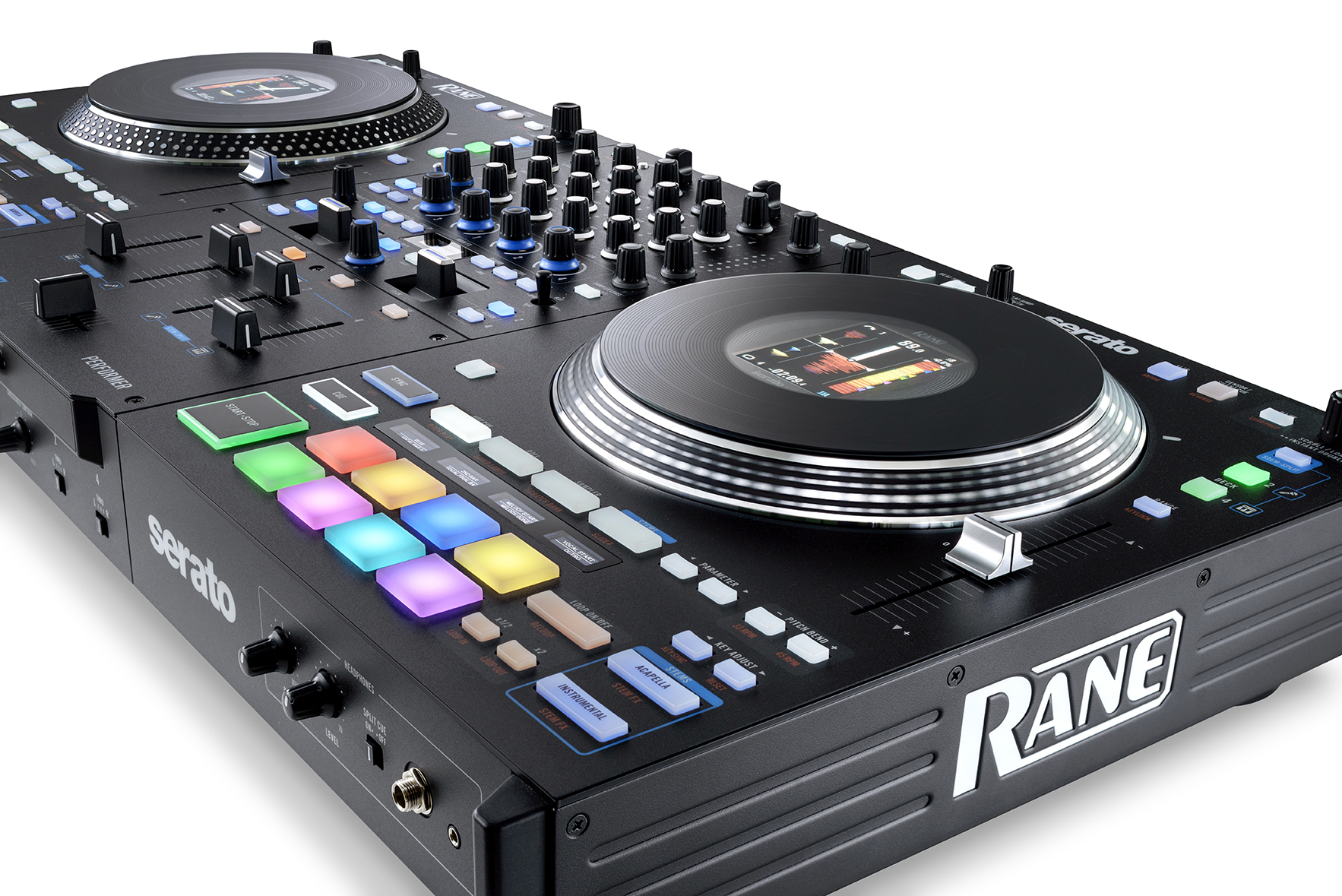

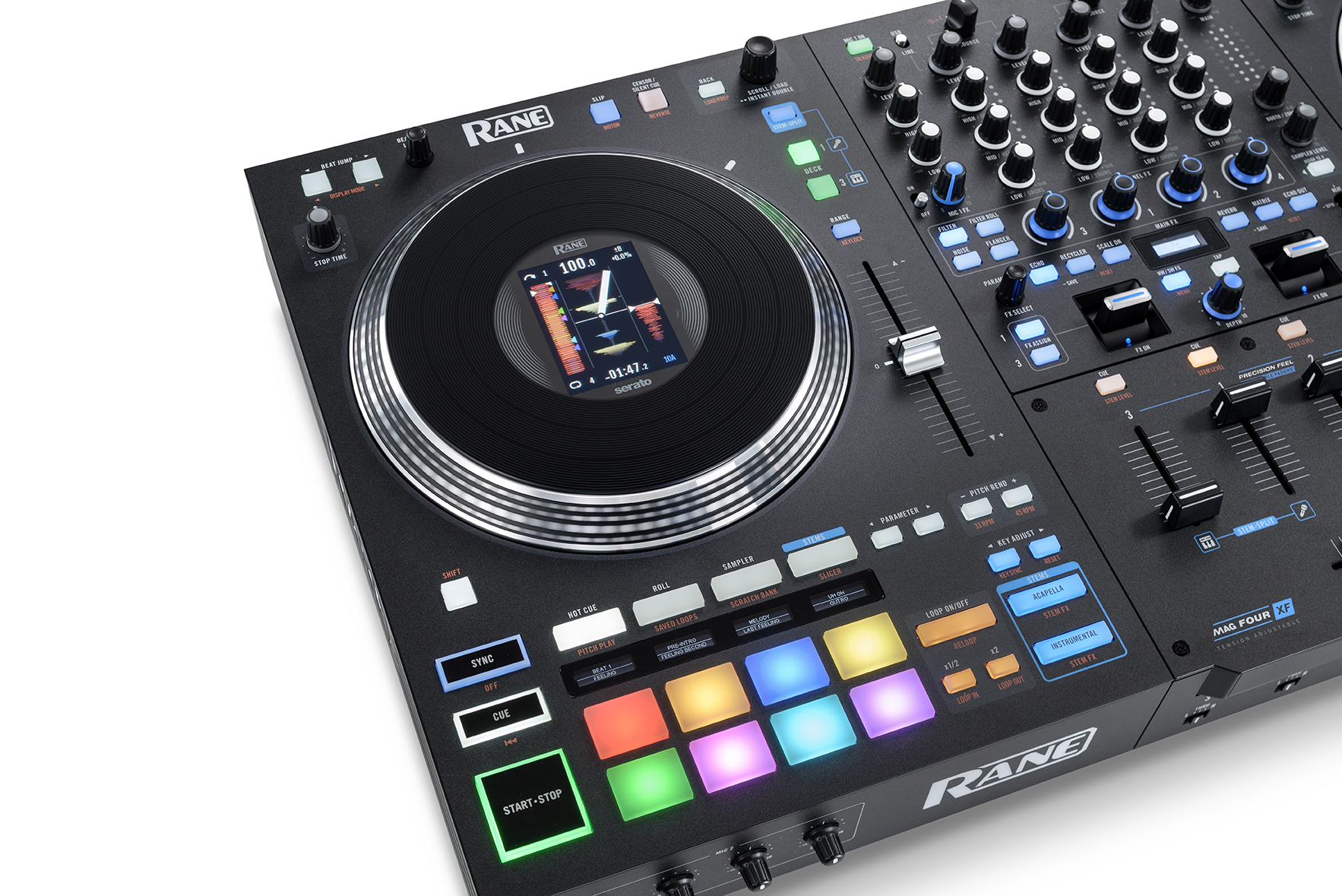

The PERFORMER boasts cast aluminum 7” platters with acrylic discs that respond like vinyl records.
The acrylic discs, magnetically attached to the aluminum platters, provide precise control and consistent feedback. Each platter features a 3.5” high-resolution LCD screen displaying track information, waveforms, album artwork, and library details. The Day Mode adjusts the display contrast, ensuring readability even in bright sunlight.

STEMS
With the Rane Performer, you can control STEMS in 4 unique ways, setting a standard for creative open-format DJing. The Performer features Rane's exclusive STEM SPLIT function, automatically dividing vocals and instrumental parts of a track into 2 mixing channels, allowing for real-time effects and adjustments to individual elements. STEM LEVEL transforms the 3-band EQ on each channel into three adjustable controls to modify, mute, or boost individual stems.
ENHANCED FX OPTIONS
The Rane Performer comes equipped with 29 fully customizable main effects, triggered by proven paddles and 4-channel effects with traditional rotary controls. This robust FX set includes classics like Reverb and Echo, along with newcomers like Scale Down, Recycler, and Riser. The controller incorporates the full effects suite from RANE SEVENTY A-TRAK SIGNATURE EDITION mixers, enabling the use of channel PRECISION FEEL faders as linear controls for roll, pitch, and ring modulation. Seamlessly switch between built-in hardware effects and Serato software effects, offering versatility for any playing style or genre.

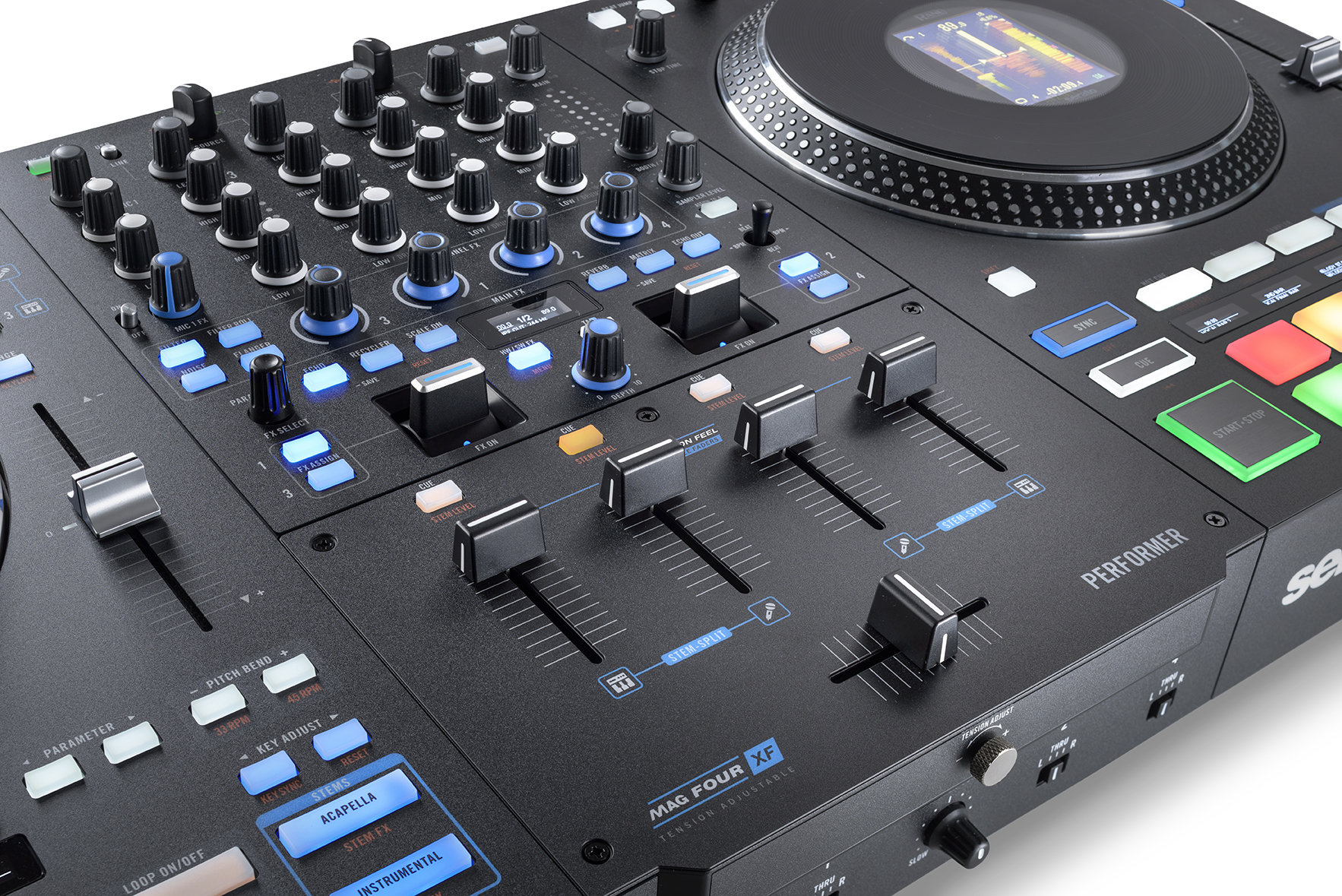

PRECISION FEEL FADERS
In addition to the adjustable MAG FOUR crossfader, the Performer's mixing section features 4 revised PRECISION FEEL FADERS. These faders with adjustable resistance utilize the same dual-rail mechanical system as MAG FOUR, but in a horizontally mounted vertical fader on the PCB. This delivers ultra-smooth, reliable, and consistent feedback during performance. The faders can be further customized in the integrated menu, allowing for inversion and cut-in curve adjustment from 0-100%.
TECHNICAL SPECIFICATIONS
• Converters: Cirrus Logic, 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, floating point, double precision
• Dynamic Range (A-weighted, unity gain):
o ADC: 113 dB
o DAC: 113 dB
o CD input to analog output: 110 dB
o CD input to USB output: 113 dB
o USB input to analog output: 113 dB

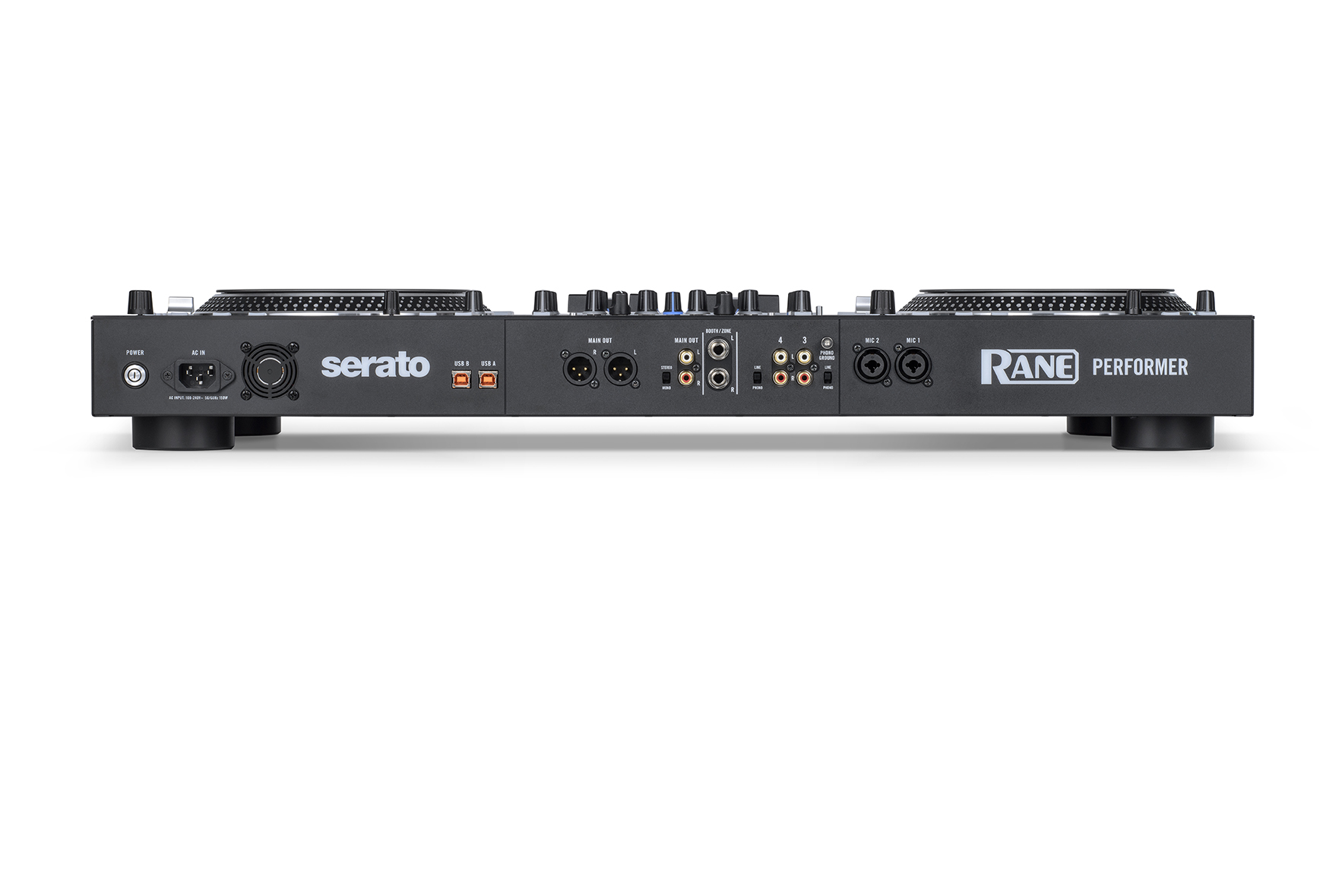

• 2x XLR outputs (main)
• 2x 1/4” outputs (booth)
• 1x RCA stereo output (main)
• 2x XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
• 2x RCA stereo inputs (Deck 3-4)
• 1x 1/4” (6.35 mm) TRS output (headphones)
• 1x 1/8” (3.5 mm) TRS output (headphones)
• 2x USB Type-B ports
• 1x IEC power cable input
• Main outputs (XLR):
o Trim gain: Off to 0 dB
o Maximum output: 8 Vrms
o THD+N (20 kHz BW @ 1 kHz): 0.004%
o Frequency response: Flat - 20-20kHz

• Main outputs (RCA stereo pair):
o Maximum output: 4 Vrms
o THD+N (20 kHz BW @ 1 kHz): 0.004%
o Frequency response: Flat - 20-20kHz

• Booth outputs (1/4”):
o Trim gain: Off to 0 dB
o Maximum output: 8 Vrms
o THD+N (20 kHz BW @ 1 kHz): 0.004%
o Frequency response: Flat - 20-20kHz

• Headphone outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS):
o Maximum output: 4 Vrms voltage (no load)
o Output power: 50 mW (50 ohms)
o Dynamic range (A-weighted): 108 dB

• Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS):
o Analog gain: 25 dB
o Maximum input: 110 mV
o Trim gain: Off to +26 dB (unity at center)
o Tone control: 2-band

• Line/Phono inputs 3/4 (RCA stereo pairs, switchable):
o Line:
? Maximum input: 4 Vrms
? Trim gain: Off to +12 dB
? Tone control: 3-band, full-cut to +10 dB
? THD+N (20 kHz BW @ 1 kHz: 0.004%
o Phono (RIAA):
? RIAA curve: +/-0.25 dB
? Gain (@ 1 kHz): 31.5 dB
? Maximum input (@ 1 kHz): 106 mV
? Dynamic range (A-weighted): 102 dB

• 16x on/off multicolor backlit pads (8 per deck, 9 modes each)
• 2x 3.5” color LCD displays
• 9x 128 x 32 monochromatic OLEDs
• 1x MAG FOUR voltage-adjustable crossfader with contour
• 4x PRECISION FEEL FADERS (channel faders)
• Connection: IEC
• Voltage: 100–240 V, 50/60 Hz
• Power consumption: 150W
• Dimensions: width: 783.3 mm, depth: 393.2 mm, height: 109.7 mm
• Weight: 12 kg
