Rane - Zonetech

The Rane Zonetech distribution processor is equipped with 6 inputs and 6 outputs for distributing audio signals, along with a user-friendly interface. The device operates on Rane Halogen Lite software and does not require any additional lengthy programming.

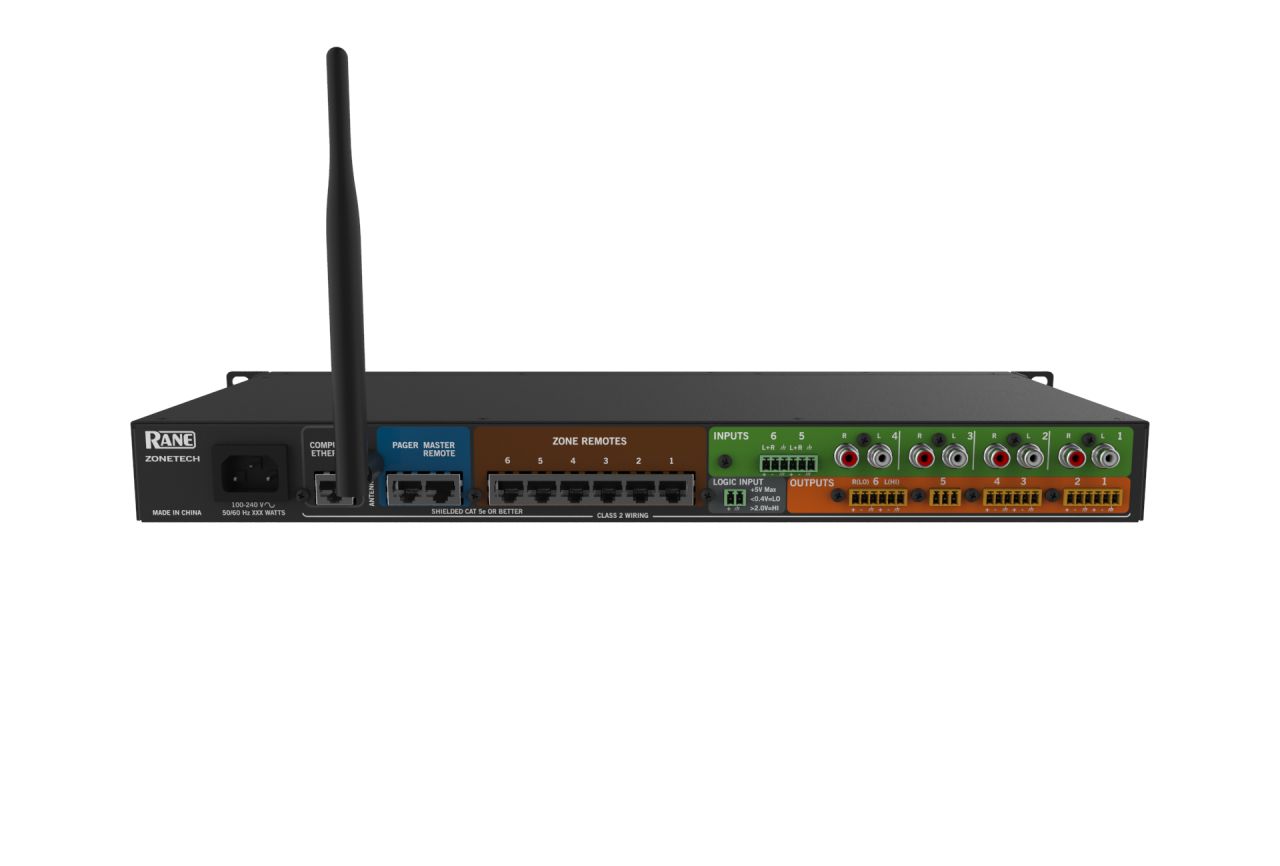

Zonetech also features a wireless Bluetooth® AD2P 4.0 interface for streaming from any smartphone or tablet. On the rear panel, you will find a "Mute All" contact closure for integration with security systems. All outputs (zones) have balanced outputs, and the sixth zone can be switched between Stereo and Crossover modes (easily selectable from the front panel).
The volume of each zone and its signal source can be easily controlled using the elegant wall controller DRZH. The master interface is the Rane DR6 with its 7'' color display.
The Ethernet port on the rear of the Zonetech distribution processor allows for remote management via Wi-Fi in any web browser.

Features:
• Installation distribution zone processor
• Halogen software for configuration management
• Accessibility through a web server

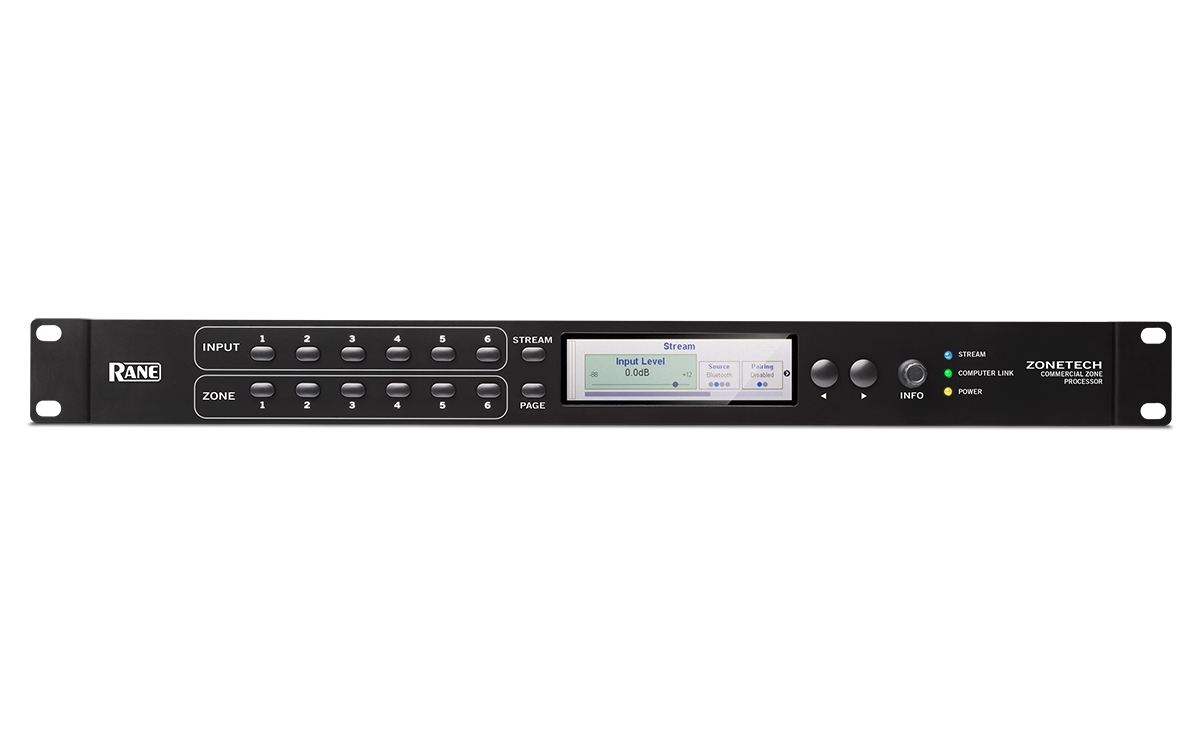

• Color LCD display and rotary encoder for menu navigation
• Network management
• Stream media: Bluetooth®, AirPlay®, UPnP, and DLNA®
• 4x RCA in
• 2x balanced MIC in (euroblock)
• 6x balanced outputs (euroblock)
• Stereo/mono outputs with low pass and high-pass filters
• Master remote port for connecting the Rane DR6 touch display
• Pager port connects additional RAD devices with analog and logic inputs
• "Mute All" port
