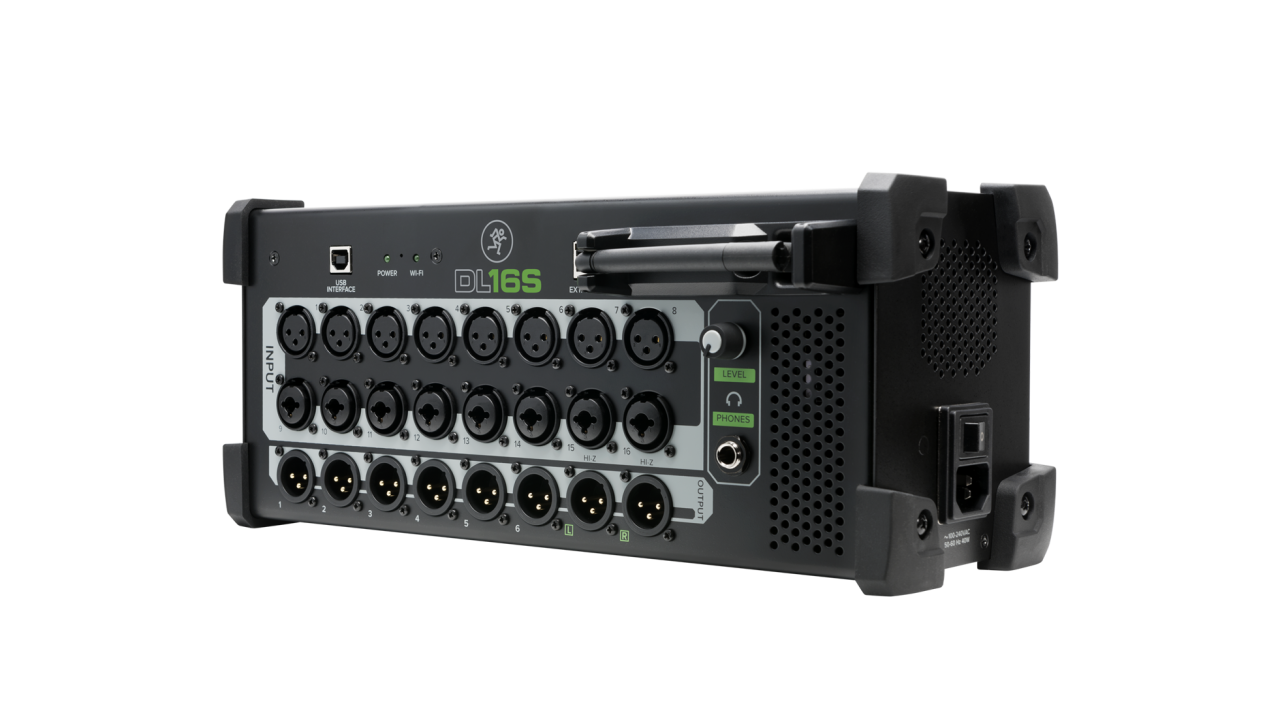

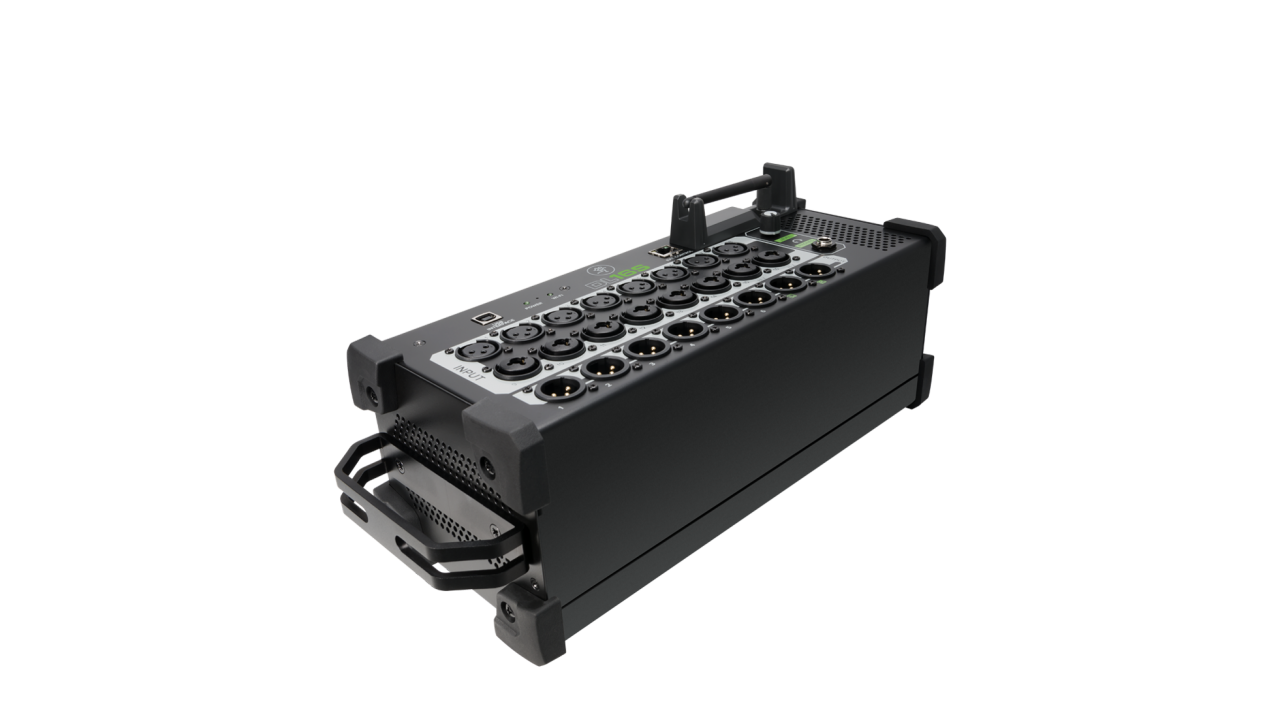

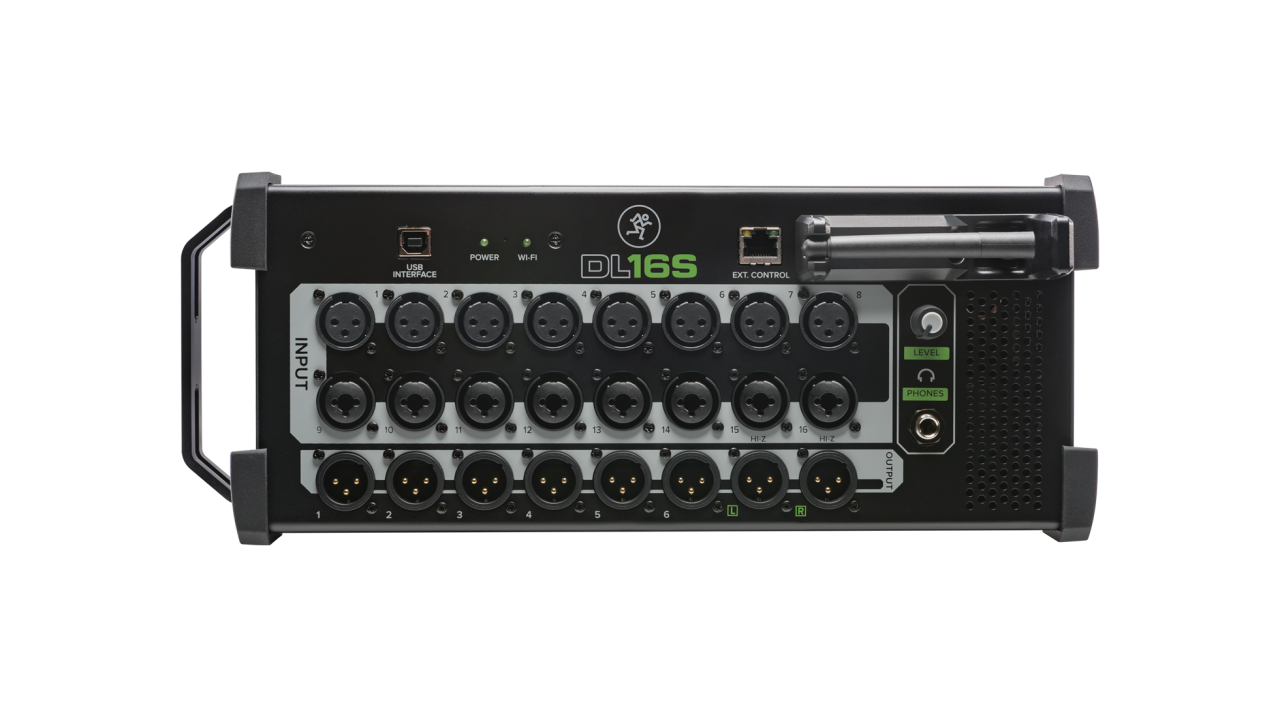

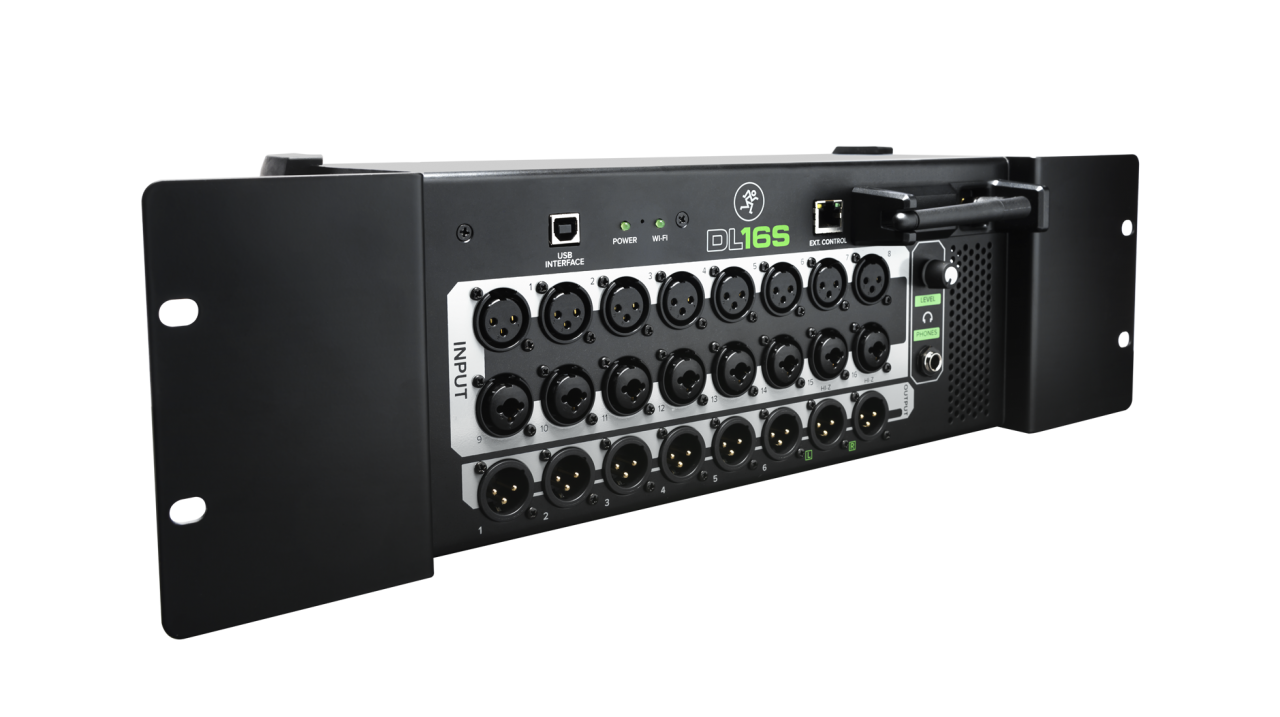

Mackie DL16S

The compact digital mixing console Mackie DL16S features 16 input channels in a robust metal stagebox, carrying on Mackie's legacy with its Built-Like-A-Tank label.
This is a complete solution for your work, as the DL16S comes with an integrated Wi-Fi router, and the new version of the Master Fader software is compatible with most popular operating systems and mobile devices.
Digital signal processing (DSP) is present on all 16 physical inputs (Onyx+ preamps), 13 buses, and 4 effect processors.
An essential feature is the multi-channel audio interface (16x16) that allows you to easily capture individual instruments in a multitrack recording and enables virtual soundcheck.

Features:
• 16 Onyx+ preamps
• 8 XLR outs + headphone output
• Master Fader app for control and remote management
• 16x16 USB interface
• Wireless control and management
• Support for iOS, Android, Mac, or PC
• Freedom of movement away from the FoH
• Operation with up to 20 different mobile devices simultaneously
• Multiple engineers can work on the same mixing console simultaneously

PROCESSING AND ROUTING
• 16 input channels with 4-band parametric EQ with HPF, gate, compressor, and RTA/spectrograph
• 16 input channels (optional stereo pairing)
• 13 output buses with 4-band parametric EQ + HPF/LPF, 31-band graphic EQ, compressor/limiter, delay, RTA/spectrograph
• 6x aux send
• 6x subgroups
• Main L/R buses
• 6x VCA and 6x mute groups
• 4x stereo FX processor, built-in effects: reverb, delay, chorus, and flanger – with corresponding sends and returns
• Complete routing of inputs and outputs
• Oscillator for generating pink/white noise and sine waves
• 2 EQ modes (Modern, Vintage)

MULTI-TRACK RECORDING & PLAYBACK
• Integrated USB 2.0 audio interface, 16x16
• 16x16 USB 2.0 audio interface for Mac or PC
• Virtual soundcheck
• Multitrack recording
• Ideal solution for home studios

MASTER FADER APP
• Intuitive and user-friendly interface
• Clear layout
• Quick setup with factory and user-defined presets
• Easy access to processing of individual inputs, routing, and a wide range of high-quality effect algorithms
• User interface customization and access restrictions
• Preset, scene, and system backup exports via Dropbox, and more
• Offline Operation mode
• Regular software updates

DL series mixing consoles are compatible with iOS 10 and higher, Android OS 6 and higher, macOS 10.2 and higher, or Windows 10 and higher
