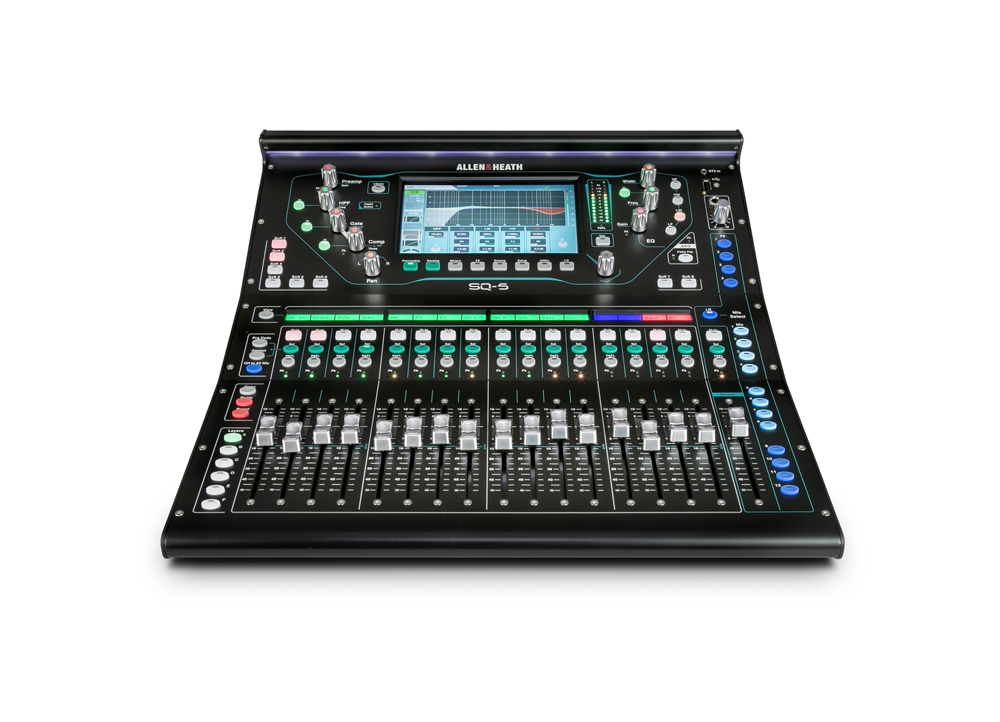

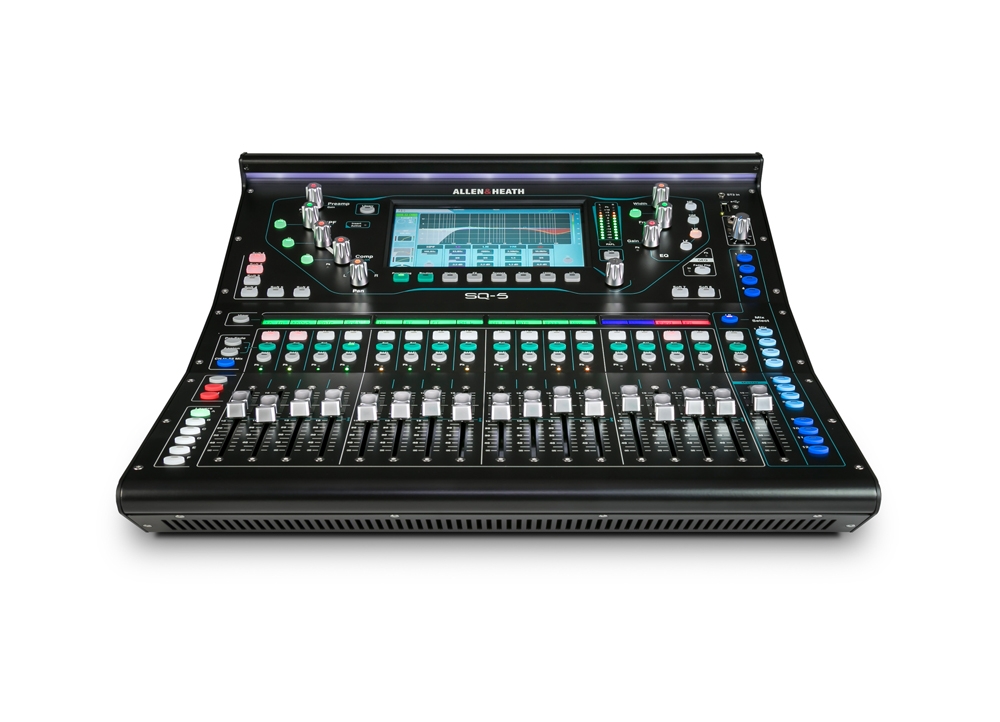

Allen&Heath SQ5

The Allen&Heath SQ-5 is built on a powerful XCVI FPGA core with a sampling frequency of 96 kHz, delivering unparalleled sound quality, high resolution, and extremely low latency (<0.7ms) in this class of digital mixing consoles.
The SQ-5 features 16 microphone preamps and 8 stereo effect units with access to the popular RackExtra FX effects library via the corresponding returns. It also includes 12 buses (group or aux), which are excellent tools for configuring in-ear monitoring, with the powerful Automatic Microphone Mixing (AMM) reliably managing environments with a higher number of microphones.
The SQ is the perfect solution for AV, rentals, installations, and live bands.

Features:
• 96 kHz FPGA processing
• 48 input channels
• DEEP Processing

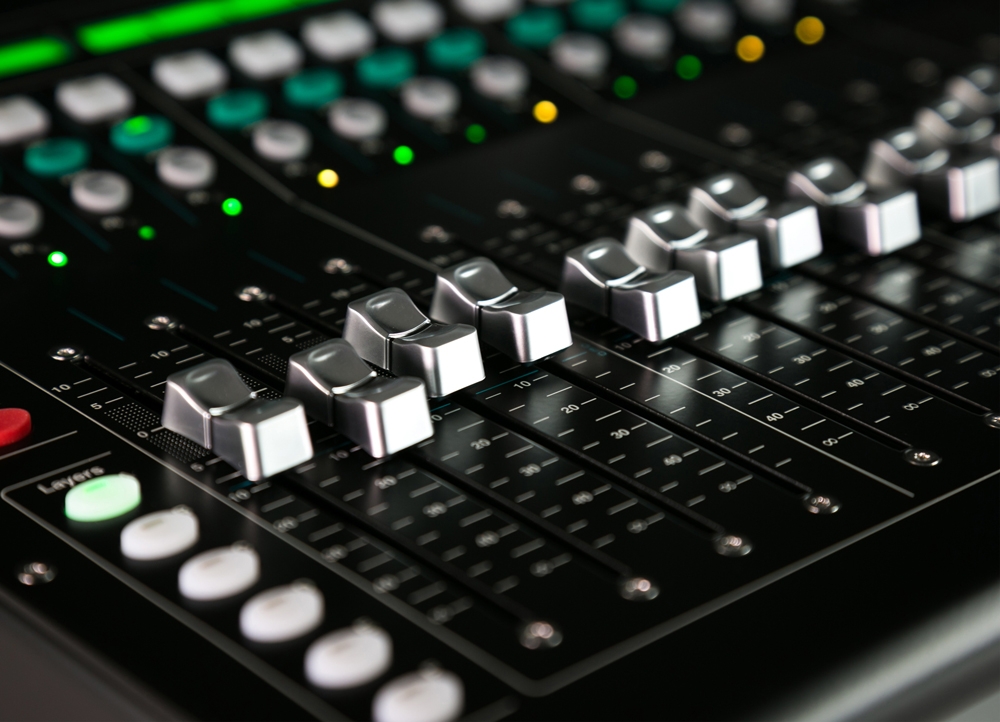

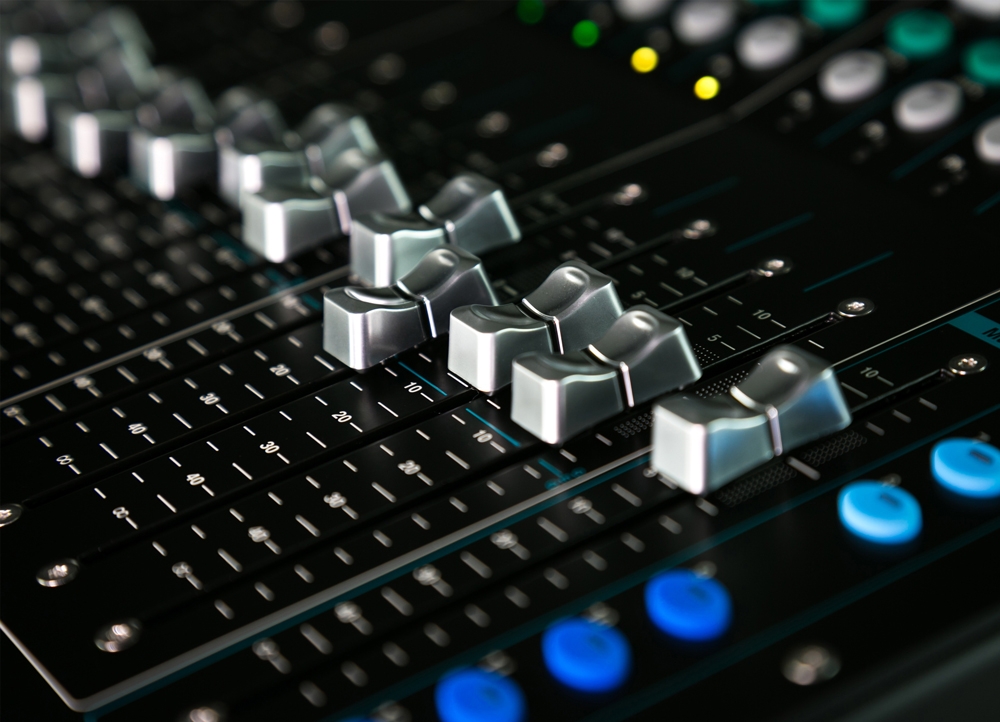

• 17 faders, 6 Layers
• 12 buses + LR Master
• 3x Stereo Matrix

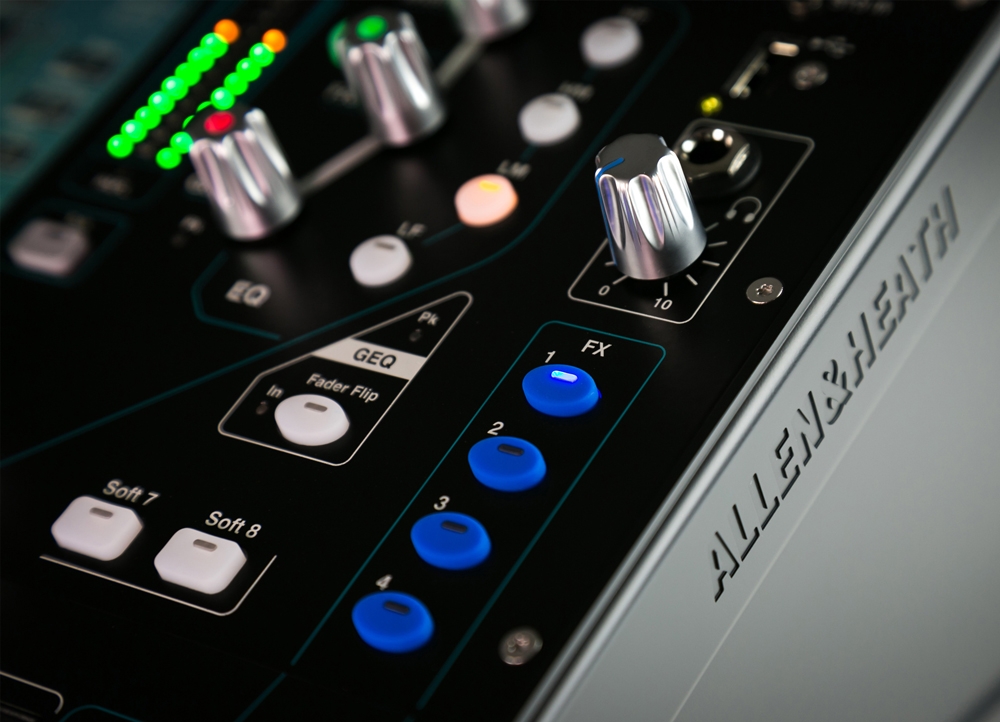

• 8 stereo effect units + returns
• 7” capacitive touchscreen
• SLink port for audio transfer/expansion
• 64 input/output channels for network transfer
• 32x32 USB interface
• Direct recording to SQ Drive on USB: 16-track multitrack at 96 kHz, 32-track multitrack at 48 kHz
• AES output
• Chromatic signal meters on each channel strip
• Integrated LED illumination
• Ergonomically designed controls

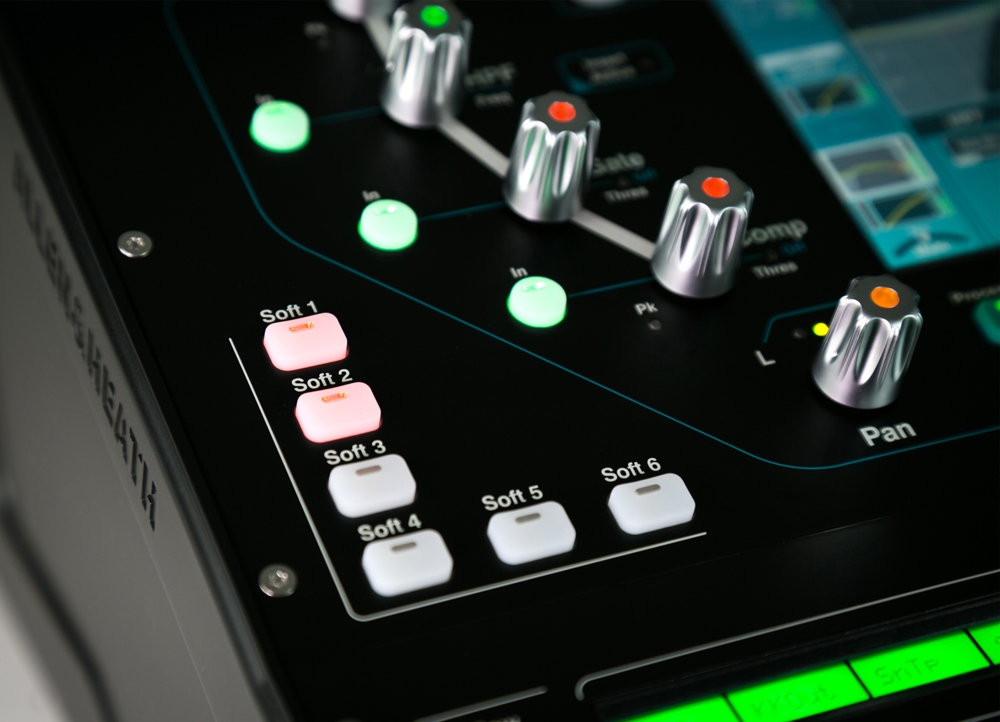

• 8 assignable soft keys

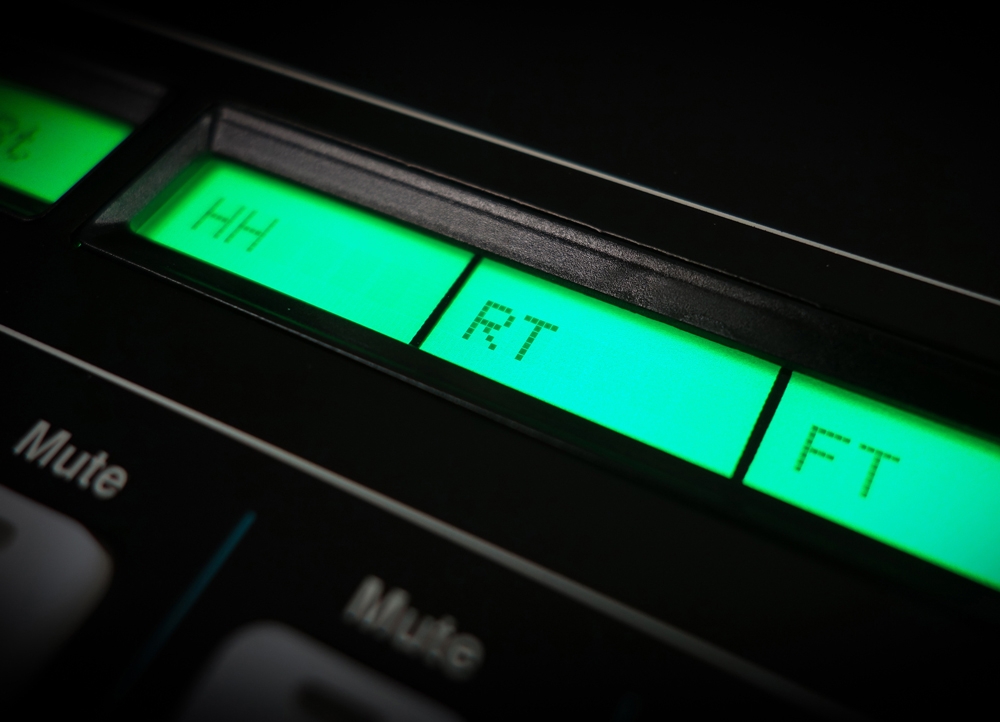

• LCD displays for color differentiation and channel naming on each channel strip

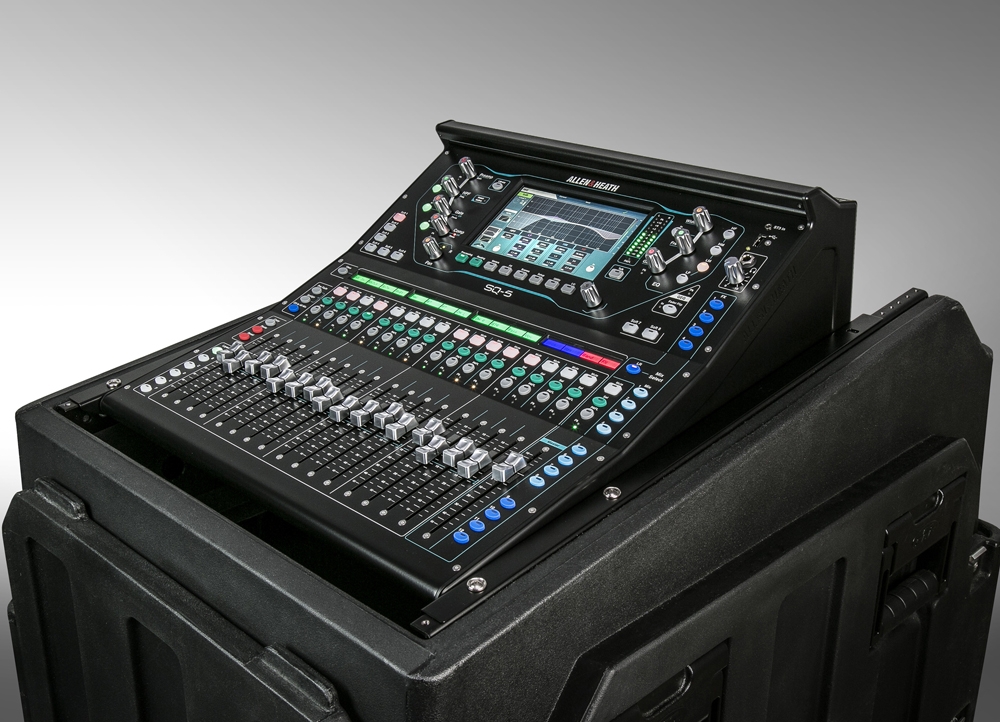

• Rack-mountable (19”) 96kHz XCVI Core
The new SQ5, SQ6, and SQ7 mixing consoles are future-ready thanks to the revolutionary XCVI 96kHz FPGA technology, known from the highly successful and acclaimed dLive series. It brings coherent mixing, ample processing power for all inputs and outputs, top-notch sound resolution, and system latency under 0.7 ms. DEEP processing ready
The SQ consoles feature a basic set of DEEP processing algorithms known from the dLive series, including acclaimed compressors and tube preamps that can be used directly within the input channels. Top-notch IEM system

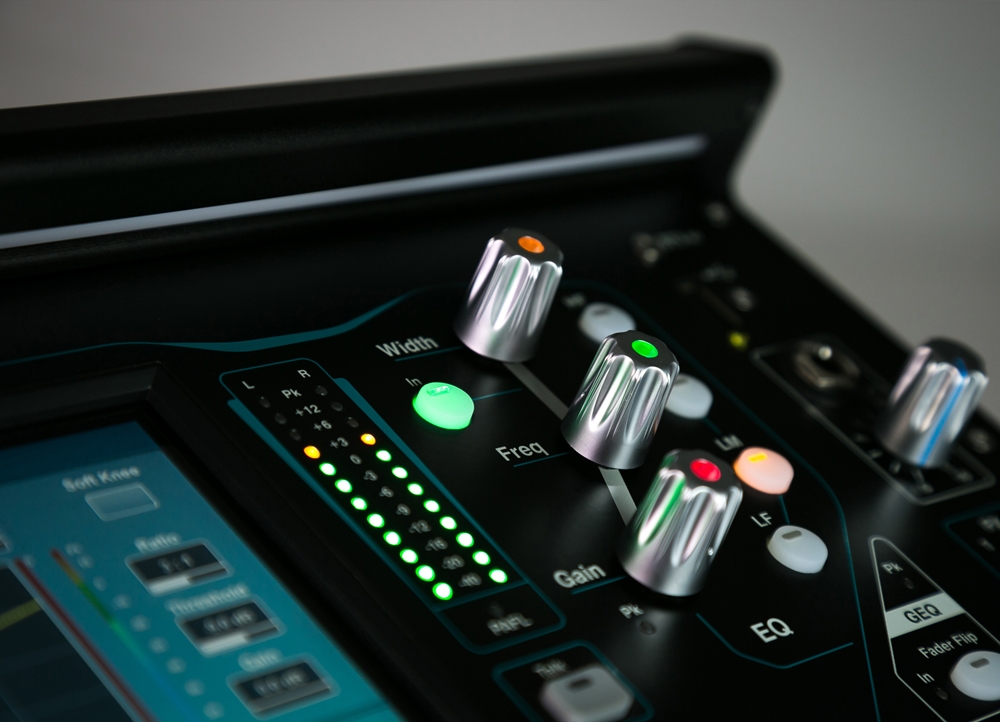

Excellent ergonomics, compact 12 buses format, incredibly low latency, parametric and graphic equalizer on each bus optimize work with monitor mixes and in-ear systems. Up to 48 microphones

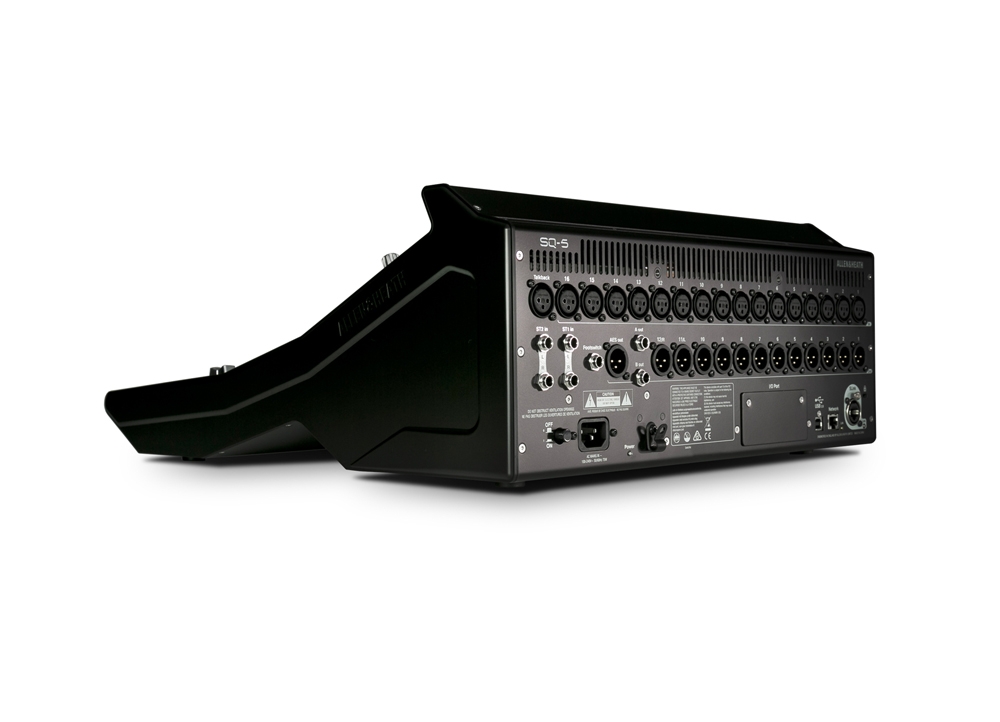

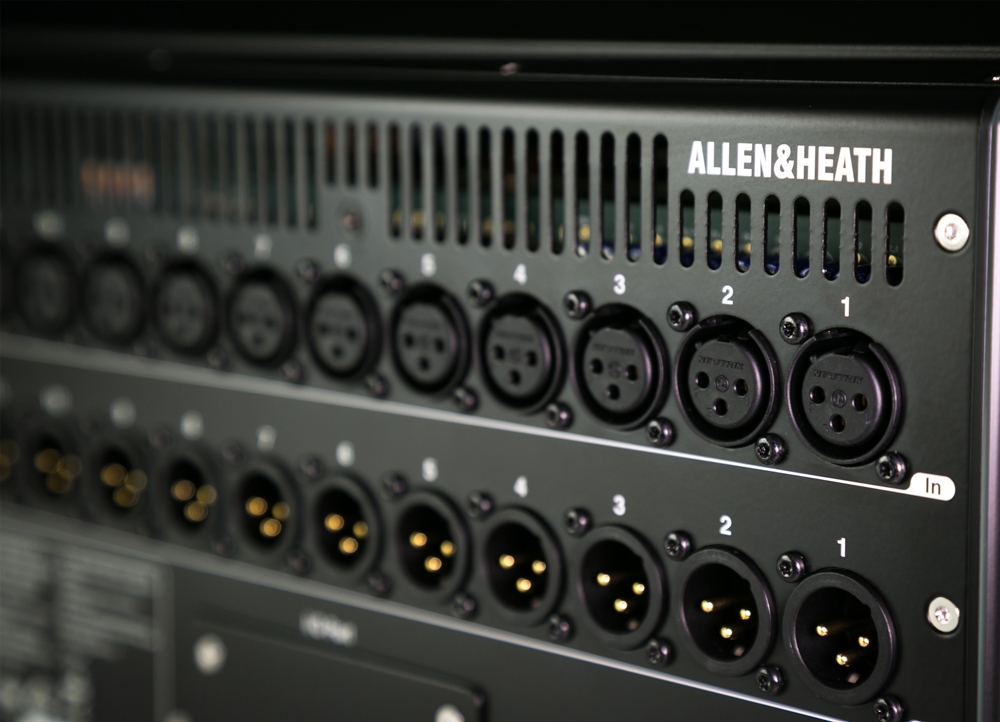

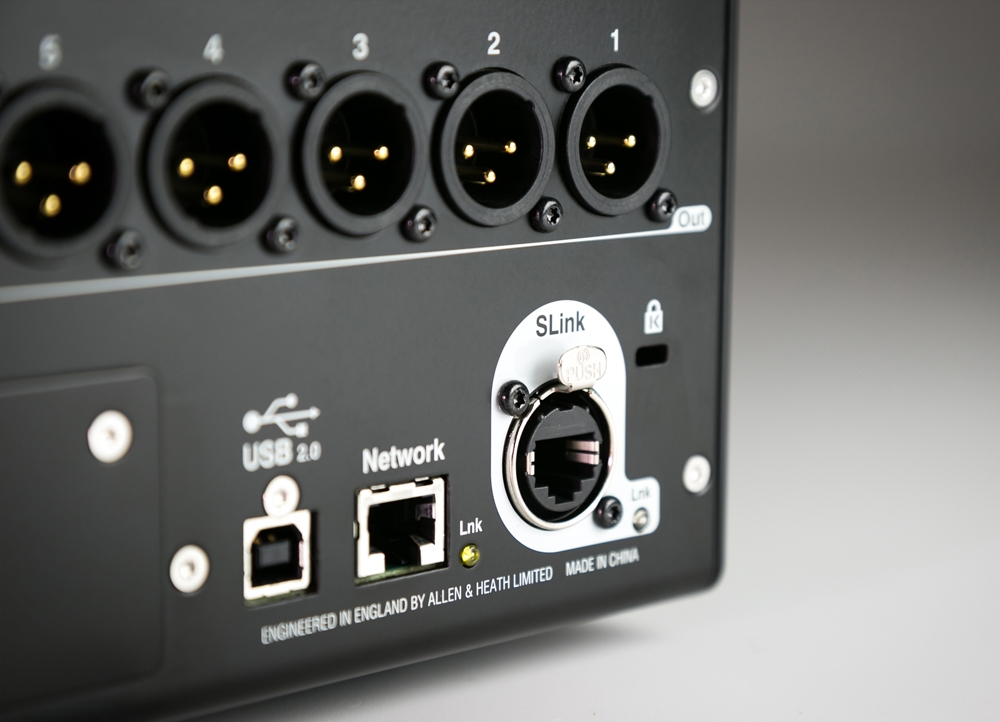

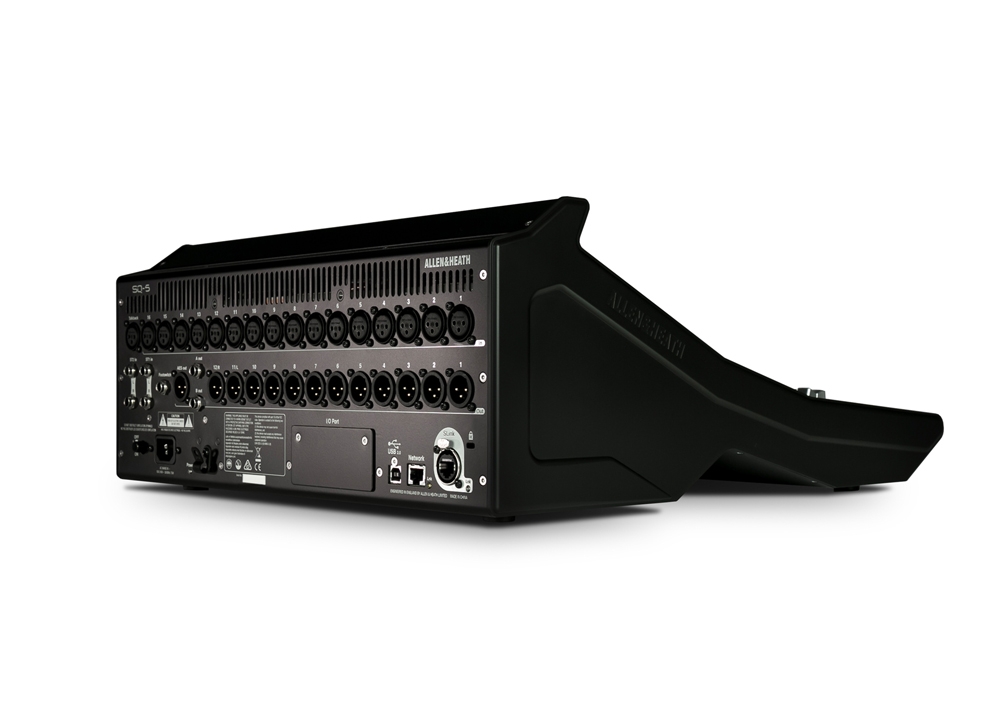

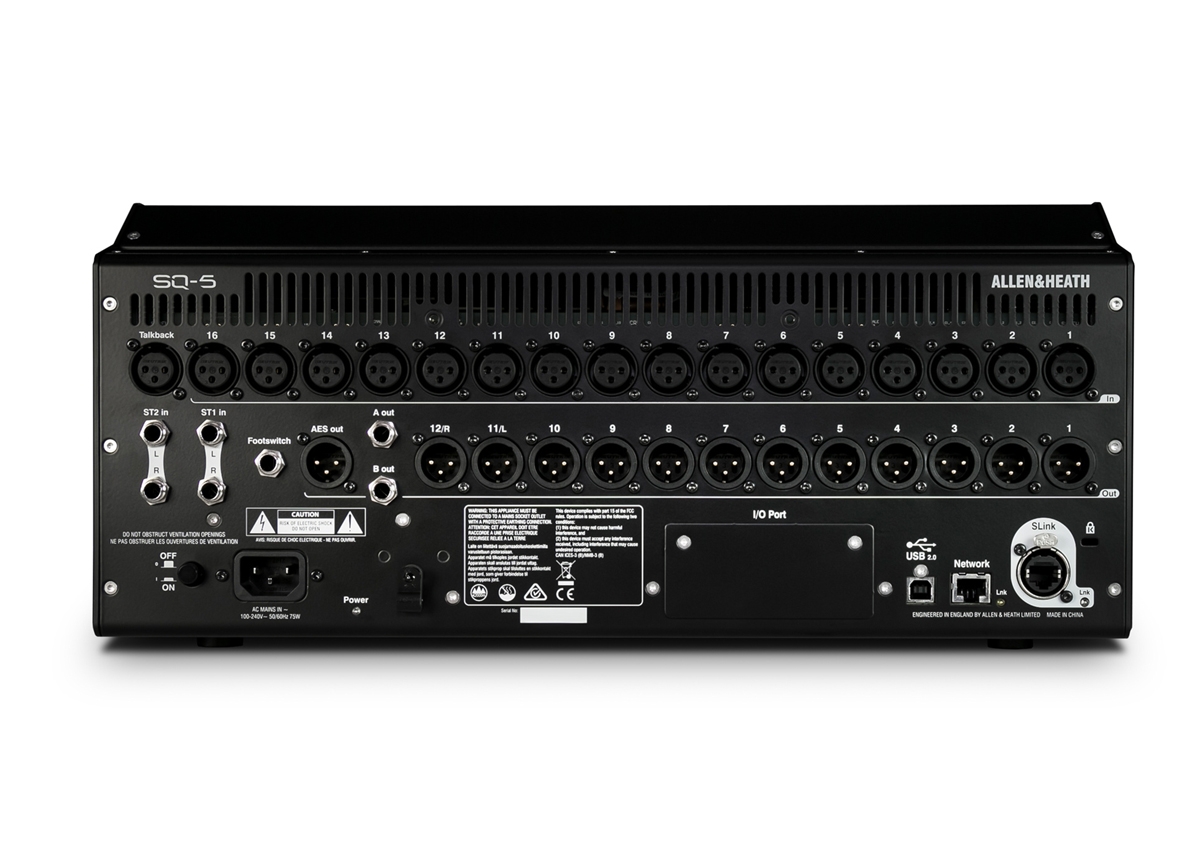

The SQ-5 mixing console comes fully equipped with all inputs and outputs for immediate use. Thanks to the "smart" SLink port, existing racks, expanders, and stage boxes are supported (AB168, AR2412, AR84 - only 48kHz, or DX168 for full utilization of 96kHz technology), making physical input and output expansion very easy. The SQ can even be connected to another SQ or a dLive system. Dante, Waves, and more
The SQ serves as the central element of a growing set of various applications, network card expanders, personal mixing consoles, and other devices that allow interconnection, adaptation, and expansion of the system's "heart." It is compatible with Dante and Waves network cards, enabling comprehensive connections for fixed installations or digital splitting of FOH and Monitor consoles. Multitrack
The full integration of the SQ-Drive protocol brings a long-awaited tool for easy recording of multitrack recordings at a 96 kHz sampling frequency directly to a USB key or HDD. No software configuration or complex driver installations are required to achieve the best results. SQ-Drive also serves as a clear way to playback your customers' brought sound files. Additionally, there is a built-in 32x32 USB audio interface with a maximum sampling frequency for multitrack recording directly to a computer. It is fully compatible with Core Audio and ASIO and provides complete MIDI and DAW control capabilities. Advanced AMM

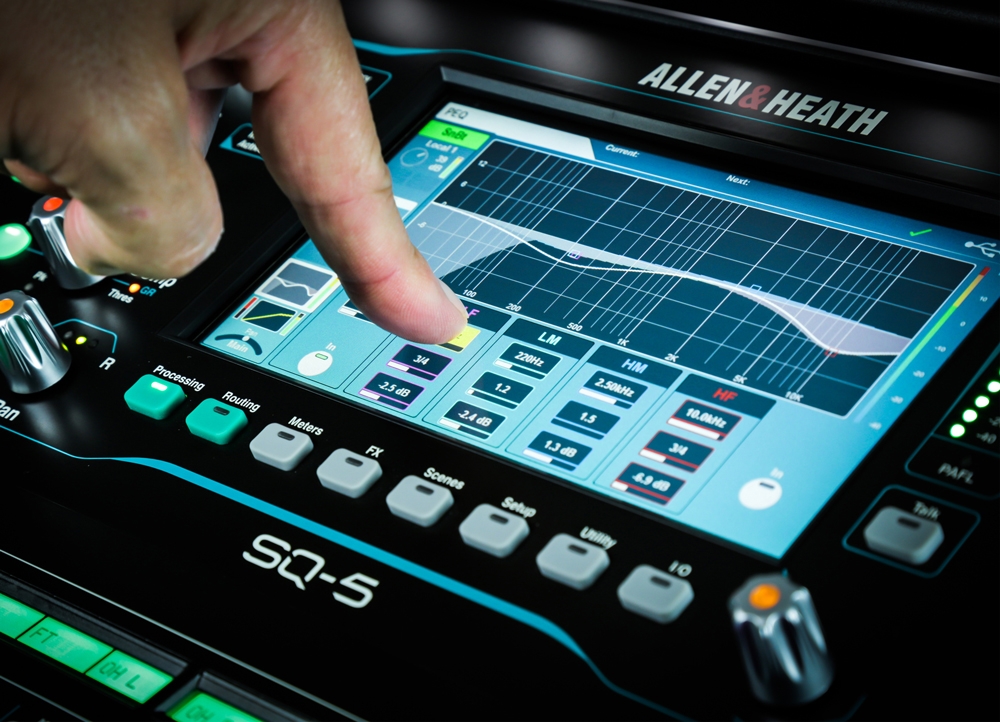

The new advanced AMM can handle up to 64 microphones, which can be divided into 4 independent AMM setups, for example, for simultaneous operation of multiple conference rooms or panel discussions. Furthermore, there is a choice between two AMM topologies: gain sharing and NOM (Number of Open Microphones). Designed for Professionals Fully aware that the working environment of sound engineers and professionals is not a walk in the park, the SQ's construction is prepared for the unexpected. Its metal construction, durable finish, and reinforced aluminum illumination strip withstand the most demanding conditions. Workflow The Allen&Heath development team is getting closer to the ultimate mixing system with each product. The SQ's user interface is centered around a 7” high-resolution capacitive touchscreen, creating an intuitive and clear environment with visual feedback alongside the controls. Inputs and buses can be easily placed on any channel strip using drag-and-drop, and the LCD displays above the faders can be instantly renamed and color-coded, creating a fully personalized workspace for your workflow. Each channel features a patented chromatic output level meter. RackExtra FX Throughout years of effects emulation development, Allen & Heath has gained a respected position in the market. The SQ mixing console features 8 effect units containing RackExtra effect algorithm libraries, including emulations of legendary effects such as classic reverb, gated reverb, delay, various modulations, and more. All effects have their own returns, saving valuable input channels. Personal Mixing System ME The SQ is fully compatible with the ME personal mixing system, allowing performers to customize their monitor mix. The ME-1 and ME-500 personal mixing consoles can be connected via the SLink port or the corresponding expander. * Introduction of AMM update Q1 2018
