Allen & Heath Qu-6D

The Qu-6D model builds upon the proven format of the Qu-24, offering significantly higher processing power thanks to the advanced XCVI core, ensuring exceptionally low system latency in this class. It features new effects units and the Everything I/O interface for flexible connectivity with other devices. Control is made easier with a capacitive touchscreen display with a larger diagonal, clear displays on channel strips, and fully customizable layers. The Qu-6D version also includes integrated Dante interface (16×16, 48/96 kHz), allowing direct connection to Dante-compatible networked audio systems. The Qu-6D model is a 32-channel digital mixing console with a 96 kHz sampling rate, designed for demanding applications in studios, concerts, touring productions, fixed AV installations, podcast studios, and radio broadcasting. Both Qu-6 and Qu-6D are fully rack-mountable and offer detailed sound, high performance, and intuitive control.

________________________________________
Features:
• 96kHz FPGA processing (XCVI core)
36 inputs to mix:
• 32× mono (linkable as stereo)
• 2× stereo link inputs (2× TRS each)
12 buses (auxes/groups):
• 6× mono / stereo linkable auxes
• 6× stereo aux/groups
• 4× matrices (mono/stereo)
• Main stereo output (LR)
________________________________________

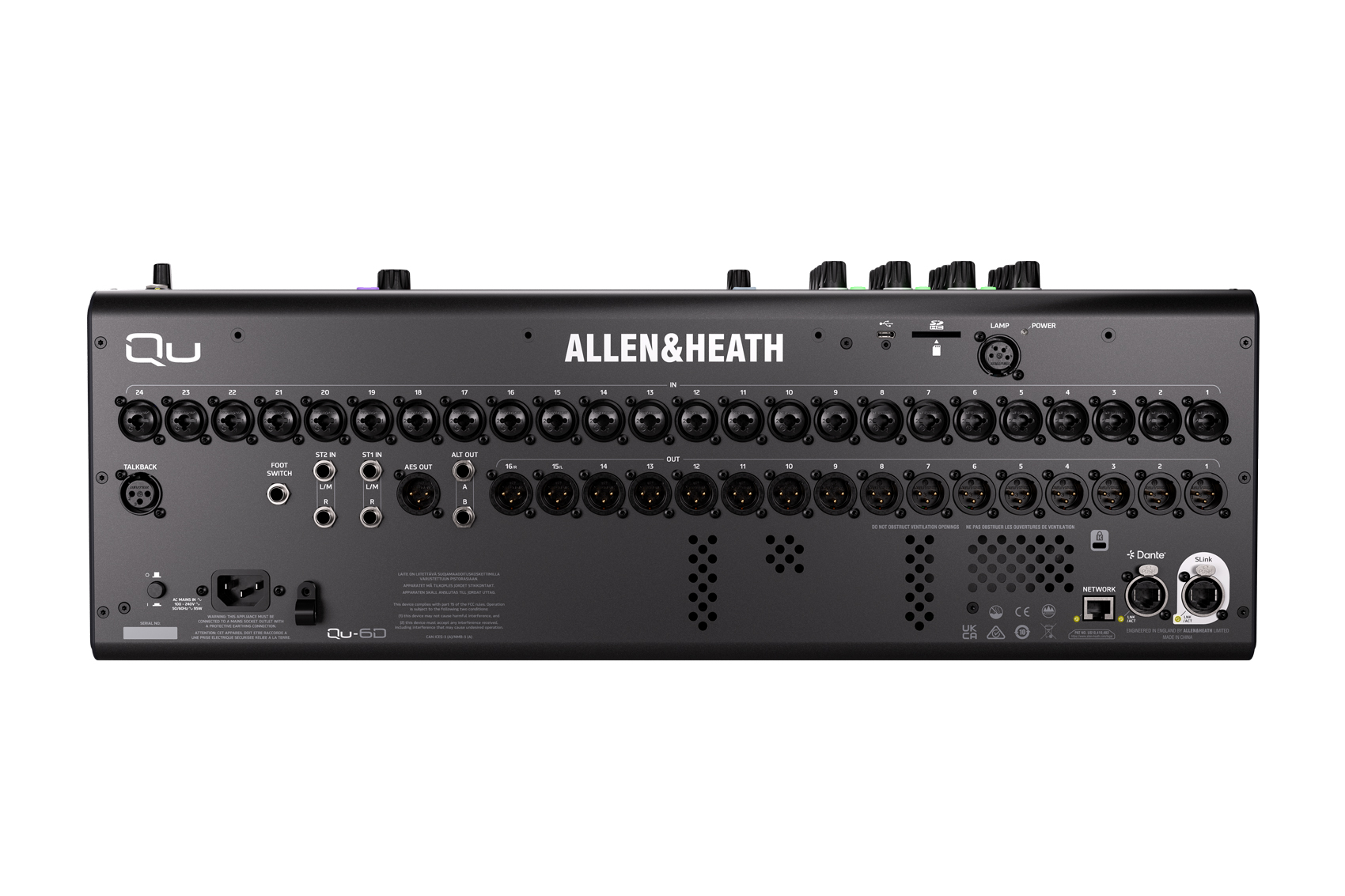

Analog and digital I/O:
• 24× XLR/TRS combined mic/line inputs
• 2× stereo line inputs (TRS)
• 1× talkback input
• 16× balanced XLR outputs
• 2× TRS jack outputs
• 1× AES3 digital stereo output
• Headphone output
• Dante interface 16×16 @ 48/96kHz (Qu-6D only)
________________________________________
Connectivity and Expansion:
• SLink port (128×128) for Everything I/O expansion and other Allen & Heath devices
• USB-A for stereo recording/playback and data transfer
• USB-C audio interface (32×32)
• SD slot for multitrack recording/playback:
• 16×16 @ 96kHz
• 32×32 @ 48kHz
• RJ45 network port
• IEC power connector (global PSU)
• Lamp connection (12 V) and configurable footswitch input
________________________________________ Control:
• 7" capacitive touchscreen display
• 25 motorized 100mm faders
• 4 layers of channel strips
• 8 programmable SoftKeys
• 6 effects processors with dedicated return channels
• Color-adjustable LED channel meters
• Support for applications on Windows, macOS, iOS, and Android
________________________________________
Dimensions:
• depth: 476 mm
• width: 609 mm
• height: 213.1 mm
• weight: 13.5kg
