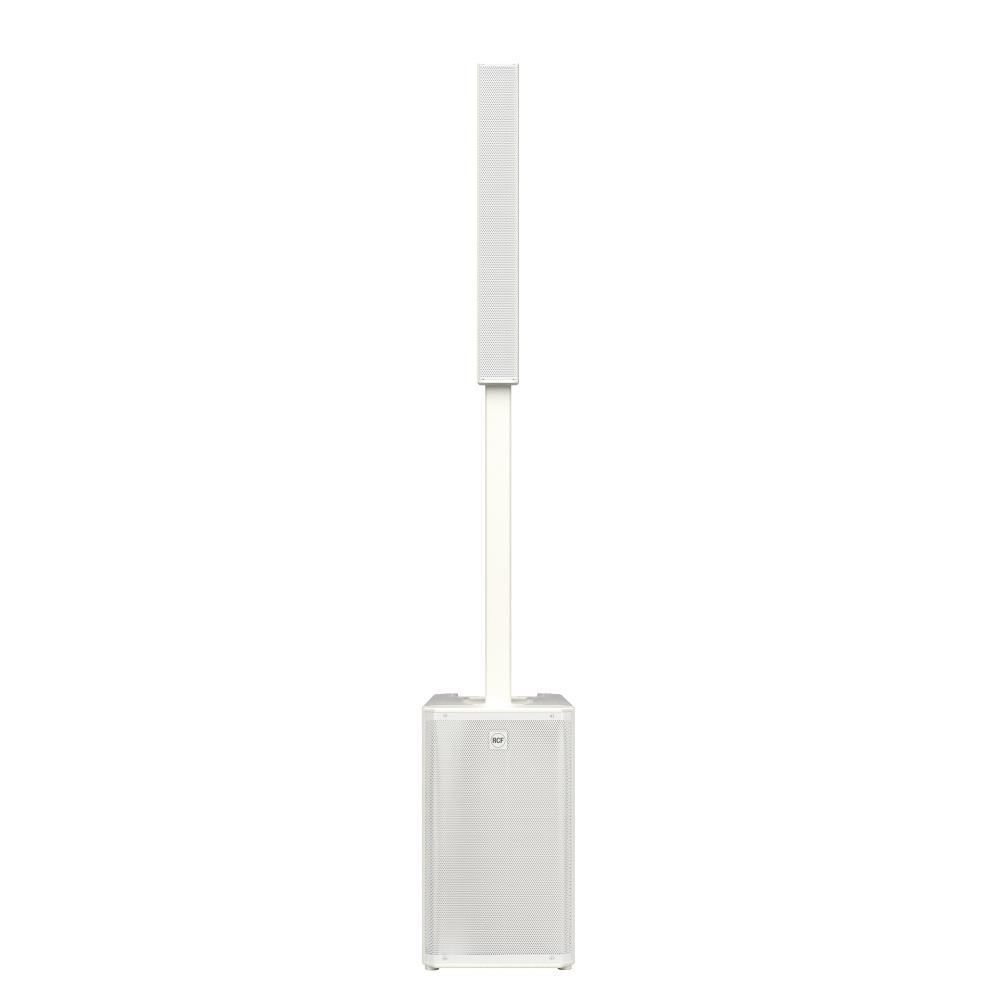

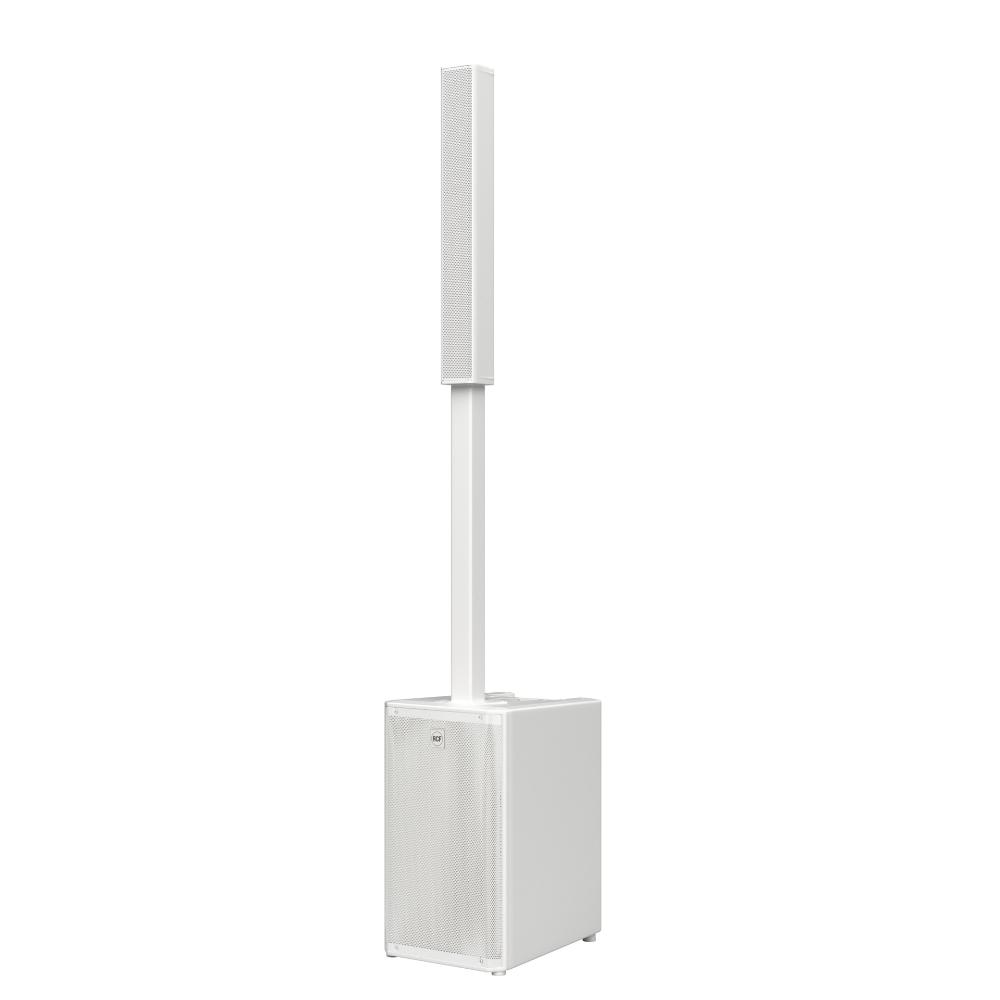

RCF - EVOX JMIX9

EVOX JMIX9 continues the legacy of the iconic RCF EVOX portable column systems and takes it to a new level as a three-way active sound reinforcement system with an integrated 8-channel True-Stereo digital mixer. The mixer features a colorful touch display, rotary encoders, Bluetooth®, and full remote control capabilities. The result is a blend of pure Italian design and performance with flexible signal routing and wireless management. EVOX JMIX9 delivers professional-grade performance throughout the entire signal chain – from input to output.

A 1.75" compression tweeter with a 120° × 40° True Resistive Waveguide ensures wide and uniform coverage, while 6× 3" neodymium drivers and a powerful 12" bass-reflex woofer deliver clear mids and tightly controlled bass. Power is provided by a Class D amplifier with 1050 W RMS (2100 W Peak), allowing for a maximum acoustic pressure level of up to 130 dB SPL.

The system is equipped with combo inputs, stereo/aux output, equalizer, reverb, phantom power, and Bluetooth audio playback. All functions can be easily controlled directly from the touch interface or through the JMixRemote app.

Key Features:

• 8-channel True-Stereo digital mixer with Bluetooth®
• Max. SPL up to 130 dB
• Built-in DSP Class D amplifier with 2100 W Peak (1050 W RMS)
• 1.75" neodymium compression driver – 120° × 40° True Resistive Waveguide
• 6× 3" neodymium full-range drivers
• 12" high-power bass-reflex woofer
• Enhanced room coverage and high intelligibility
• Stylish composite enclosure with aluminum pole mount
• Padded transport cover for top satellite included


Technical Specifications:

Acoustic Properties
• Frequency Range: 40 Hz – 20,000 Hz
• Max. SPL (1 m): 130 dB
• Horizontal Dispersion: 120°
• Vertical Dispersion: 40°

Transducers
• Compression Driver: 1× neodymium, 1.75" voice coil
• Midrange / Full-range: 6× 3.0" neodymium, 1.0" voice coil
• Woofer: 1× 12", 2.5" voice coil

Input / Output Section
• Input Signal: balanced / unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: –2 dBu / +4 dBu

DSP / Processor Section
• Crossover Frequency: 200 Hz / 1800 Hz
• Protections: thermal, RMS
• Limiter: Soft Limiter
• Control: digital mixer controlled by touch display and encoders

Power Section
• Total Power: 2100 W Peak
• High Frequency: 700 W Peak
• Low Frequency: 1400 W Peak
• Cooling: convection
• Power Connector: VDE

Electronic Specifications
• Frequency Response: 20 Hz – 20 kHz
• THD+N (20 dB gain, 0 dBu out): 0.003% (A-Weighted)
• Processing Channels: 8
• DSP Resolution: 32 bit
• A/D – D/A Conversion: 24 bit / 48 kHz
• Dynamic Range: 114 dB

Inputs
• Microphone Inputs: 4 (gain 0–36 dB, +48 V phantom, Low Cut 20–400 Hz)
• Mono Line Inputs: 4 (gain 0–36 dB)
• Stereo Line Inputs: 2 (gain 0 dB)

Outputs
• Main MIX: 1
• FX Send: 1
• AUX Send: 1
• AUX Output: 1
• Headphone Output: 1

Dynamic Processors and EQ
• Compressors: RCF compressors (on MIC/LINE CH1 – CH4 inputs)
• Input Channels EQ: 3-band (High/Low shelving, MID peak)
• Main Output/Amplifier EQ: 8-band (6× parametric, 1× High Shelving, HPF 12 dB/oct)

Aux / FX
• AUX: 1× PRE / POST
• FX: 1× POST
• Internal Effects: yes
• Mastering processors on Main OUT: yes

Construction
• Enclosure Material: PP composite
• Handle: 1× top
• Stand Mounting: Quick-fit socket
• Grille: steel
• Color: black

Dimensions and Weight
• Height: 2080 mm
• Width: 350 mm
• Depth: 460 mm
• Weight: 28.8 kg
