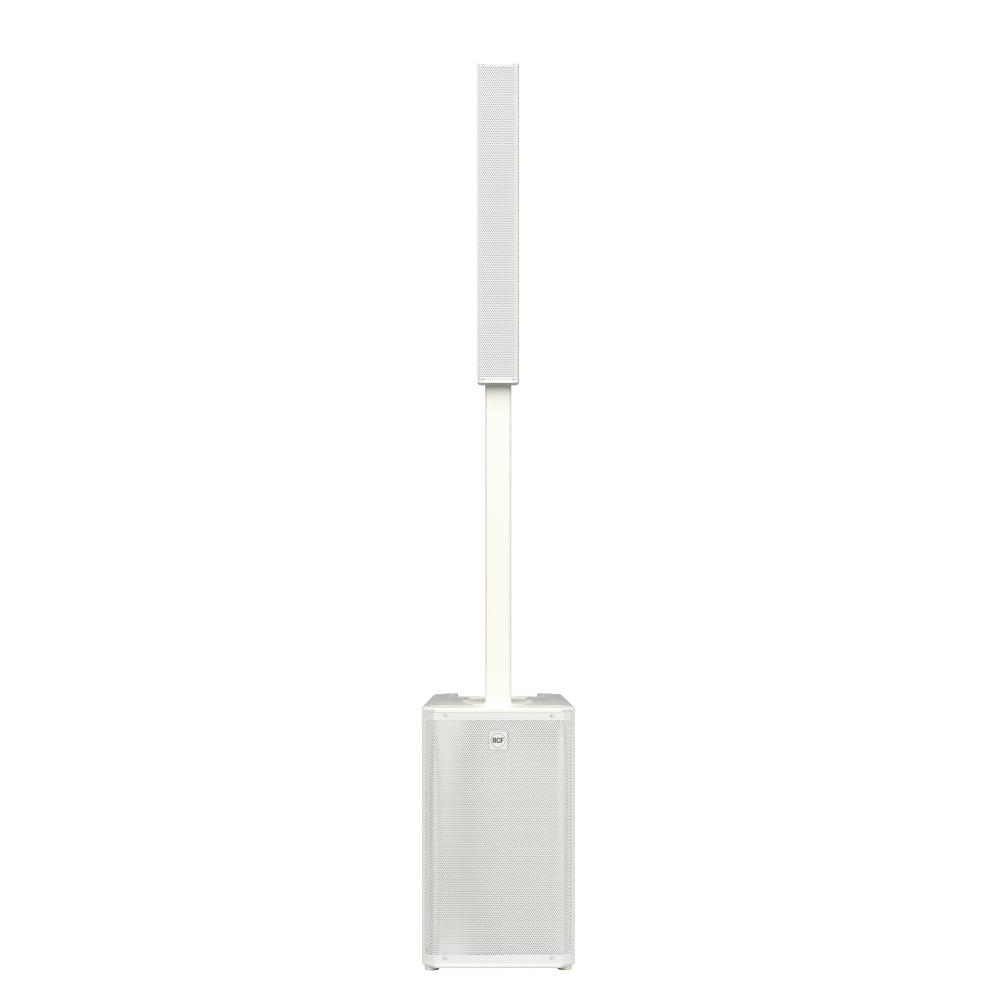

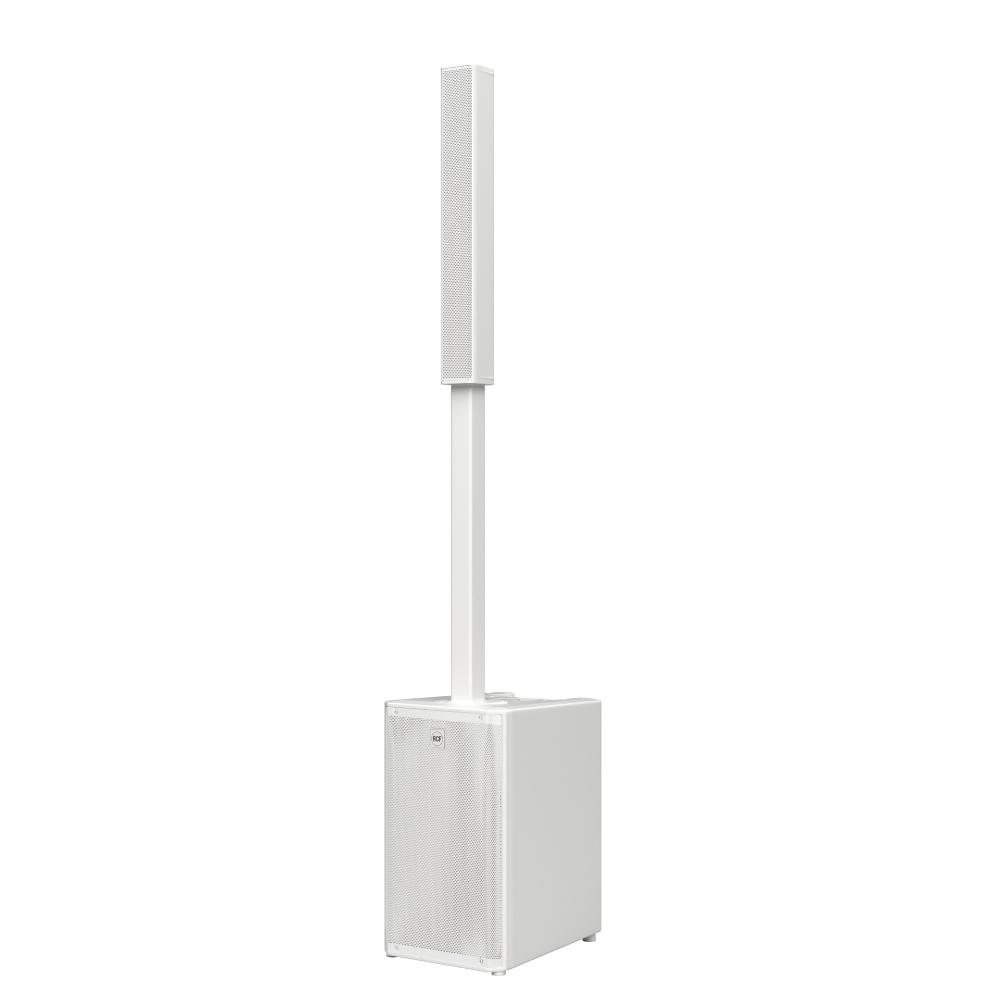

RCF - EVOX J9

EVOX J9 continues the already iconic line of portable column systems from RCF, the EVOX series. The result is a blend of pure Italian design and performance. The EVOX JMIX9 provides professional-grade performance throughout the entire signal chain – from input to output.

The compression high-frequency driver 1.75" with a 120° × 40° True Resistive Waveguide ensures wide and uniform coverage, while 6× 3" neodymium transducers and a powerful 12" bass-reflex woofer deliver clear mids and precisely controlled lows. Power is managed by a Class D amplifier with 1050 W RMS (2100 W Peak)130 dB SPL.

Key Features:

• Max. SPL up to 130 dB
• Built-in Class D amplifier with 2100 W Peak (1050 W RMS) power and integrated DSP
• 1.75" neodymium compression driver – 120° × 40° True Resistive Waveguide
• 6× 3" neodymium full-range transducers
• 12" high-power bass-reflex woofer
• Enhanced room coverage and high intelligibility
• Stylish composite enclosure with aluminum pole mount
• Padded transport cover for the top satellite included in the package


Technical Specifications:

Acoustic Properties
• Frequency Range: 40 Hz – 20,000 Hz
• Max. SPL (1 m): 130 dB
• Horizontal Dispersion Angle: 120°
• Vertical Dispersion Angle: 40°

Transducers
• Compression Driver: 1× neodymium, 1.75" voice coil
• Midrange / Full-range: 6× 3.0" neodymium, 1.0" voice coil
• Woofer: 1× 12", 2.5" voice coil

Input / Output Section
• Input Signal: Balanced / Unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: –2 dBu / +4 dBu

DSP / Processor Section
• Crossover Frequency: 200 Hz / 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
Power Section
• Total Power: 2100 W Peak
• High Frequency: 700 W Peak
• Low Frequency: 1400 W Peak
• Cooling: Convection
• Power Connector: VDE

Electronic Specifications
• Frequency Response: 20 Hz – 20 kHz
• THD+N (20 dB gain, 0 dBu out): 0.003% (A-Weighted)
• Processing Channels: 8
• DSP Resolution: 32 bit
• A/D – D/A Conversion: 24 bit / 48 kHz
• Dynamic Range: 114 dB

Construction
• Enclosure Material: PP composite
• Handle: 1× top
• Stand Mounting: Quick-fit socket
• Grille: Steel
• Color: White

Dimensions and Weight
• Height: 2080 mm
• Width: 350 mm
• Depth: 460 mm
• Weight: 28.8 kg
