RCF - EVOX J11

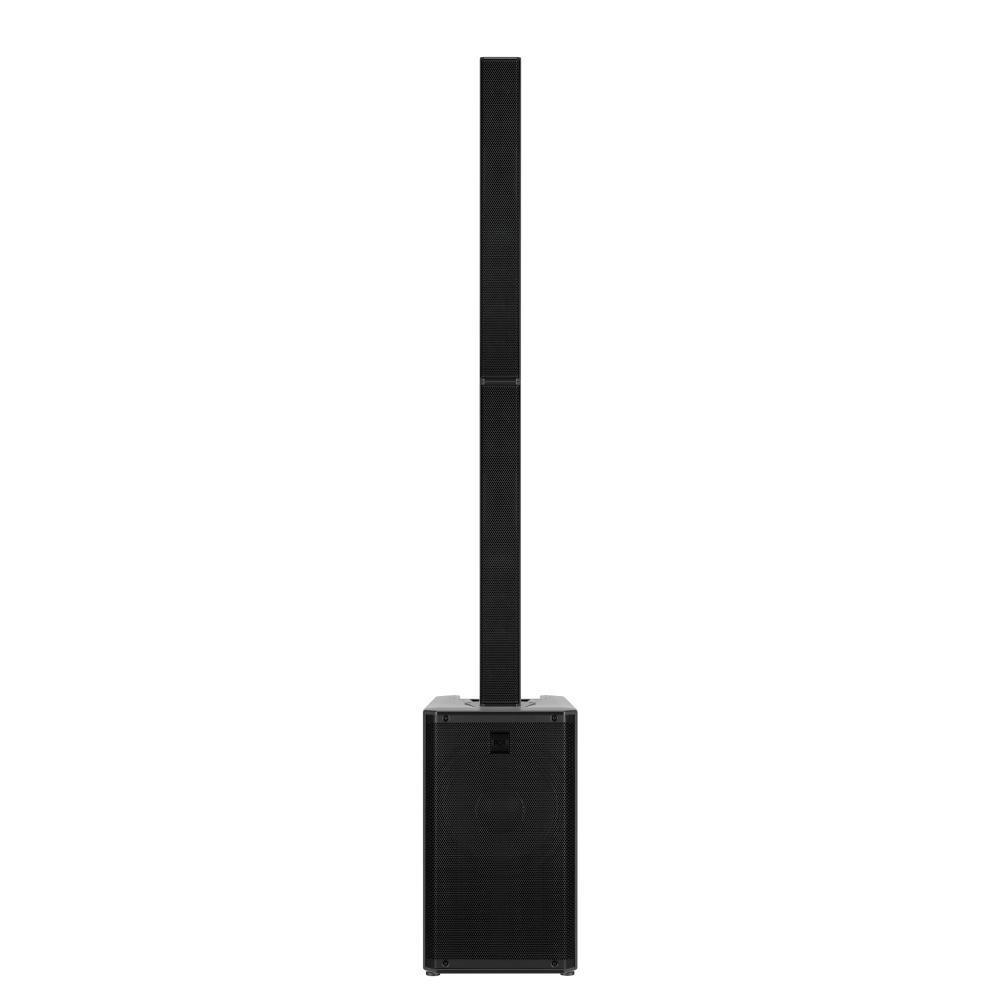

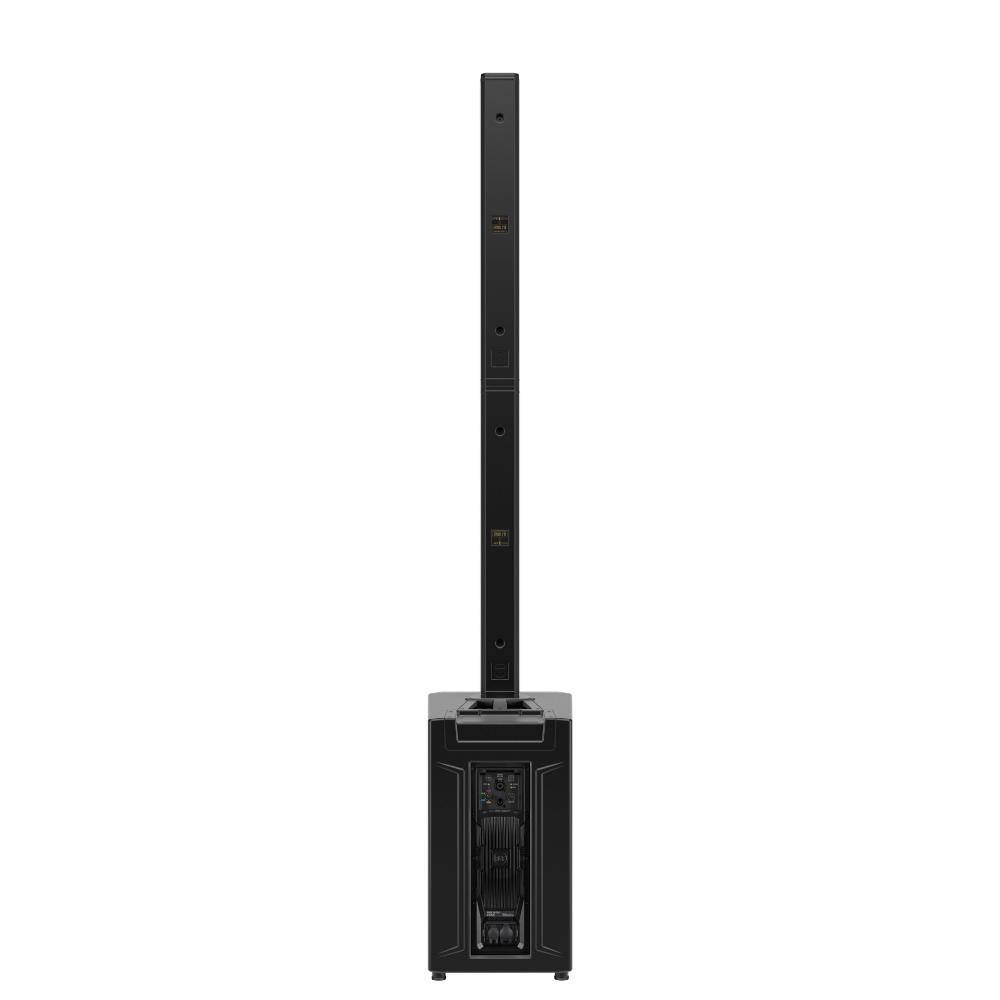

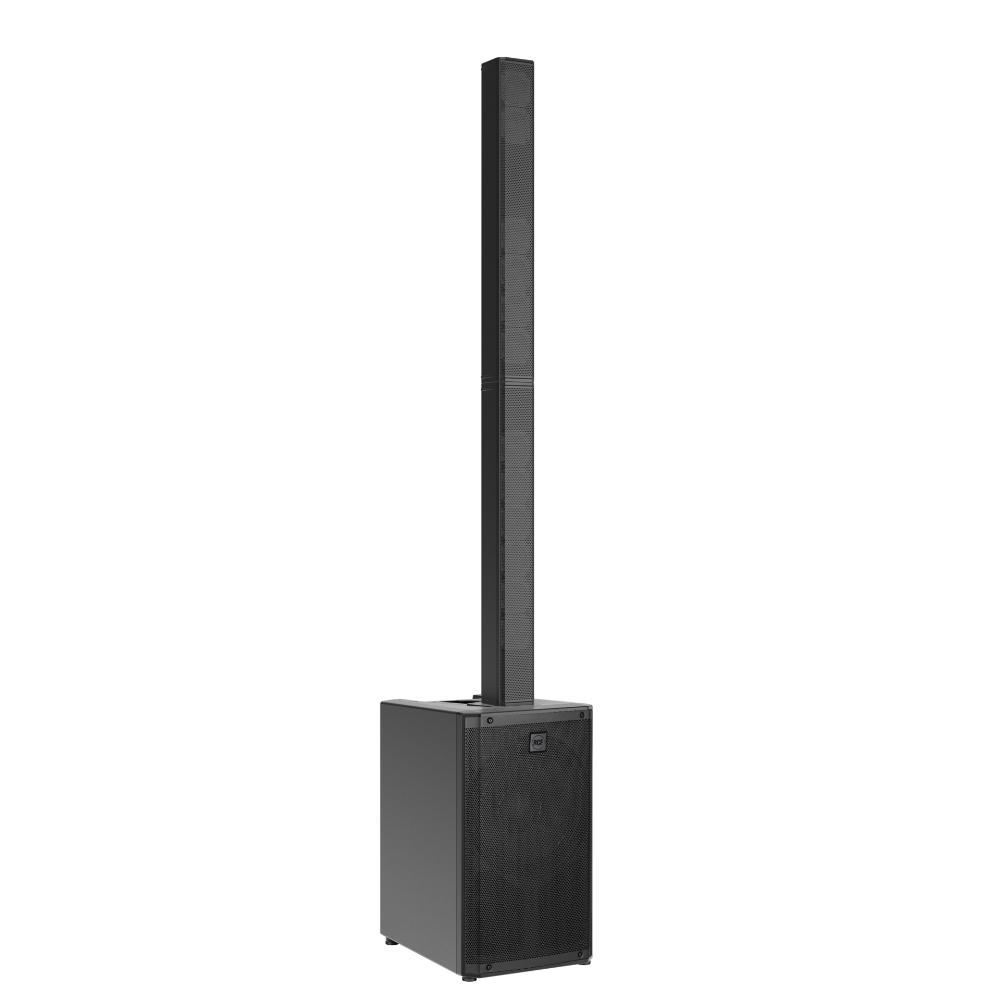

RCF EVOX J11 is an active three-way portable column system from the iconic EVOX series, designed for maximum performance and clarity in a compact format. The 1.75" compression driver combined with a 120° × 40° True Resistive Waveguide ensures wide and consistent coverage, while 12× 3" neodymium full-range drivers and a powerful 12" woofer in a bass-reflex enclosure deliver clear mids and deep, precisely controlled bass. The built-in two-channel Class D amplifier with integrated DSP and up to 3500 W Peak power allows achieving a maximum sound pressure level of up to 132 dB SPL. EVOX J11 brings RCF's concert technology in an elegant, unobtrusive design - with crystal-clear vocals, natural musical response, and quick setup for bands, DJs, and live performers.

Features:

• 132 dB Max. SPL
• Class D amplifier - 3500 W Peak, integrated DSP
• 1.75" neodymium compression driver
• 120° × 40° True Resistive Waveguide
• 12× 3" neodymium full-range drivers

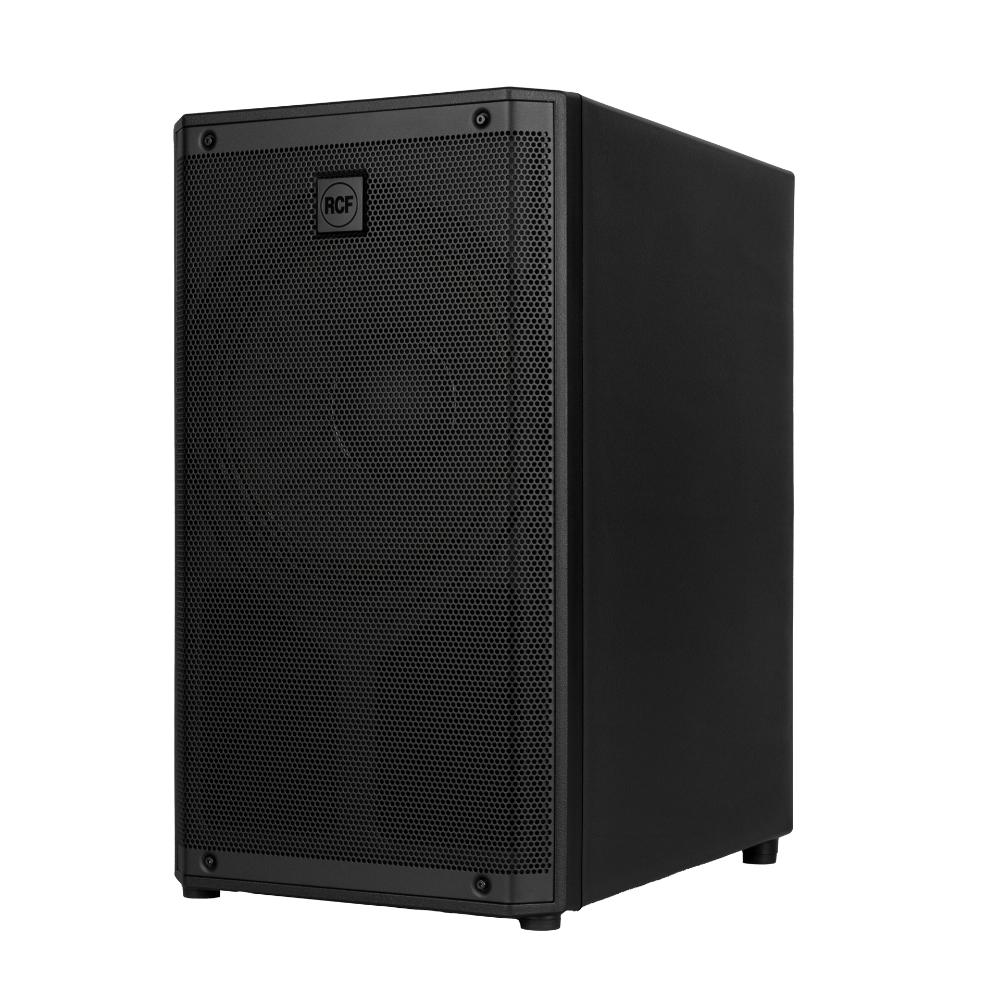

• 12" high-power woofer in a bass-reflex enclosure
• Enhanced coverage and high intelligibility
• Composite enclosure with aluminum pole mount
• Elegant, road-ready construction

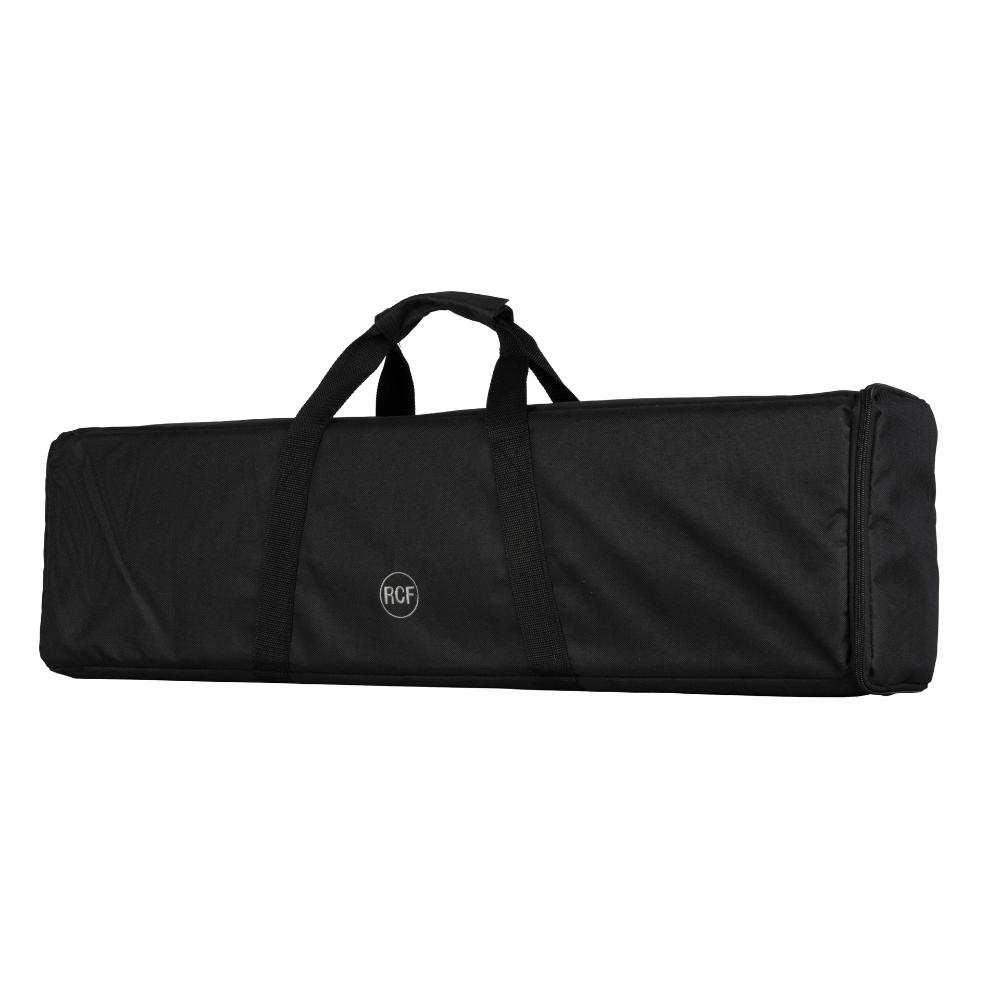

• Padded transport cover for the top satellite included


Technical Specifications:

Acoustic Parameters
• Frequency Range: 37 Hz – 20,000 Hz
• Maximum SPL (1 m): 132 dB
• Horizontal Coverage Angle: 120°
• Vertical Coverage Angle: 40°

Transducers

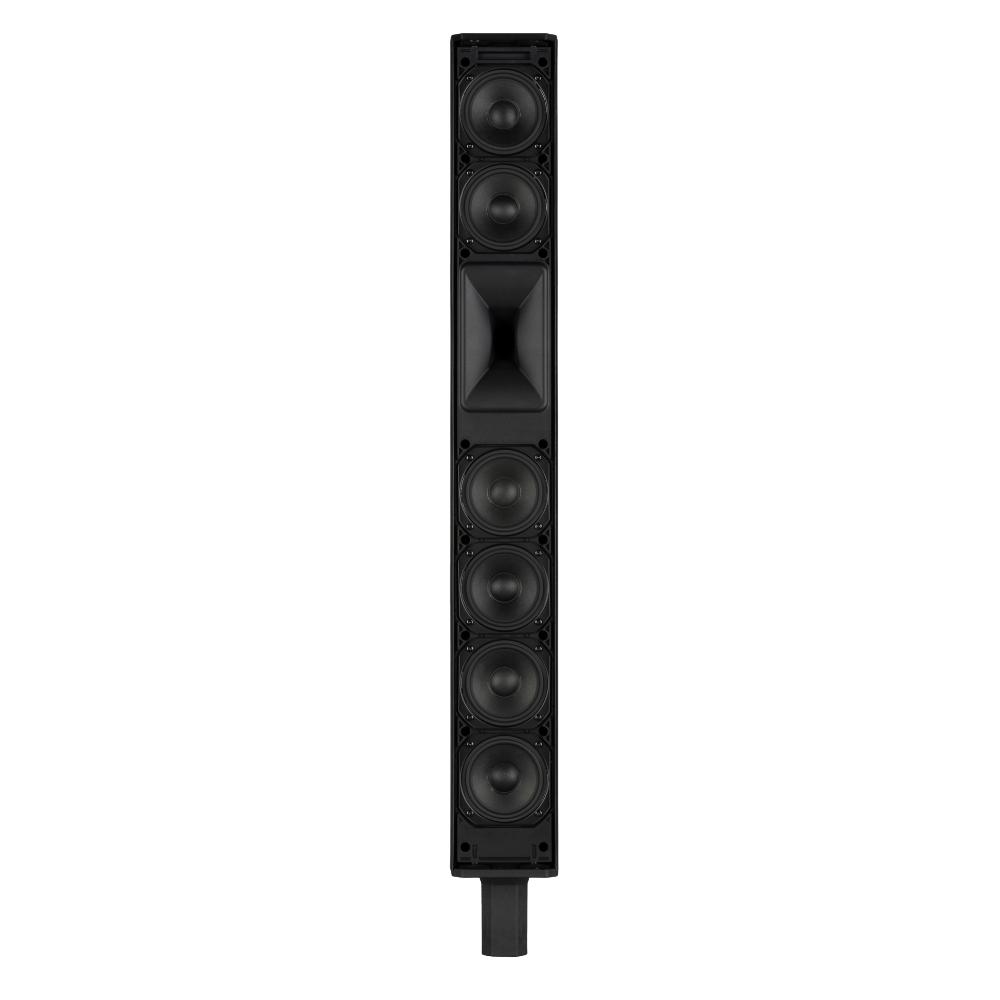

• Compression Driver: 1× 0.75" neodymium, 1.75" voice coil
• Full-Range Drivers: 12× 3.0" neodymium, 1.0" voice coil

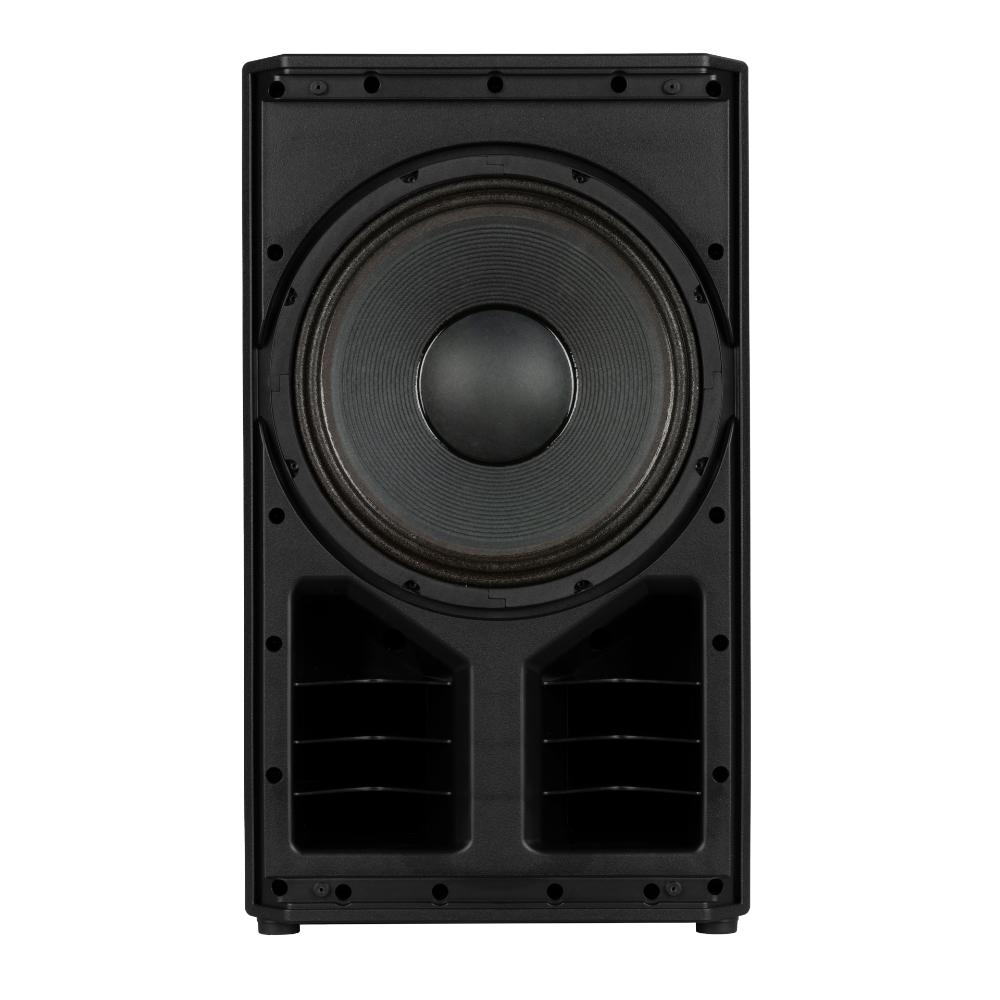

• Woofer: 1× 12", 2.5" voice coil

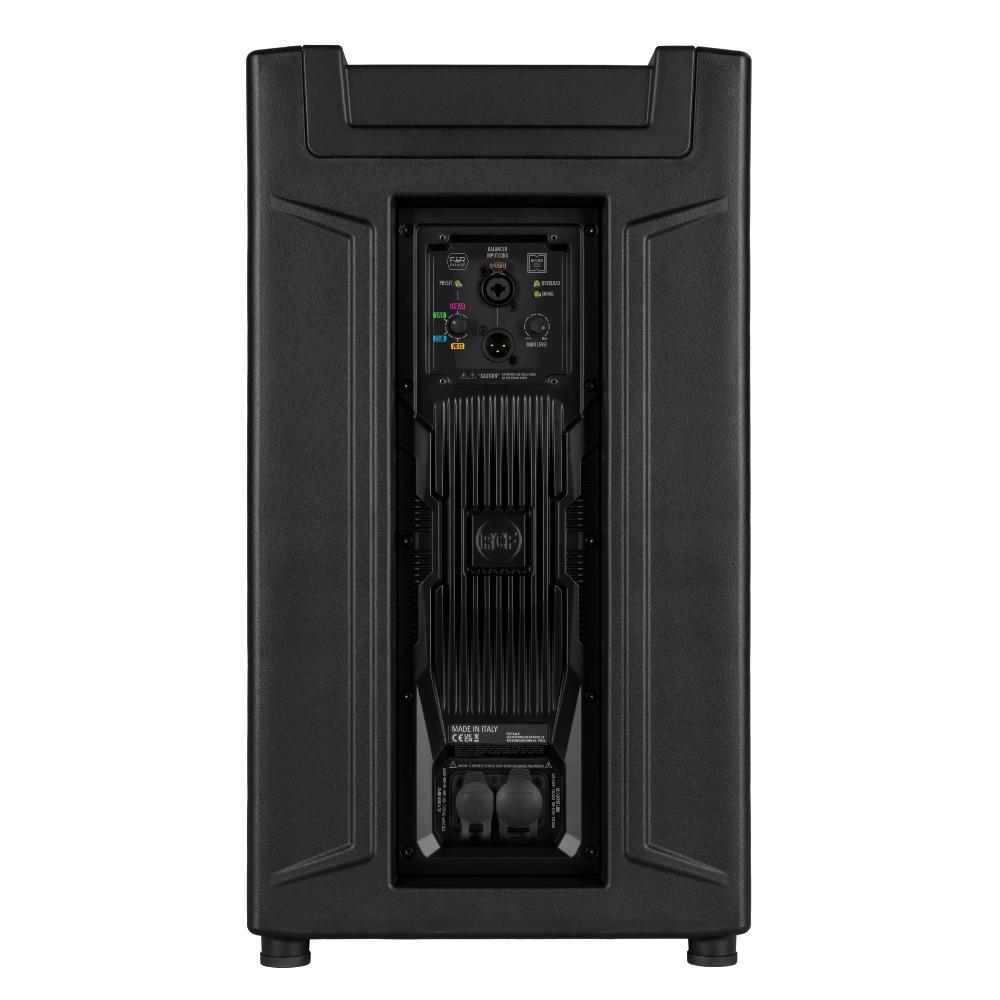

Input and Output Section
• Input Signal: Balanced / Unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu

Processor Section
• Crossover Frequency: 160 Hz / 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, LINEAR / LIVE, CLUB, VOICE presets

Power Section
• Total Power: 3500 W Peak
• High Frequency Power: 1500 W Peak
• Low Frequency Power: 2000 W Peak
• Cooling: Convection
• Power Connectors: Powercon TRUE1 TOP IN / OUT

Compliance with Standards
• Certification: CE

Physical Characteristics
• Enclosure Material: PP composite
• Handles: 1× top

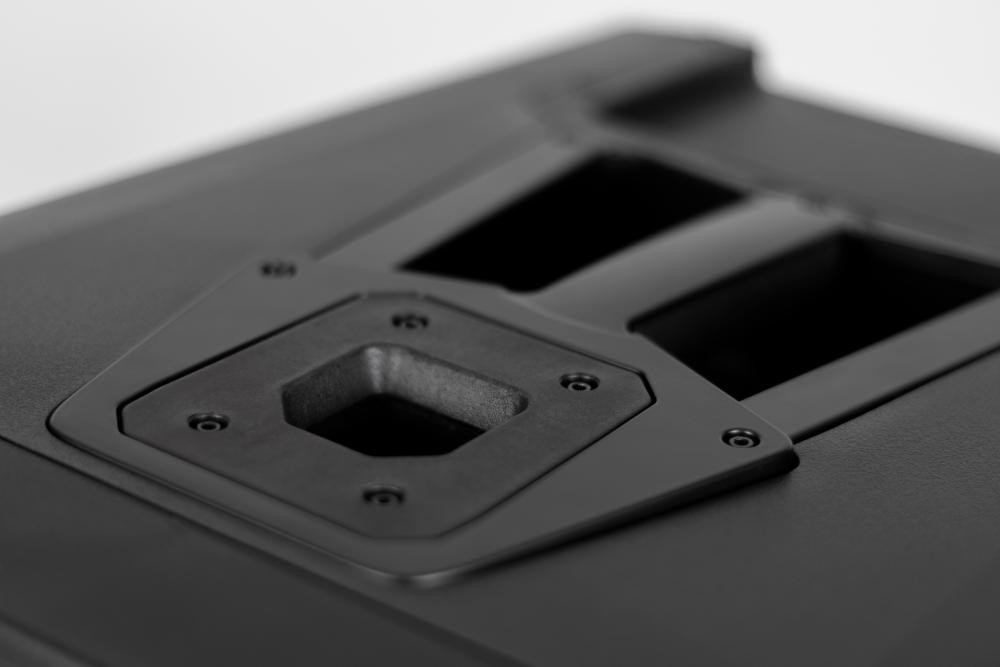

• Pole Mount: Quick-fit adapter

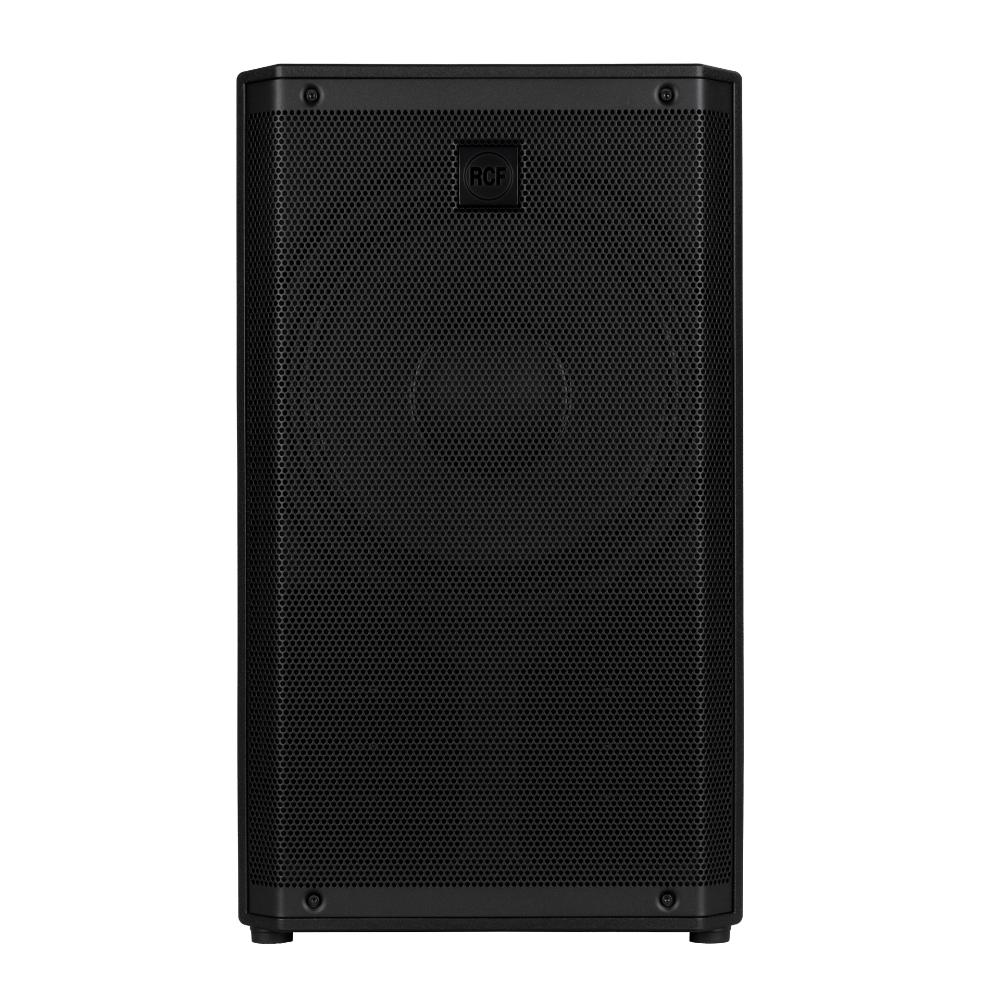

• Grille: Steel
• Color: Black

Dimensions and Weight
• Height: 2080 mm
• Width: 350 mm
• Depth: 463 mm
• Weight: 29 kg

Shipping Information
• Packaged Height: 676 mm
• Packaged Width: 451 mm
• Packaged Depth: 581 mm
• Packaged Weight: 35 kg
