Allen&Heath - AB168 • Portable audio rack for digital mixing systems GLD, QU, and SQ • 16 remotely controlled microphone preamps • LED indication of Phantom power • 16x XLR input • 8x XLR line output • dSnake protocol • Weight 4.8 kg

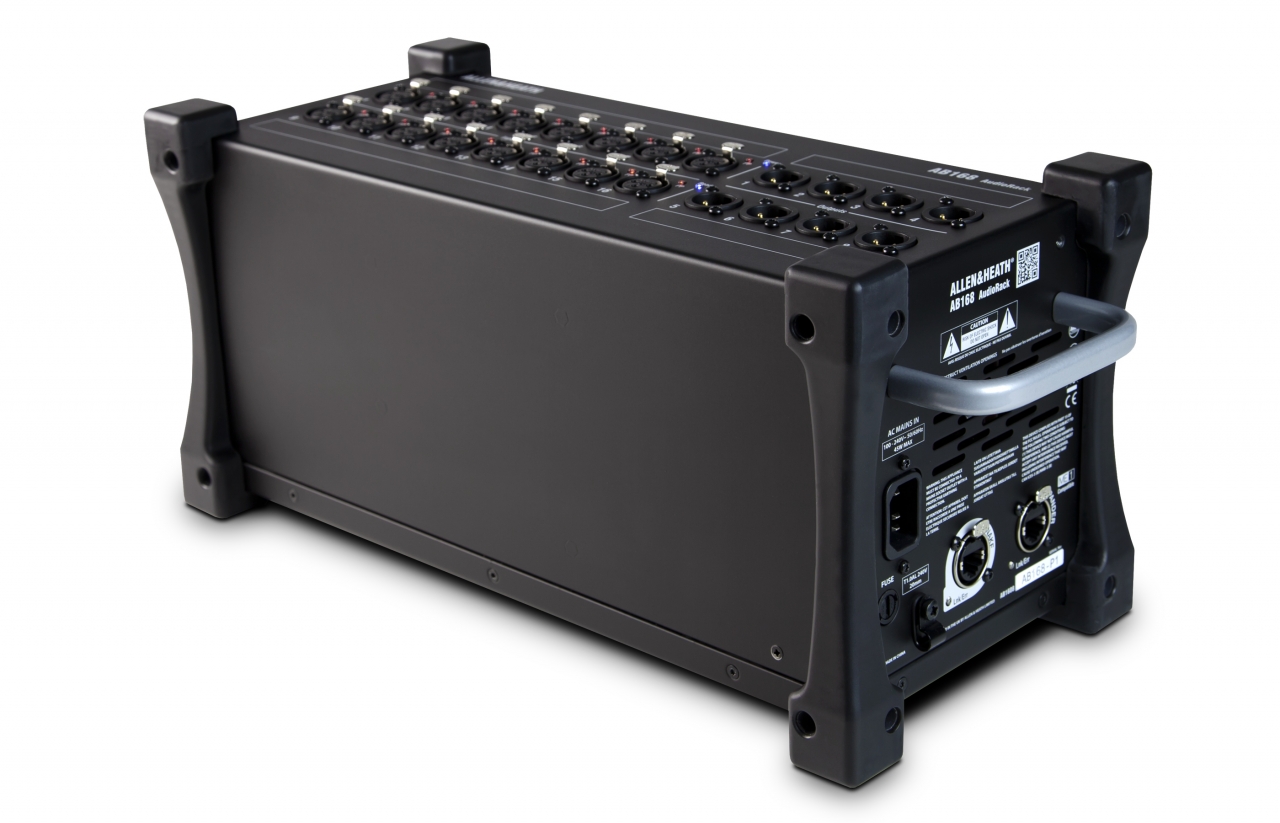

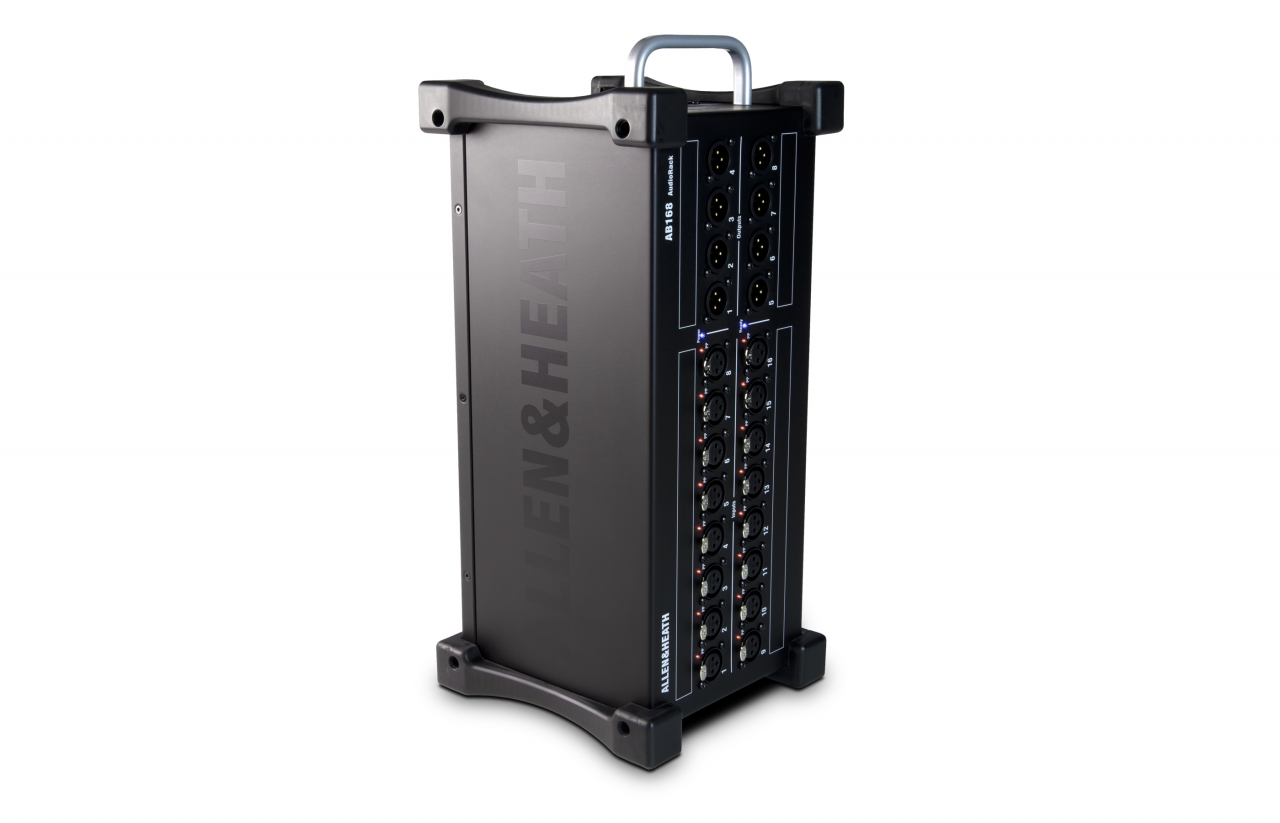

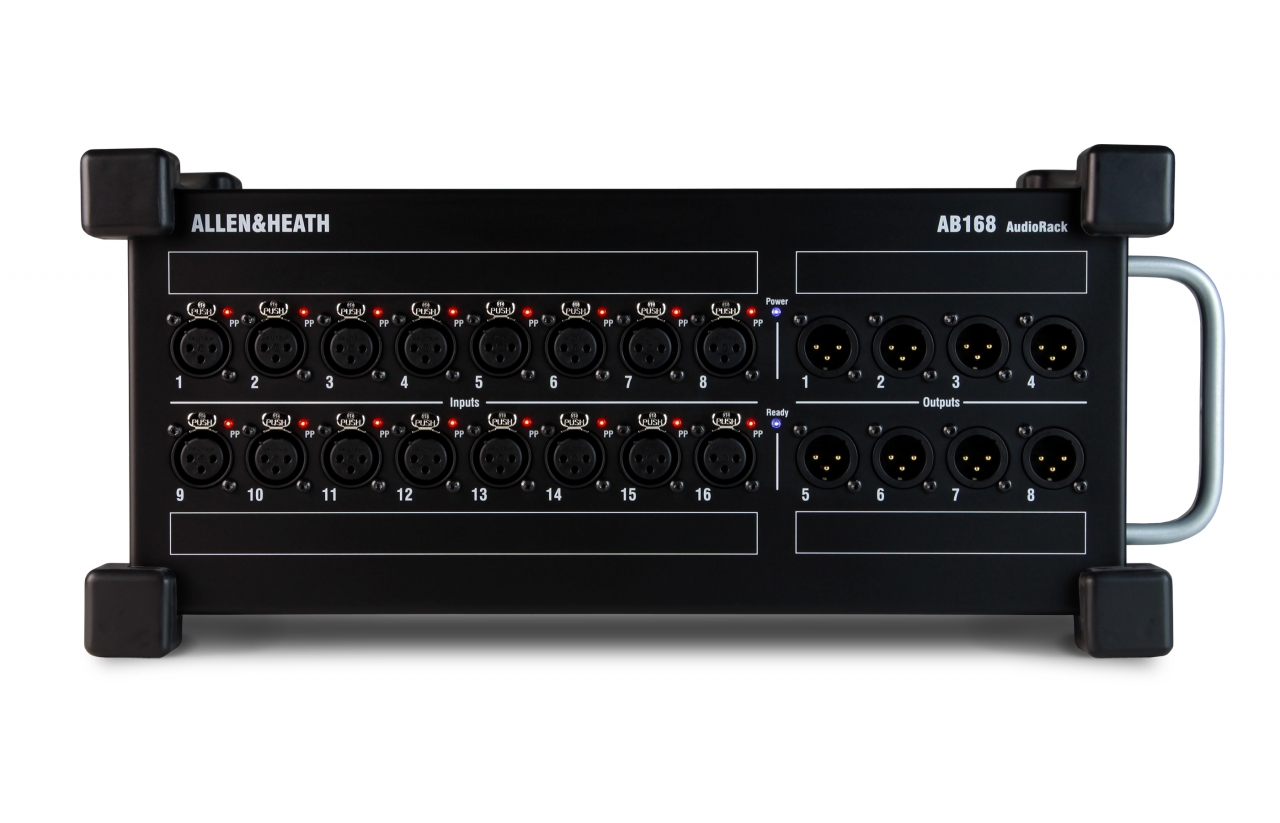

AB168 is a portable audio rack for digital mixing systems GLD, QU, and SQ. When connected to GLD-80/GLD-112/QU-16, 24, 32, SQ 5, 6, 7, or AR-2412 audio rack, it provides 16 inputs and 8 outputs with XLR connectors. It features 16 microphone preamps with LED indication and Phantom power.
It connects to the system via dSNAKE protocol to GLD-80/GLD-112/QU-16, 24, 32, or AR2412 Audio Rack using a secure Ethercon port. The second Ethercon port is used for daisy-chaining with another AB168 or connecting to an ME-1.

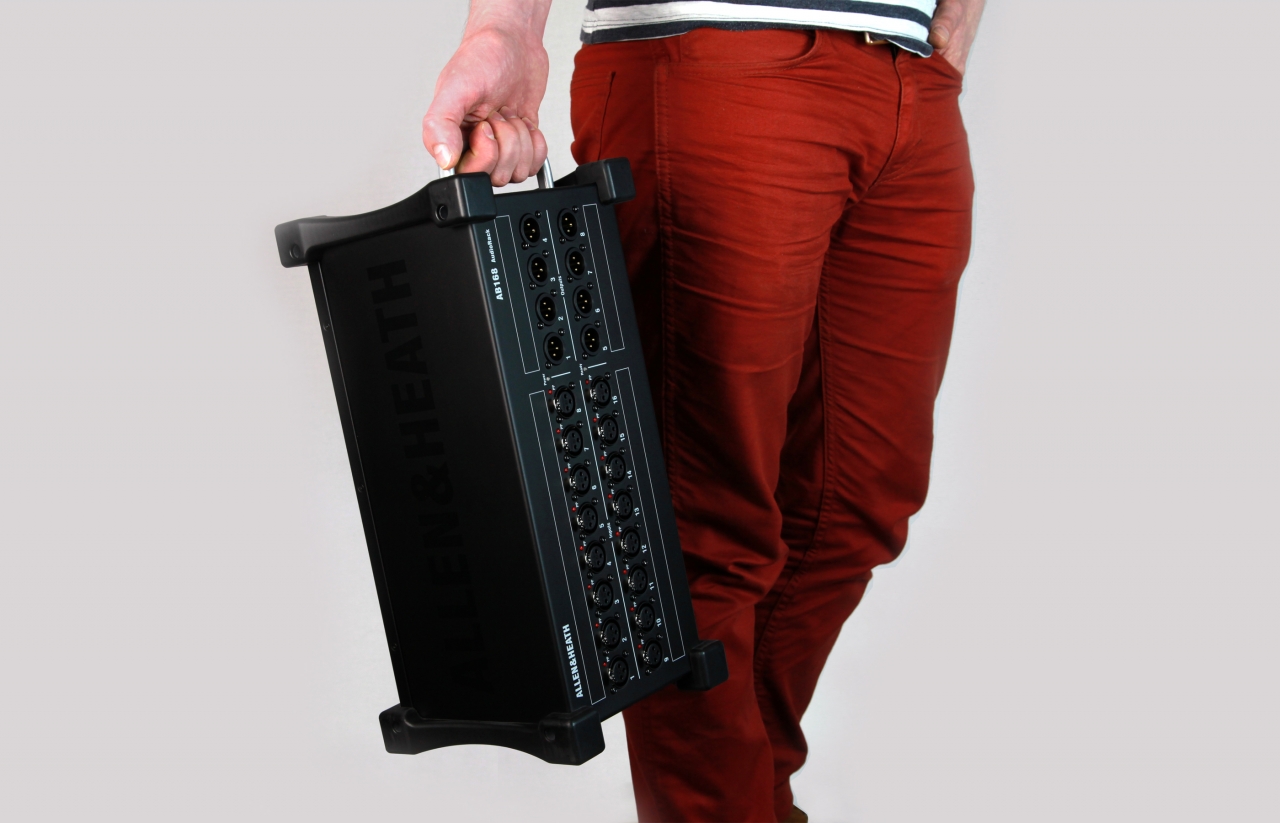

An advantage is the automatic firmware synchronization with the GLD system. The robust construction with rubber bumpers and a weight of 4.8 kg makes it suitable for on-stage use and easy transport. An optional kit is available for mounting in a 19" rack.
Specifications:
• 16 remotely controlled microphone preamps with LED indication of Phantom power
• 8x XLR line output
• dSnake protocol
• Additional Ethercon for daisy-chaining
• Rubber protective bumpers
• Carrying handles
• Weight 4.8 kg
