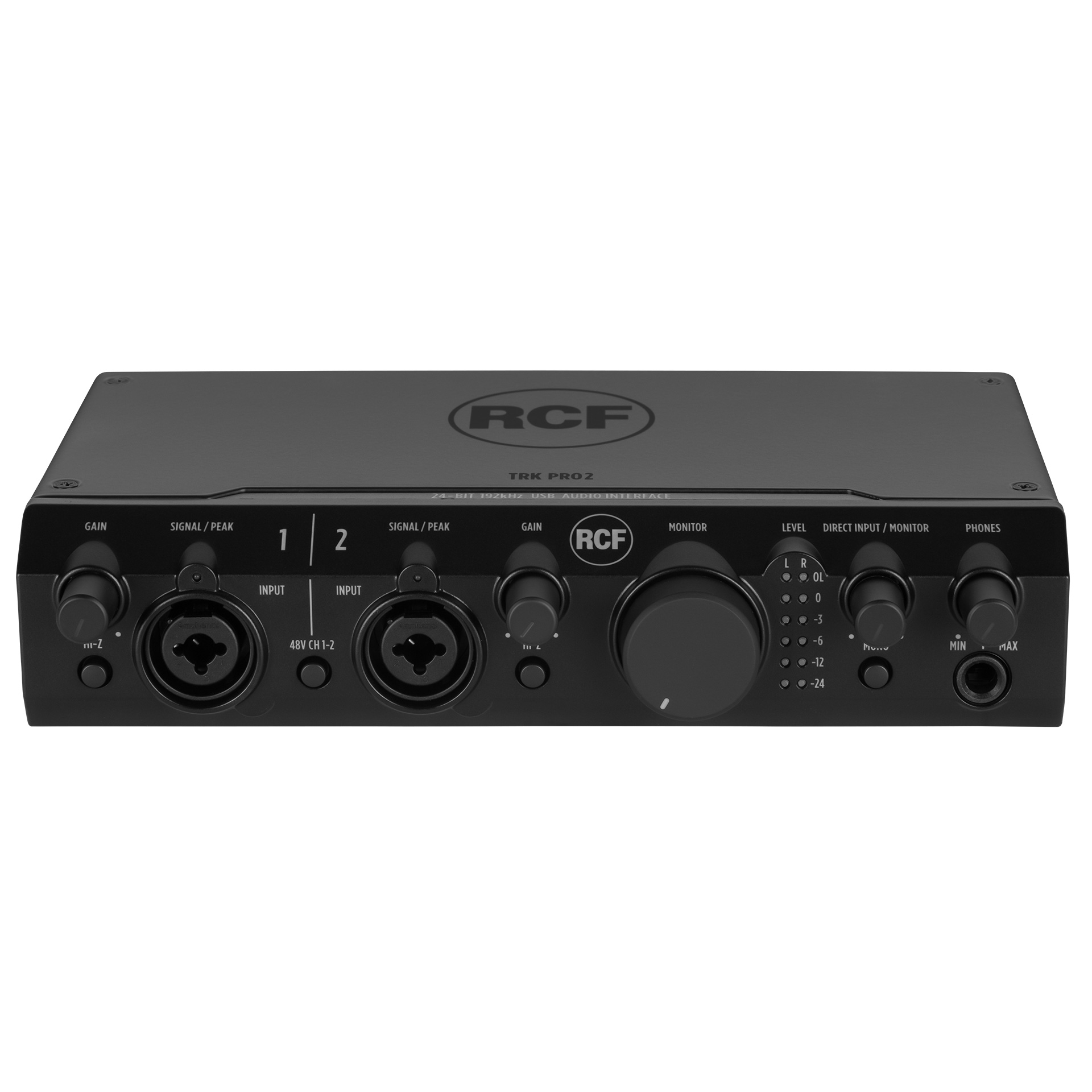

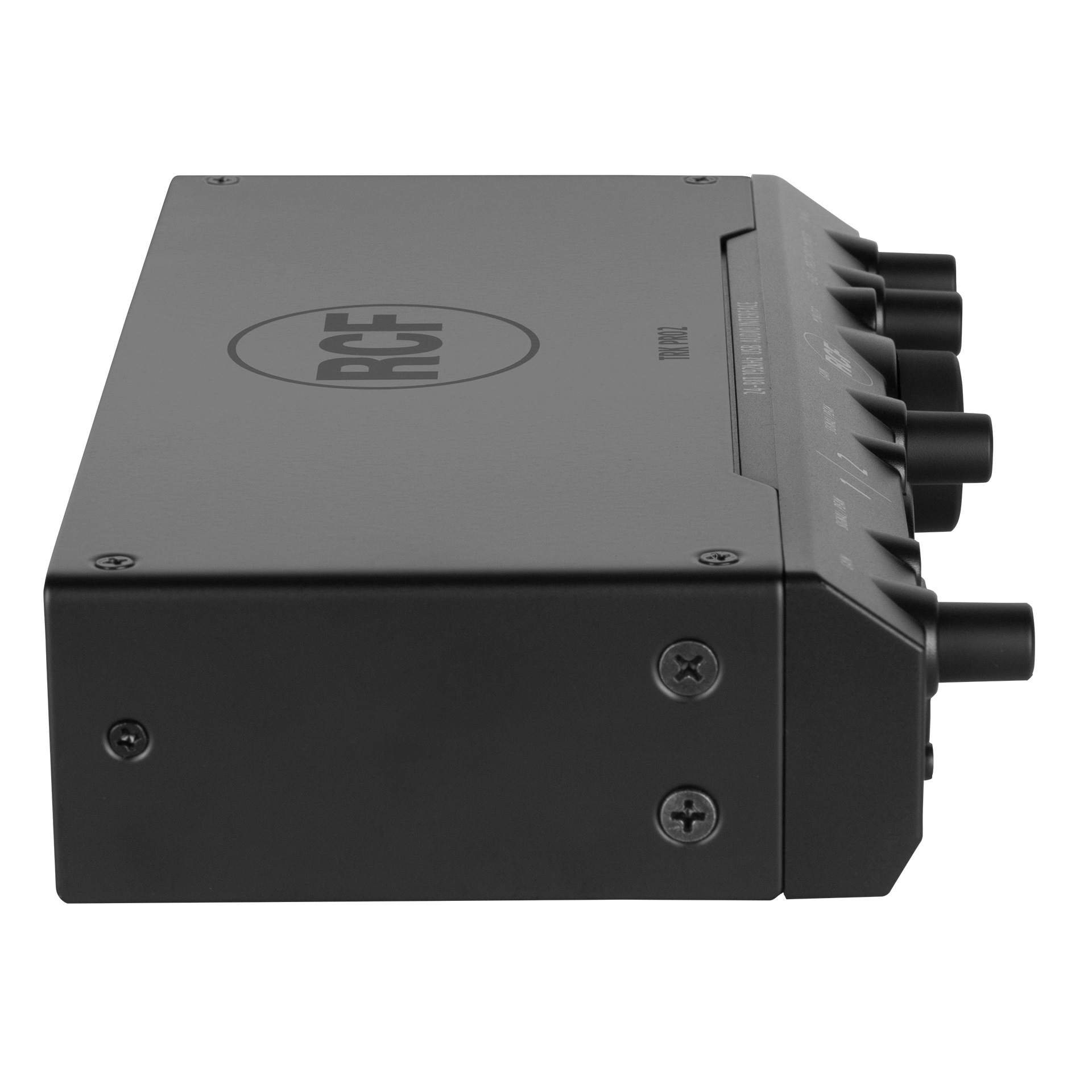

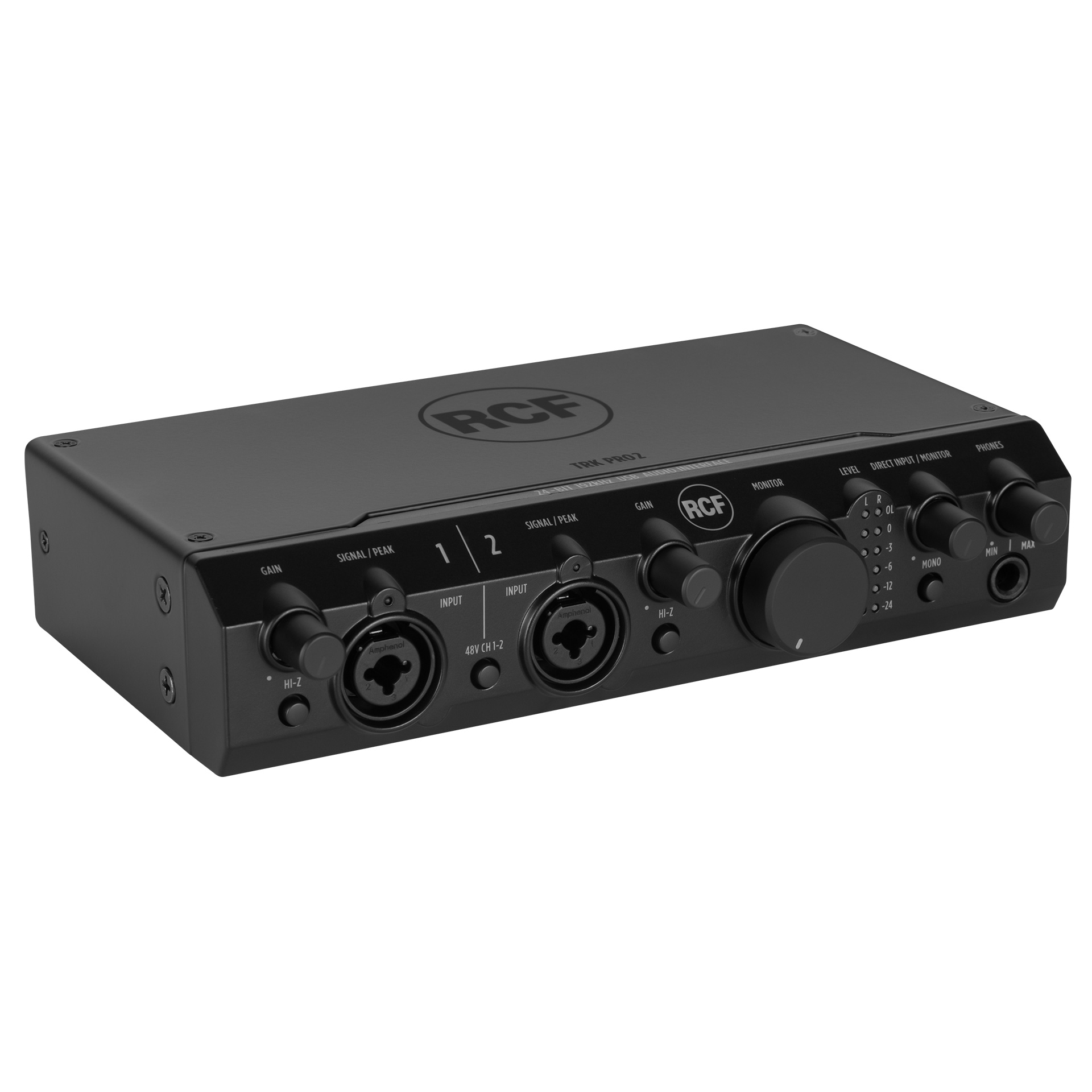

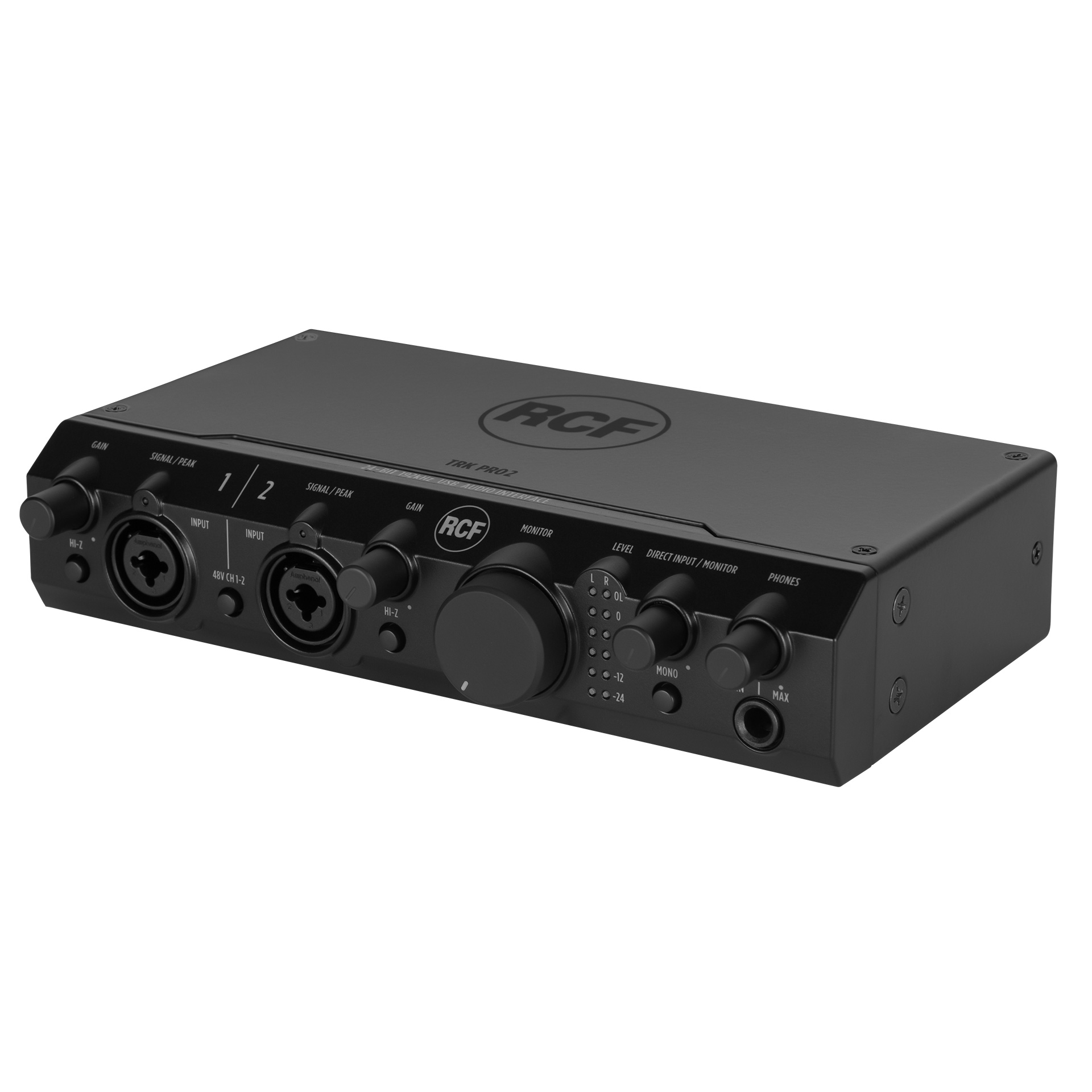

TRK PRO2

The RCF TRK PRO1 hardware interface offers comprehensive connectivity options in a robust and well-designed USB 2.0 box for linking microphones, musical instruments, or line-level signal sources to a Mac or Windows computer. The two-channel internal linear preamplifier circuit allows for connecting 48V phantom-powered microphones and high-output musical instruments (Hi-Z input). The audio signal can be routed to a DAW (Digital Audio Workstation) at resolutions up to 24 bits, 192 kHz; similarly, it can be directed to balanced outputs with variable mix ratio for direct monitoring or from the DAW.

With the TRK PRO, RCF brings over 70 years of experience in professional sound to your studio. The box can be connected to amplifiers, active speakers, headphones, analog mixers, or any other analog audio device. The simple yet complete interface can be taken anywhere you need and used to produce studio-quality recordings, whether creating podcasts, video blogs, or commentary.

• USB 2.0 audio interface 2 IN / 2 OUT; powered by USB bus
• Audio format: up to 24-bit/192 kHz; low-noise converters
• 2 Combo inputs for microphone / musical instrument / line-level signal source
• High-quality preamplifiers
• Balanced output
• Separate headphone volume control
• Robust metal casing
• Ideal for RDNet measurements
• 48V phantom power
• Separate Gain control with LED Signal/Peak indication
• Distortion: <0.0012%, -1dBFS, 20 Hz – 20 kHz
• Zero-latency monitoring
• Rack-mount brackets included
