Rane Blackandblue

The Rane Black and Blue is a compact and straightforward amplifier and mixer in one. It features 3 separate inputs for independent operation of up to three Bluetooth devices, a 3.5mm line input, and a USB interface for recording or playing back content.
The Black and Blue can be used in various settings such as conference rooms (Bluetooth, headset microphones, playback from a computer, XLR output for active speakers), cafes (mobile phones, sound from a TV, amplifier output for installation speakers, XLR output for active subwoofer), and exhibitions (tablets for streaming content, Bluetooth for headset microphones, USB interface for PC and presentations).

Features:
• 3 discrete Bluetooth inputs with volume control and antenna (3x)
• Pairing button and status LED on each input
• USB interface for recording and playback
• Standard 3.5mm jack input
• Signal LED (pre-fader) on each input (green)
• Sound source selection for monitoring, solo mode, and Mix All
• Master EQ, shelving Bass and Treble
• Master volume, 3-part LED (green, yellow, red)
• Power status LED (yellow)
• XLR output (+20 dBu balanced)
• 20 W Class D amplifier

Bluetooth® Interface Specifications
• Version: 4.2
• Profiles: A2DP, AVRCP, HFP, HSP
• Range: up to 88’ (27m)
• Maximum transmission power: 8 dBm*
• Frequency: 2.402 - 2.480 GHz

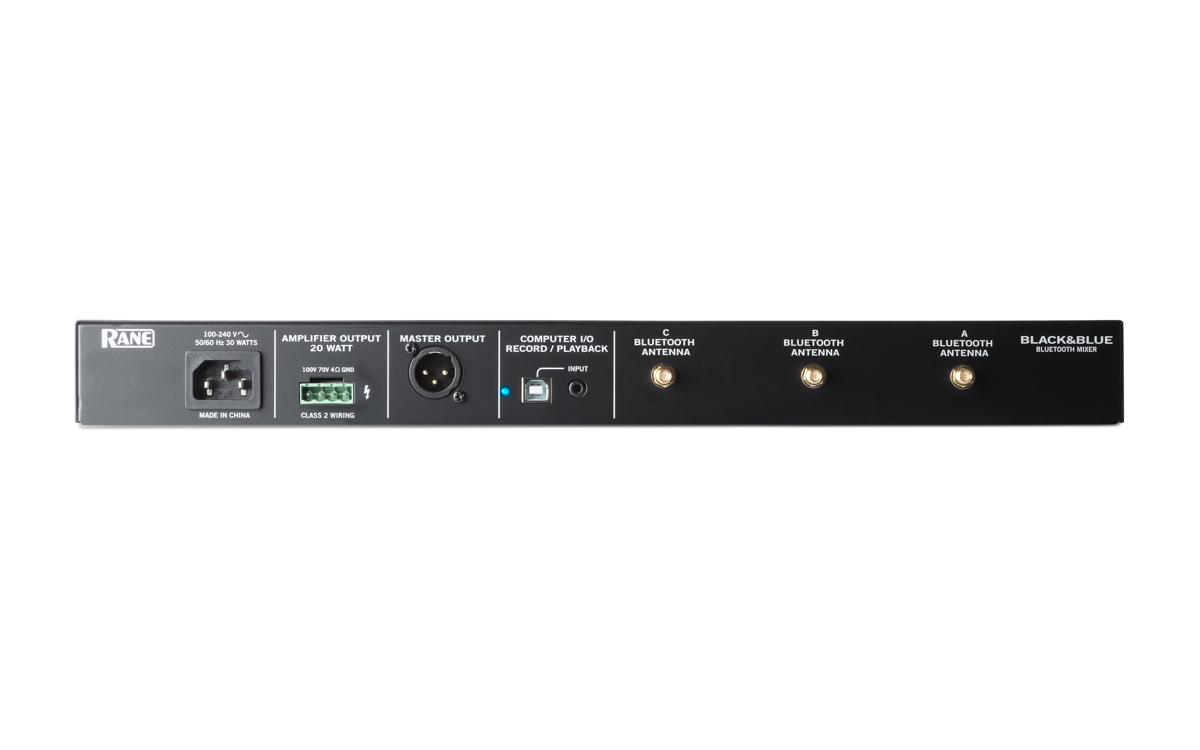

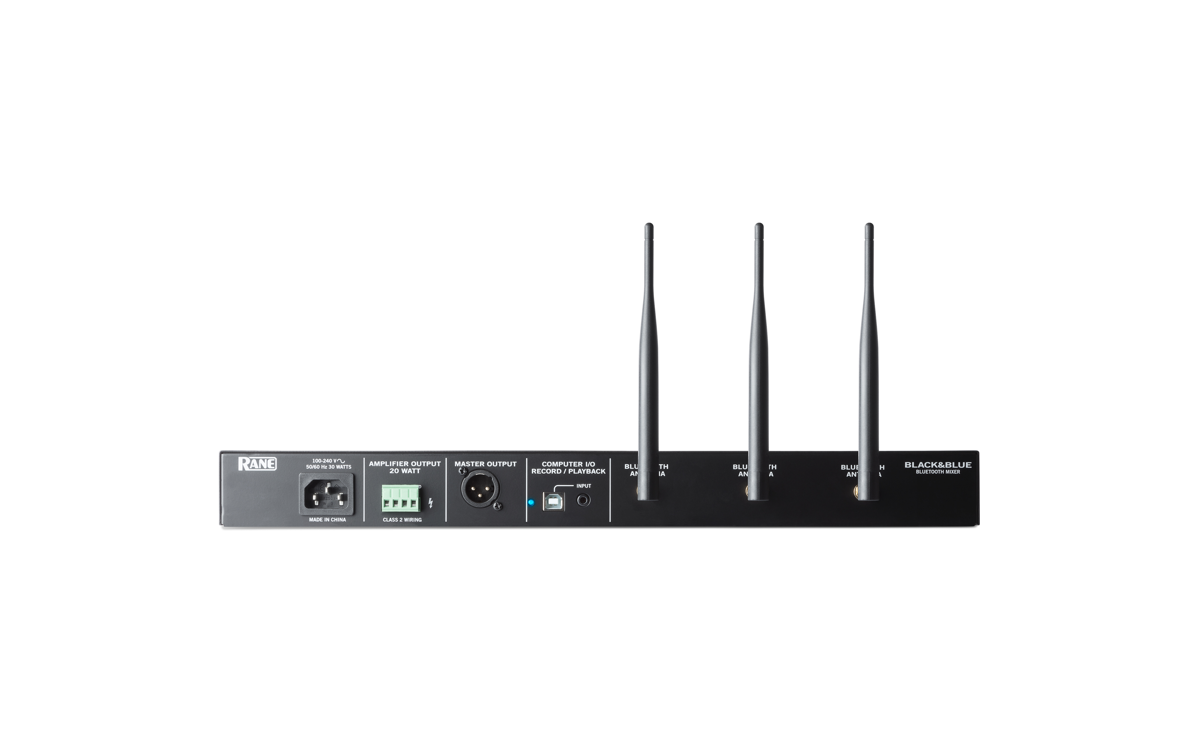

Connectors:
• 3.5mm TRS jack in
• USB type B port
• IEC power input
• XLR output (mono)
• 4-position Euroblock output
• 3x Bluetooth antenna jack

Inputs/Outputs:
• Amplifier output: mono, 20 W @ 4 ohm, 70/100 V
• Balanced XLR output
• Frequency range: 20 – 20,000 Hz
• THD+N: < 0.05%
• 3.5mm unbalanced input
• USB: 44.1 kHz / 24-bit
• Power: Connection: IEC
• Voltage: 100 – 240 VAC, 50/60 Hz
• Power consumption: 40W
• Dimensions: 483 x 286 x 44mm
• Weight: 3.9 kg

* Bluetooth® range is affected by walls, obstacles, and movement of objects and people in the space. For optimal performance, place the device in an open area.
