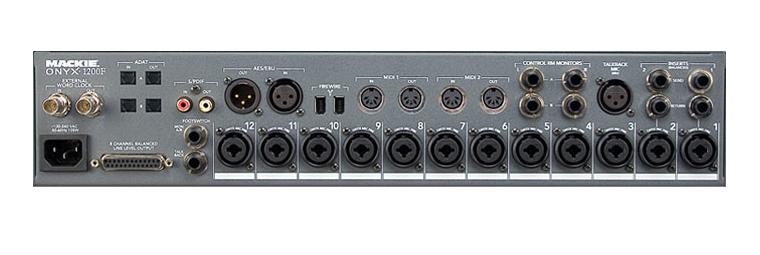

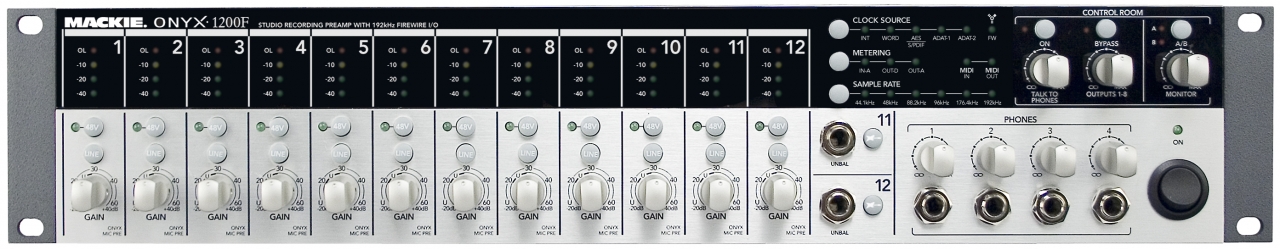

Microphone preamplifier, 24-bit/192 kHz AKM® A/D and D/A converters, 12 channels, suitable for DVD-Audio recording. Features: - FireWire connectivity - Low cut filter - Phantom power 48VDC - Sample frequency range from 44.1kHz to 192kHz - AES/EBU, ADAT, S/PDIF compatibility - 12 mic/line combo inputs with individual phantom power - XLR input for talkback microphone - 8-channel line output via 25-pin D-Sub connector - 4 independently adjustable headphone outputs - 2 AES/EBU, ADAT IN/OUT (16/16, 48 kHz) - Word Clock IN/OUT - 4 insert points (2 send + 2 return) - 2 FireWire ports - 2 MIDI IN/OUT - S/PDIF IN/OUT - Footswitch for talkback and monitor outputs - Tracktion software included Highlights: - Premium 30 input x 34 output FireWire audio interface - 12 flagship Onyx mic preamps with exceptional fidelity and dynamic range - 8 balanced line outputs via 25-pin D-Sub connector - 16 x 16 ADAT I/O @ 48kHz (8x8 @ 96kHz, 4x4 @ 192kHz) - 4 headphone outputs with volume control and discrete stereo feeds - AKM® 24-bit/192kHz A/D and D/A converters - Onboard DSP Matrix Mixer for flexible routing with minimal latency - Control room functions like A/B Monitor Switching and Talkback - Balanced TRS send and return insert jacks on Inputs 1 and 2 - Dual FireWire ports for chaining and direct connection to Mac or PC - 2x2 MIDI I/O plus Word Clock, stereo AES/EBU, and S/PDIF I/O - Stand-alone mixer functionality for field and studio use without a computer - Includes Tracktion 2 Music Production Software and Final Mix Mastering Tools
