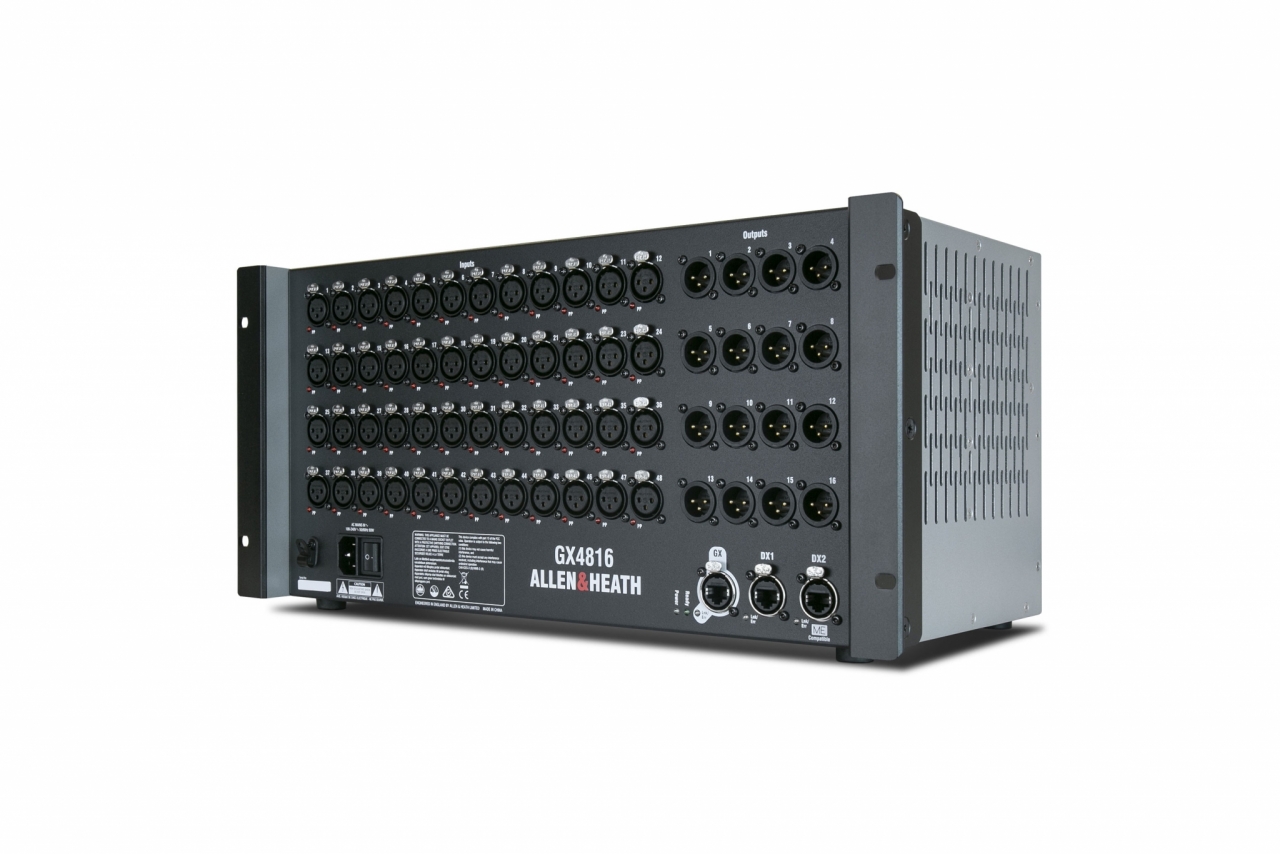

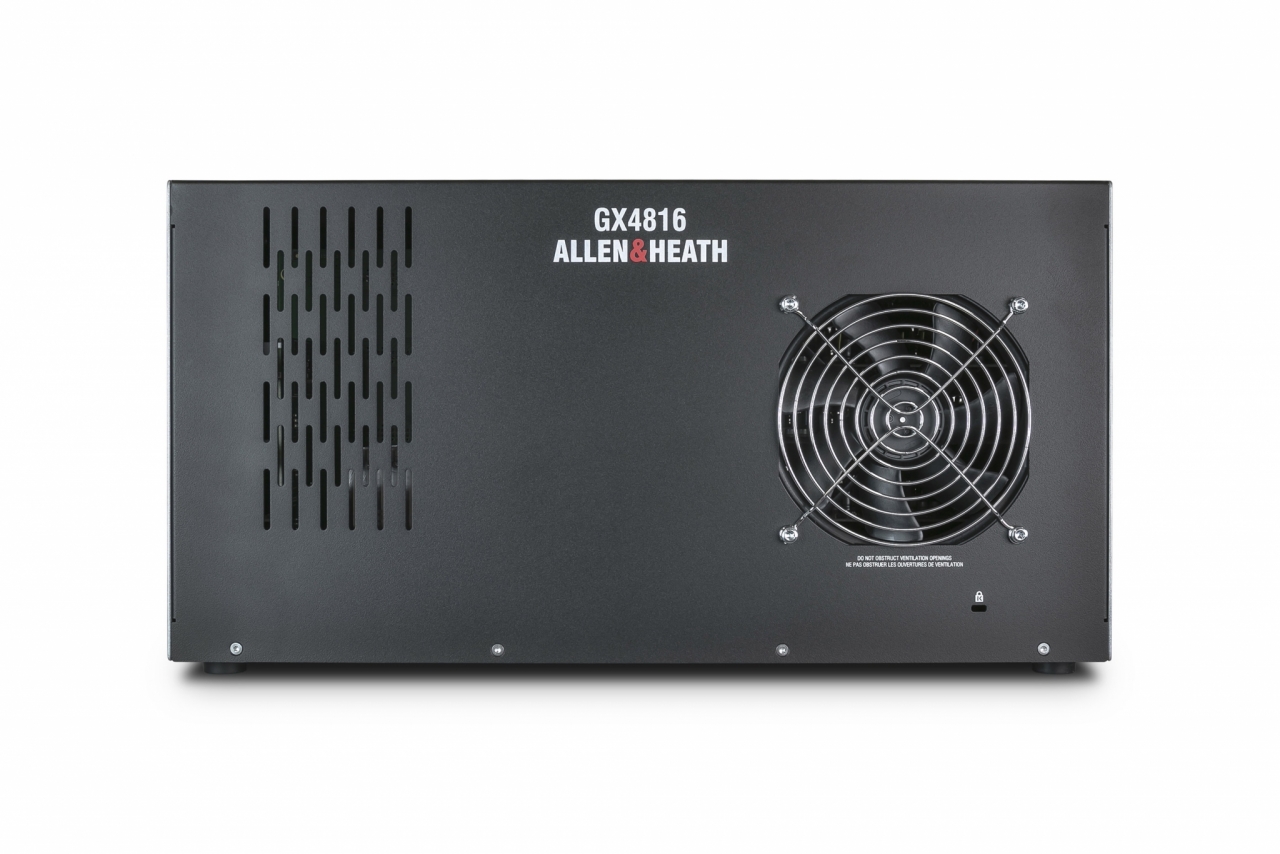

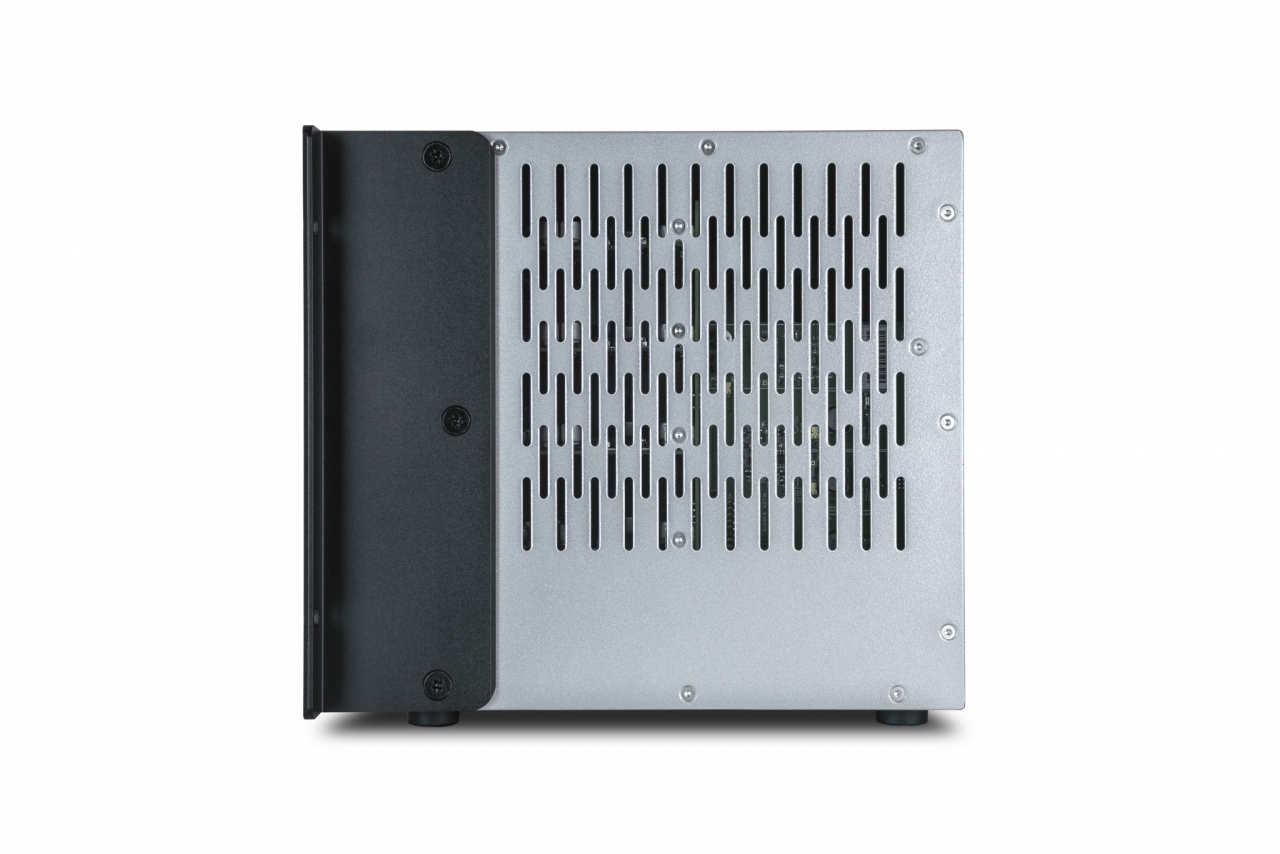

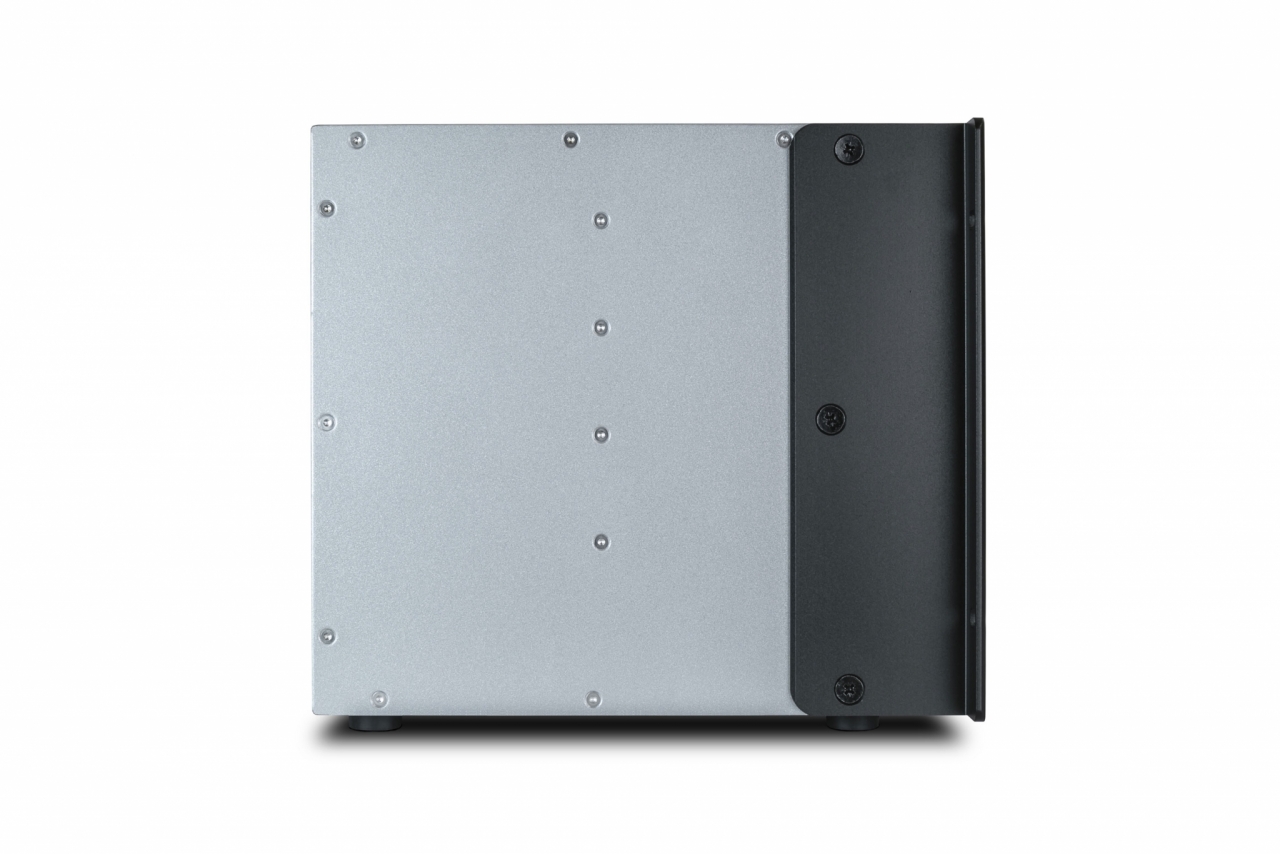

Allen&Heath GX4816

The GX4816 is an audio expander designed to extend the digital mixing platforms of Allen & Heath Avantis, SQ, and dLive*. Operating at a sampling frequency of 96 kHz, it offers a high number of remotely controlled input preamps. *Compatibility with dLive system based on Firmware V1.9

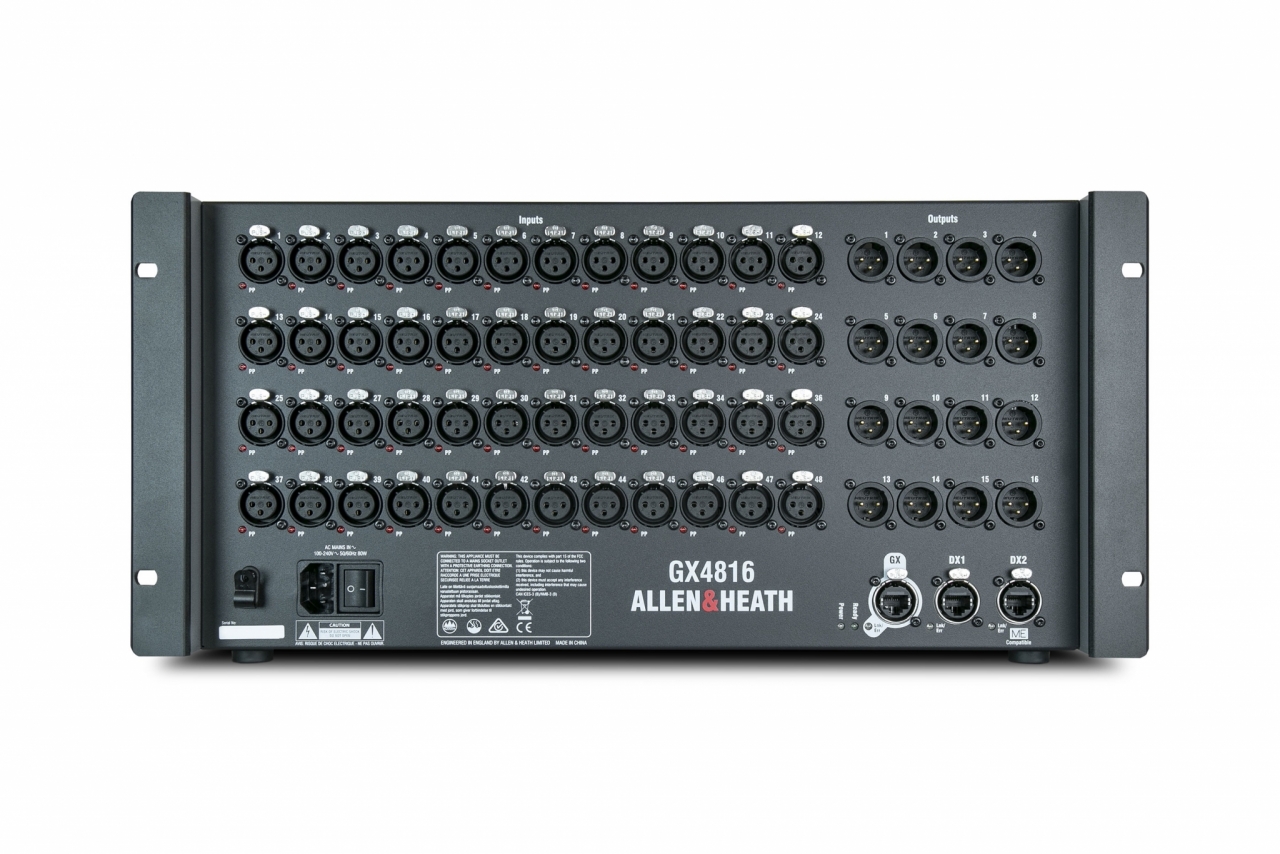

Each GX4816 rack features 48 microphone preamps with independent phantom power indicators. Additionally, it includes 2 DX ports, allowing connection of up to 4 DX expanders in series for additional inputs and outputs. You can also connect a personal monitoring system ME (via DX2 connector).

You can link Avantis or SQ to the GX4816 rack using the SLink protocol with a single Cat5 cable, and connect it to the dLive system via the gigaACE network.

Features:

• 48 microphone preamps with phantom power indicators
• 16 line XLR outputs
• Sampling frequency: 96 kHz
• DX1 Port – compatible with one DX32 or two DX168/DX164-W
• DX2/ME Port – compatible with one DX32 up to two DX168/DX164-W or a personal monitoring system ME
• For Avantis, SQ, and dLive systems
Using multiple GX expanders:
- up to 2x GX4816 in one SQ system
- up to 5x GX4816 in one dLive S Class system
- up to 3x GX4816 in one dLive C Class system
• 5U
• Plug and Play – no IP address configuration required
• Compatible with CAT5e and higher cables, maximum length 100 m
• Locking EtherCon ports
