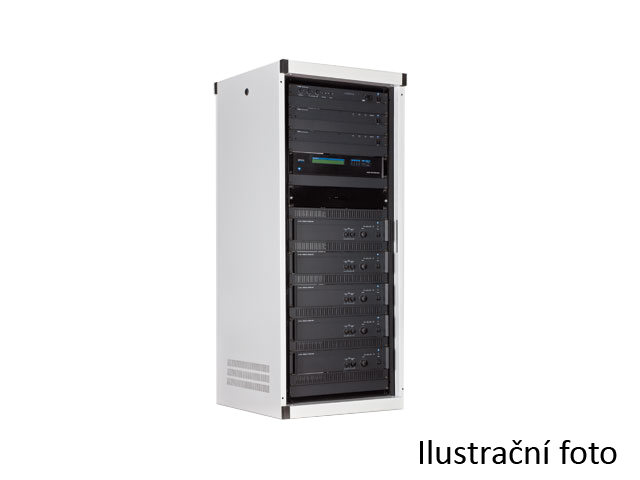

19” steel rack 42 U, removable side and rear panels, cable outlets at the base, thermostat-controlled ventilation, 600×2100×600 mm, 64 kg, grey • The CR 2600 series rack enclosures are tailored to accommodate all RCF 19" rack standard components. • The rack enclosures are heat-treated with epoxy powders to ensure durability against scratches, abrasions, and environmental factors. • The CR 2600 SERIES rack enclosures feature a straightforward assembly with four steel uprights secured to upper and lower panels. Features: • Compliant with IEC 297-2 dimensional standard • Constructed from RAL 7035 light grey painted steel • IP 30 protection level • Lower door and side panels facilitate component insertion post wiring operations • Rack earthing meets safety regulations • Optional front doors for component protection • 3 blowers activated by an included thermostat General specifications: • Type: 19" Rack cabinet • Unit: 42 U • Max load: 320 Kg • Thermal Dissipation at 25 °C: 3320 W • Thermal Dissipation at 35 °C: 2180 W • Colour: RAL 7035 • Protection level: IP 30 • Air flow volume ventilation kit: 300 m3/h Door section: • Model: AK 2642 (Code 173.60.030) • Type: Frontal door with safety glass • Weight: 21 / 46.29 Kg/Lbs Physical specification: • Height: 2000 / 78.74 mm/inch • Width: 600 / 23.62 mm/inch • Depth: 600 / 23.62 mm/inch • Net Weight: 68 / 149.91 Kg/Lbs Shipping information: • Package height: / mm/inch • Package width: / mm/inch • Package depth: / mm/inch • Shipping Weight: 96 / 211.64 Kg/Lbs
